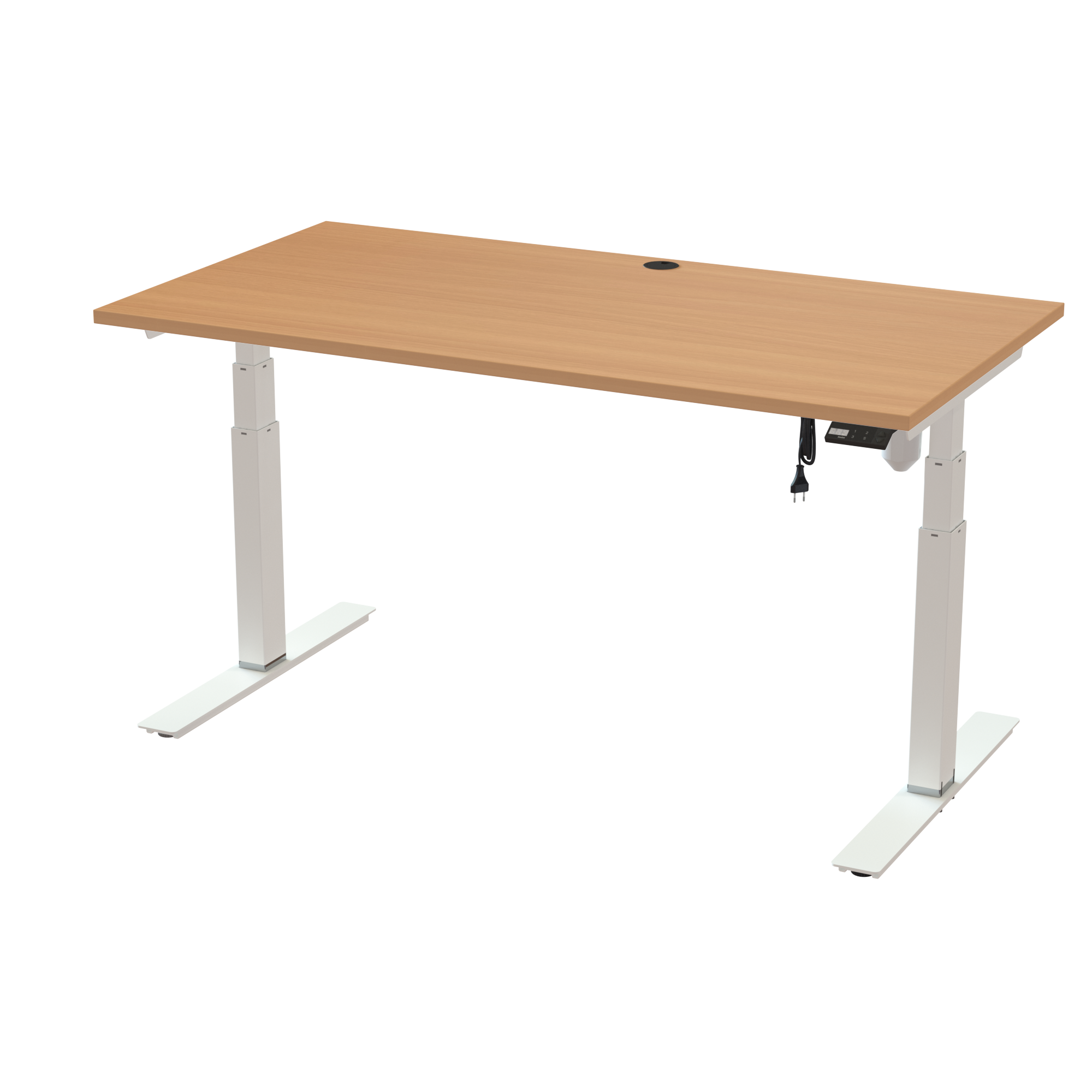

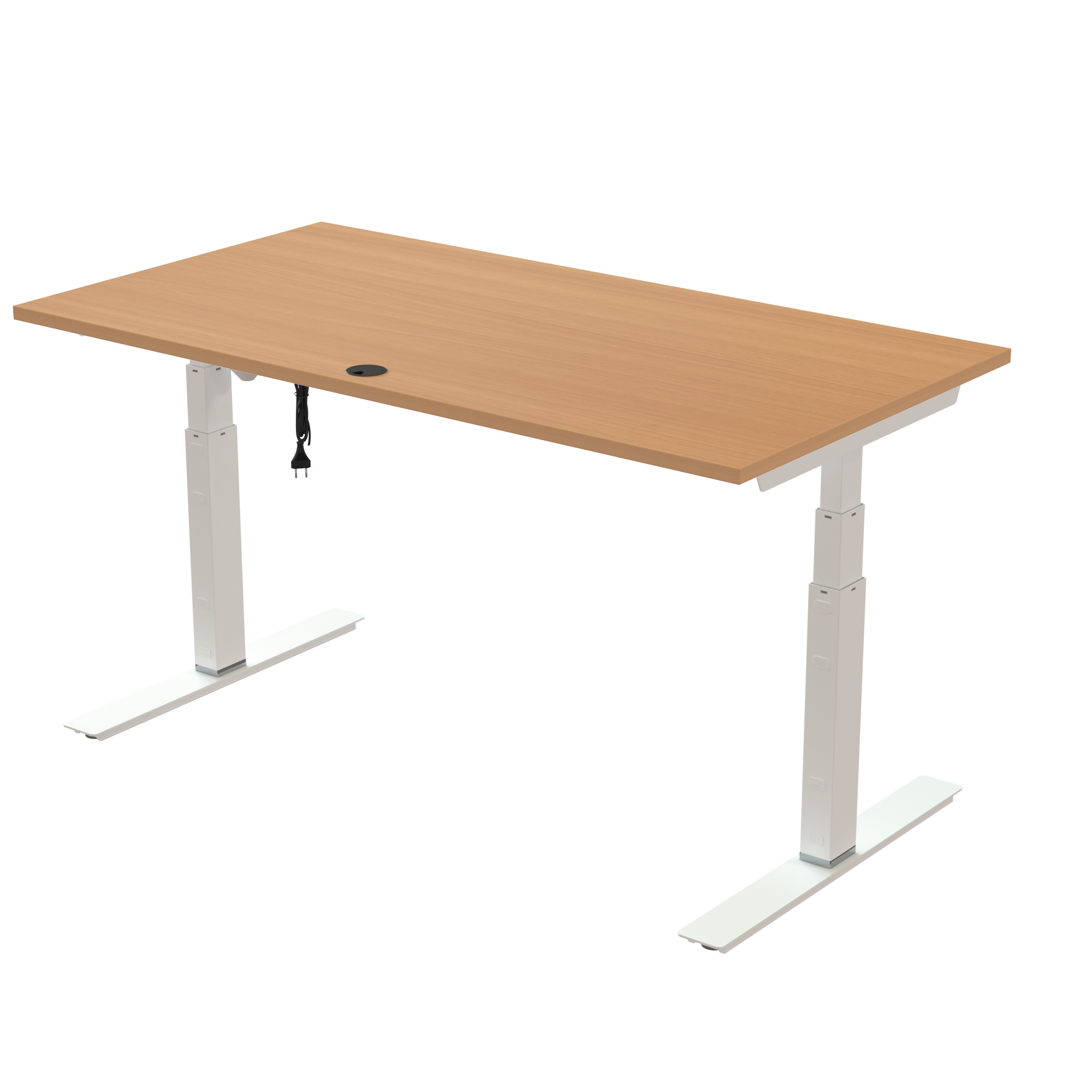

Sit Stand Desk | 150x80 cm | Beech with white frame

401-35 4W142 150-80S3 BM
401-35 4W142 150-80S3 BM
Sit Stand Desk | 150x80 cm | Beech with white frame
Sit Stand Desk | 150x80 cm | Beech with white frame
Sit Stand Desk | 150x80 cm | Beech with white frame
Sit Stand Desk | 150x80 cm | Beech with white frame
Sit Stand Desk | 150x80 cm | Beech with white frame
$ 1061 incl. GST
Item no.: 401-35 4W142 150-80S3 BM

This height adjustable desk features a T-frame design. The foot length is perfectly matched to the tabletop width, 1500 x 800 mm. Featuring an RAL 9016 (white) frame and an beech melamine tabletop, the design includes a chrome ring at the column base, a stylish, functional detail that can be easily detached to extend the adjustment range. With the chrome ring attached, the desk offers a stroke of 620-1270 mm; removing it allows the desk to accommodate users as short as 150 cm. The desk has a load capacity of 100 kg and is designed for a quick assembly in just 23 min.

The desk is supplied with a digital controller featuring three memory positions and integrated safety functions. The tactile arrow buttons provide clear directional feedback and can be operated by touch.


Table top specifications

  • Dimensions : 1500 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, it features a standard plastic grommet.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk is equipped with a digital controller with three programmable memory positions and integrated collision and anti-tilt protection. The tactile arrow buttons can easily be distinguished by touch.
  • Motor : ConSet’s robust and proven 1-motor solution
Control: _01-35 4W142 150-80S3 BM
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
401-35 4W142 150-80S3 BM
Description:
Sit Stand Desk | 150x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ141820Railset, 1420 mm, neutral$ 86,-$ 86,-
1150-80S3 BMSit-Stand Desk Top | 150x80 cm | Beech$ 210,-$ 210,-

Total
$ 1061,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX 4XPOWS25971,005704142161890
SQ141820141533,305704142141823
150-80S3 BM15787425,005704142148167
