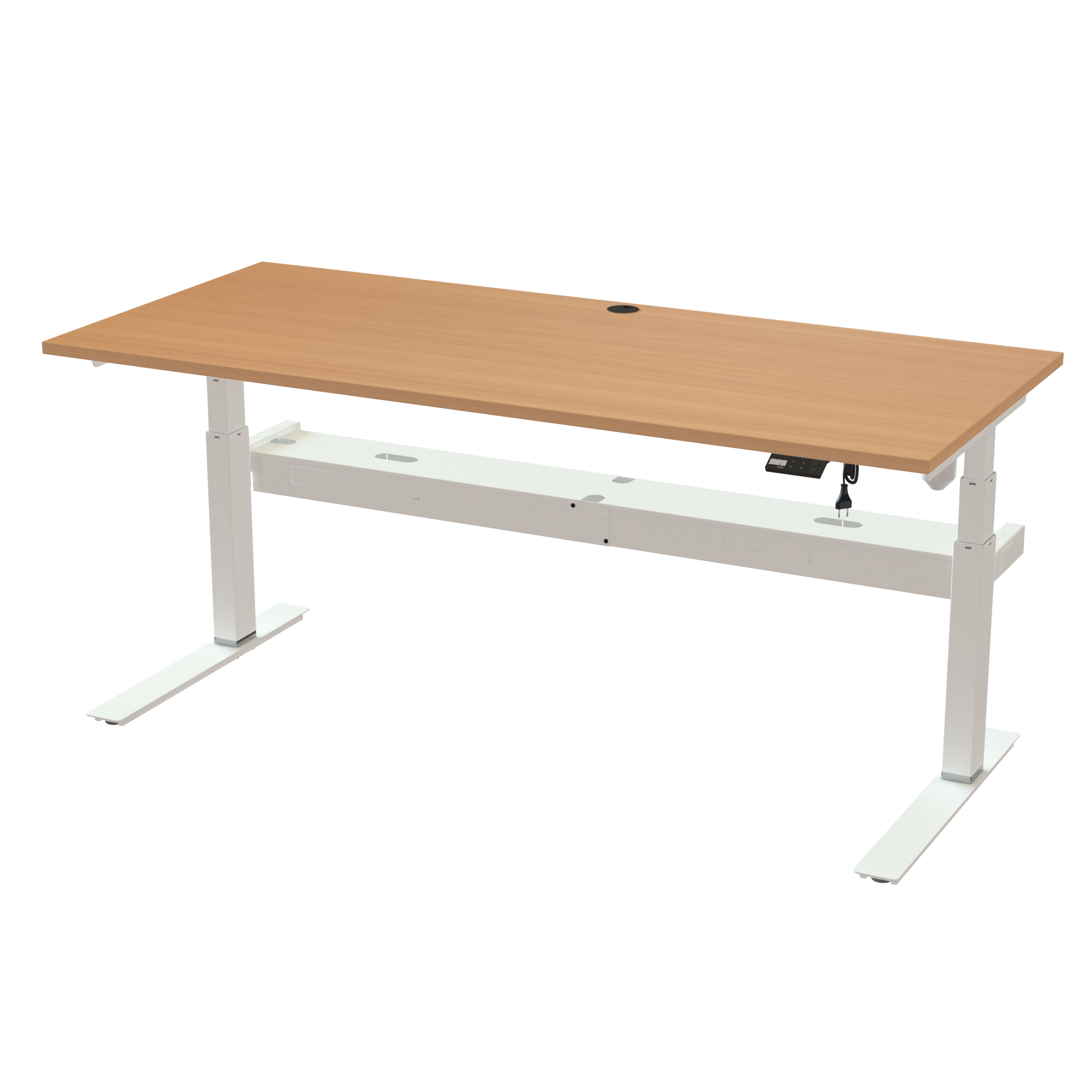

Sit Stand Desk | 180x80 cm | Beech with white frame

425-35 4W172 180-80S3 BM
425-35 4W172 180-80S3 BM
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
$ 1229 incl. GST
Item no.: 425-35 4W172 180-80S3 BM

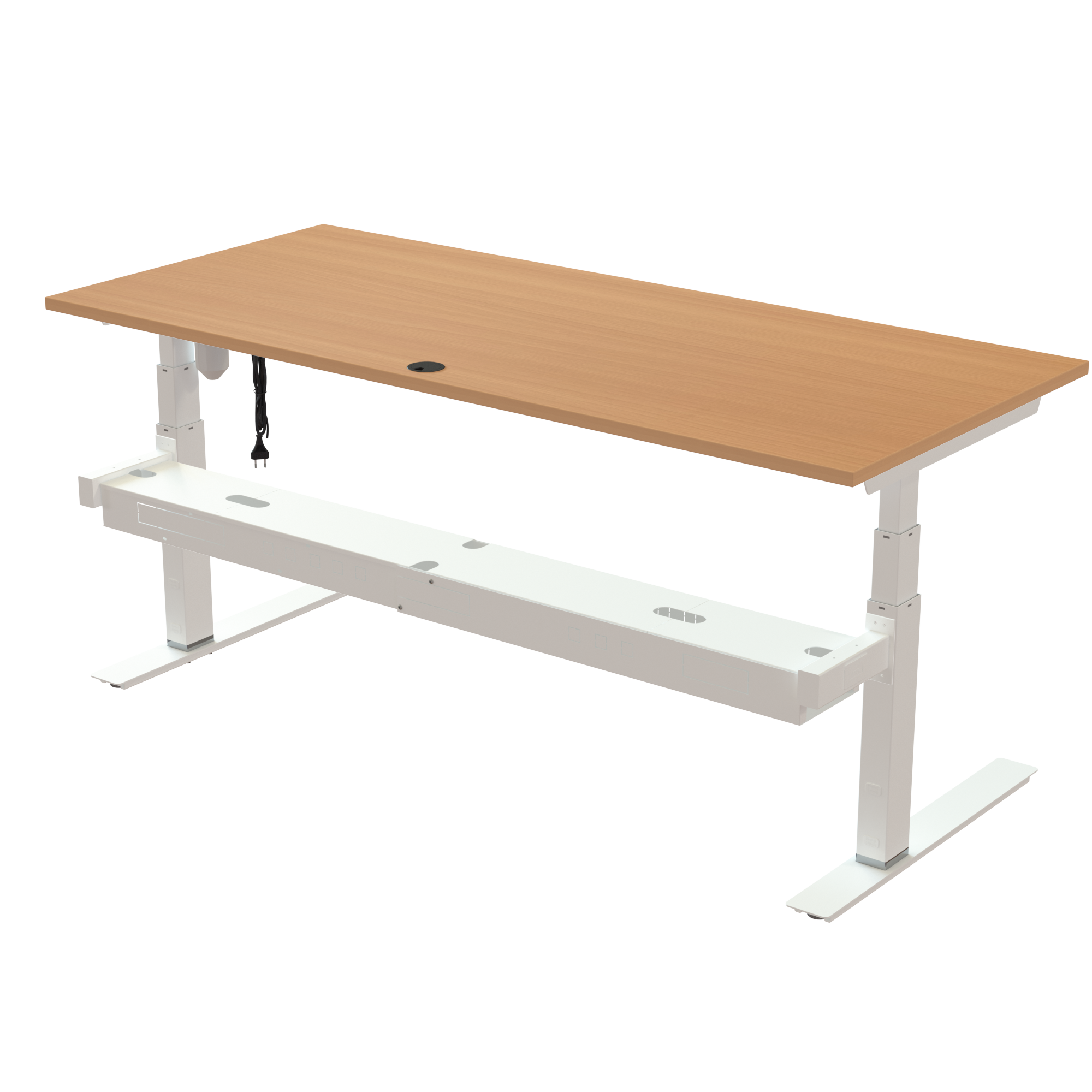

If you are looking for a C-frame sit-stand desk that prioritises legroom, this model is the answer. The off-centre column design enhances the feeling of space under the desk. It comes with an RAL 9016 (white) frame, an beech melamine tabletop, and a foot length matched to 1800 x 800 mm. Detach the chrome ring at the base to increase the stroke from 620-1270 mm to accommodate users as short as 150 cm. It offers an 100 kg load capacity and is designed for an assembly time of just 29 min.

The digital controller includes three preset memory positions along with collision and anti-tilt protection. The arrow-shaped tactile buttons allow the desk to be operated without visual attention. This workstation features a cable tray system that provides total control over your wiring, hiding messy cords behind a sleek top-loading cover while offering external side access to power points.


Table top specifications

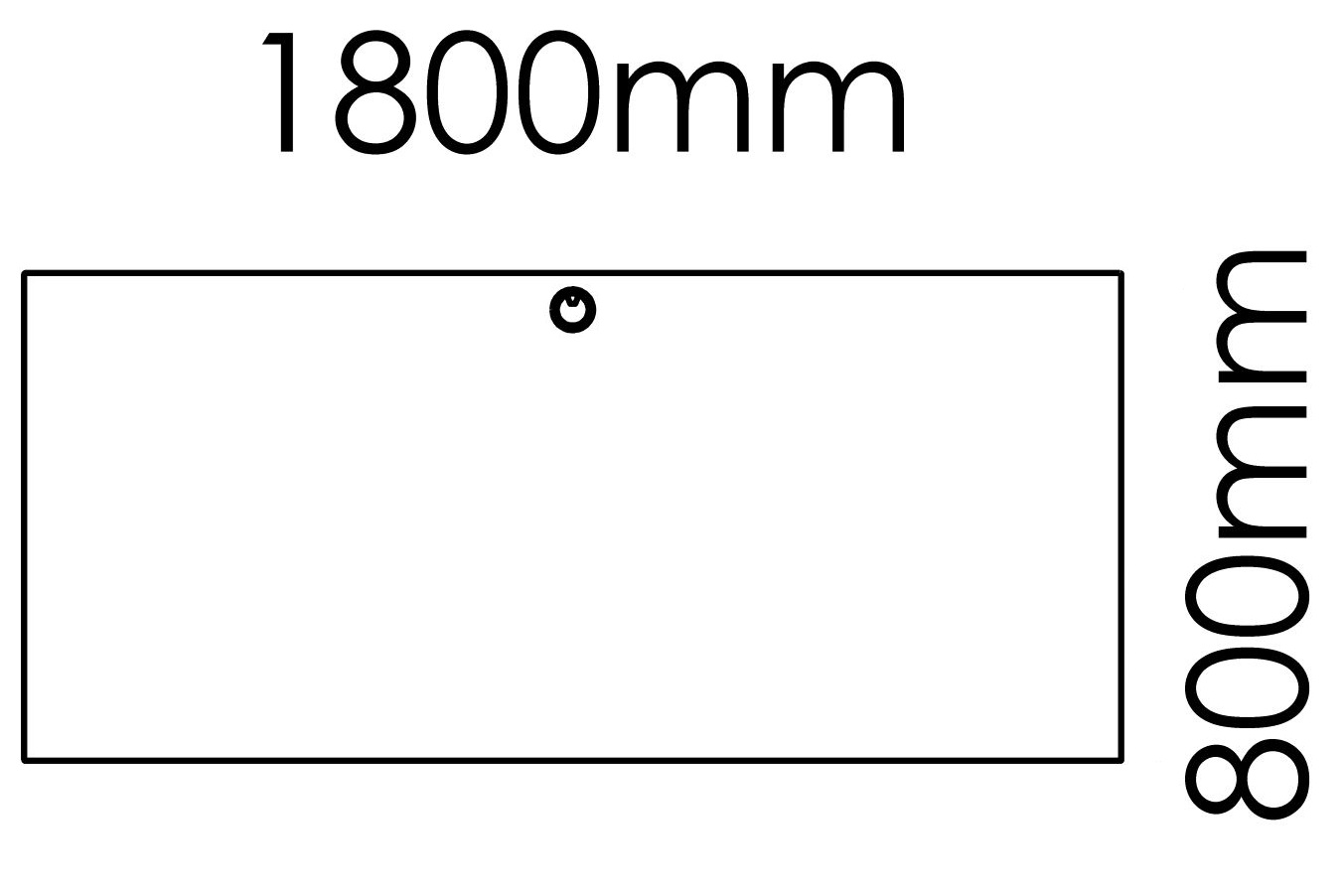

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, the tabletop It is fitted with a plastic grommet for cable entry.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk is supplied with a digital controller featuring three memory positions and integrated safety functions. The tactile arrow buttons provide clear directional feedback and can be operated by touch.
  • Motor : ConSet’s powerful and dependable 1-motor system
Table Size
Frame Color
Tabletop Color
Foot Design
Control Unit
Control: _25-35 4W172 180-80S3 BM
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
425-35 4W172 180-80S3 BM
Description:
Sit Stand Desk | 180x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX LW131-161Cabletray system, white$ 148,-$ 148,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 BMSit-Stand Desk Top | 180x80 cm | Beech$ 230,-$ 230,-

Total
$ 1229,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX LW131-16110120107,005704142150443
501-XX 4XPOWS25971,005704142161890
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
