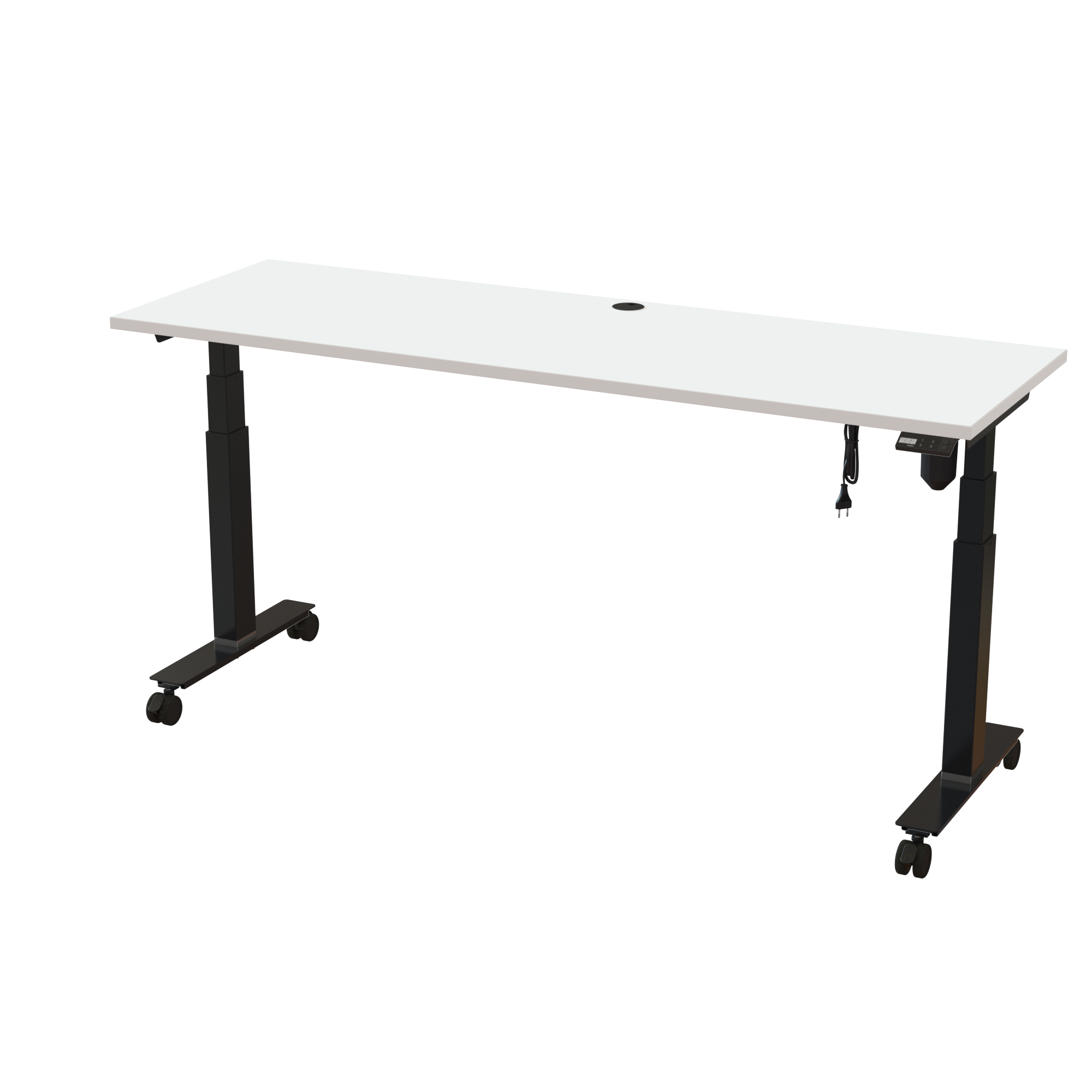

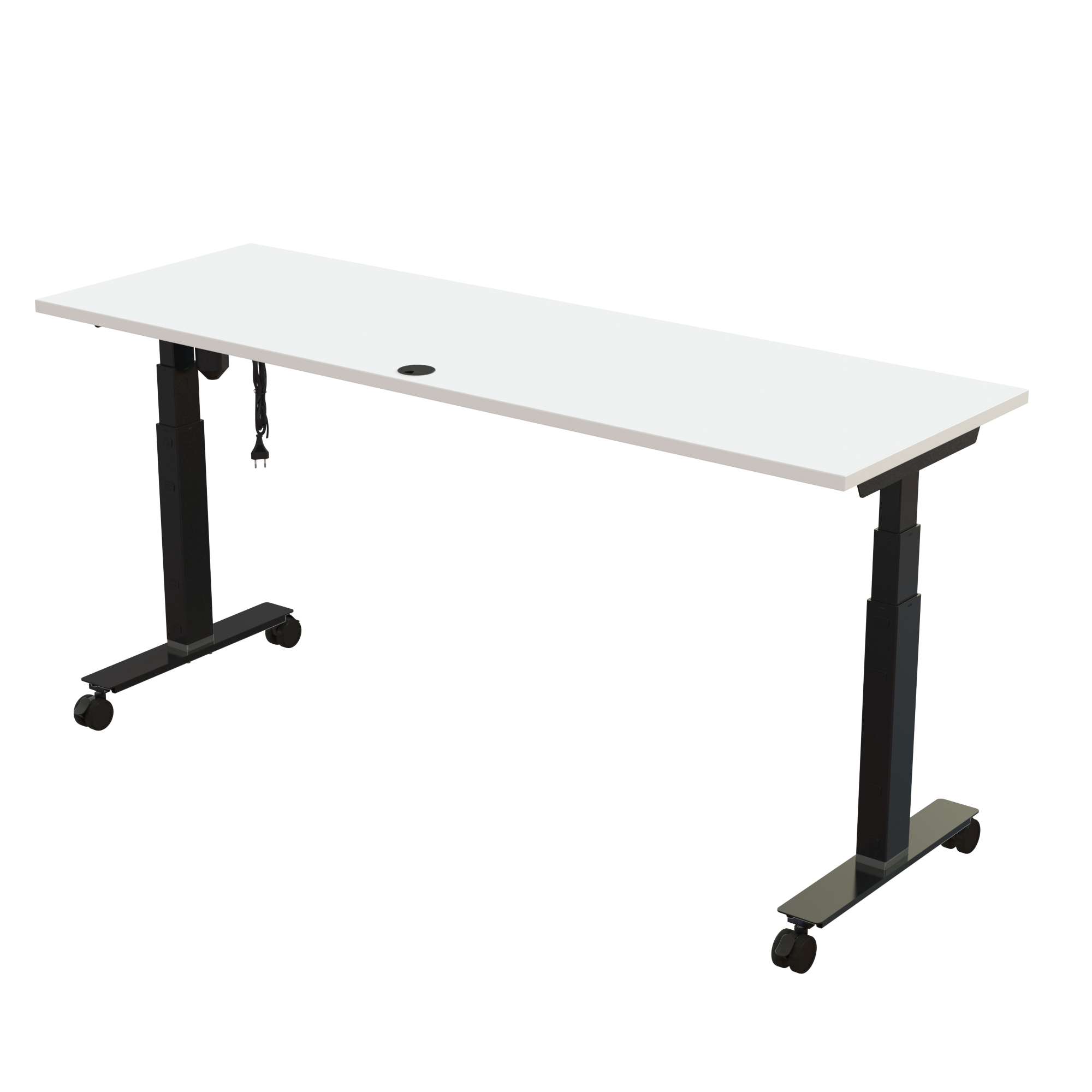

Sit Stand Desk | 180x60 cm | White with black frame

414-35 4B172 180-60S3 WM
414-35 4B172 180-60S3 WM
Sit Stand Desk | 180x60 cm | White with black frame
Sit Stand Desk | 180x60 cm | White with black frame
Sit Stand Desk | 180x60 cm | White with black frame
Sit Stand Desk | 180x60 cm | White with black frame
Sit Stand Desk | 180x60 cm | White with black frame
$ 1091 incl. GST
Item no.: 414-35 4B172 180-60S3 WM

Designed around a slim T-frame, this height adjustable desk is perfectly proportioned for narrow 1800 x 600 mm tabletops. Featuring an RAL 9004 (black) frame with an white melamine tabletop, it offers a standard height adjustment range of 620-1270 mm. The columns are fitted with removable 35 mm chrome rings. Removing the rings lowers the desk by 35 mm, making it suitable for users as short as 150 cm. Combining a load capacity of 100 kg with an assembly time of only 28 min, this desk is designed for efficient installation and everyday reliability.

The desk has a digital controller with three memory positions and built-in safety protection. The tactile buttons are easy to find by touch, so you don't have to look down to adjust the height. The desk comes with castors mounted onto the desk frame for maximum flexibility, making it simple to slide the workstation out of the way or into a new position.


Table top specifications

  • Dimensions : 1800 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the tabletop comes with a cable grommet included.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: With three memory positions and integrated safety sensors, the digital controller makes desk adjustments seamless. The tactile arrow buttons are easy to identify by feel.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
414-35 4B172 180-60S3 WM
Description:
Sit Stand Desk | 180x60 cm | White with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB055TFeet and brackets T60, black$ 95,-$ 95,-
1501-XX HXX2Castorset (4 in black), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-60S3 WMSit-Stand Desk Top | 180x60 cm | White$ 172,-$ 172,-

Total
$ 1091,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB055T681066,705704142162323
501-XX HXX2121251,205704142159446
501-XX 4XPOWS25971,005704142161890
SQ138890171534,205704142138892
180-60S3 WM18767423,005704142151099
