Manufacturer of electric height adjustable desks ...
Product-groups    Products

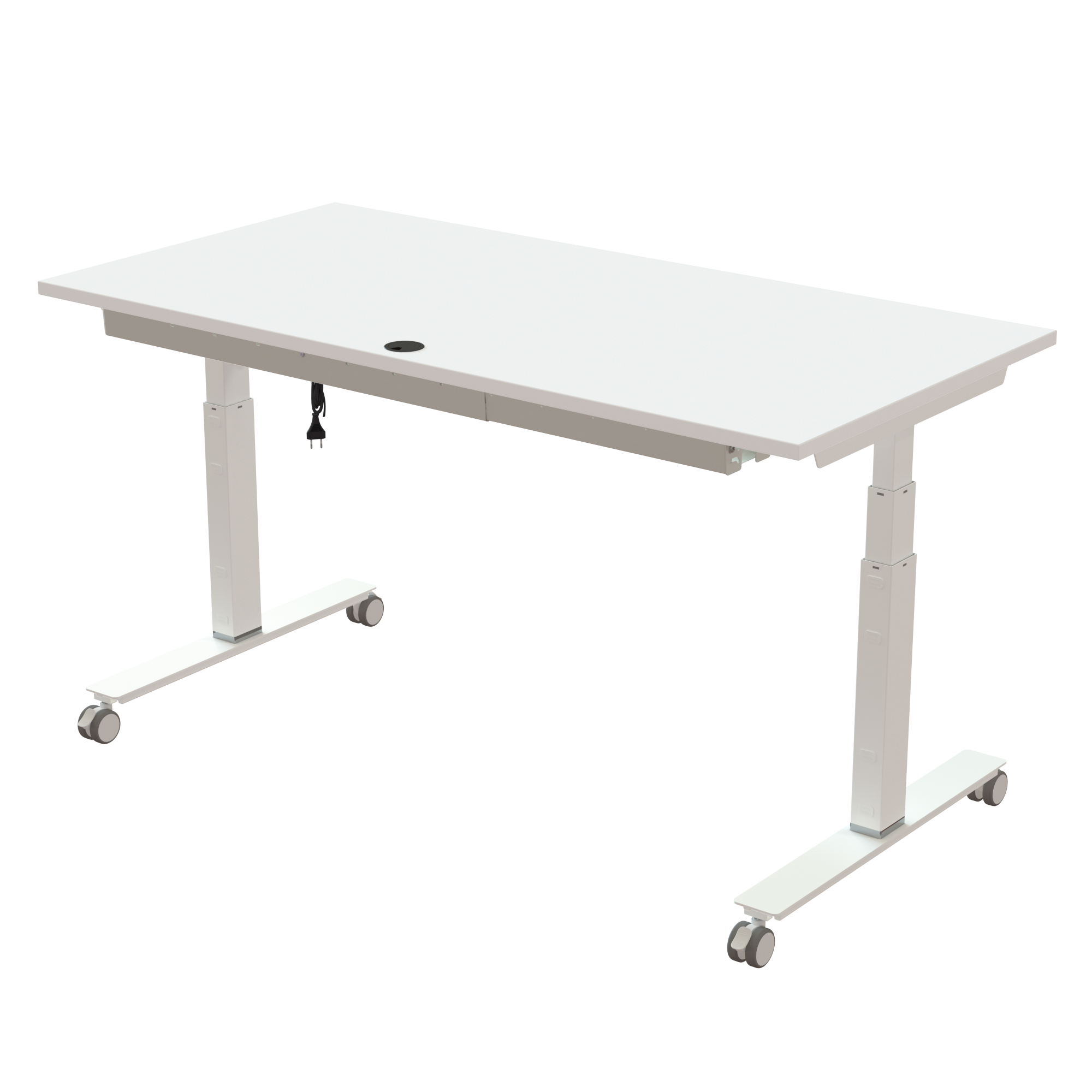

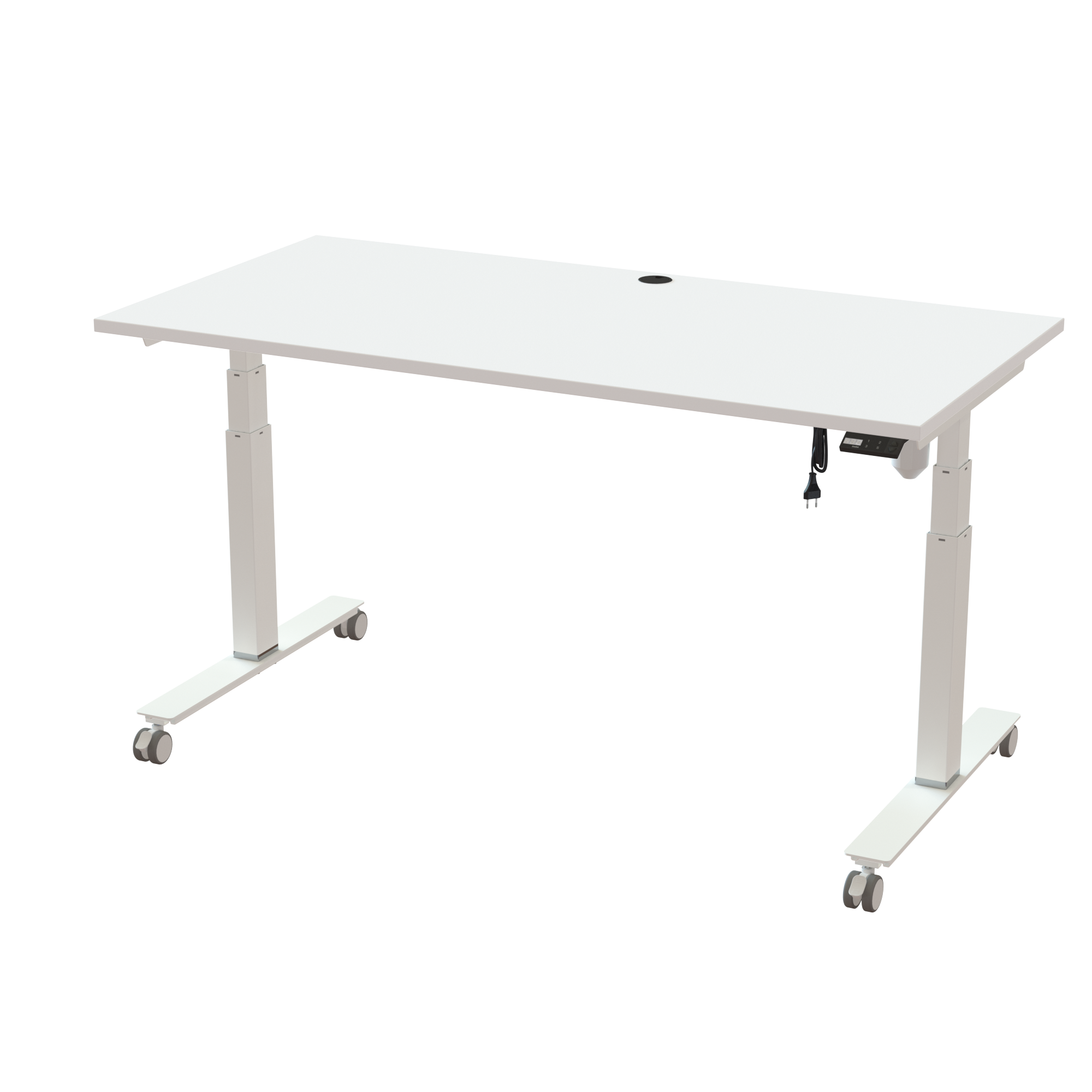

Sit Stand Desk | 160x80 cm | White with white frame

403-35 4W152 160-80S3 WM
403-35 4W152 160-80S3 WM
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
$ 1186 incl. GST
Item no.: 403-35 4W152 160-80S3 WM

This height-adjustable desk pairs a symmetrical foot and top arm design with reliable everyday performance for a 1600 x 800 mm tabletop. The included 35 mm chrome base ring enables the complete 620-1270 mm stroke and can be removed to lower the minimum height for shorter users. With a 100 kg load capacity, an 38 min assembly time, and a choice of white with an melamine surface, it is suited to both home and professional workspaces.

The digital controller provides three memory positions together with collision and anti-tilt protection. Thanks to the tactile arrow buttons, the desk can be adjusted by feel alone. The desk comes with smooth-rolling castors for flexible room placement and includes a cable tray running along the underside of the tabletop. This cable tray provides a convenient hinged design for easy opening right beneath the cable grommet exit point, keeping wires completely out of sight. It is RAL 9016 (white) frame coloured to match the desk frame perfectly.


Table top specifications

  • Dimensions : 1600 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the tabletop comes with a cable grommet included.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: Included with the desk is a digital controller with three memory settings and collision and anti-tilt protection. The tactile buttons allow quick and intuitive operation by touch.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
403-35 4W152 160-80S3 WM
Description:
Sit Stand Desk | 160x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-80S3 WMSit-Stand Desk Top | 160x80 cm | White$ 184,-$ 184,-

Total
$ 1186,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX CW096-166888153,805704142144800
501-XX HXX1121251,205704142152621
501-XX 4XPOWS25971,005704142161890
SQ134460151533,105704142134467
160-80S3 WM16787423,005704142132951
