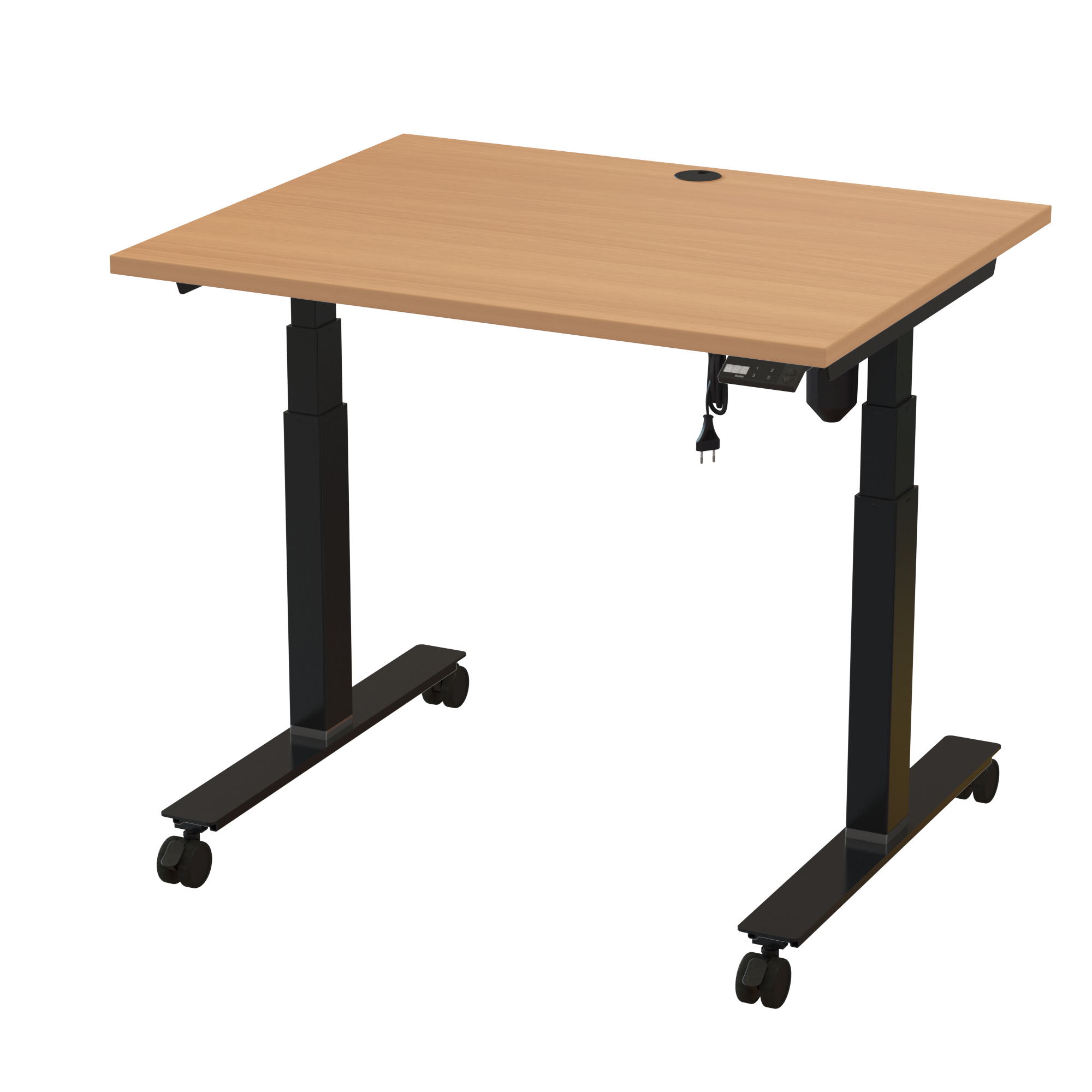

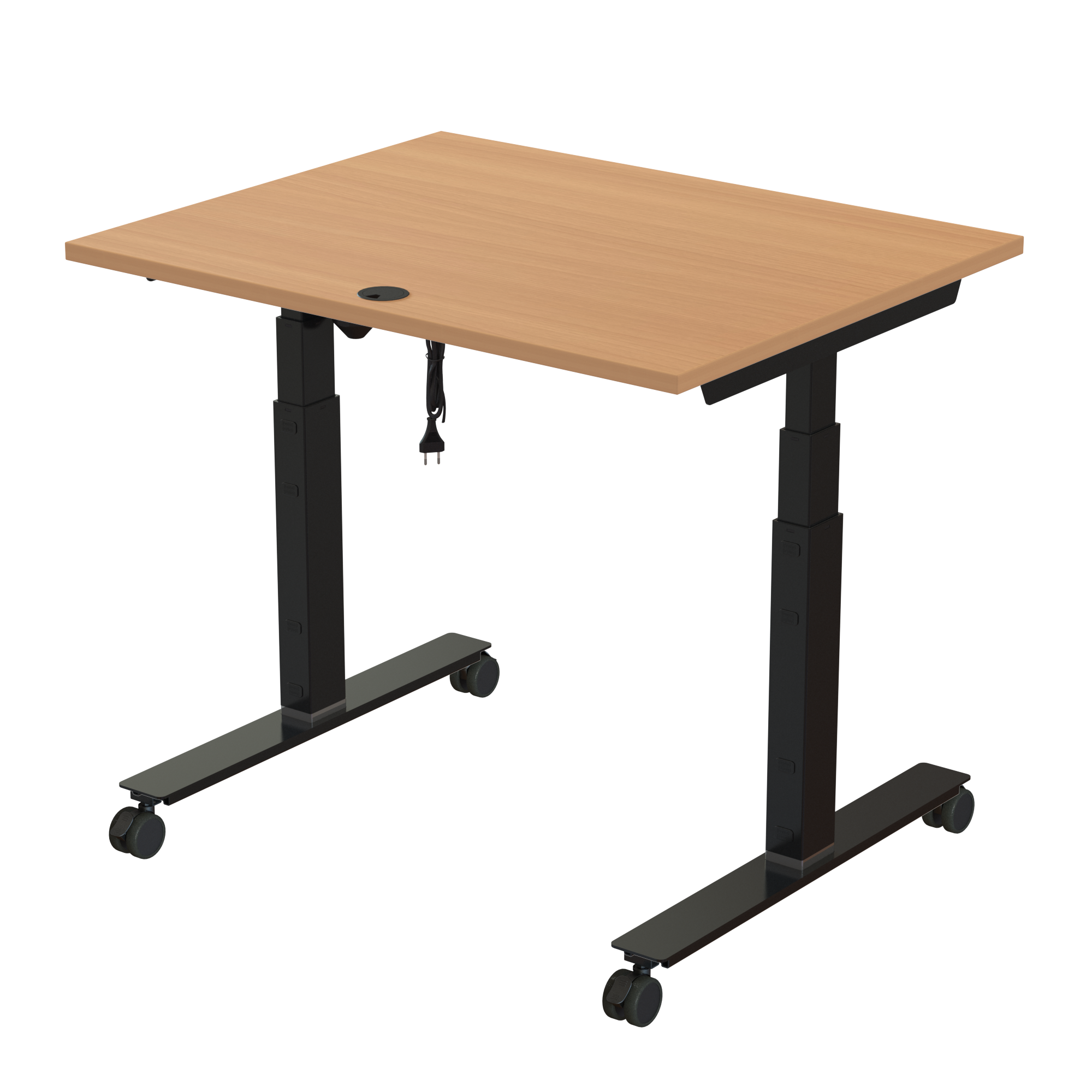

Sit Stand Desk | 100x80 cm | Beech with black frame

404-35 4B092 100-80S3 BM
404-35 4B092 100-80S3 BM
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
$ 1126 incl. GST
Item no.: 404-35 4B092 100-80S3 BM

A symmetrical layout and centered lifting column make this adjustable desk a practical choice for a 1000 x 800 mm tabletop. The included 35 mm chrome base ring allows the frame to reach its full 620-1270 mm stroke, while removing it improves accessibility for users from 150 cm tall. The frame provides a 100 kg load capacity, an 24 min assembly time, and comes in beech with an melamine surface.

Included with the desk is a digital controller with three memory settings and collision and anti-tilt protection. The tactile buttons allow quick and intuitive operation by touch. The desk comes with castors mounted onto the desk frame for maximum flexibility, making it simple to slide the workstation out of the way or into a new position.


Table top specifications

  • Dimensions : 1000 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, it features a standard plastic grommet.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A digital controller with three preset memory positions is included as standard. The tactile arrow buttons allow intuitive operation without having to look at the control panel.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
404-35 4B092 100-80S3 BM
Description:
Sit Stand Desk | 100x80 cm | Beech with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB075TFeet and brackets T80, black$ 111,-$ 111,-
1501-XX HXX2Castorset (4 in black), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ141480Railset, 920 mm, neutral$ 86,-$ 86,-
1100-80S4 BMTabletop S4 | 100x80 cm | Beech$ 191,-$ 191,-

Total
$ 1126,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB075T881169,205704142162262
501-XX HXX2121251,205704142159446
501-XX 4XPOWS25971,005704142161890
SQ14148091531,895704142141489
100-80S4 BM10787415,005704142160763
