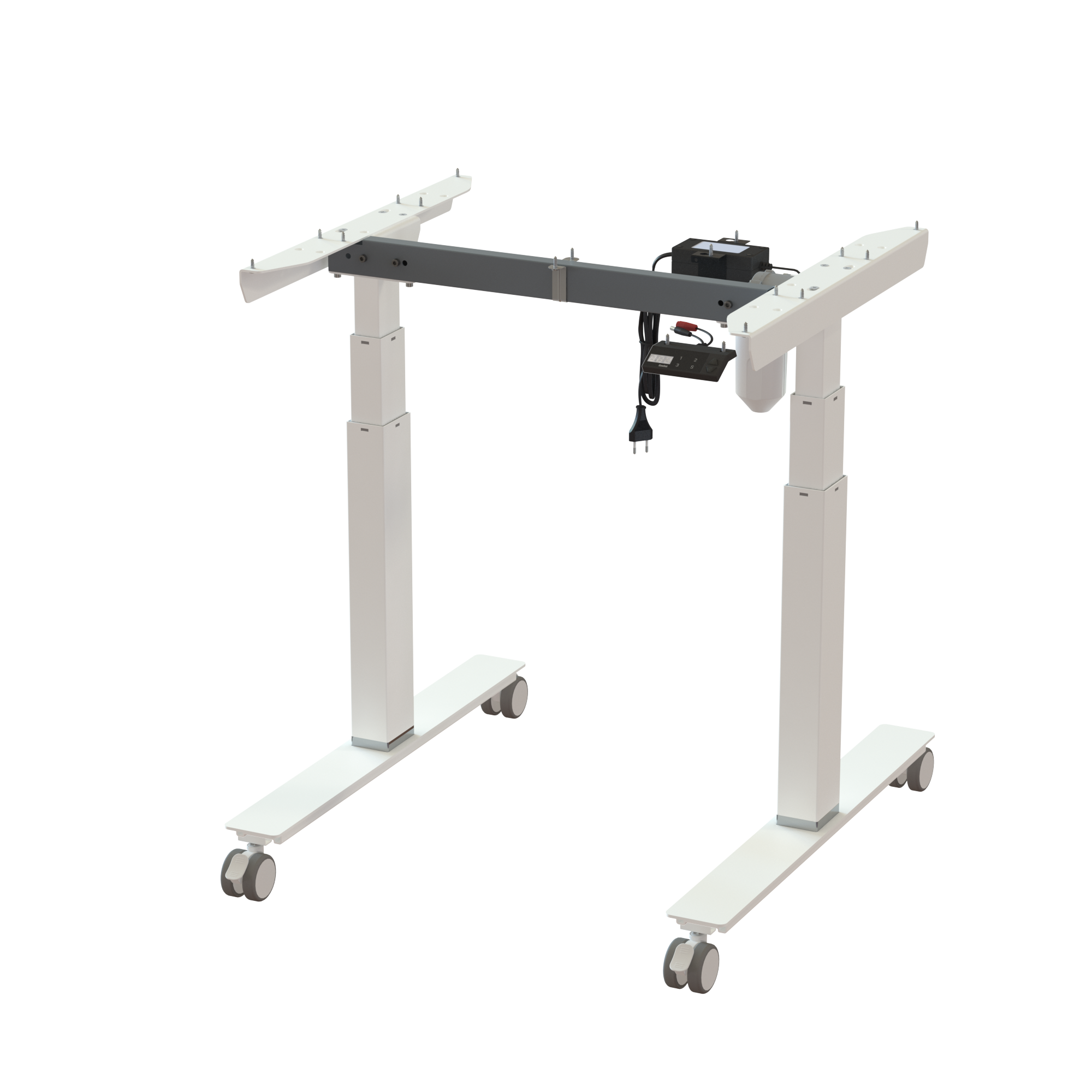

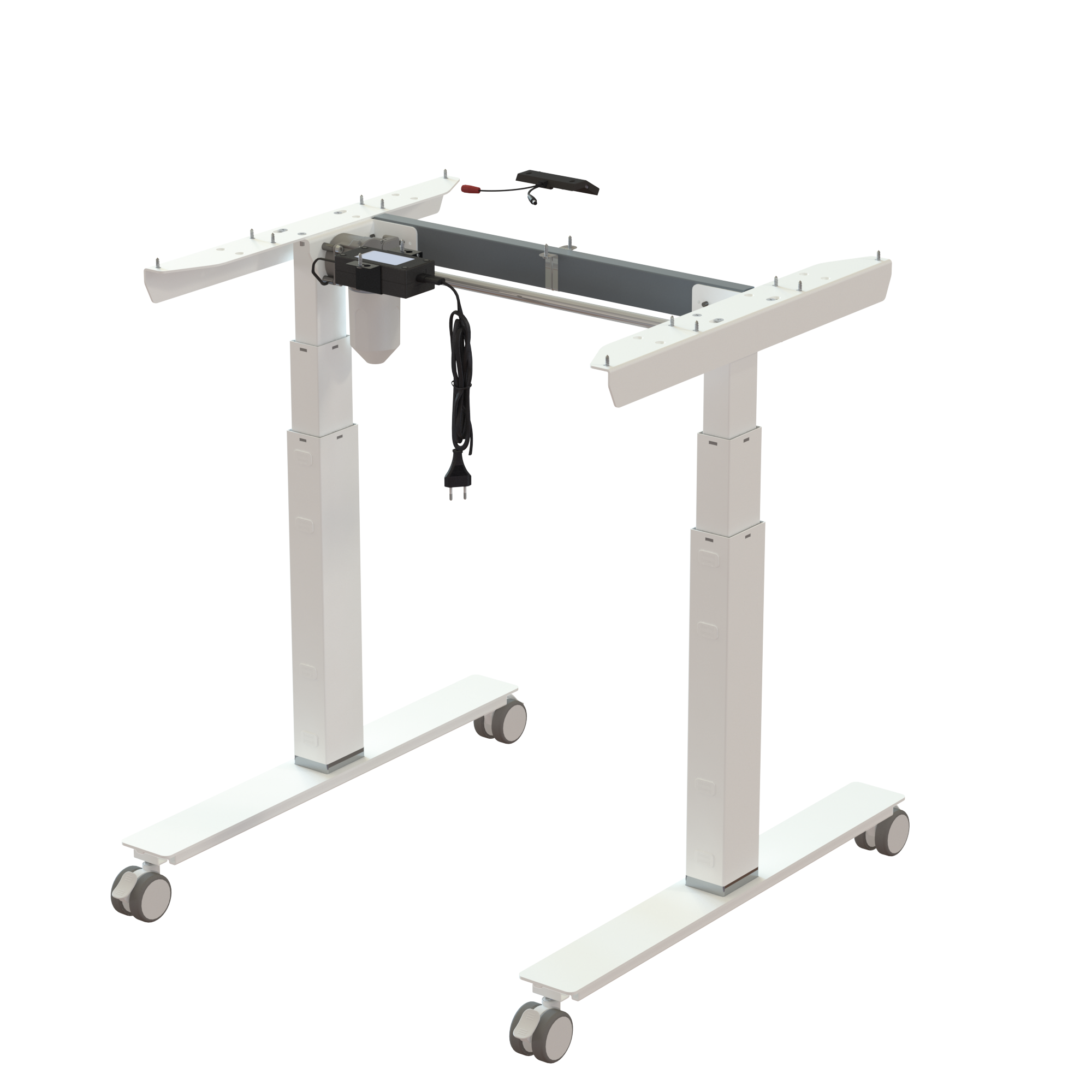

Our symmetrical T-frame height adjustable desk frame has a centered column to provide excellent stability and a clean look for your workstation setup. The foot length is perfectly calibrated to the 800 mm width. Built with an RAL 9016 (white) frame, it includes a functional 35 mm chrome ring at the base. The stroke is 620-1270 mm with the ring attached, or you can remove it to extend the adjustment range down to 150 cm. It is built with a load capacity of 100 kg and is ready for use in just 18 min.

The desk frame is supplied with a digital controller featuring three memory positions and integrated safety functions. The tactile buttons provide clear feedback and are easy to operate by touch.
The desk frame is designed with standard castors for easy movement.

Frame specifications

• Frame width: 720 mm
• Frame depth: 750 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame is equipped with a digital controller featuring three memory positions, as well as collision and anti-tilt protection. The tactile buttons can be identified by touch, allowing easy operation without looking at the control panel.
• Motor : ConSet’s efficient and reliable 1-motor system
