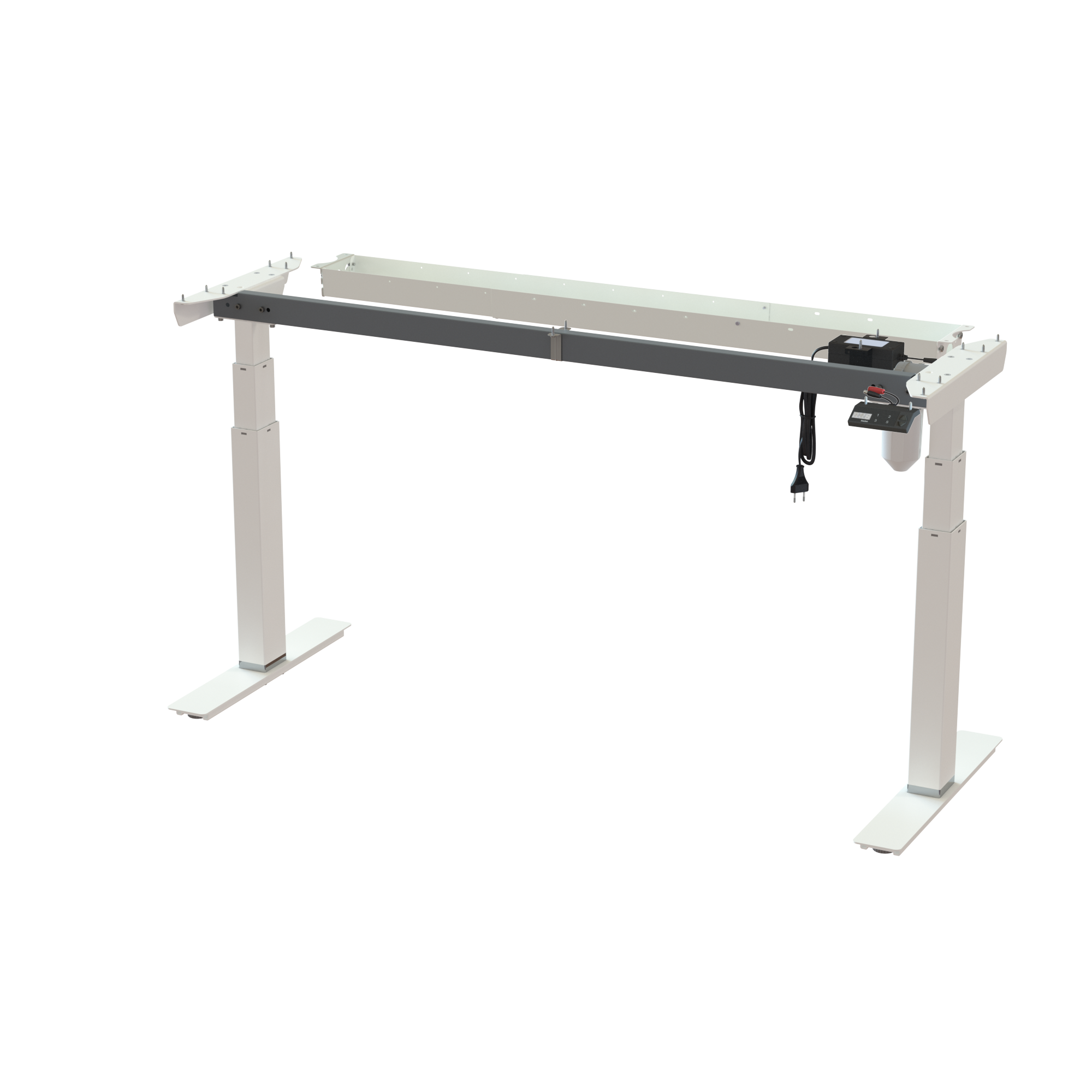

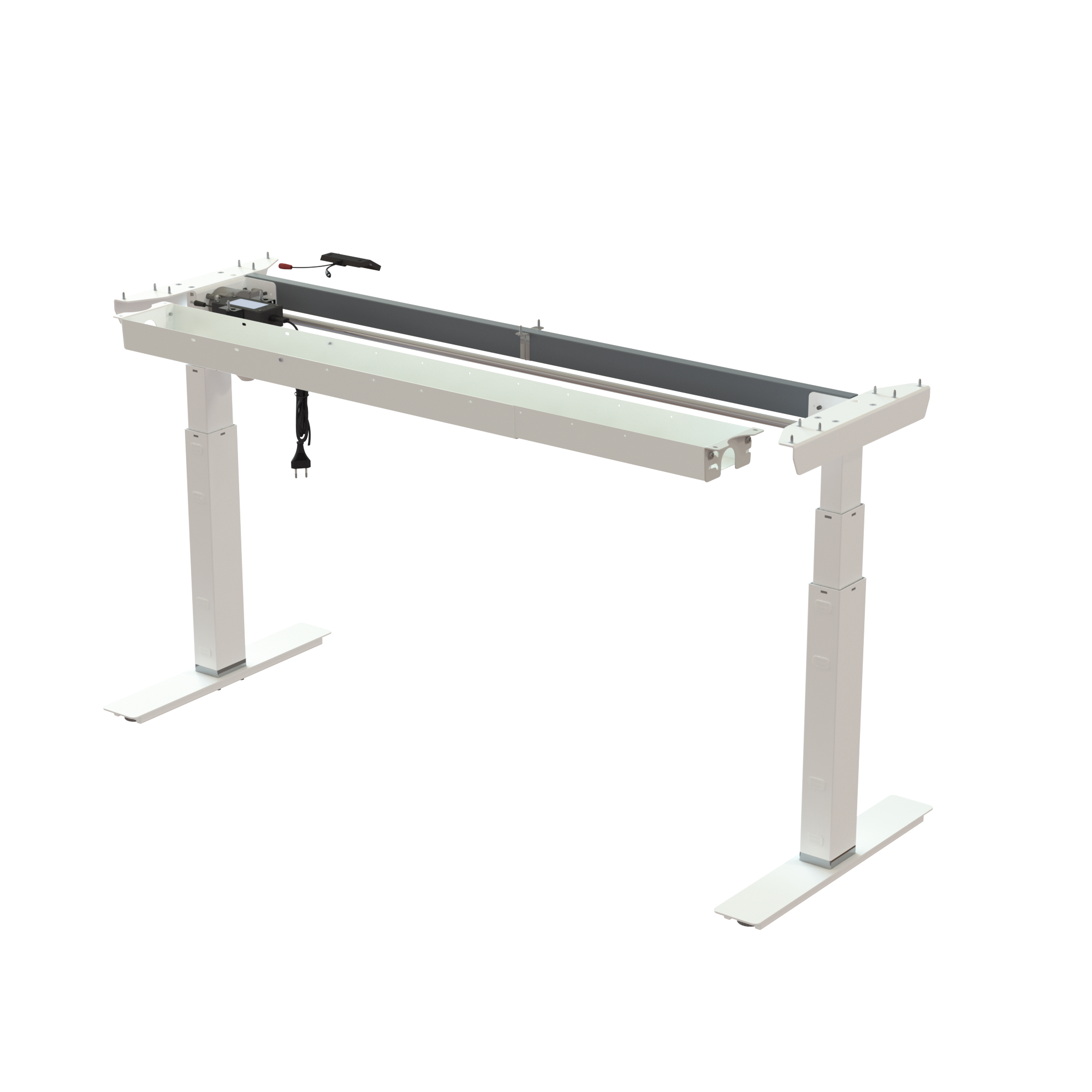

Perfectly suited for slimmer setups, this symmetrical T-frame height adjustable desk frame provides excellent stability despite its compact footprint. The central column ensures a balanced, clean aesthetic underneath. The foot length is matched to the 600 mm width. Built with an RAL 9016 (white) frame, it includes a detachable 35 mm chrome ring; with this ring attached, the stroke is 620-1270 mm. Remove it to extend the adjustment range for users down to 150 cm. It offers a load capacity of 100 kg and is ready for use in just 25 min.

The digital controller includes three memory positions along with collision and anti-tilt protection. The tactile buttons allow the desk frame to be operated without visual attention.
We have included a personal cable tray that attaches securely to the underside of the tabletop once you mount the desktop surface.

Frame specifications

• Frame width: 1420 mm
• Frame depth: 550 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame is supplied with a digital controller featuring three memory positions and integrated safety functions. The tactile buttons provide clear feedback and are easy to operate by touch.
• Motor : ConSet’s efficient and reliable 1-motor system
