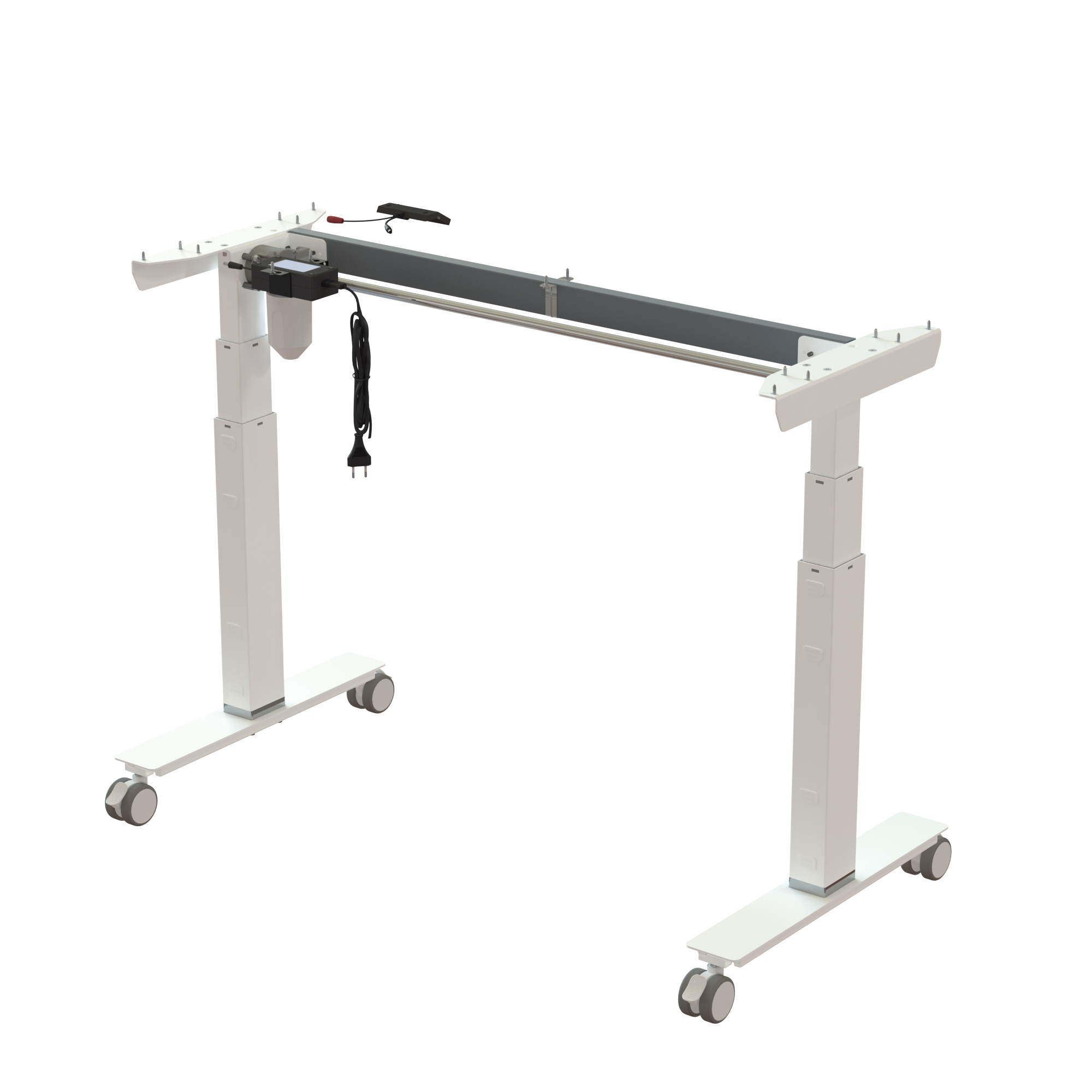

Our slim, symmetrical T-frame height adjustable desk frame has a central column to provide perfect balance for your compact workstation setup. The foot length is perfectly calibrated to the 600 mm width. With an RAL 9016 (white) frame, it includes a functional 35 mm chrome ring at the base. The stroke is 620-1270 mm with the ring attached, or you can remove it to extend the adjustment range down to 150 cm. It provides a load capacity of 100 kg and is ready for use in just 19 min.

The desk frame is equipped with a digital controller featuring three programmable memory positions and integrated collision and anti-tilt protection. Tactile buttons provide easy operation by touch.
Fitted with standard castors, this desk frame offers great mobility.

Frame specifications

• Frame width: 1120 mm
• Frame depth: 550 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame features a digital control panel with three memory positions and built-in safety functions. The tactile buttons make the controls easy to identify without looking.
• Motor : ConSet’s reliable and thoroughly tested 1-motor system
