Sit Stand Desk | 180x80 cm | White with white frame

422-35 4W172 180-80S3 WM
422-35 4W172 180-80S3 WM
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
$ 1148 incl. GST
Item no.: 422-35 4W172 180-80S3 WM

Create a more accessible and active workstation with this C-frame standing desk, custom-matched to the 1800 x 800 mm tabletop profile. The 35 mm chrome ring is a polished design accent that adds a premium touch to the floor-level profile. It can also be removed to expand the 620-1270 mm stroke range for users from 150 cm. Offers an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface option, an 100 kg load capacity, and a time-saving 34 min assembly time.

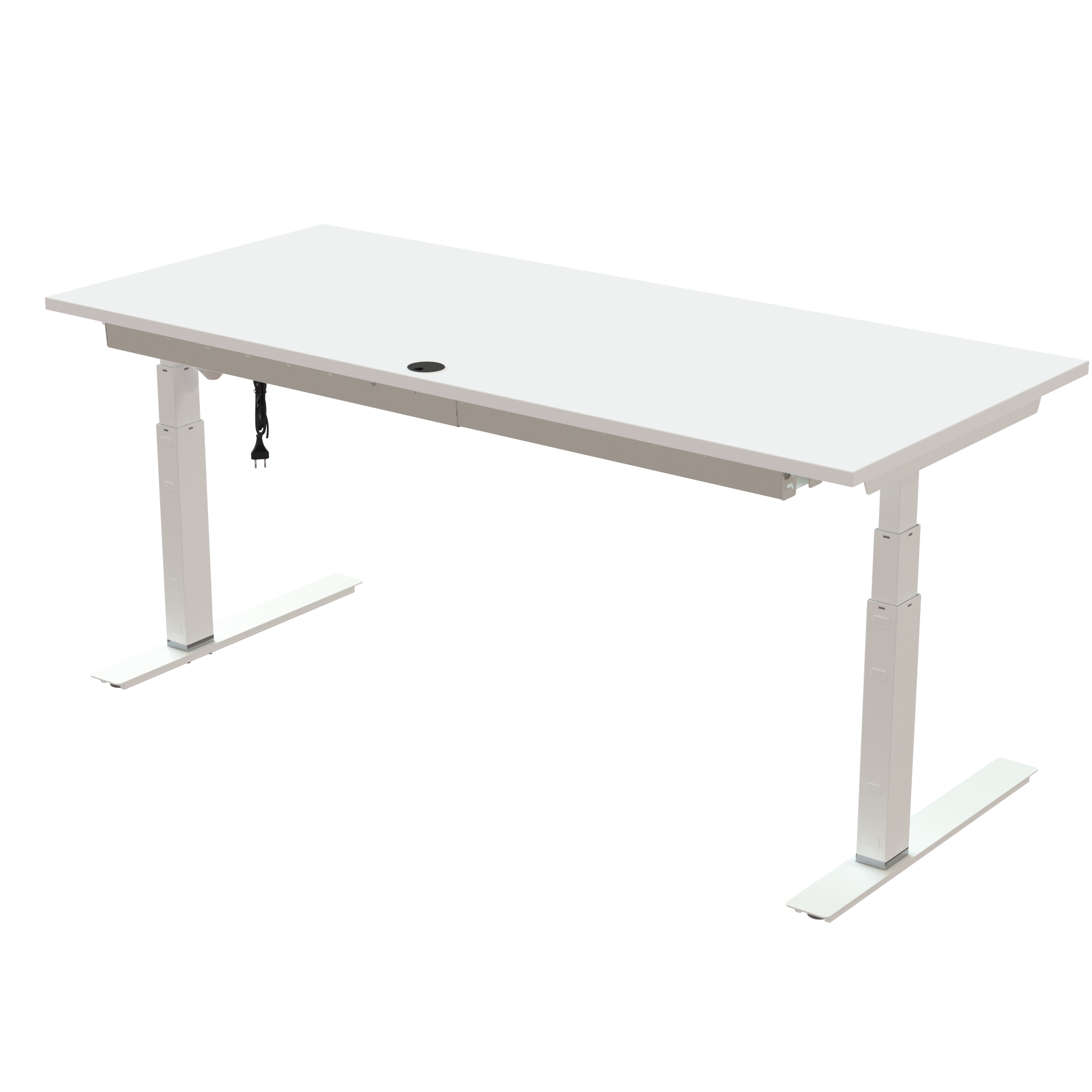

Included with the desk is a digital controller with three memory settings and collision and anti-tilt protection. The tactile buttons allow quick and intuitive operation by touch. The desk has a specialized cable tray mounted under the tabletop, achieving complete convenience with a hinged design that opens easily. By placing it right under the cable grommet, wires have a direct route from the desktop exit point straight into the tray. It is RAL 9016 (white) frame coloured, same as the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, a plastic cable entry point is included by default.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: Included with the desk is a digital controller with three memory settings and collision and anti-tilt protection. The tactile buttons allow quick and intuitive operation by touch.
  • Motor : ConSet’s tested and reliable 1-motor drive solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
422-35 4W172 180-80S3 WM
Description:
Sit Stand Desk | 180x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 WMSit-Stand Desk Top | 180x80 cm | White$ 230,-$ 230,-

Total
$ 1148,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX CW096-166888153,805704142144800
501-XX 4XPOWS25971,005704142161890
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
