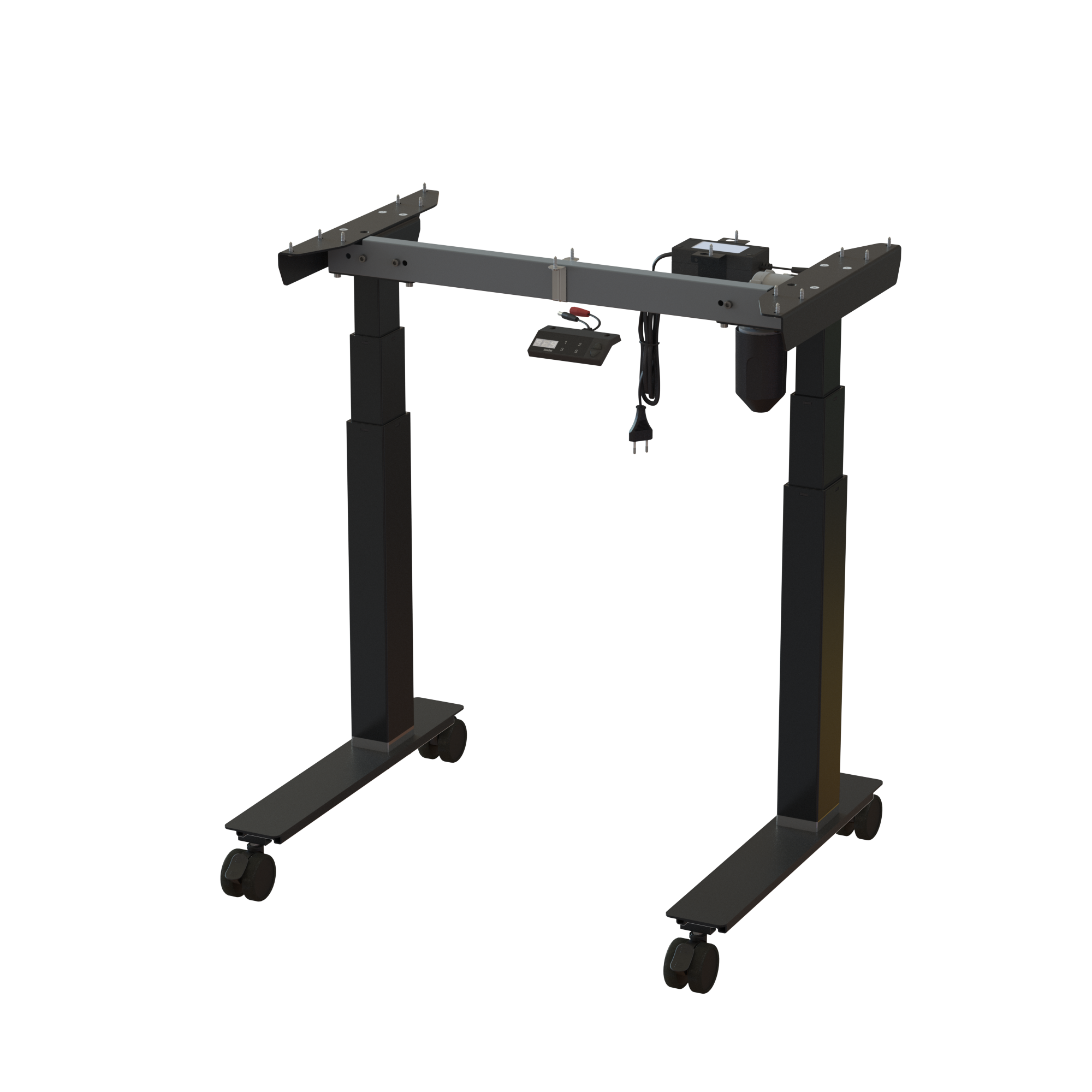

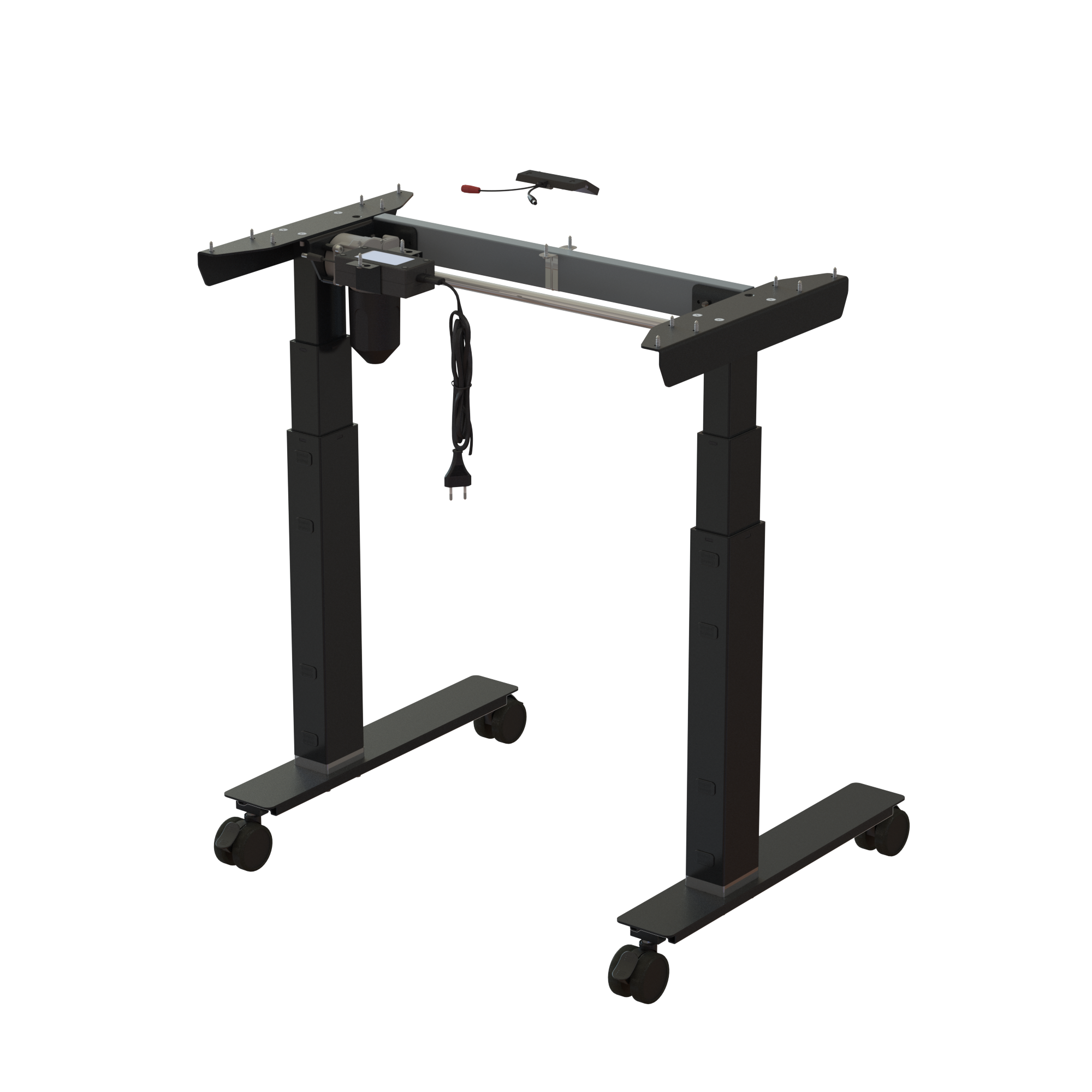

This compact C-frame sit-stand desk frame is the ideal solution for slim setups, providing an unobstructed area for your legs. The off-centre column design ensures a roomy feeling under the frame, even on smaller frame depths. With an RAL 9004 (black) frame and a foot length matched to the 600 mm width, it is built for quality. The stroke is 620-1270 mm with the detachable 35 mm chrome ring attached at the base, which can be removed to adjust the range for users from 150 cm. It delivers a load capacity of 100 kg and is designed for a quick assembly in just 18 min.

The desk frame is equipped with a digital controller featuring three memory positions, as well as collision and anti-tilt protection. The tactile buttons can be identified by touch, allowing easy operation without looking at the control panel.
This desk frame is fitted with standard castors for mobility.

Frame specifications

• Frame width: 720 mm
• Frame depth: 550 mm
• Material/finish: Powdercoated steel RAL 9004 (black)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The digital controller includes three memory positions along with collision and anti-tilt protection. The tactile buttons allow the desk frame to be operated without visual attention.
• Motor : ConSet’s strong and tried-and-tested 1-motor solution
