Manufacturer of electric height adjustable desks ...
Product-groups    Products

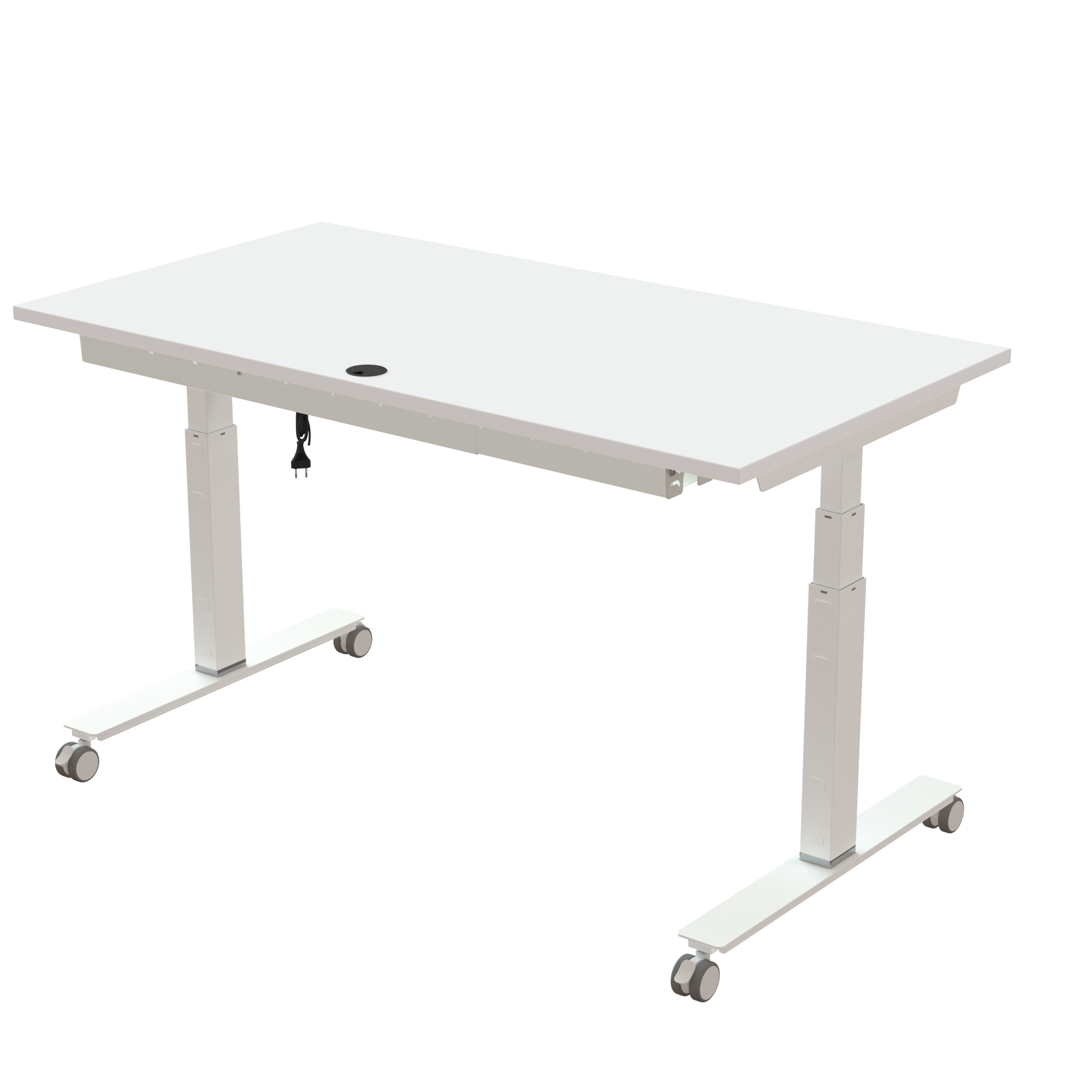

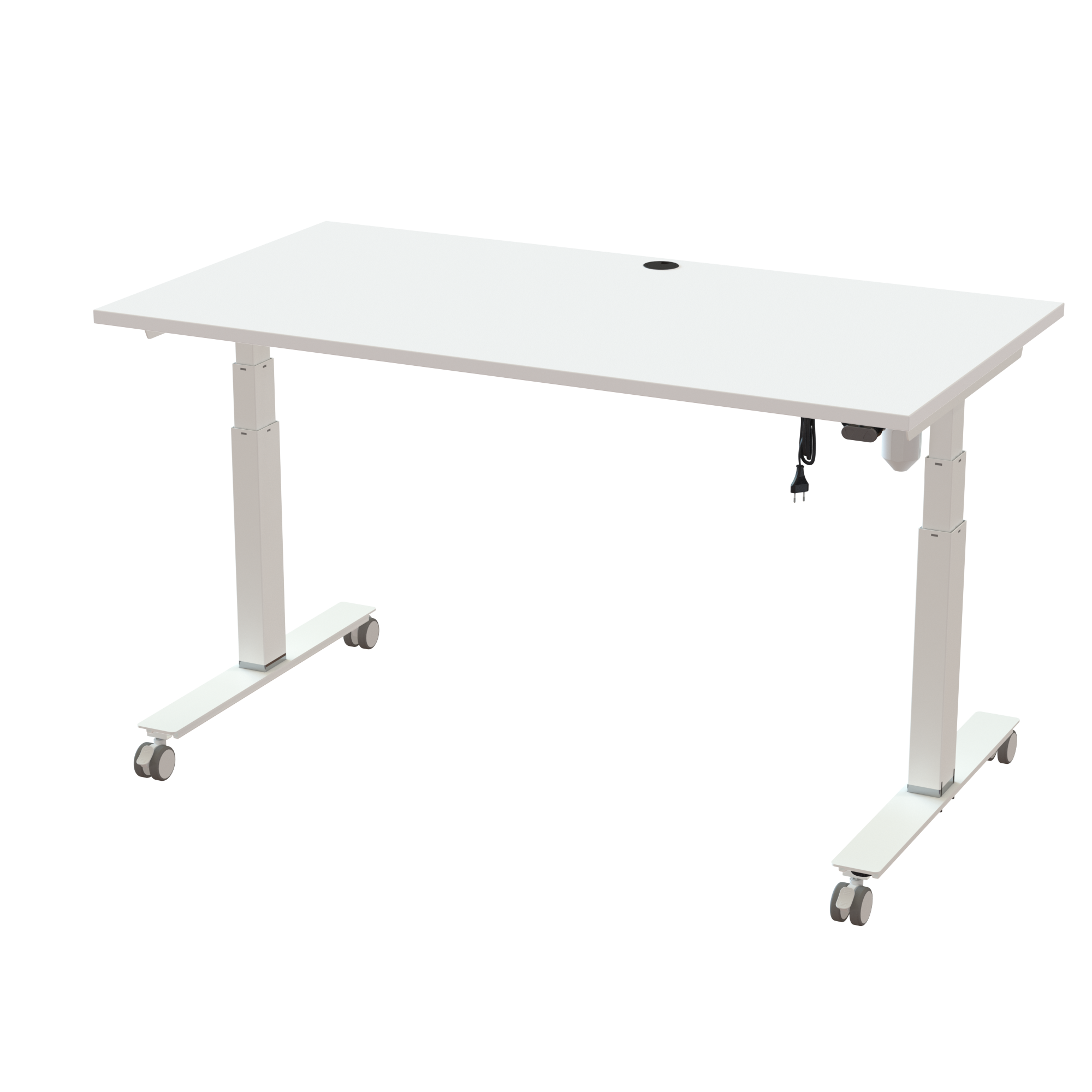

Sit Stand Desk | 150x80 cm | White with white frame

503-35 4W142 150-80S3 WM
503-35 4W142 150-80S3 WM
Sit Stand Desk | 150x80 cm | White with white frame
Sit Stand Desk | 150x80 cm | White with white frame
Sit Stand Desk | 150x80 cm | White with white frame
Sit Stand Desk | 150x80 cm | White with white frame
Sit Stand Desk | 150x80 cm | White with white frame
$ 1099 incl. GST
Item no.: 503-35 4W142 150-80S3 WM

Built for flexibility, this electric sit-stand desk features a centered design that provides both stability and generous legroom for a 1500 x 800 mm tabletop. The 35 mm chrome base ring gives access to the full 620-1270 mm stroke, while removing it lowers the desk for users from 150 cm. It has a 100 kg load capacity, an 36 min assembly time, and is available in white with an melamine surface.

A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone. The desk has a specialized cable tray mounted under the tabletop, achieving complete convenience with a hinged design that opens easily below the cable grommet exit point. Fitted with agile castors at the base, the entire desk can be moved around without hassle. It is RAL 9016 (white) frame coloured, same as the desk frame.


Table top specifications

  • Dimensions : 1500 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, it features a standard plastic grommet.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.
  • Motor : ConSet’s tested and reliable 1-motor drive solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
503-35 4W142 150-80S3 WM
Description:
Sit Stand Desk | 150x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141820Railset, 1420 mm, neutral$ 86,-$ 86,-
1150-80S3 WMSit-Stand Desk Top | 150x80 cm | White$ 210,-$ 210,-

Total
$ 1099,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX CW096-166888153,805704142144800
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ141820141533,305704142141823
150-80S3 WM15787425,005704142148174
