Sit Stand Desk | 80x80 cm | White with black frame

504-35 4B072 080-80S3 WM
504-35 4B072 080-80S3 WM
Sit Stand Desk | 80x80 cm | White with black frame
Sit Stand Desk | 80x80 cm | White with black frame
Sit Stand Desk | 80x80 cm | White with black frame
Sit Stand Desk | 80x80 cm | White with black frame
Sit Stand Desk | 80x80 cm | White with black frame
$ 981 incl. GST
Item no.: 504-35 4B072 080-80S3 WM

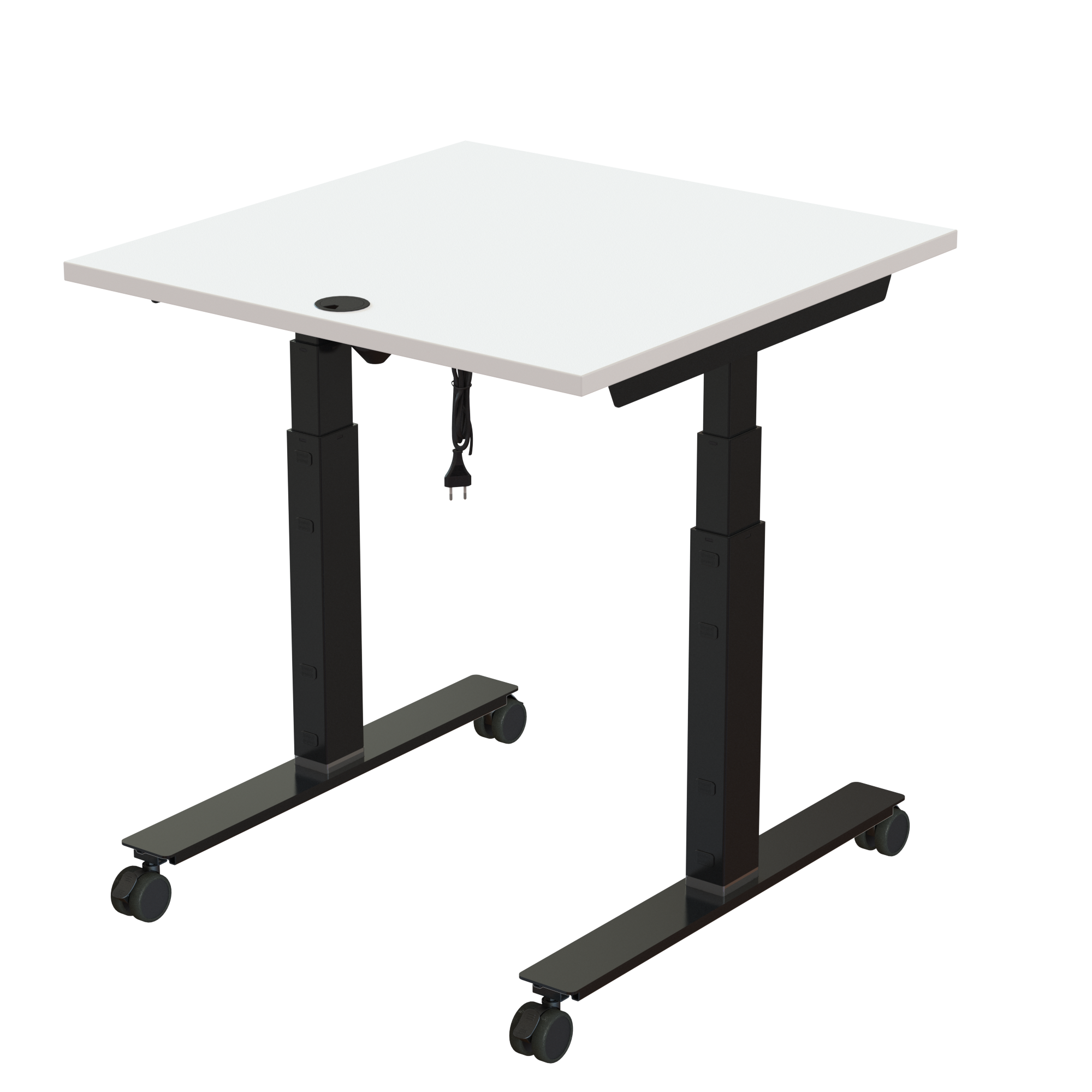

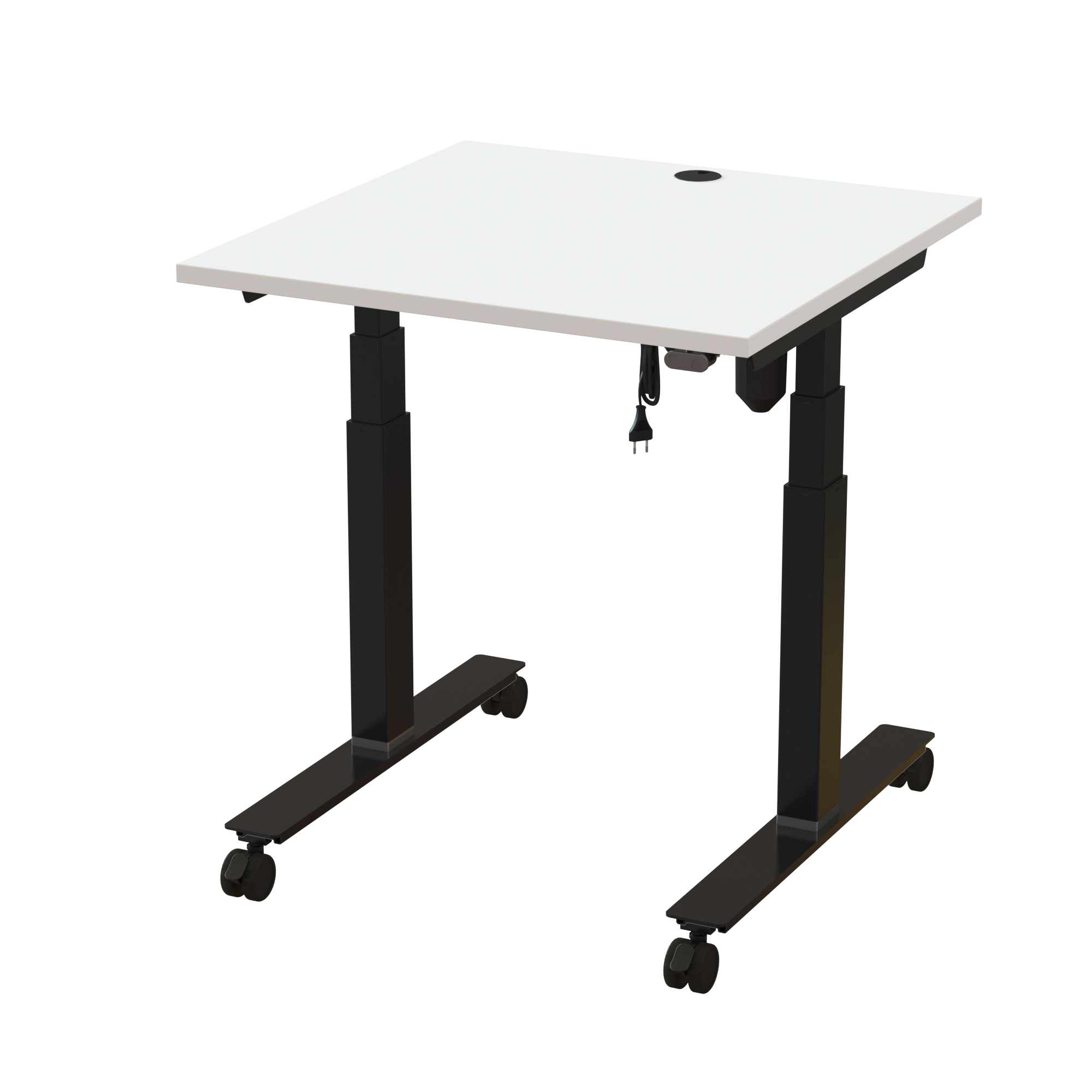

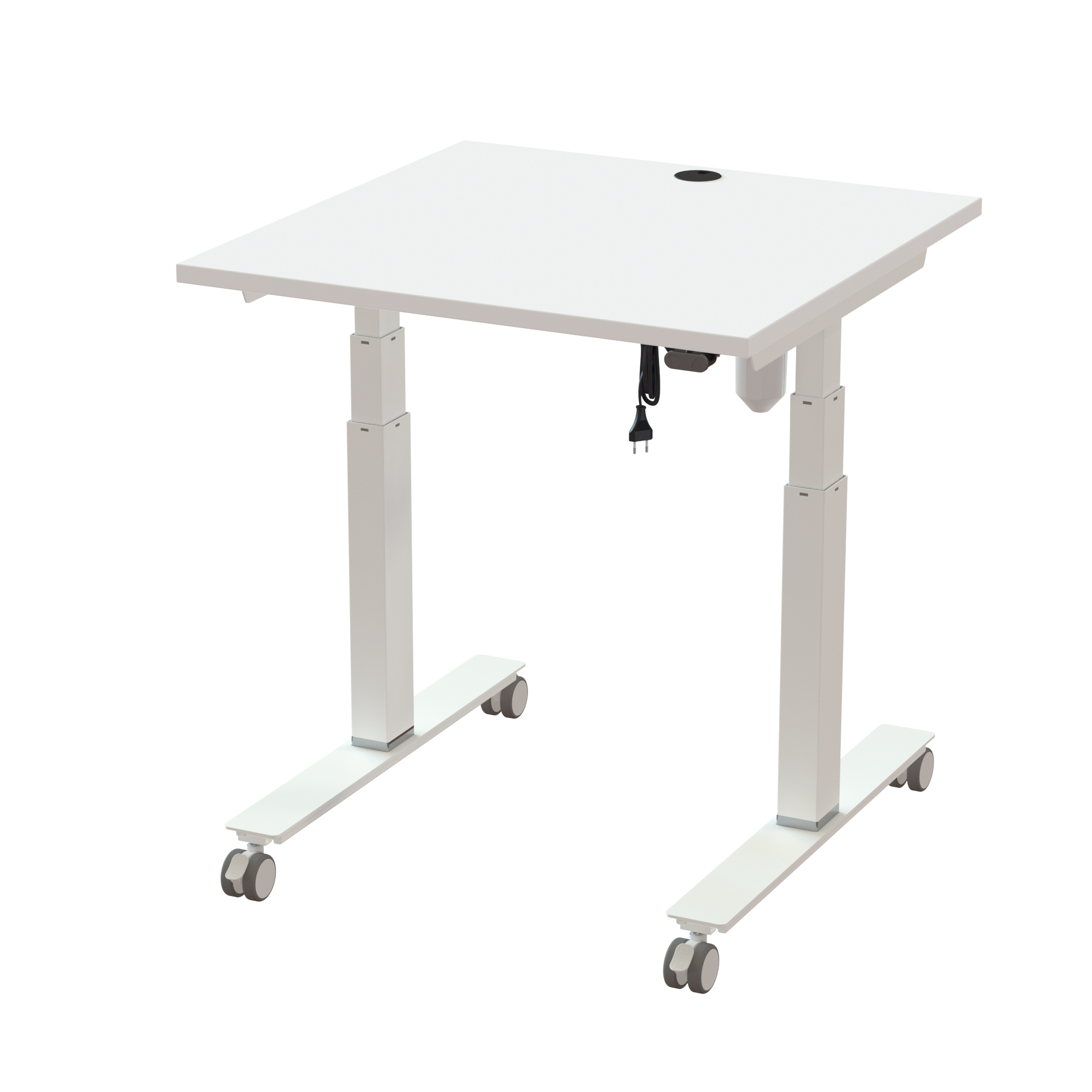

Designed for a 800 x 800 mm tabletop, this height-adjustable desk combines a centered construction with generous legroom and everyday practicality. The 35 mm chrome base ring provides the full 620-1270 mm stroke and can be removed when a lower minimum height is required. It features a 100 kg load capacity, an 22 min assembly time, and is finished in white with an melamine surface.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The desk has functional castors mounted onto the desk frame designed for smooth movement, giving you the freedom to roll the workstation around whenever the space requires it.


Table top specifications

  • Dimensions : 800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, it features a standard plastic grommet.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
504-35 4B072 080-80S3 WM
Description:
Sit Stand Desk | 80x80 cm | White with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB075TFeet and brackets T80, black$ 111,-$ 111,-
1501-XX HXX2Castorset (4 in black), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ143950Railset, 720 mm, neutral$ 86,-$ 86,-
1080-80S3 WMSit-Stand Desk Top | 080x80 cm | White$ 159,-$ 159,-

Total
$ 981,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB075T881169,205704142162262
501-XX HXX2121251,205704142159446
501-XX 4XPOWA221190,705704142133071
SQ14395071531,475704142143957
080-80S3 WM878749,005704142135181
