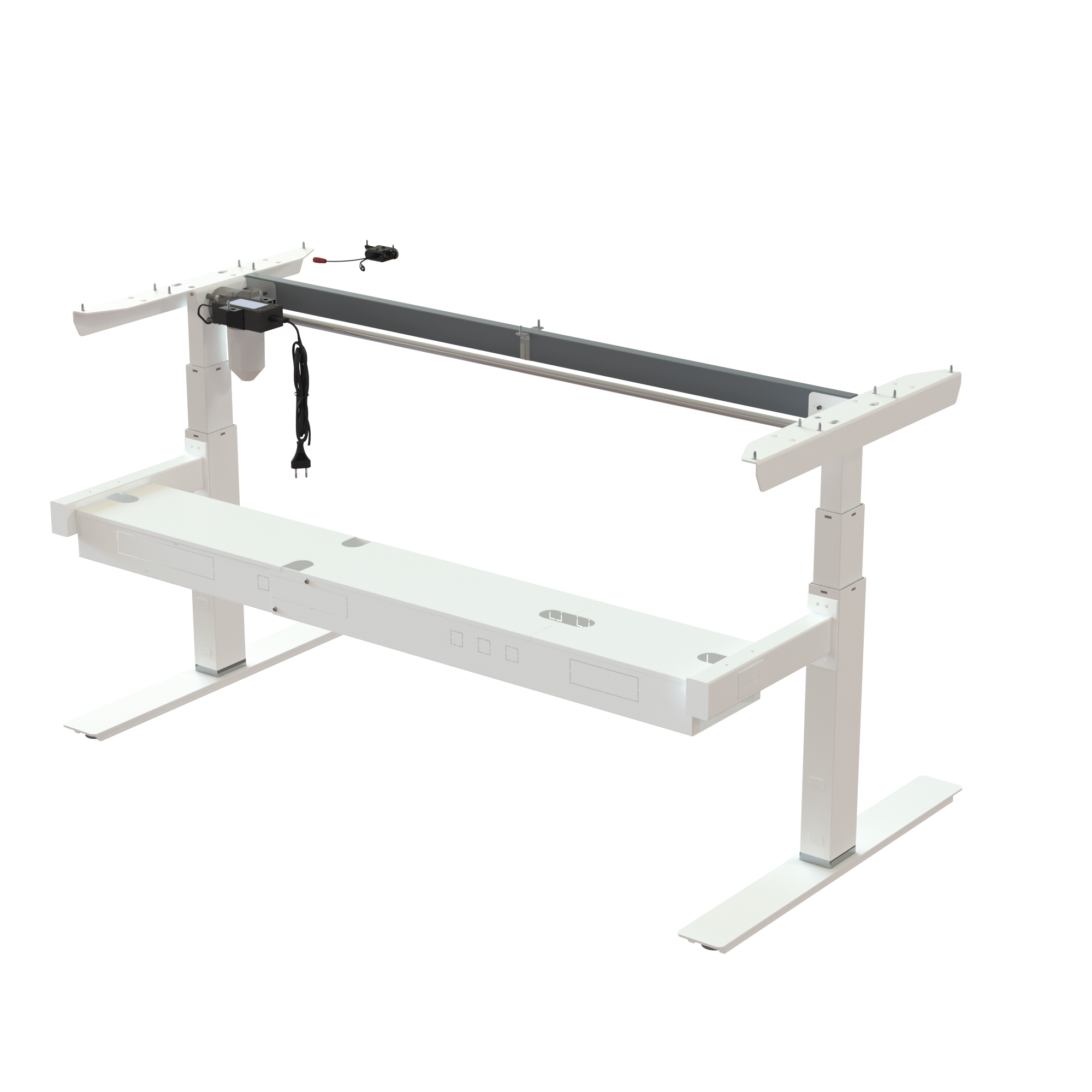

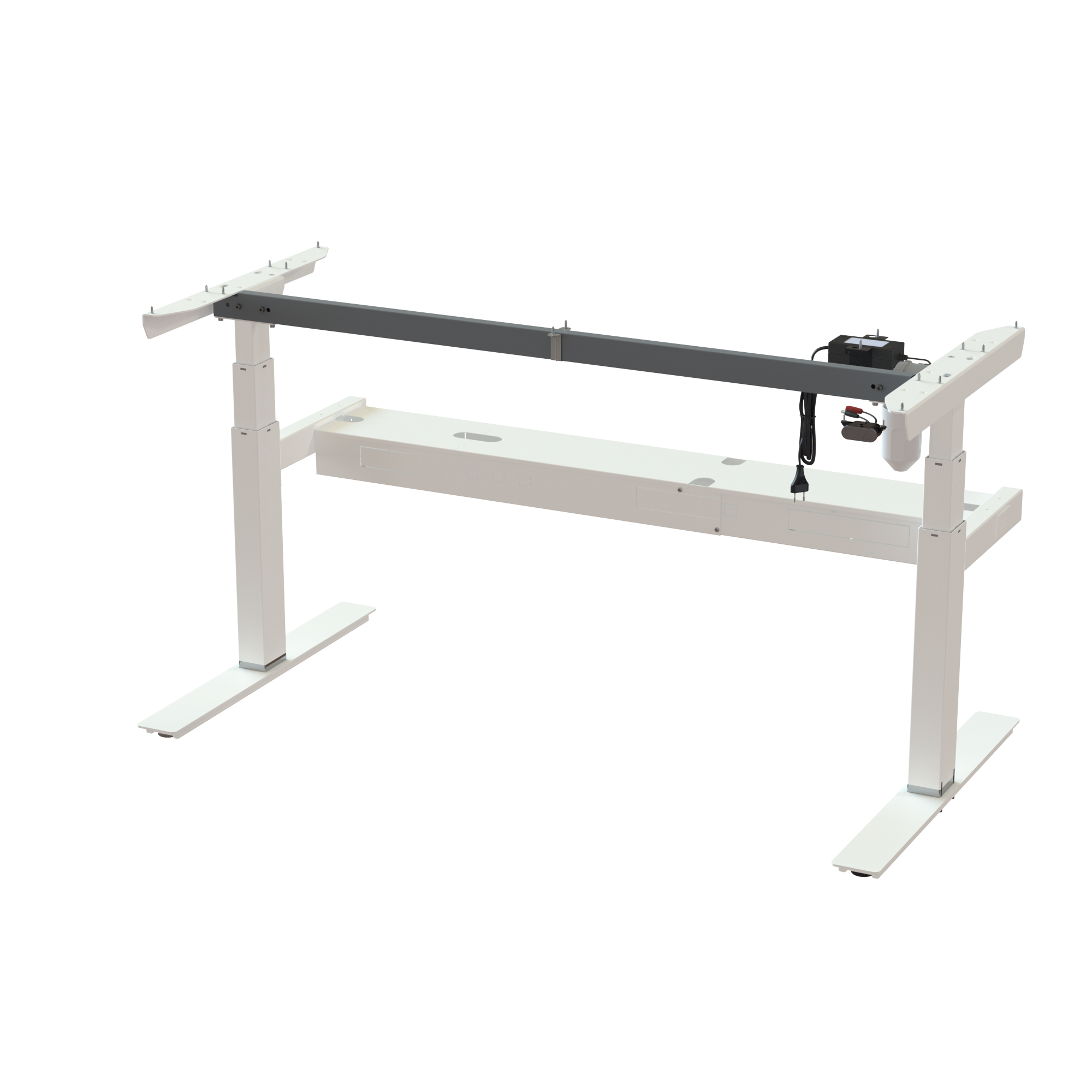

Enjoy a clean, aligned workspace with this T-frame height adjustable desk frame. The centered column offers architectural symmetry and creates a classic look beneath the frame. Paired with an RAL 9016 (white) frame and a foot matched to the 800 mm width, this model is highly versatile. A removable 35 mm chrome ring at the base defines the stroke at 620-1270 mm, but removing it extends the range to fit users down to 150 cm. The structure is rated for a load capacity of 100 kg and takes only 19 min to assemble.

The desk frame is equipped with a standard two-arrow user panel for simple and intuitive height adjustment. The durable switch-based design ensures reliable everyday use. Tactile controls allow operation without visual attention.
Total control over office wiring is achieved with a specialized cable tray, hiding messy cords behind a sleek top-loading cover while offering external side access to power points. The cable tray supplies a connecting bracket to link desk frames in a row, keeping wires between the workstations completely neat and managed. It is RAL 9016 (white) frame coloured, same as the desk frame.

Frame specifications

• Frame width: 1420 mm
• Frame depth: 750 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame comes with a standard two-arrow control panel. The simple design ensures reliable operation and long-lasting durability. The tactile buttons can easily be identified by touch, allowing height adjustment without looking at the panel.
• Motor : ConSet’s reliable and thoroughly tested 1-motor system
