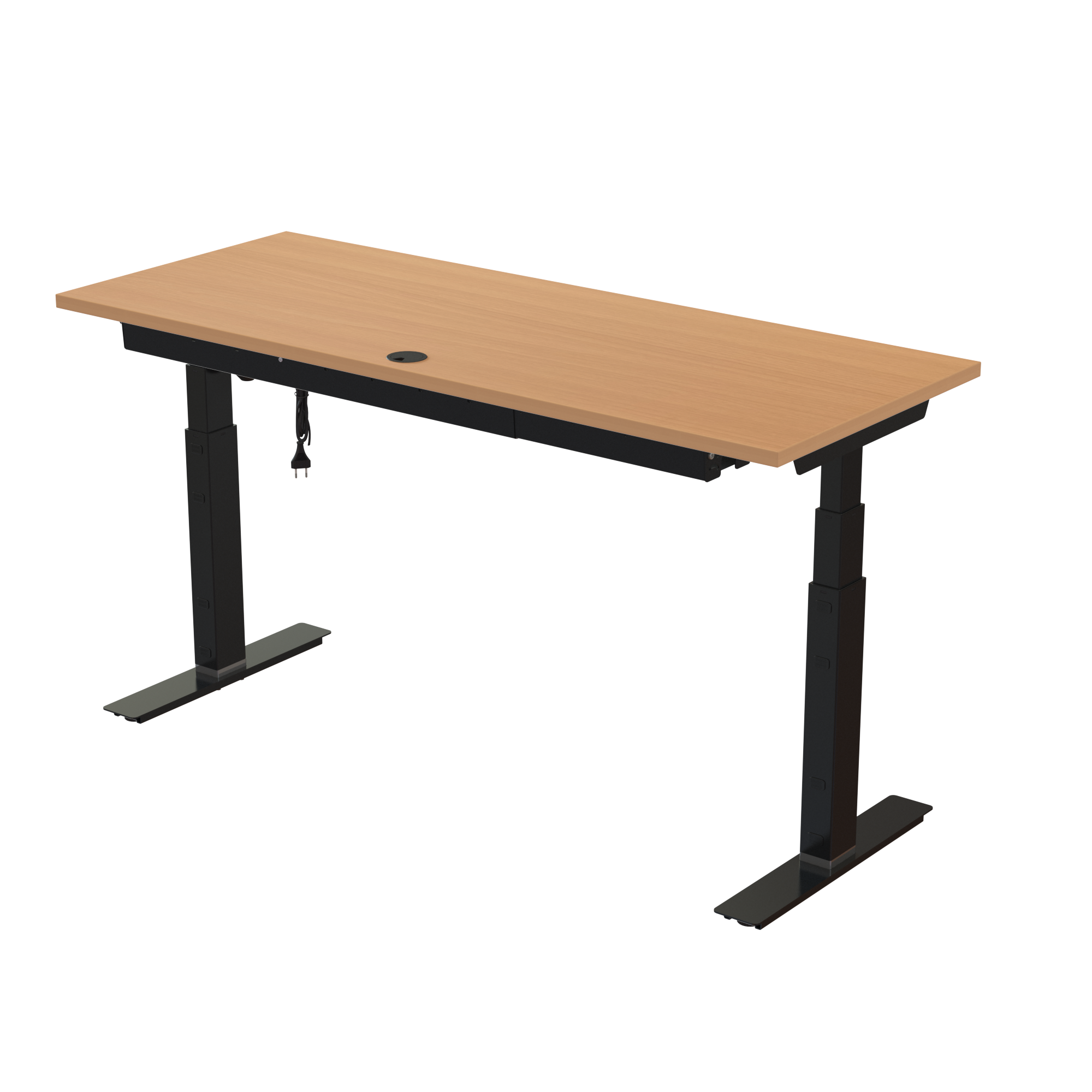

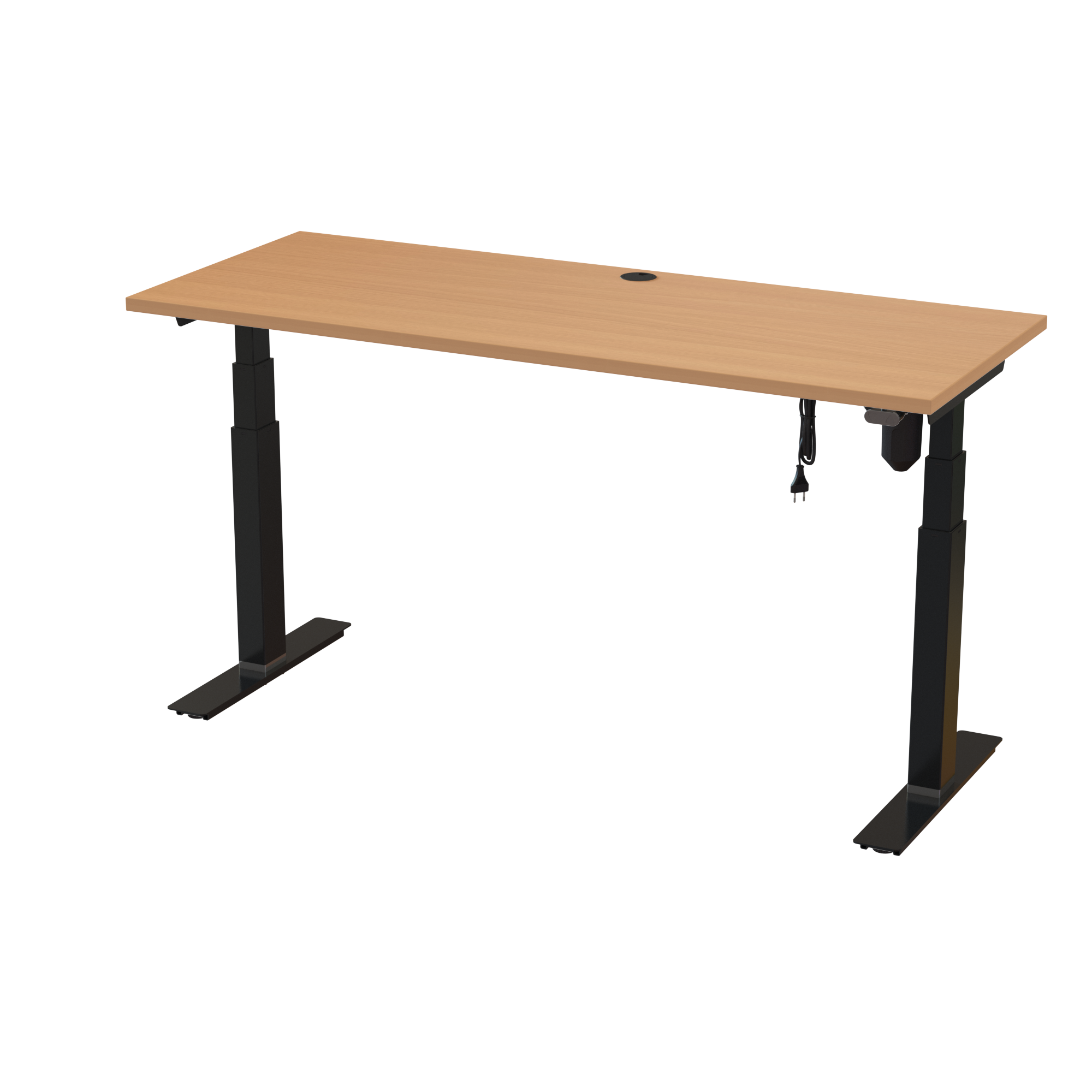

Sit Stand Desk | 150x60 cm | Beech with black frame

512-35 4B142 150-60S3 BM
512-35 4B142 150-60S3 BM
Sit Stand Desk | 150x60 cm | Beech with black frame
Sit Stand Desk | 150x60 cm | Beech with black frame
Sit Stand Desk | 150x60 cm | Beech with black frame
Sit Stand Desk | 150x60 cm | Beech with black frame
Sit Stand Desk | 150x60 cm | Beech with black frame
$ 946 incl. GST
Item no.: 512-35 4B142 150-60S3 BM

Upgrade your workspace with our slim height adjustable desk, specifically engineered to match the 1500 x 600 mm tabletop width. This model features an RAL 9004 (black) frame and an tabletop. A removable chrome ring is positioned at the base; simply detach it to extend the adjustment range. With the ring installed, the stroke is 620-1270 mm, but removing it allows users as short as 150 cm to work comfortably. Load capacity: 100 kg. Assembly time: 32 min.

A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone. A personal cable tray is included, designed to mount onto the tabletop for streamlined cable routing.


Table top specifications

  • Dimensions : 1500 x 600 mm
  • Core material:
  • Surface finish: , the plastic grommet for cables is a standard inclusion.
  • Edges:

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Control: _12-35 4B142 150-60S3 BM
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
512-35 4B142 150-60S3 BM
Description:
Sit Stand Desk | 150x60 cm | Beech with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB055TFeet and brackets T60, black$ 95,-$ 95,-
1501-XX CB096-166Universal cable-tray, Black$ 67,-$ 67,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141820Railset, 1420 mm, neutral$ 86,-$ 86,-
1150-60S3 BMSit-Stand Desk Top | 150x60 cm | Beech$ 157,-$ 157,-

Total
$ 946,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB055T681066,705704142162323
501-XX CB096-166888153,805704142144817
501-XX 4XPOWA221190,705704142133071
SQ141820141533,305704142141823
150-60S3 BM15767418,005704142151006
