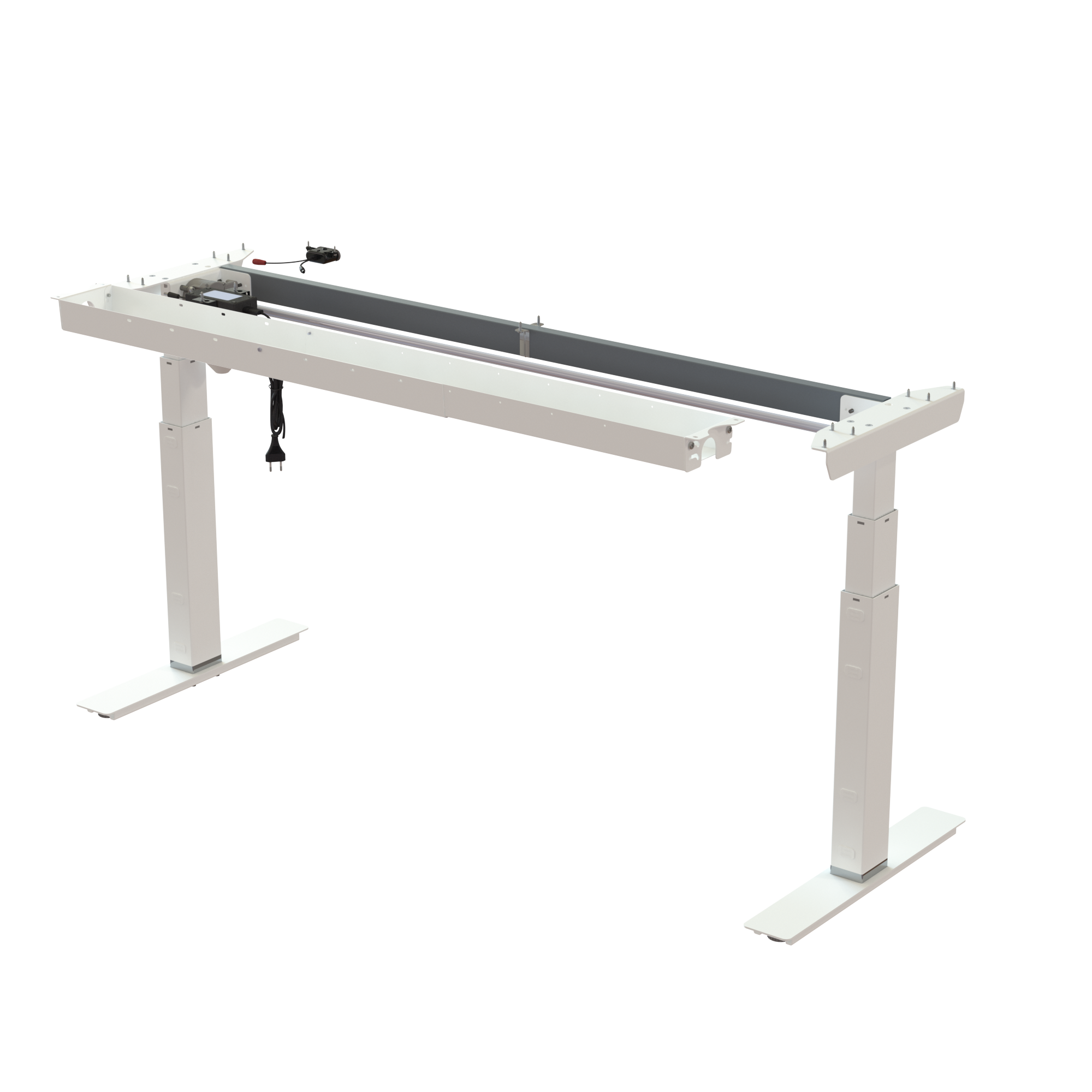

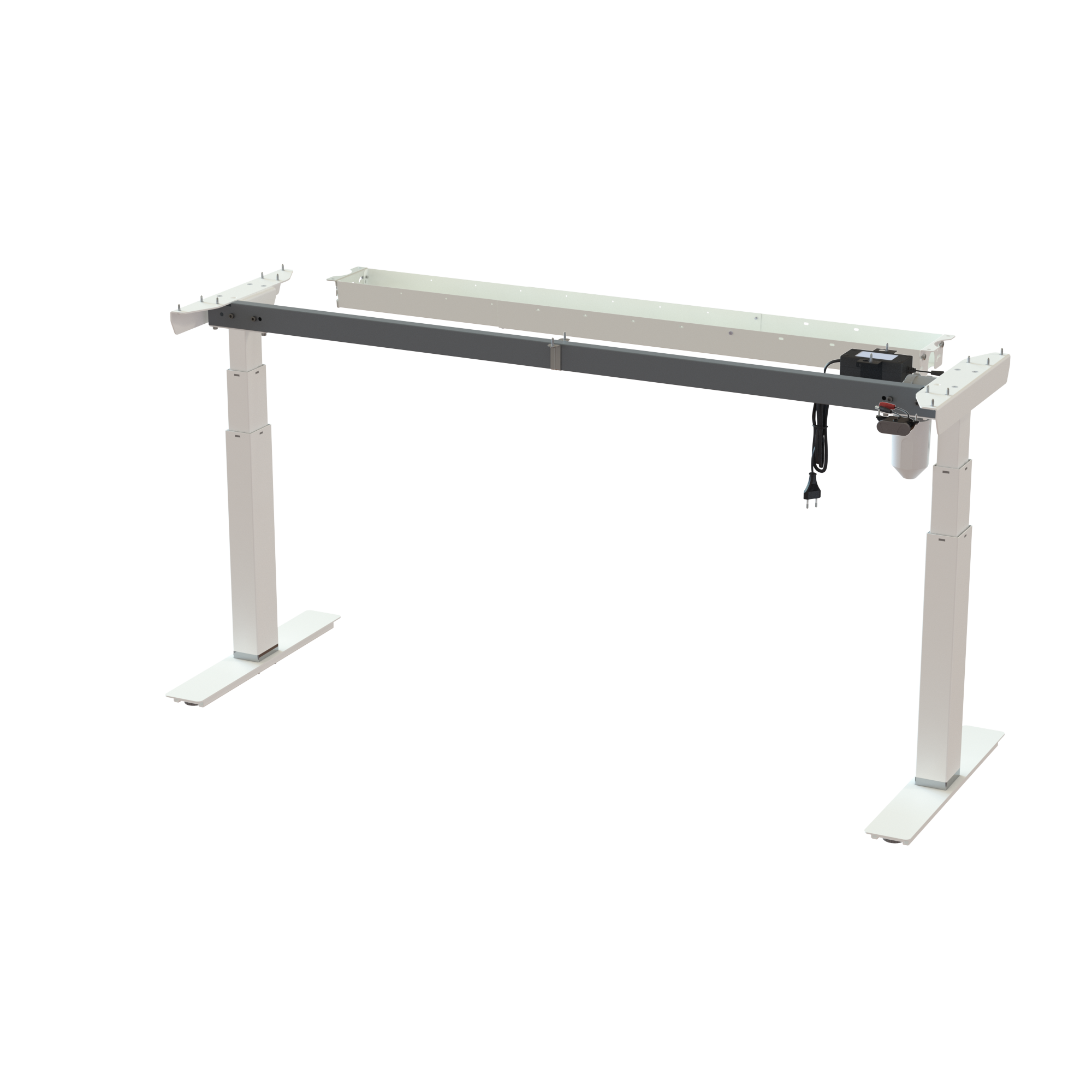

This T-frame sit-stand desk frame is built specifically to ensure a balanced aesthetic in limited-depth environments. The centered column configuration offers a clean and symmetrical experience. It includes an RAL 9016 (white) frame and a foot length matched to the 600 mm width. With the 35 mm chrome ring attached at the base, the stroke is 620-1270 mm, but you can remove it to extend the range for users down to 150 cm. The desk frame is rated for a load capacity of 100 kg and is assembled in 25 min.

The desk frame includes a standard two-arrow control panel. Its proven design offers reliable performance and long service life. Raised arrow buttons provide clear tactile feedback for easy operation.
The setup has a personal cable tray, which is designed to be mounted directly to the tabletop for convenient access once assembled.

Frame specifications

• Frame width: 1520 mm
• Frame depth: 550 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The standard control panel is equipped with two tactile arrow buttons. The uncomplicated design ensures reliable performance and long-term durability. Users can easily operate the controls by touch.
• Motor : ConSet’s stable 1-motor mechanism with documented reliability
