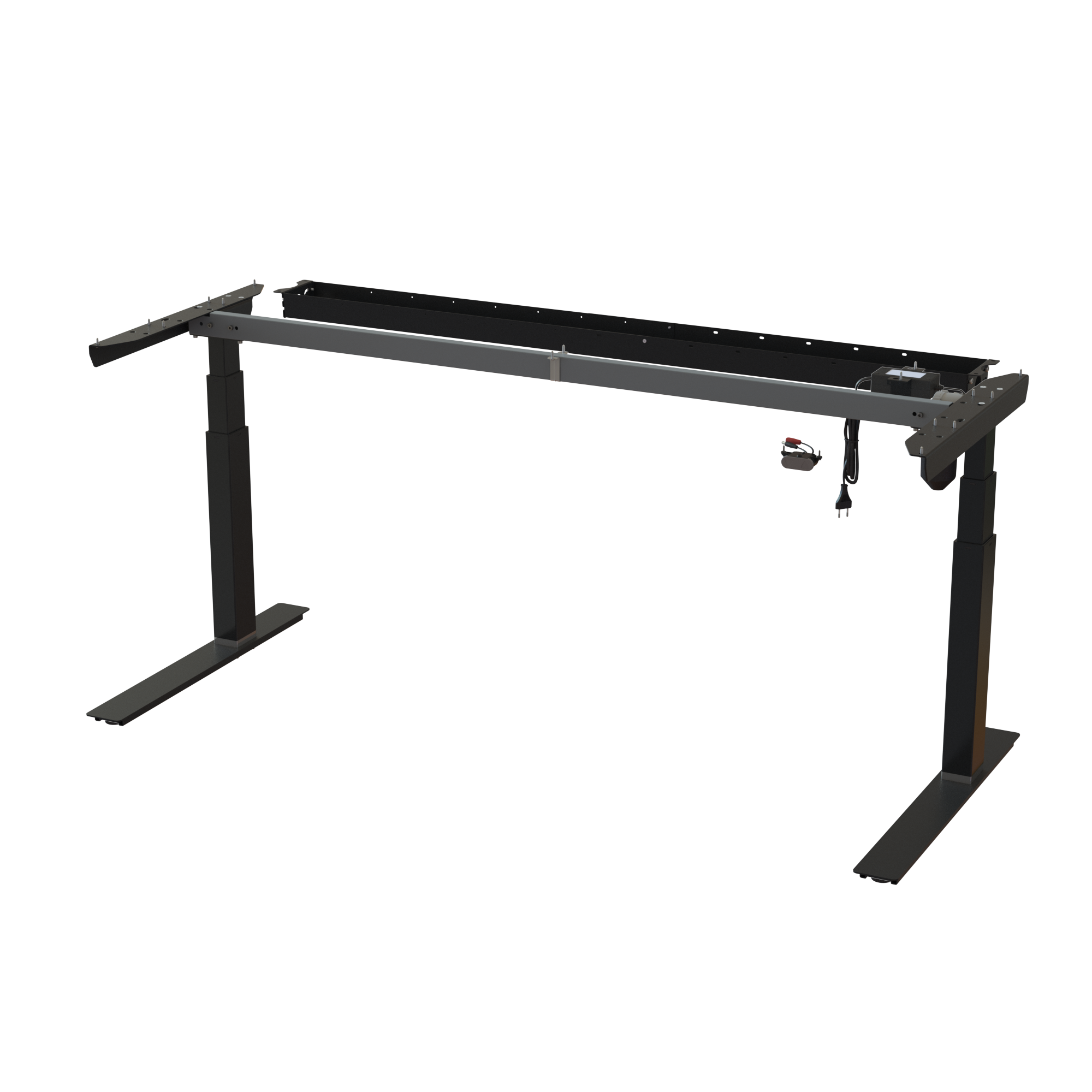

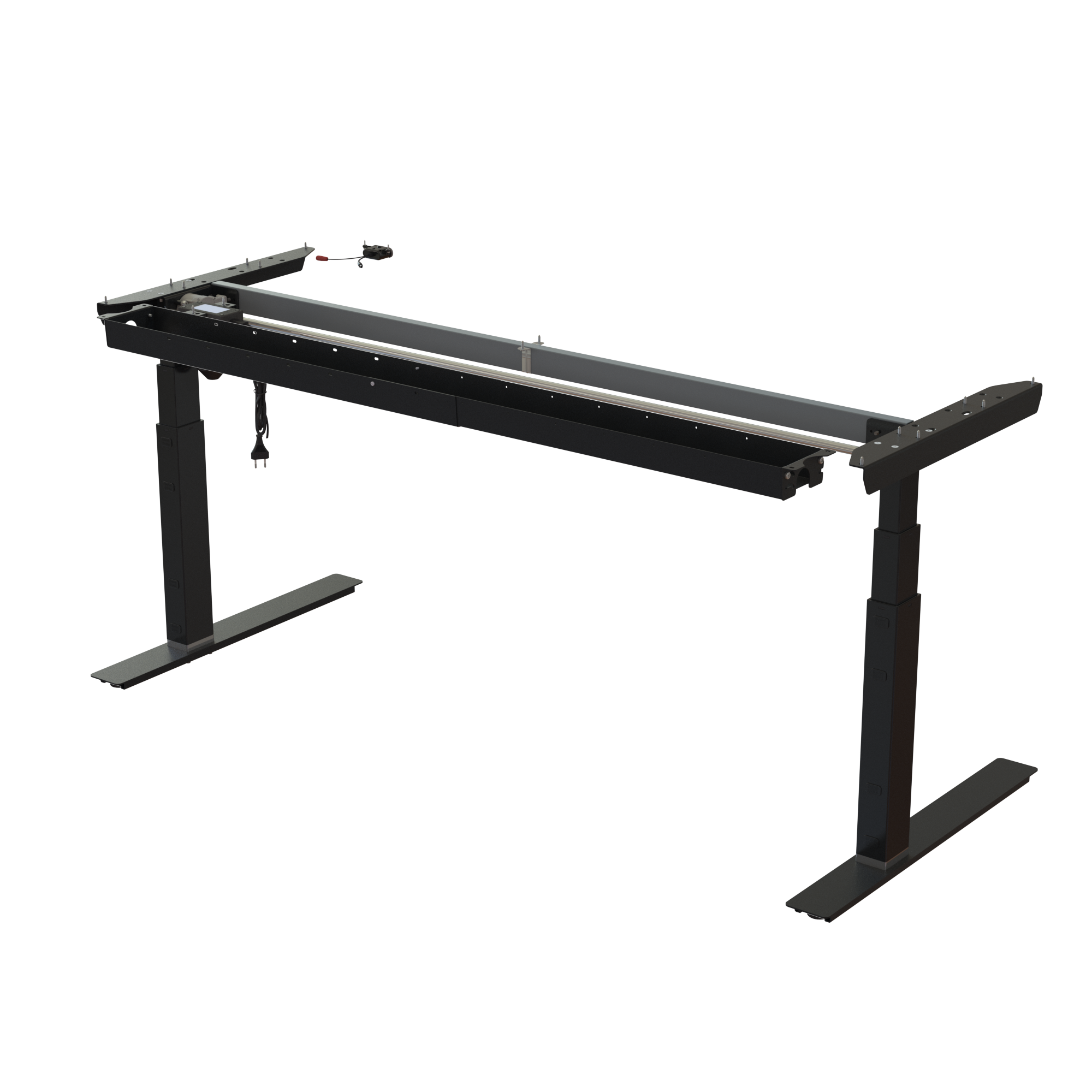

Our C-frame height adjustable desk frame has an off-centre column to provide maximum legroom and an airy feel for your workstation setup. The foot length is perfectly calibrated to the 800 mm width. Built with an RAL 9004 (black) frame, it includes a functional 35 mm chrome ring at the base. The stroke is 620-1270 mm with the ring attached, or you can remove it to extend the adjustment range down to 150 cm. It is built with a load capacity of 100 kg and is ready for use in just 25 min.

The desk frame includes a standard two-arrow control panel. Its proven design offers reliable performance and long service life. Raised arrow buttons provide clear tactile feedback for easy operation.
Each desk frame includes a personal cable tray that is ready to be mounted to the underside of your chosen tabletop.

Frame specifications

• Frame width: 1720 mm
• Frame depth: 750 mm
• Material/finish: Powdercoated steel RAL 9004 (black)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame is equipped with a standard two-arrow user panel for simple and intuitive height adjustment. The durable switch-based design ensures reliable everyday use. Tactile controls allow operation without visual attention.
• Motor : ConSet’s powerful and dependable 1-motor system
