Sit Stand Desk | 180x80 cm | Beech with white frame

522-35 4W172 180-80S3 BM
522-35 4W172 180-80S3 BM
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
$ 1035 incl. GST
Item no.: 522-35 4W172 180-80S3 BM

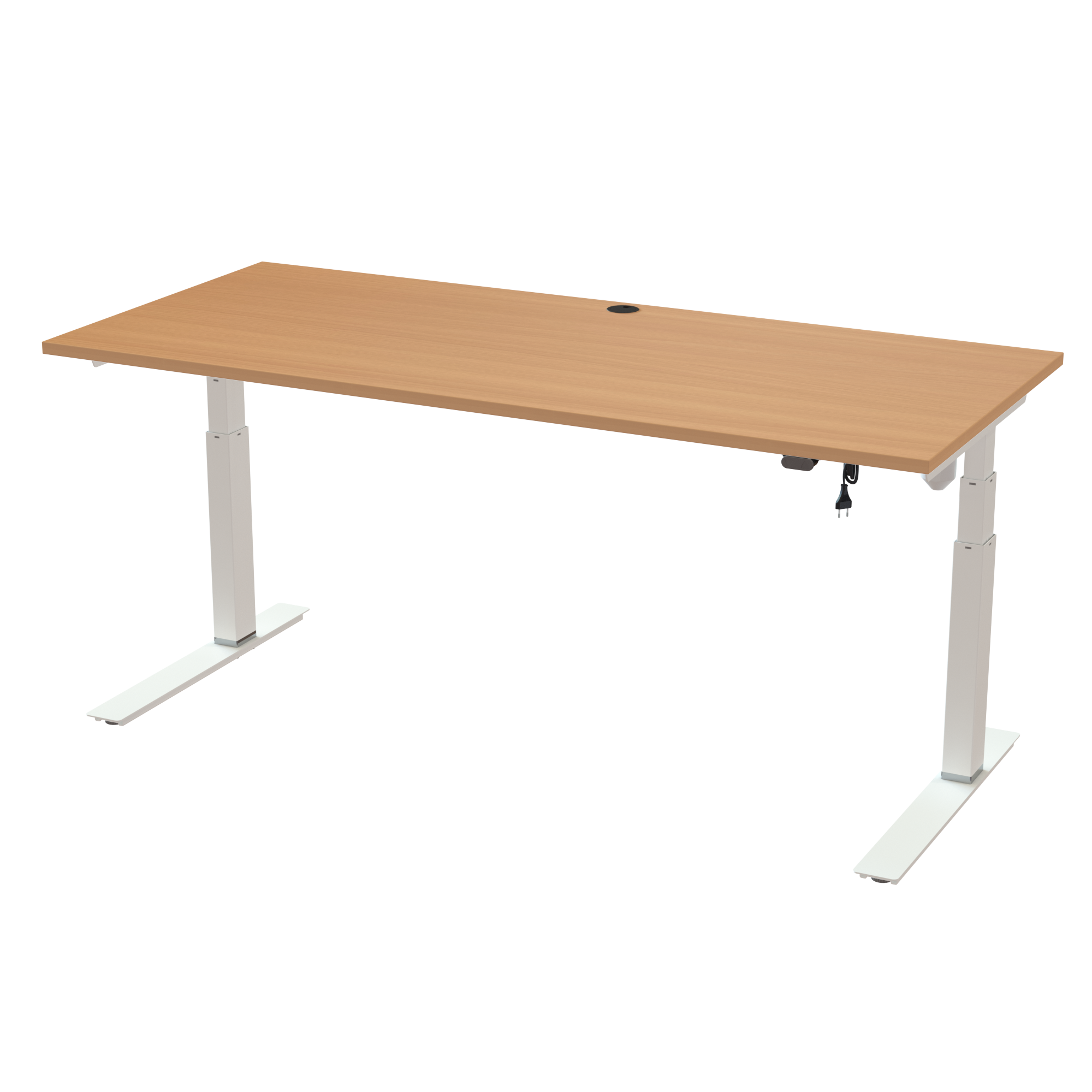

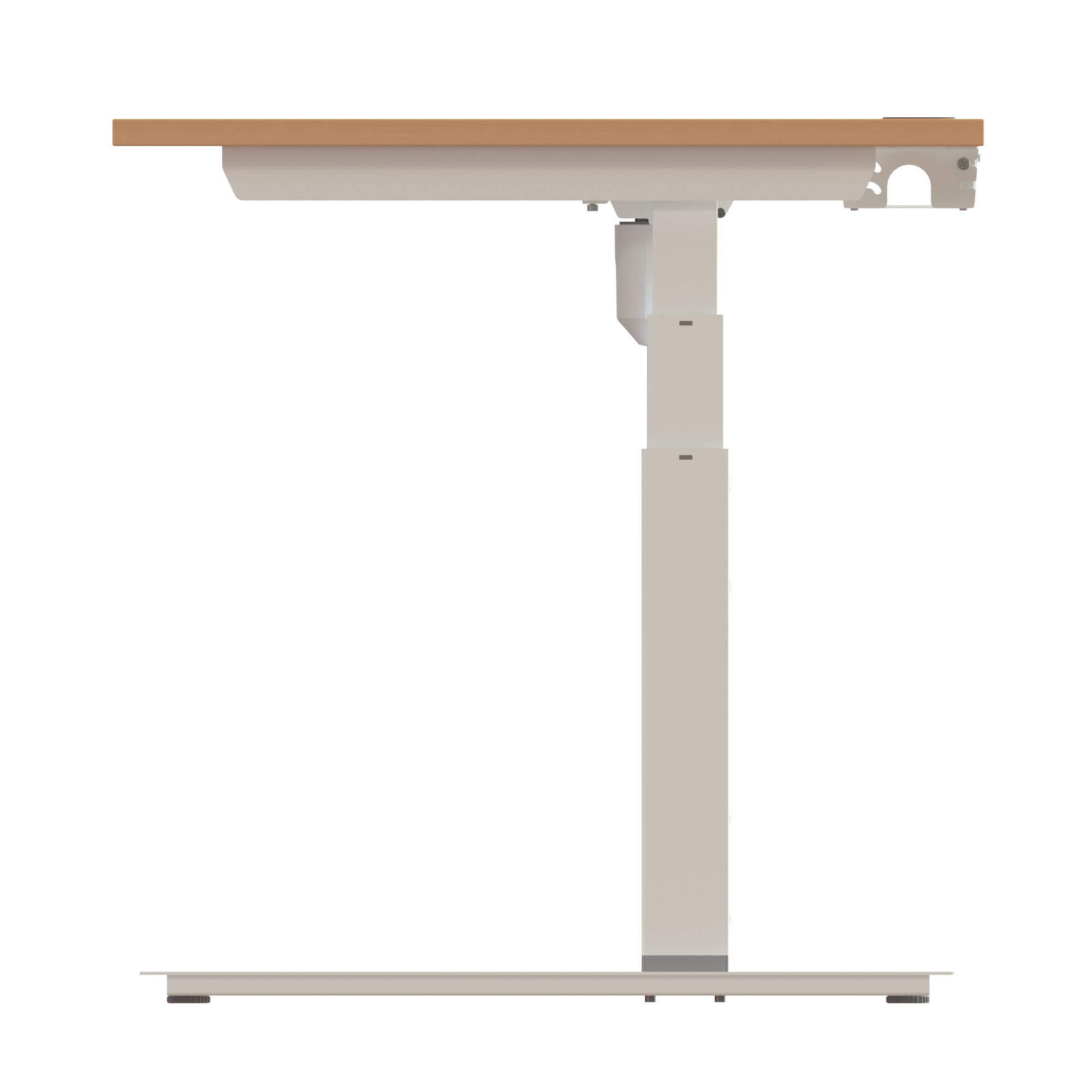

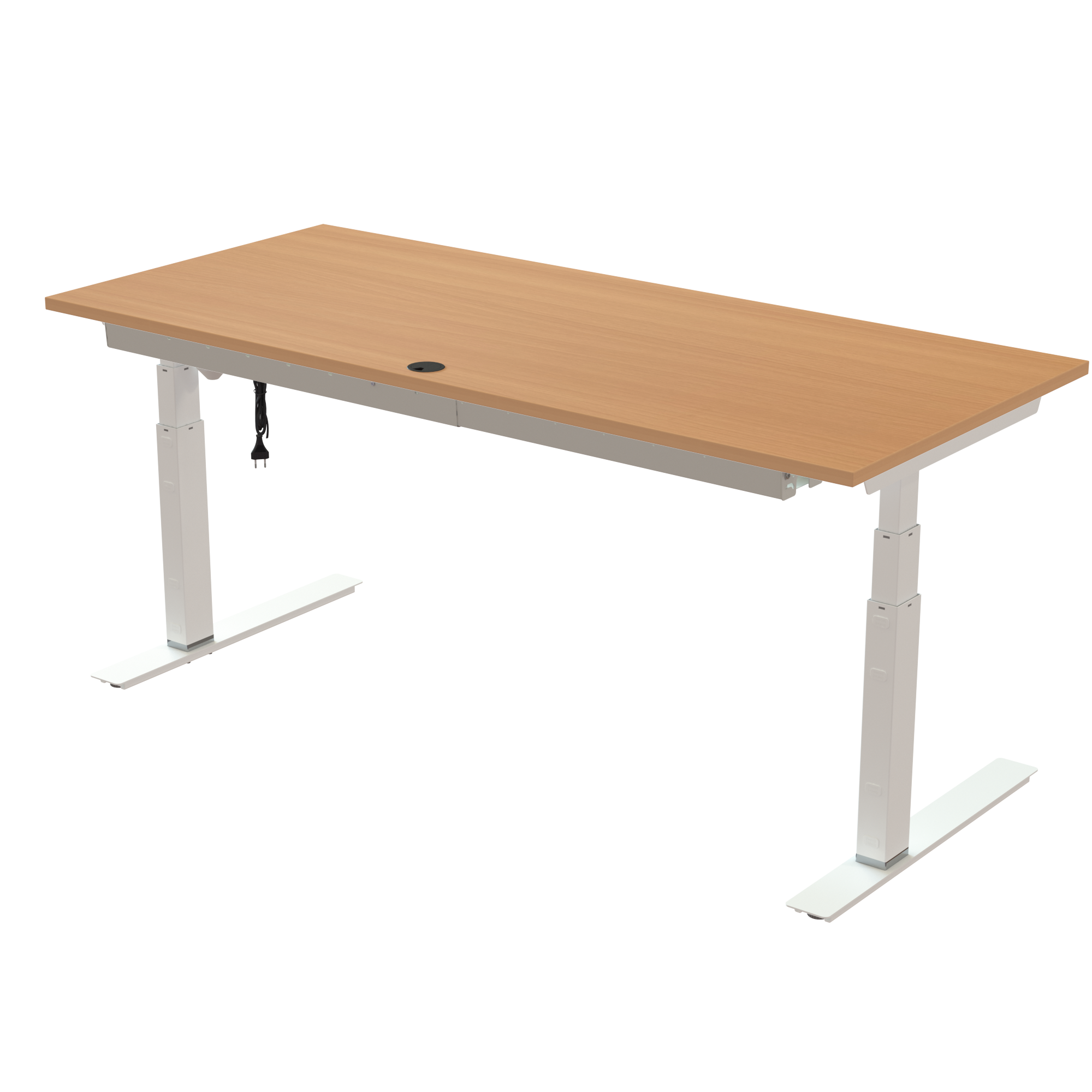

This electric standing desk focuses on high-end office aesthetics, with an off-centre C-frame that creates a spacious feel beneath the 1800 x 800 mm tabletop size. The 35 mm chrome base ring is a deliberate design detail that adds flair; remove it whenever there is a need to adjust the 620-1270 mm stroke range for users starting at 150 cm. Equipped with an RAL 9016 (white) frame colour, an beech tabletop colour with an melamine surface treatment, an 100 kg load capacity, and a quick 33 min assembly time.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch. The desk includes a cable tray positioned underneath the tabletop, offering a simple way to manage cords via a hinged design that opens smoothly whenever needed. It aligns perfectly below the tabletop cable grommet, creating a direct and orderly exit point for power leads. The cable tray is RAL 9016 (white) frame coloured, identical to the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, the tabletop It is fitted with a plastic grommet for cable entry.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance.
  • Motor : ConSet’s stable 1-motor mechanism with documented reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
522-35 4W172 180-80S3 BM
Description:
Sit Stand Desk | 180x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 BMSit-Stand Desk Top | 180x80 cm | Beech$ 230,-$ 230,-

Total
$ 1035,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX CW096-166888153,805704142144800
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
