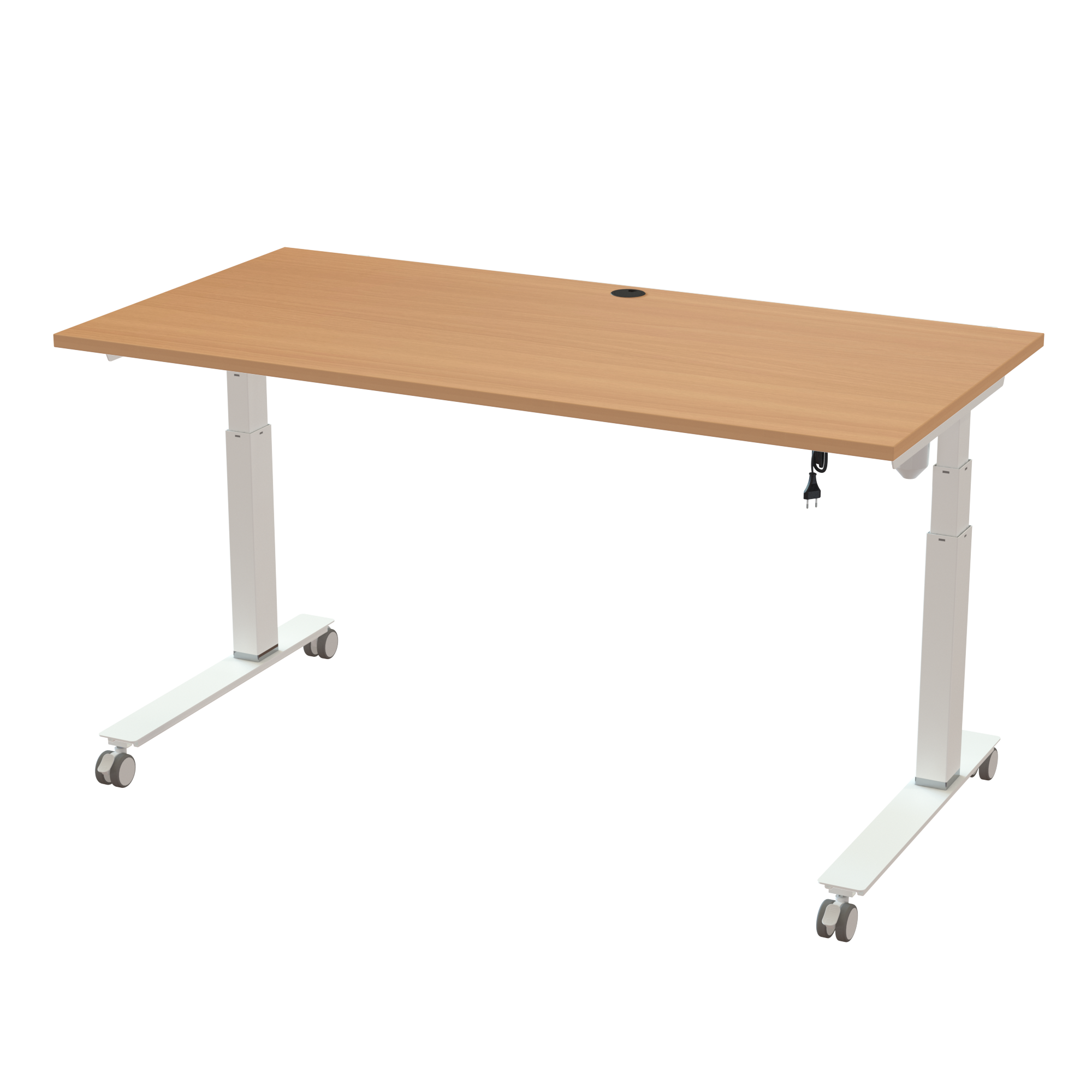

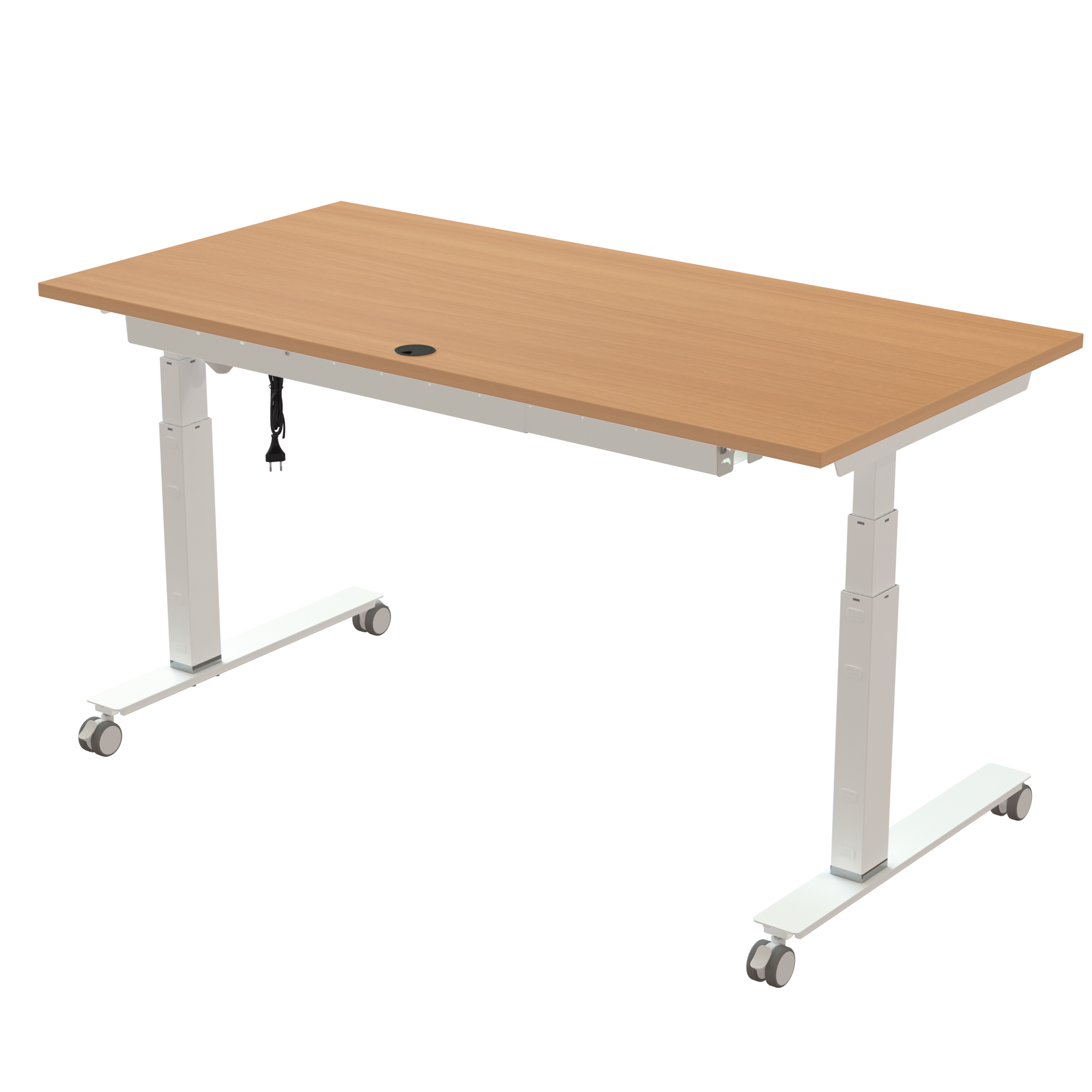

Sit Stand Desk | 160x80 cm | Beech with white frame

523-35 4W152 160-80S3 BM
523-35 4W152 160-80S3 BM
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
$ 1073 incl. GST
Item no.: 523-35 4W152 160-80S3 BM

Prioritising an airy, unobstructed workstation, this C-frame sit-stand desk features an off-centre column that perfectly complements the 1600 x 800 mm tabletop dimensions. The base is accented by a 35 mm chrome ring, which serves as a striking design feature and can be detached to modify the 620-1270 mm height adjustment stroke for users from 150 cm. Features an RAL 9016 (white) frame colour finish, an beech tabletop colour with an melamine surface material, a solid 100 kg load capacity, and an 37 min assembly time.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch. The desk has integrated castors that make rearranging the workspace simple, combined with a cable tray designed for easy accessibility under the tabletop. Utilizing a hinged mechanism, the tray can be opened at any time directly beneath the cable grommet exit point. The component is RAL 9016 (white) frame coloured, matching the desk frame.


Table top specifications

  • Dimensions : 1600 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a plastic cable entry point is included by default.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: Included as standard is a two-arrow control panel with a proven switch-based design. Its uncomplicated construction contributes to long-term reliability. The tactile arrow buttons provide clear feedback and can be operated without looking.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
523-35 4W152 160-80S3 BM
Description:
Sit Stand Desk | 160x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-80S3 BMSit-Stand Desk Top | 160x80 cm | Beech$ 184,-$ 184,-

Total
$ 1073,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX CW096-166888153,805704142144800
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ134460151533,105704142134467
160-80S3 BM16787423,005704142132944
