Manufacturer of electric height adjustable desks ...
Product-groups    Products

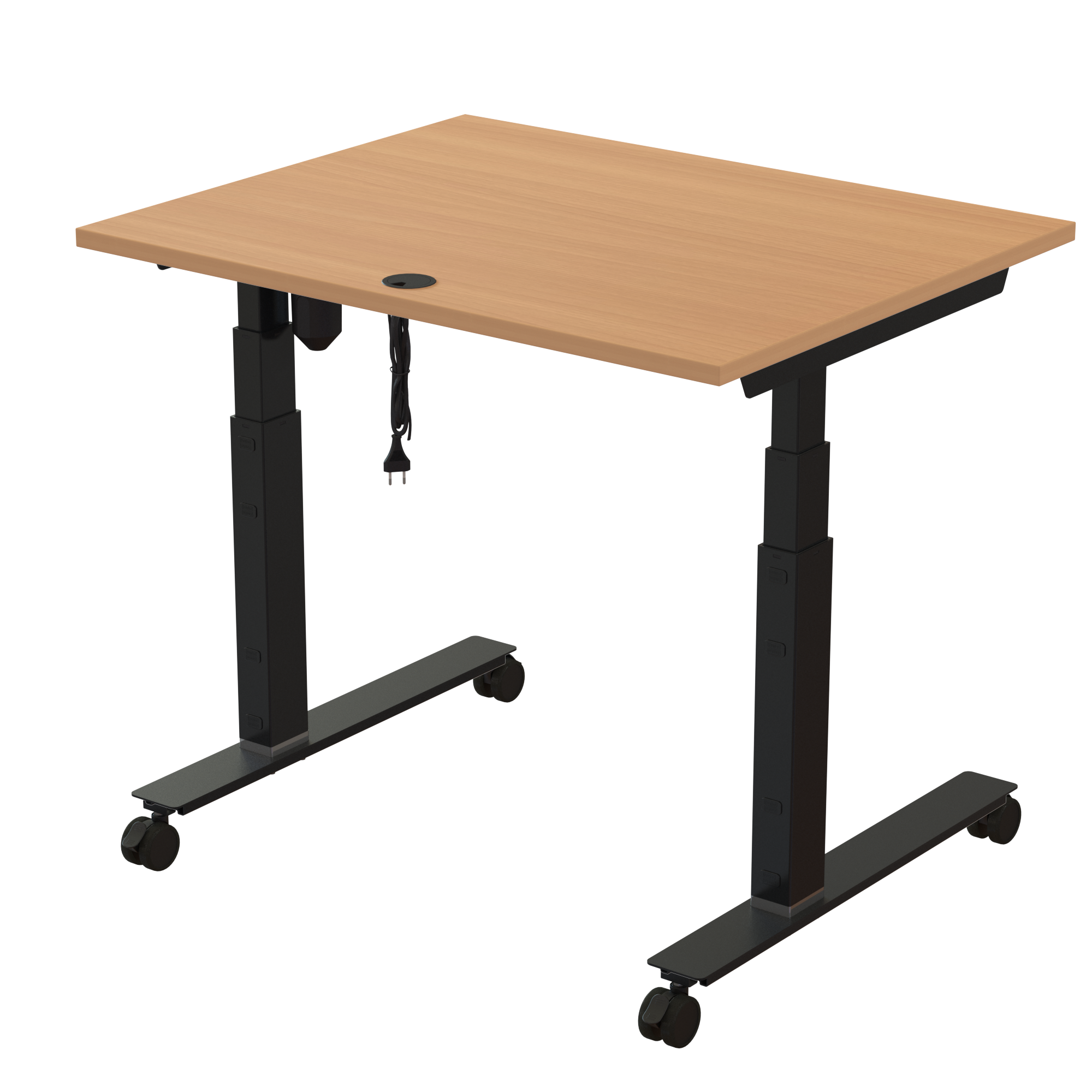

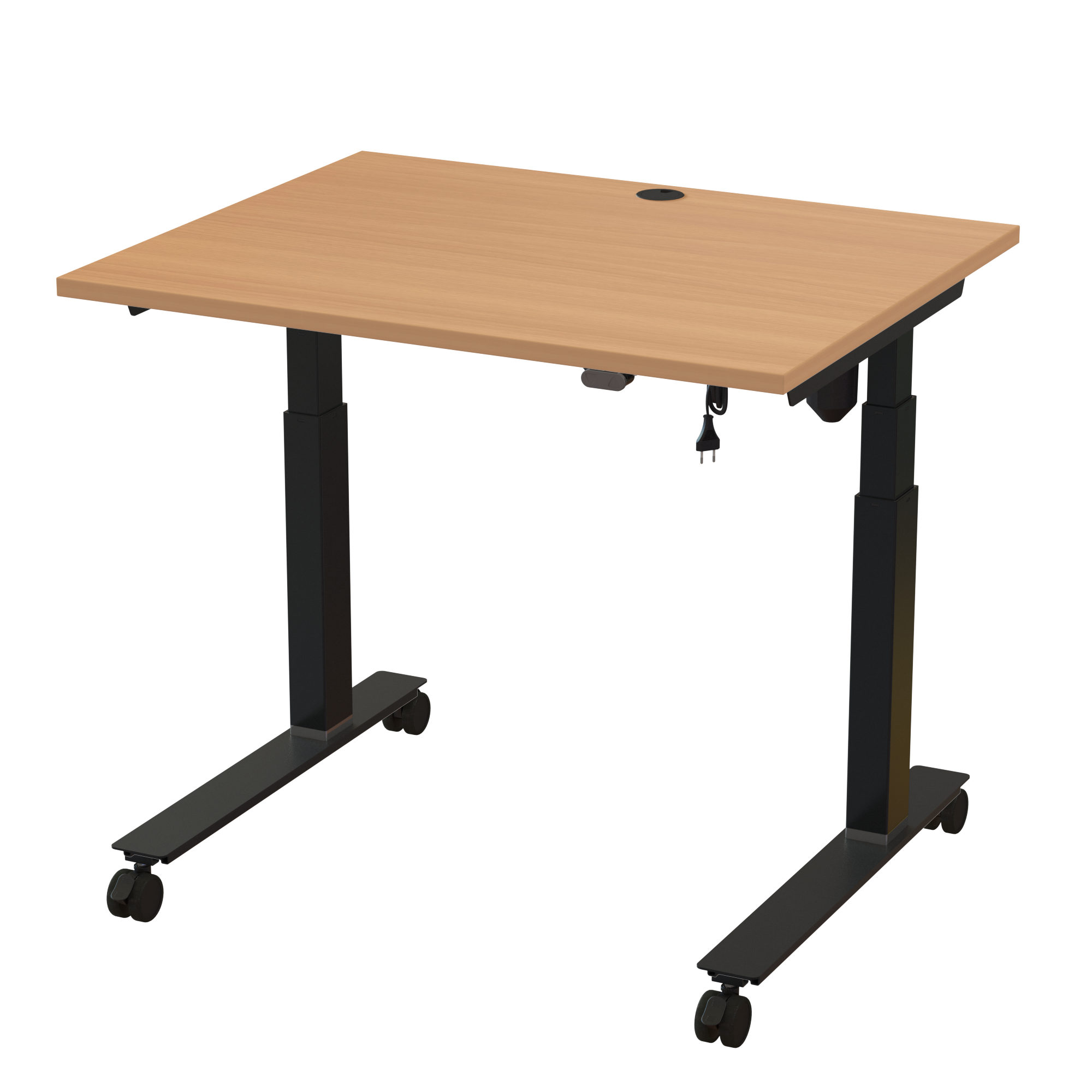

Sit Stand Desk | 100x80 cm | Beech with black frame

524-35 4B092 100-80S3 BM
524-35 4B092 100-80S3 BM
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
Sit Stand Desk | 100x80 cm | Beech with black frame
$ 1013 incl. GST
Item no.: 524-35 4B092 100-80S3 BM

Create a more accessible and active workstation with this C-frame standing desk, custom-matched to the 1000 x 800 mm tabletop profile. The 35 mm chrome ring is a polished design accent that adds a premium touch to the floor-level profile. It can also be removed to expand the 620-1270 mm stroke range for users from 150 cm. Offers an RAL 9004 (black) frame colour, an beech tabletop colour with an melamine surface option, an 100 kg load capacity, and a time-saving 23 min assembly time.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The desk has functional castors mounted onto the desk frame designed for smooth movement, giving you the freedom to roll the workstation around whenever the space requires it.


Table top specifications

  • Dimensions : 1000 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a plastic cable entry point is included by default.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.
  • Motor : ConSet’s robust and proven 1-motor solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
524-35 4B092 100-80S3 BM
Description:
Sit Stand Desk | 100x80 cm | Beech with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB075CFeet and brackets C80, black$ 111,-$ 111,-
1501-XX HXX2Castorset (4 in black), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141480Railset, 920 mm, neutral$ 86,-$ 86,-
1100-80S4 BMTabletop S4 | 100x80 cm | Beech$ 191,-$ 191,-

Total
$ 1013,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB075C881169,205704142162231
501-XX HXX2121251,205704142159446
501-XX 4XPOWA221190,705704142133071
SQ14148091531,895704142141489
100-80S4 BM10787415,005704142160763
Contact me about this product
I am/We are
Country
Name/FirmName
Postal
Email
Phone
Comment
Control code
×
Download

Item no.: 524-35 4B092 100-80S3 BM
