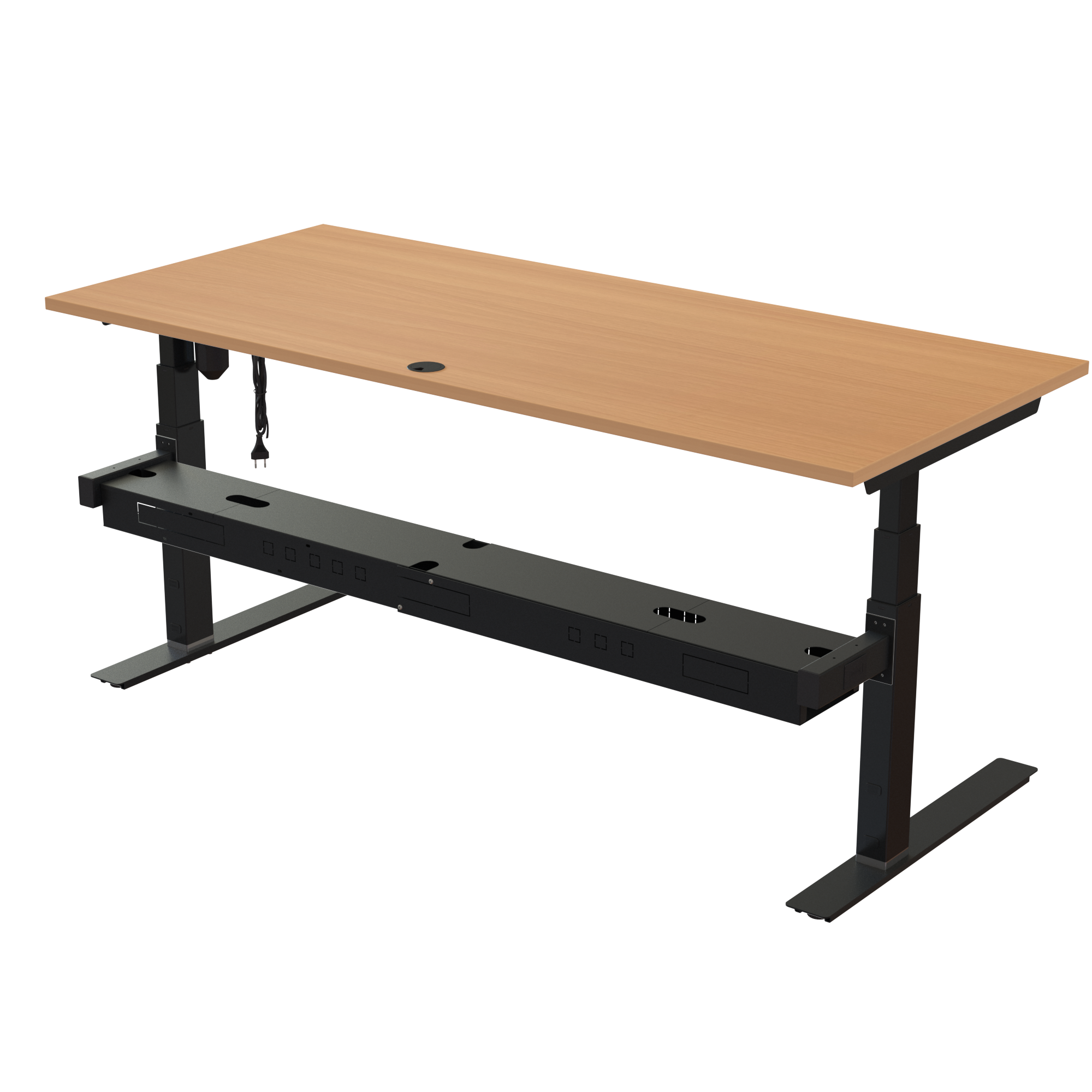

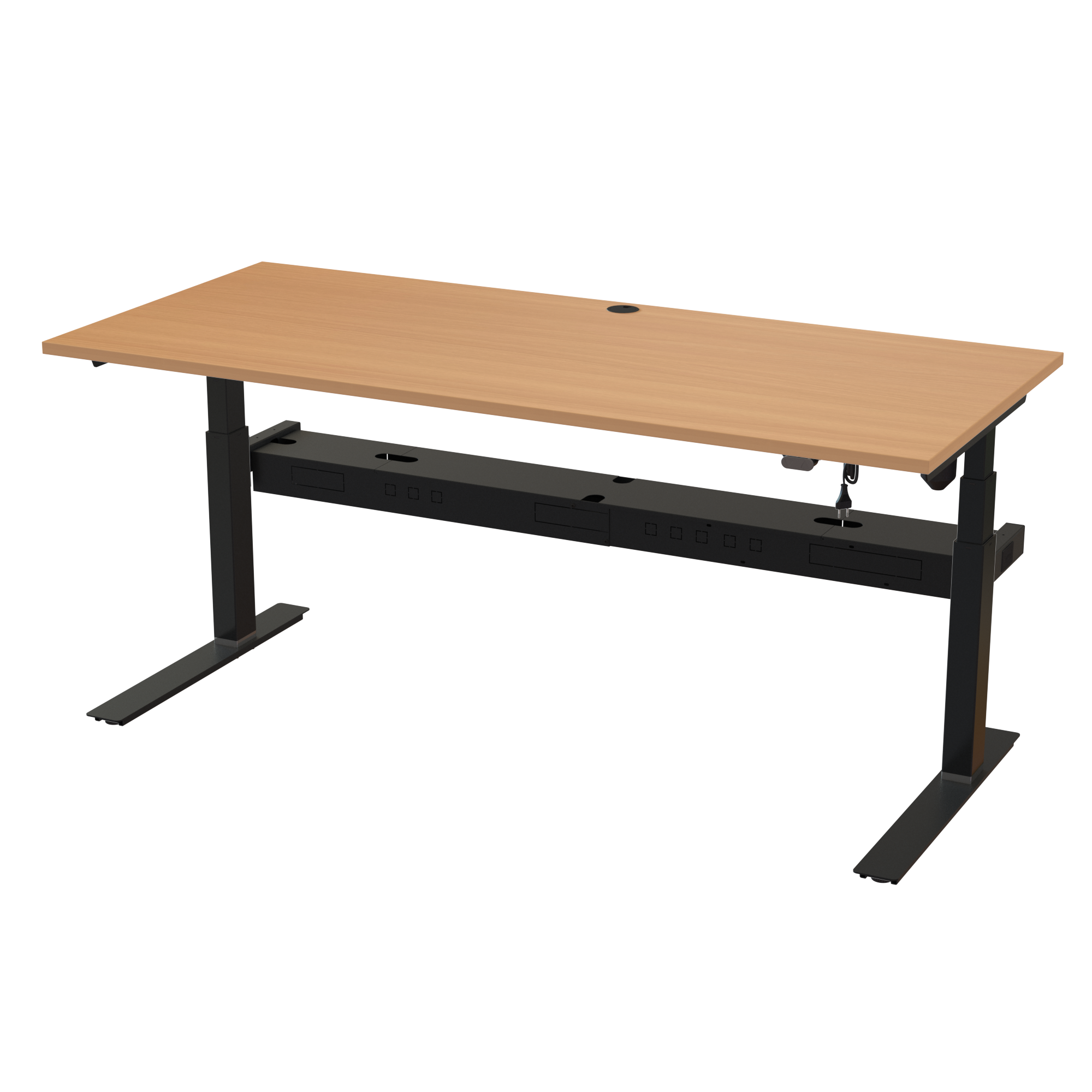

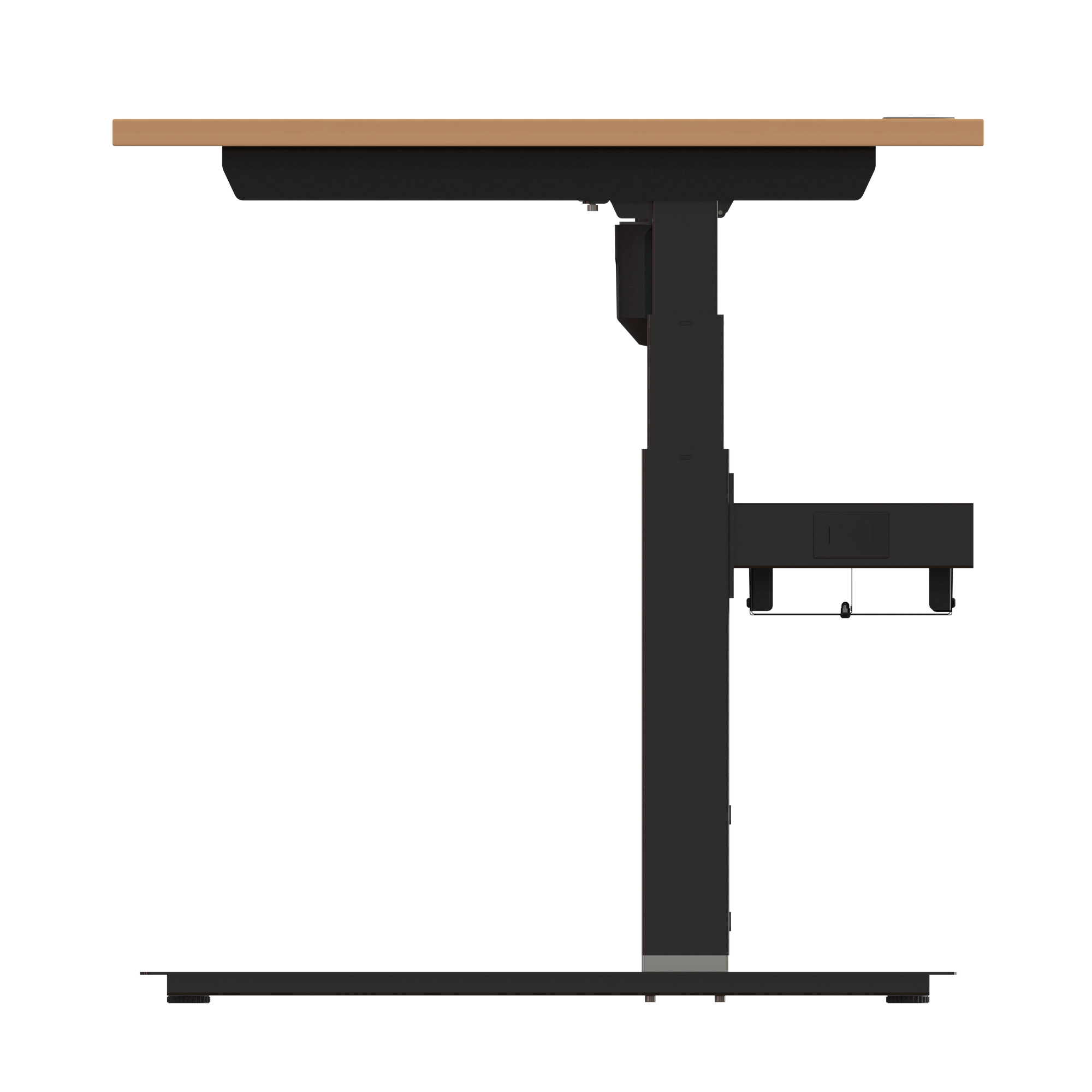

Sit Stand Desk | 180x80 cm | Beech with black frame

525-35 4B172 180-80S3 BM
525-35 4B172 180-80S3 BM
Sit Stand Desk | 180x80 cm | Beech with black frame
Sit Stand Desk | 180x80 cm | Beech with black frame
Sit Stand Desk | 180x80 cm | Beech with black frame
Sit Stand Desk | 180x80 cm | Beech with black frame
Sit Stand Desk | 180x80 cm | Beech with black frame
$ 1195 incl. GST
Item no.: 525-35 4B172 180-80S3 BM

This C-frame sit-stand desk pairs an off-centre column with a signature 35 mm chrome ring, turning a functional base into a deliberate design statement for the 1800 x 800 mm tabletop dimensions. The ring is easily removed to adapt the 620-1270 mm elevation stroke for users as short as 150 cm, ensuring maximum ergonomic freedom. Comes with an RAL 9004 (black) frame colour, an beech tabletop colour with an melamine surface option, an 100 kg load capacity rating, and an easy 28 min assembly time.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch. Running the full length of the frame, a specialized cable tray system keeps cables completely out of sight while offering convenient side-access to power accessories. A connecting bracket is included to loop several desks together in a row, ensuring a clean and orderly wire flow between units through the cable tray system. The component is RAL 9004 (black) frame coloured, matching the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, the plastic grommet for cables is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Frame Color
Tabletop Color
Foot Design
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
525-35 4B172 180-80S3 BM
Description:
Sit Stand Desk | 180x80 cm | Beech with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB075CFeet and brackets C80, black$ 111,-$ 111,-
1501-XX LB131-161Cabletray system, black$ 148,-$ 148,-
1XX5-35 CBXX5-35 tusks, C-model, black$ 79,-$ 79,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 BMSit-Stand Desk Top | 180x80 cm | Beech$ 230,-$ 230,-

Total
$ 1195,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB075C881169,205704142162231
501-XX LB131-16110120107,005704142150474
XX5-35 CB2312101,305704142162200
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
