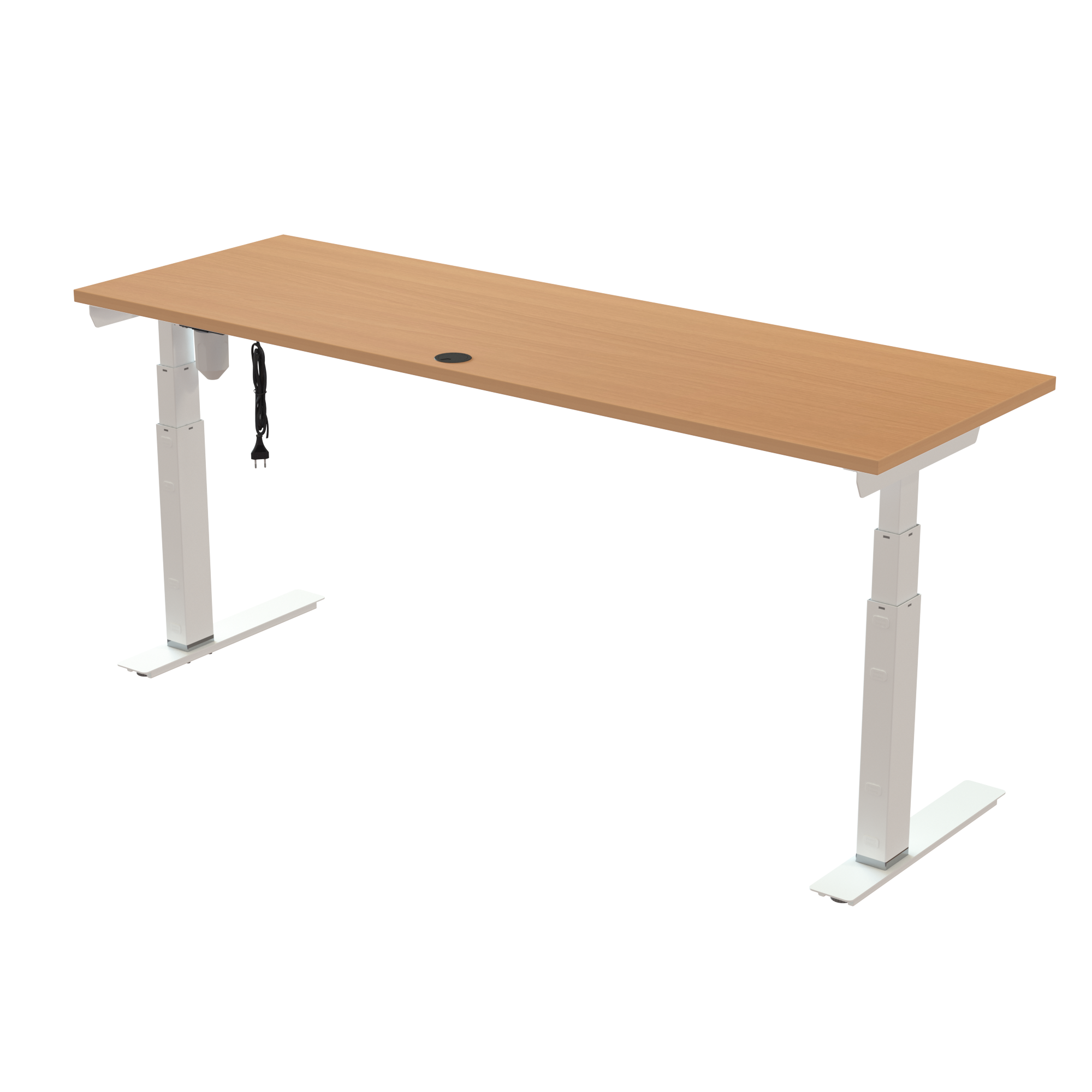

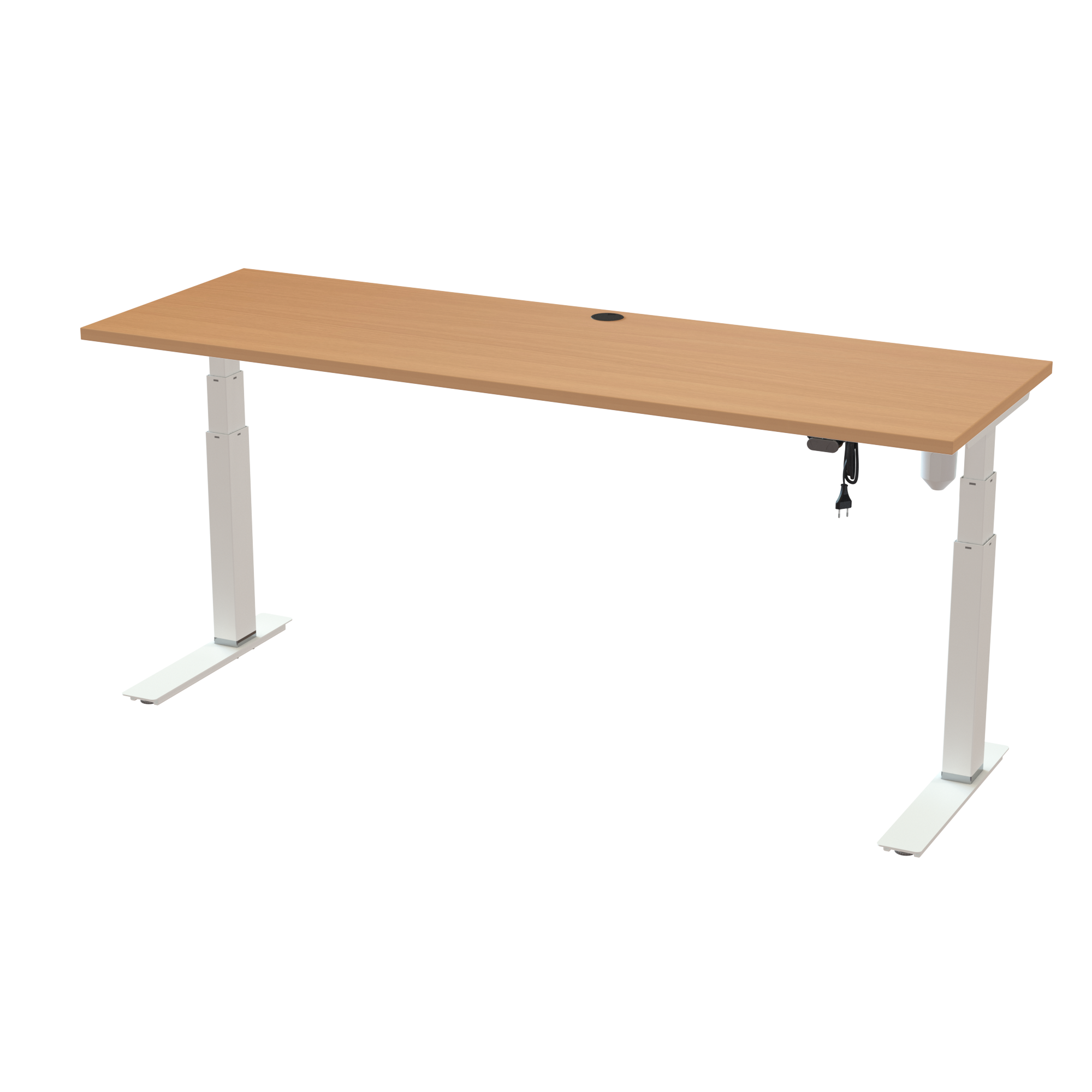

Sit Stand Desk | 180x60 cm | Beech with white frame

531-35 4W172 180-60S3 BM
531-35 4W172 180-60S3 BM
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
$ 894 incl. GST
Item no.: 531-35 4W172 180-60S3 BM

Create a more accessible workspace with this slim C-frame height adjustable desk. Its off-centre column gives you maximum legroom, even with a reduced tabletop depth. The design features an RAL 9016 (white) frame, an tabletop, and a foot matched to the 1800 x 600 mm width. Includes a removable chrome ring to adjust the stroke (620-1270 mm) for users as short as 150 cm. With a load capacity of 100 kg, the desk can be fully assembled in just 23 min.

The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance.


Table top specifications

  • Dimensions : 1800 x 600 mm
  • Core material:
  • Surface finish: , the tabletop comes with a cable grommet included.
  • Edges:

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel.
  • Motor : ConSet’s tested and reliably operating 1-motor solution
Frame Color
Tabletop Color
Foot Design
C shape 60 cm
Cable Manager
No accessories
Control Unit
Standard
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
531-35 4W172 180-60S3 BM
Description:
Sit Stand Desk | 180x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055CFeet and brackets C60, white$ 95,-$ 95,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-60S3 BMSit-Stand Desk Top | 180x60 cm | Beech$ 172,-$ 172,-

Total
$ 894,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055C0000,000
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-60S3 BM18767423,005704142151082
