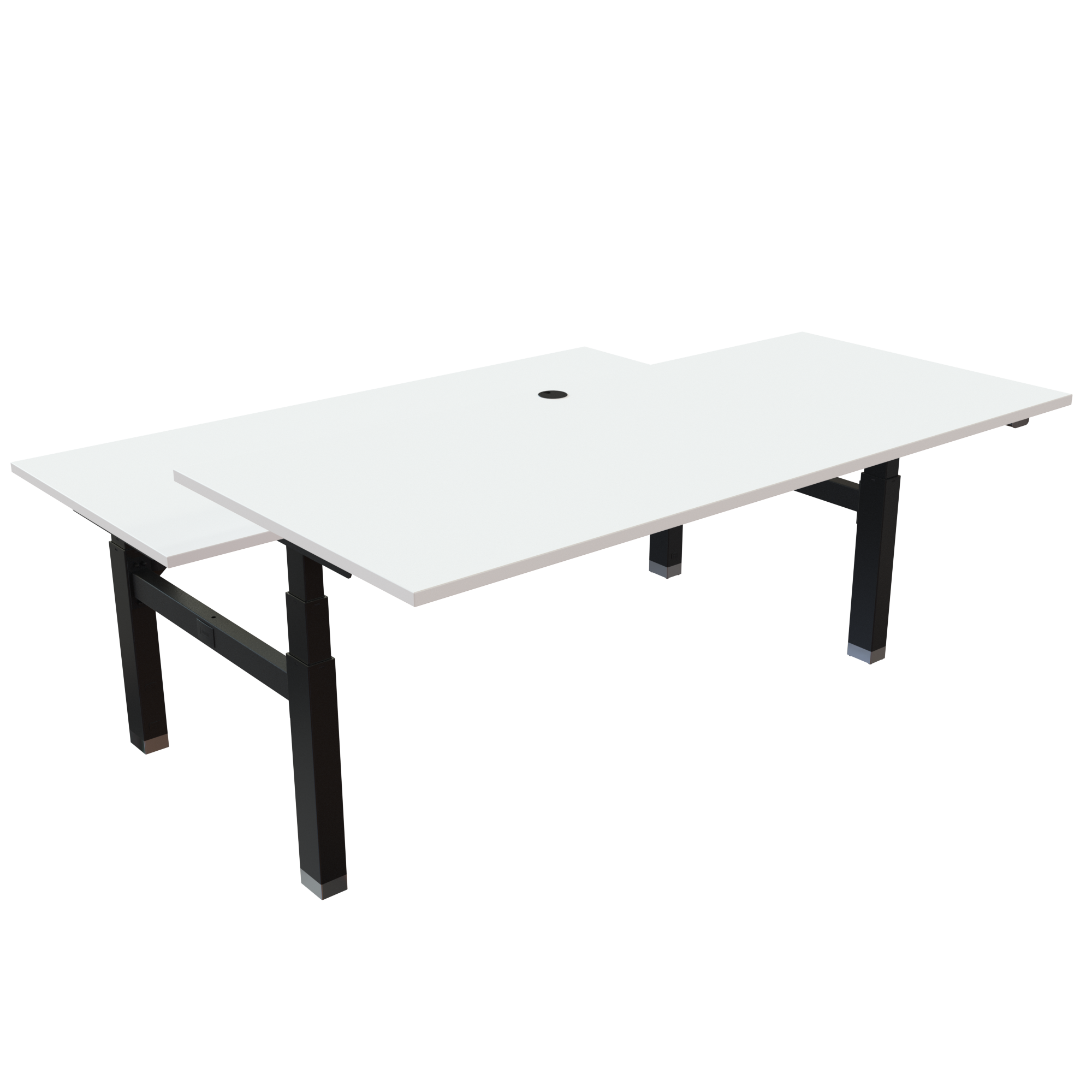

Sit Stand Desk | 180x80 cm | White with black frame

581-35 4B172 180-80S3 WM
581-35 4B172 180-80S3 WM
Sit Stand Desk | 180x80 cm | White with black frame
Sit Stand Desk | 180x80 cm | White with black frame
Sit Stand Desk | 180x80 cm | White with black frame
Sit Stand Desk | 180x80 cm | White with black frame
$ 1947 incl. GST
Item no.: 581-35 4B172 180-80S3 WM

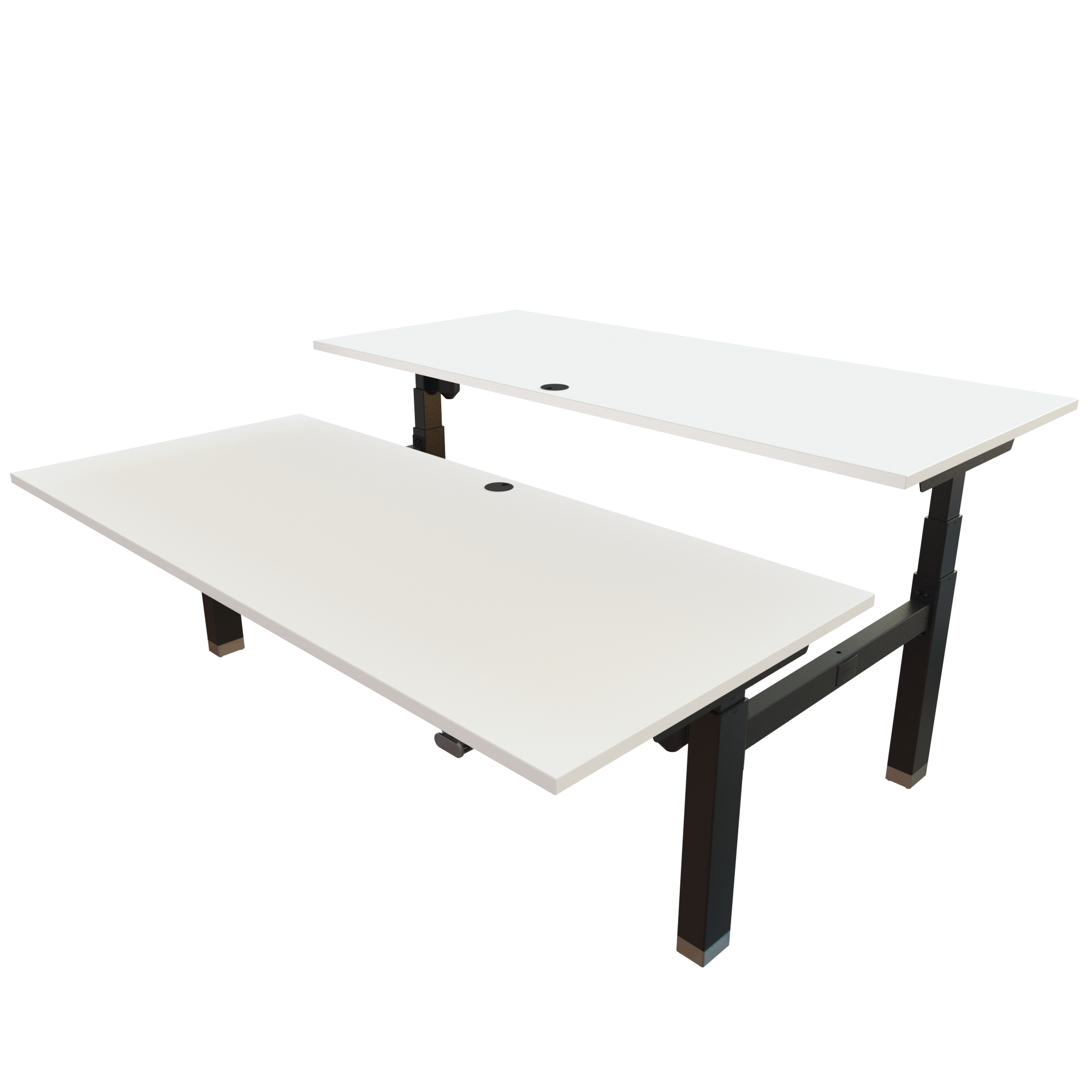

Built for open offices where both aesthetics and space efficiency matter, these Back-to-Back desks showcase a clean architecture that minimizes floor-level obstructions. The shared frame keeps multiple workstations perfectly aligned while showcasing the column and a sharp 35 mm chrome detail at the base as a signature design highlight. It is configured with an RAL 9004 (black) frame and an white melamine tabletop for the 1800 x 800 mm width. The 620-1270 mm stroke is calibrated with the chrome ring attached, but detaching it allows for a fit that suits users down to 150 mm. The desk is rated for a 2x100 kg load capacity with an assembly time of 46 min.

A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the tabletop It is fitted with a plastic grommet for cable entry.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.
  • Motor : ConSet’s powerful and dependable 1-motor system
Frame Color
Tabletop Color
Add-Ons
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
581-35 4B172 180-80S3 WM
Description:
Sit Stand Desk | 180x80 cm | White with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
2XXX-X2 XBXXXLifting column set, Black$ 440,-$ 880,-
1X8X-35 XBXXX KITSet for X8X-35, black$ 233,-$ 233,-
2501-XX 4XPOWAPower Box A$ 101,-$ 202,-
2SQ138890Railset, 1720 mm, neutral$ 86,-$ 172,-
2180-80S3 WMSit-Stand Desk Top | 180x80 cm | White$ 230,-$ 460,-

Total
$ 1947,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XBXXX77191715,005704142162217
X8X-35 XBXXX KIT7117139,005704142162224
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
