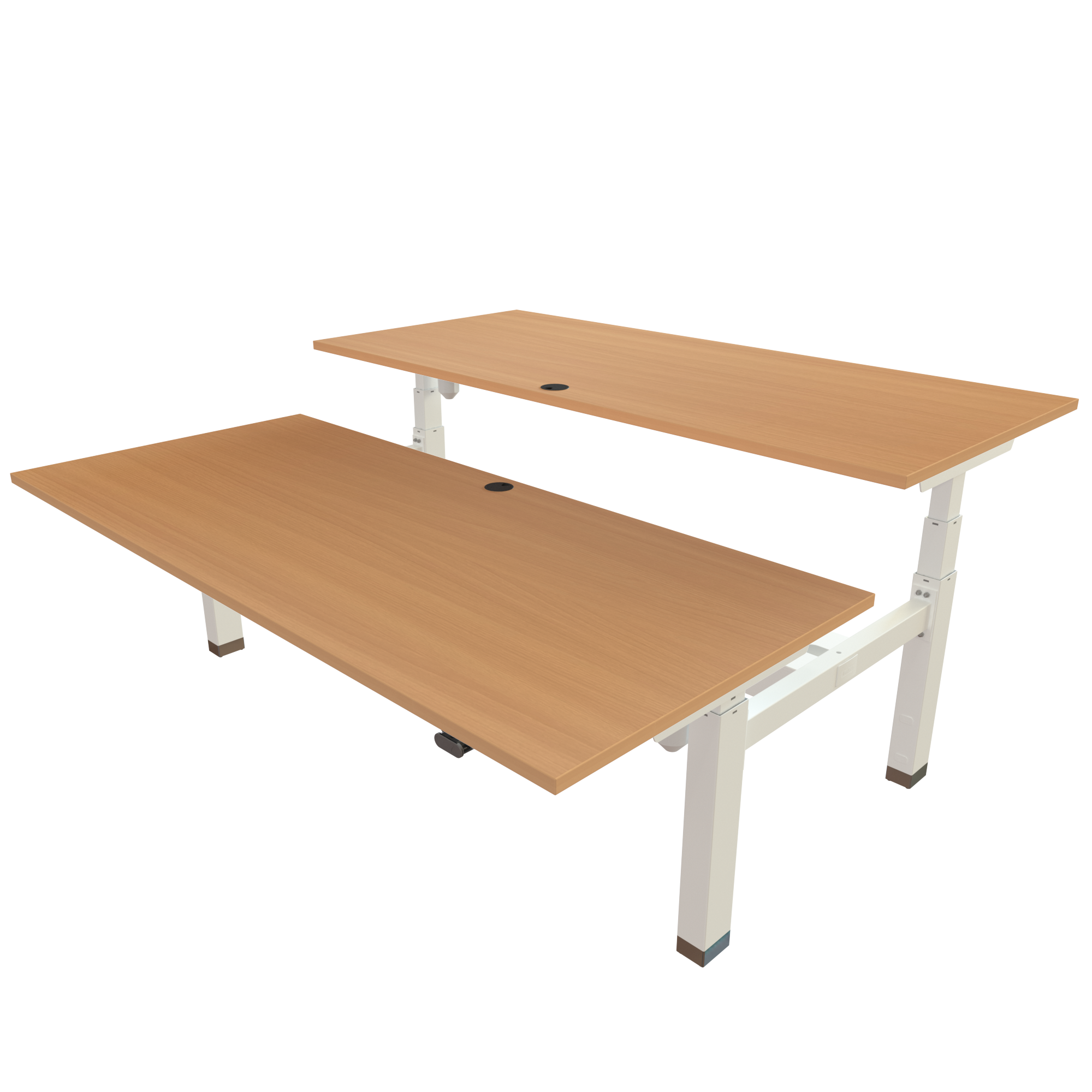

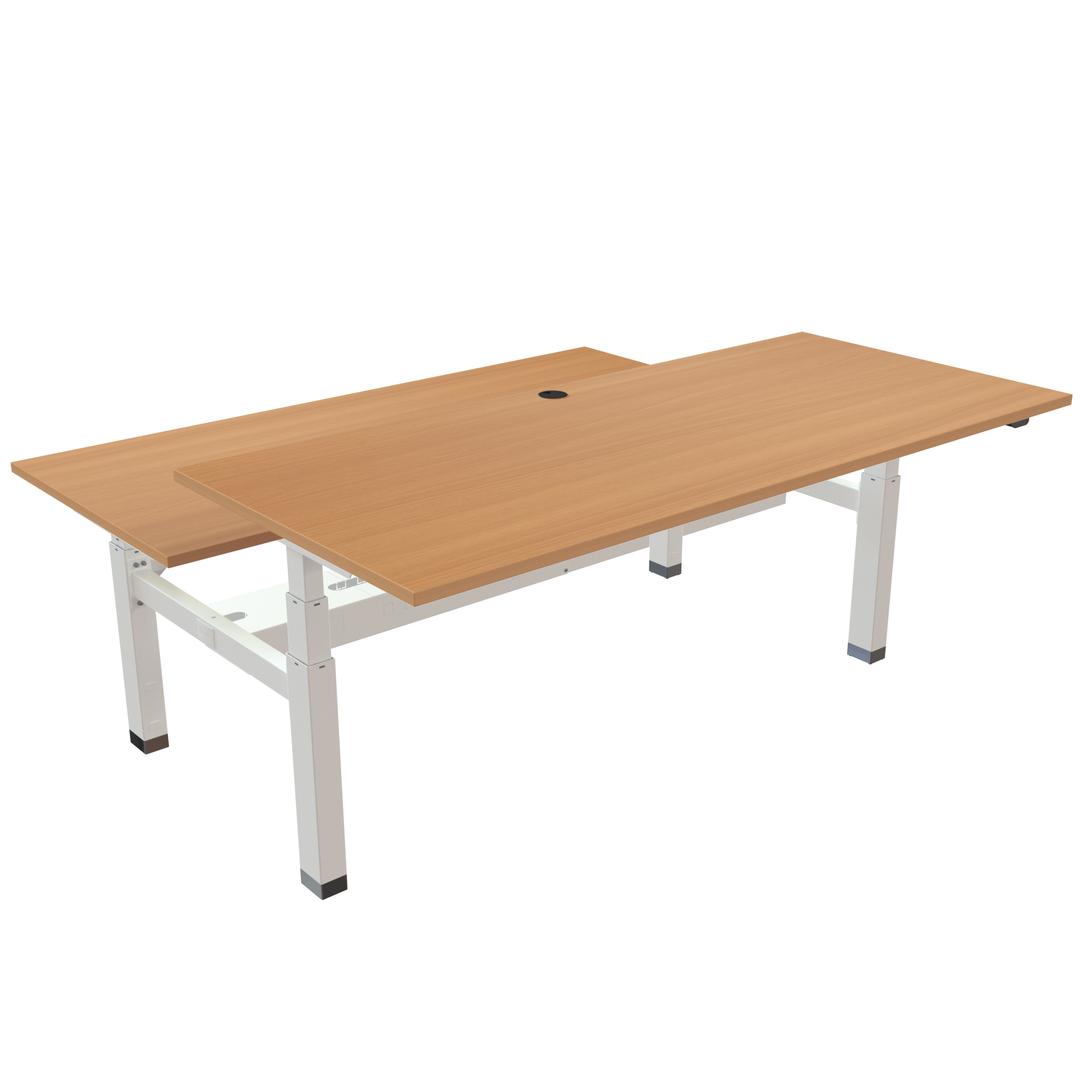

Sit Stand Desk | 180x80 cm | Beech with white frame

585-35 4W172 180-80S3 BM
585-35 4W172 180-80S3 BM
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
$ 2095 incl. GST
Item no.: 585-35 4W172 180-80S3 BM

Built for open offices where both aesthetics and space efficiency matter, these Back-to-Back desks showcase a clean architecture that minimizes floor-level obstructions. The shared frame keeps multiple workstations perfectly aligned while showcasing the column and a sharp 35 mm chrome detail at the base as a signature design highlight. It is configured with an RAL 9016 (white) frame and an beech melamine tabletop for the 1800 x 800 mm width. The 620-1270 mm stroke is calibrated with the chrome ring attached, but detaching it allows for a fit that suits users down to 150 mm. The desk is rated for a 2x100 kg load capacity with an assembly time of 51 min.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch. A heavy-duty cable tray system comes integrated into the structure, using an included connecting bracket to form a continuous channel that simplifies power distribution across an entire row of desks, keeping wires completely hidden and organized from one unit to the next. The cable tray system is RAL 9016 (white) frame coloured, matching the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, the plastic grommet for cables is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk features a standard two-arrow control panel designed for simple and reliable operation. Its durable switch-based construction minimizes complexity while ensuring long service life. The tactile buttons allow intuitive use without needing to view the panel.
  • Motor : ConSet’s tested and reliably operating 1-motor solution
Frame Color
Tabletop Color
Add-Ons
Cable tray system
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
585-35 4W172 180-80S3 BM
Description:
Sit Stand Desk | 180x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
2XXX-X2 XWXXXLifting column set, White$ 440,-$ 880,-
1X8X-35 XWXXX KITSet for X8X-35, white$ 233,-$ 233,-
1501-XX LW131-161Cabletray system, white$ 148,-$ 148,-
2501-XX 4XPOWAPower Box A$ 101,-$ 202,-
2SQ138890Railset, 1720 mm, neutral$ 86,-$ 172,-
2180-80S3 BMSit-Stand Desk Top | 180x80 cm | Beech$ 230,-$ 460,-

Total
$ 2095,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
XXX-X2 XWXXX77191715,005704142161616
X8X-35 XWXXX KIT7117139,005704142162064
501-XX LW131-16110120107,005704142150443
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
