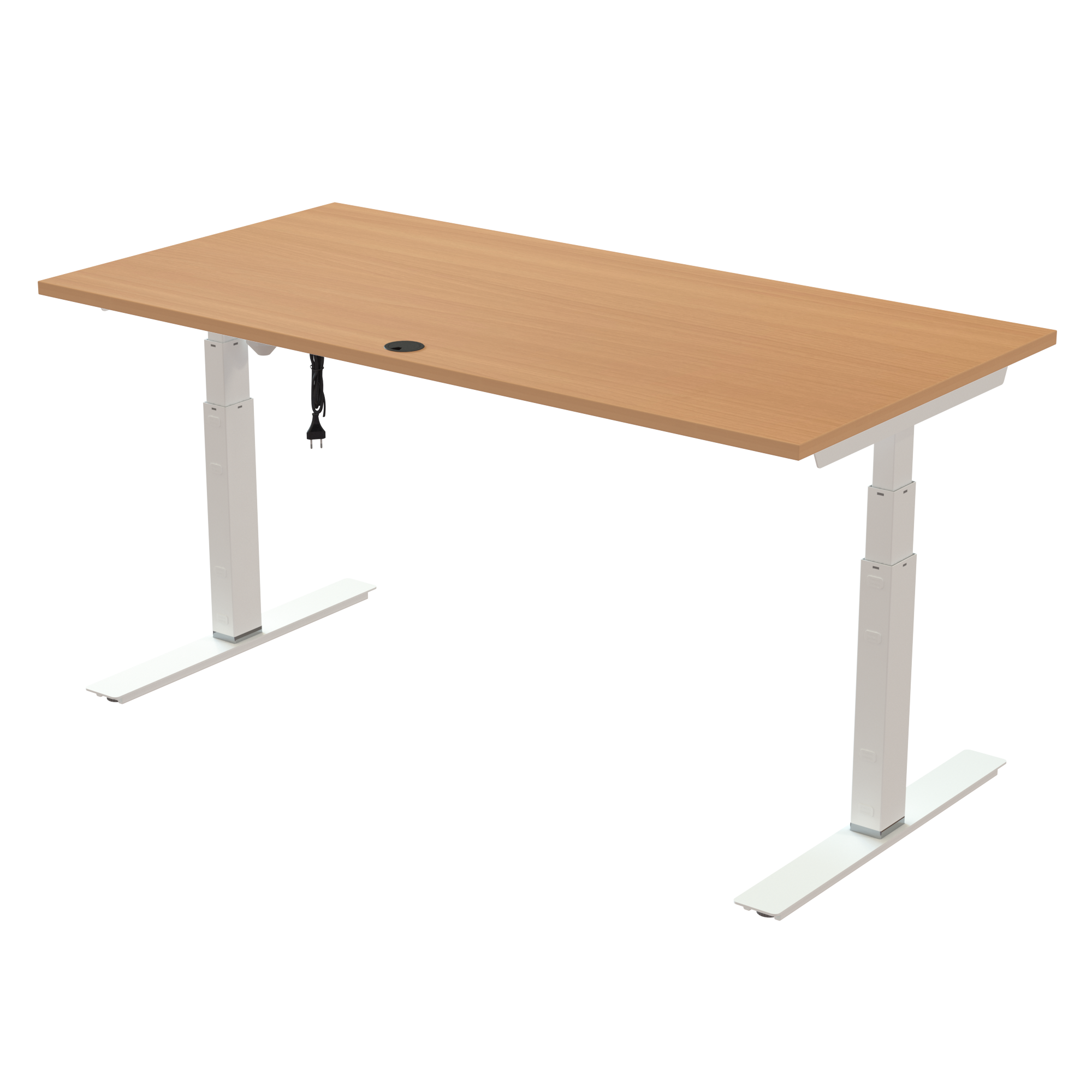

Sit Stand Desk | 160x80 cm | Beech with white frame

401-35 4W152 160-80S3 BM
401-35 4W152 160-80S3 BM
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
Sit Stand Desk | 160x80 cm | Beech with white frame
$ 1035 incl. GST
Item no.: 401-35 4W152 160-80S3 BM

A symmetrical layout and centered lifting column make this adjustable desk a practical choice for a 1600 x 800 mm tabletop. The included 35 mm chrome base ring allows the frame to reach its full 620-1270 mm stroke, while removing it improves accessibility for users from 150 cm tall. The frame provides a 100 kg load capacity, an 24 min assembly time, and comes in beech with an melamine surface.

The desk has a digital controller with three memory positions and built-in safety protection. The tactile buttons are easy to find by touch, so you don't have to look down to adjust the height.


Table top specifications

  • Dimensions : 1600 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable port is supplied as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The digital controller includes three preset memory positions along with collision and anti-tilt protection. The arrow-shaped tactile buttons allow the desk to be operated without visual attention.
  • Motor : ConSet’s tested and reliably operating 1-motor solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
401-35 4W152 160-80S3 BM
Description:
Sit Stand Desk | 160x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-80S3 BMSit-Stand Desk Top | 160x80 cm | Beech$ 184,-$ 184,-

Total
$ 1035,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX 4XPOWS25971,005704142161890
SQ134460151533,105704142134467
160-80S3 BM16787423,005704142132944
