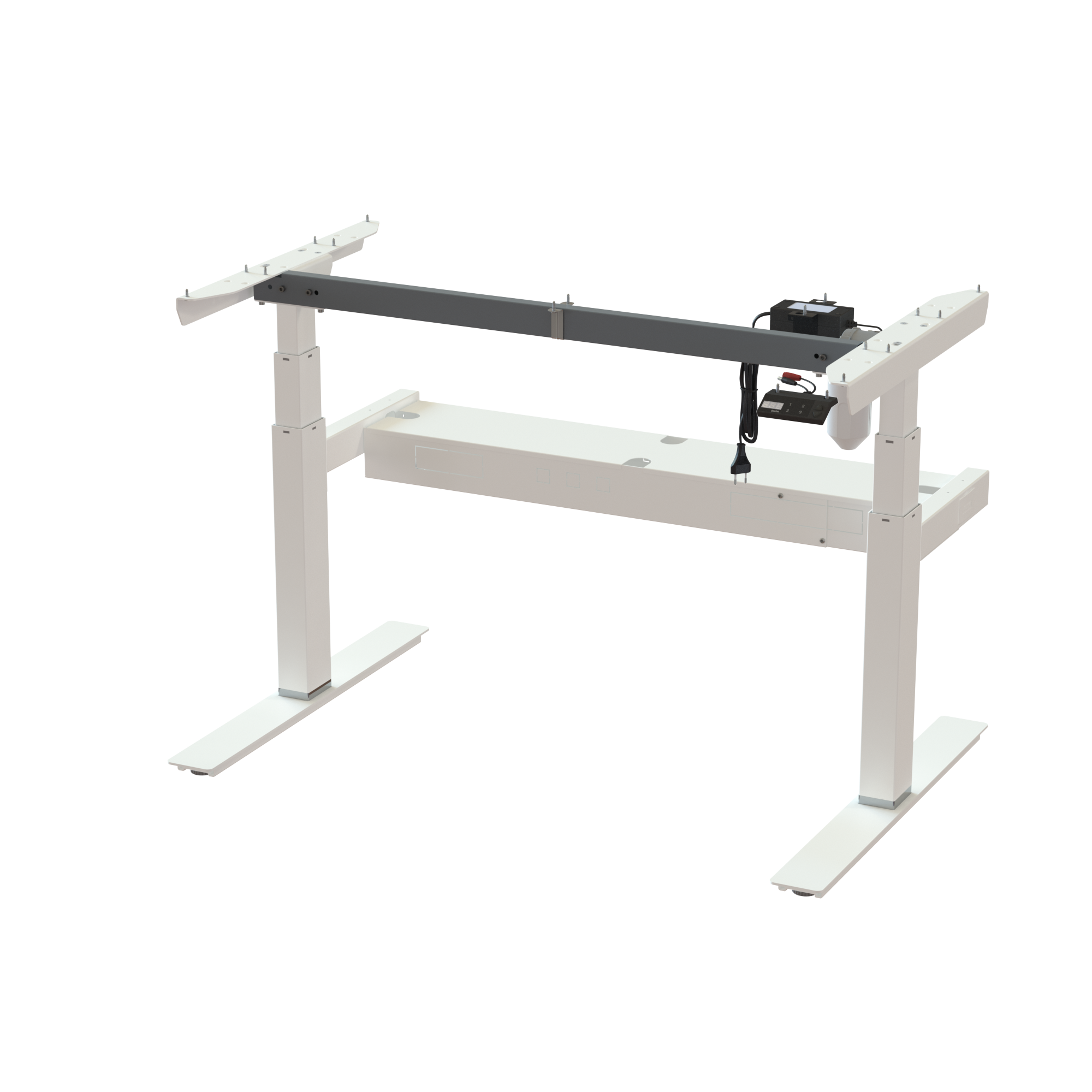

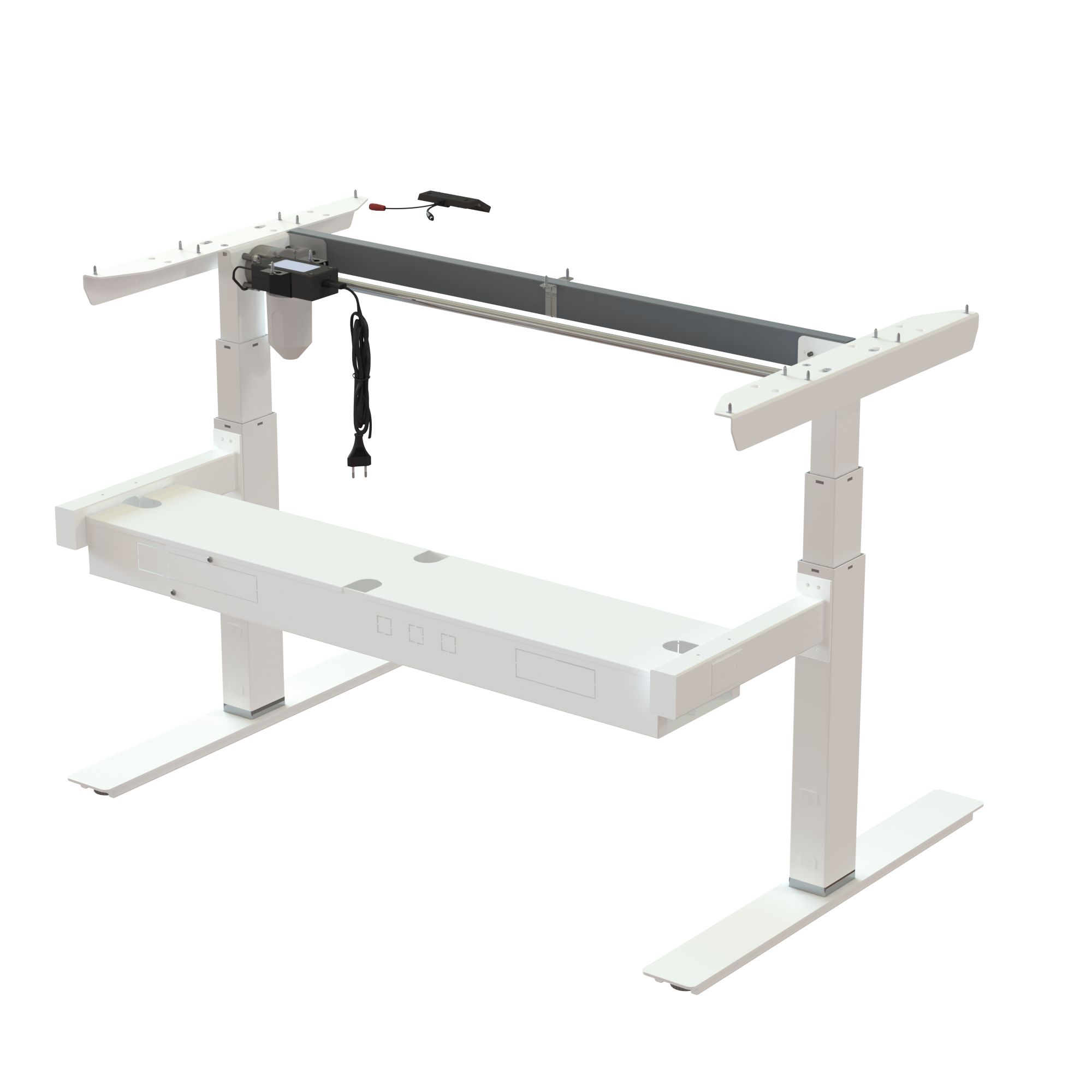

Our symmetrical T-frame height adjustable desk frame has a centered column to provide excellent stability and a clean look for your workstation setup. The foot length is perfectly calibrated to the 800 mm width. Built with an RAL 9016 (white) frame, it includes a functional 35 mm chrome ring at the base. The stroke is 620-1270 mm with the ring attached, or you can remove it to extend the adjustment range down to 150 cm. It is built with a load capacity of 100 kg and is ready for use in just 20 min.

The desk frame features a digital control panel with three memory positions and built-in safety functions. The tactile buttons make the controls easy to identify without looking.
Order and cable management are prioritized by a robust cable tray, ensuring all leads are neatly contained while providing external side slots for easy power strip connection. This cable tray comes with a connecting bracket designed to link desk frames in a row, keeping the cables between workstations perfectly structured. The cable tray is RAL 9016 (white) frame coloured to match the desk frame perfectly.

Frame specifications

• Frame width: 1120 mm
• Frame depth: 750 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame comes with a digital controller offering three memory positions and built-in collision and anti-tilt protection. The tactile up and down buttons are easy to locate and use by touch.
• Motor : ConSet’s tested and reliable 1-motor drive solution
