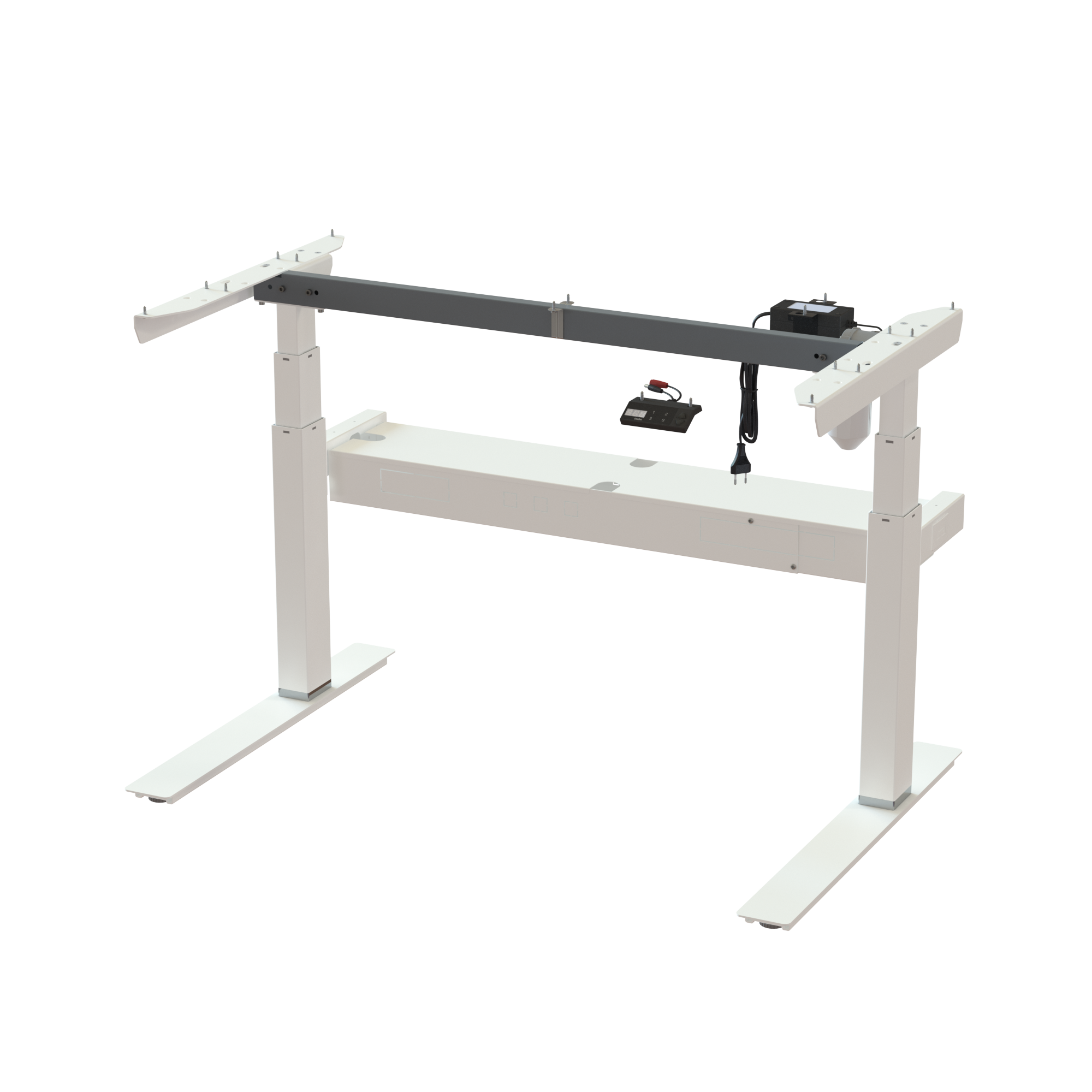

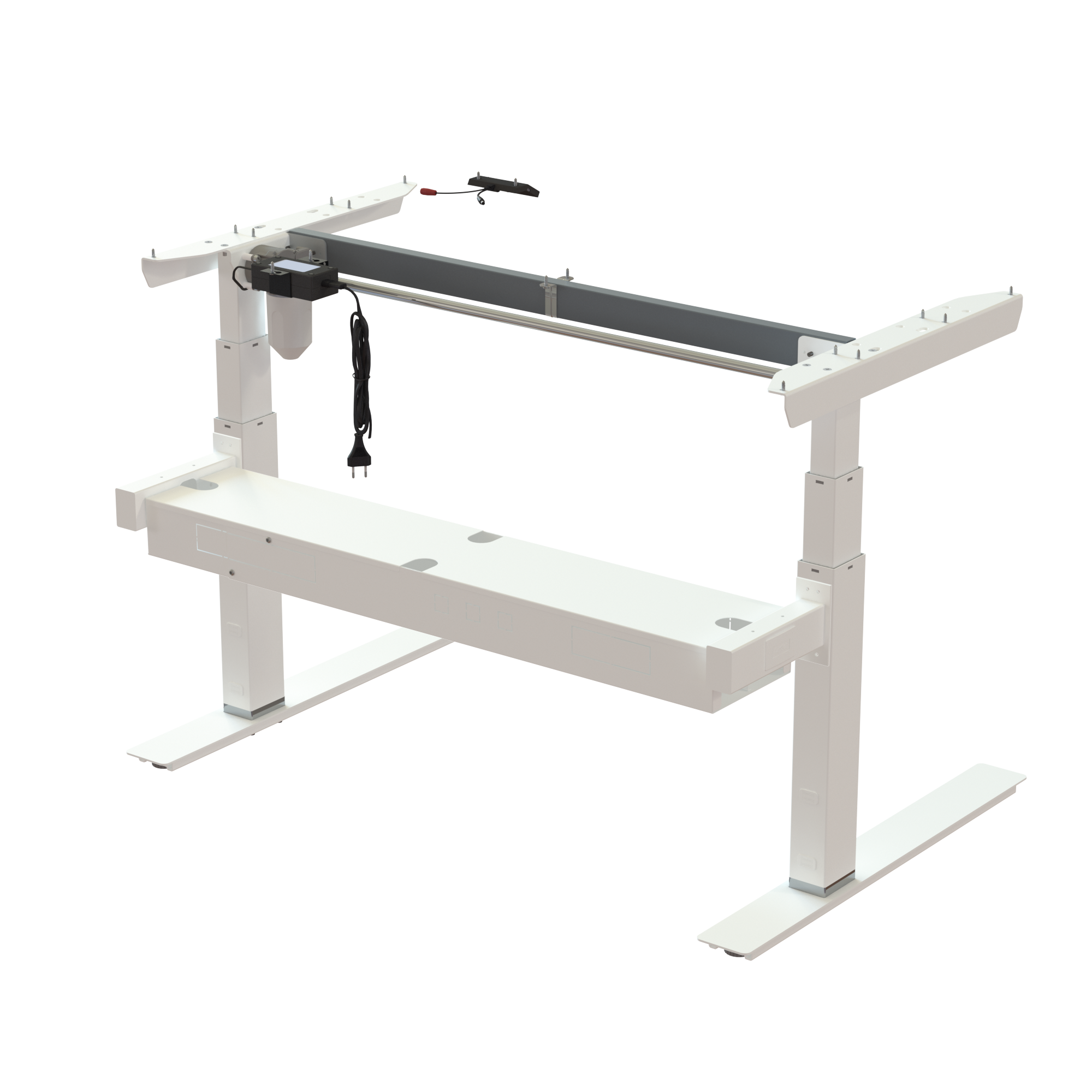

Maximise your legroom with this C-frame height adjustable desk frame. Its off-centre column creates a spacious feel and provides an open area beneath the structure. The foot length is perfectly matched to the 800 mm width. Built with an RAL 9016 (white) frame, it highlights a prominent, detachable 35 mm chrome ring at the base; with this ring attached, the stroke is 620-1270 mm. Remove it to extend the adjustment range for users down to 150 cm. The desk frame has a load capacity of 100 kg and is ready for use in just 20 min.

The desk frame is equipped with a digital controller featuring three programmable memory positions and integrated collision and anti-tilt protection. Tactile buttons provide easy operation by touch.
A heavy-duty cable tray comes mounted onto the structure, using an included connecting bracket to form a continuous channel that simplifies power distribution across an entire row of desk frames, keeping wires completely hidden and organized from one desk frame to the next. The cable tray is RAL 9016 (white) frame coloured, matching the desk frame.

Frame specifications

• Frame width: 1120 mm
• Frame depth: 750 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The digital controller provides three memory positions together with collision and anti-tilt protection. The tactile buttons allow the desk frame to be adjusted quickly and easily by feel.
• Motor : ConSet’s dependable 1-motor system, tested for professional use
