Manufacturer of electric height adjustable desks ...
Product-groups    Products

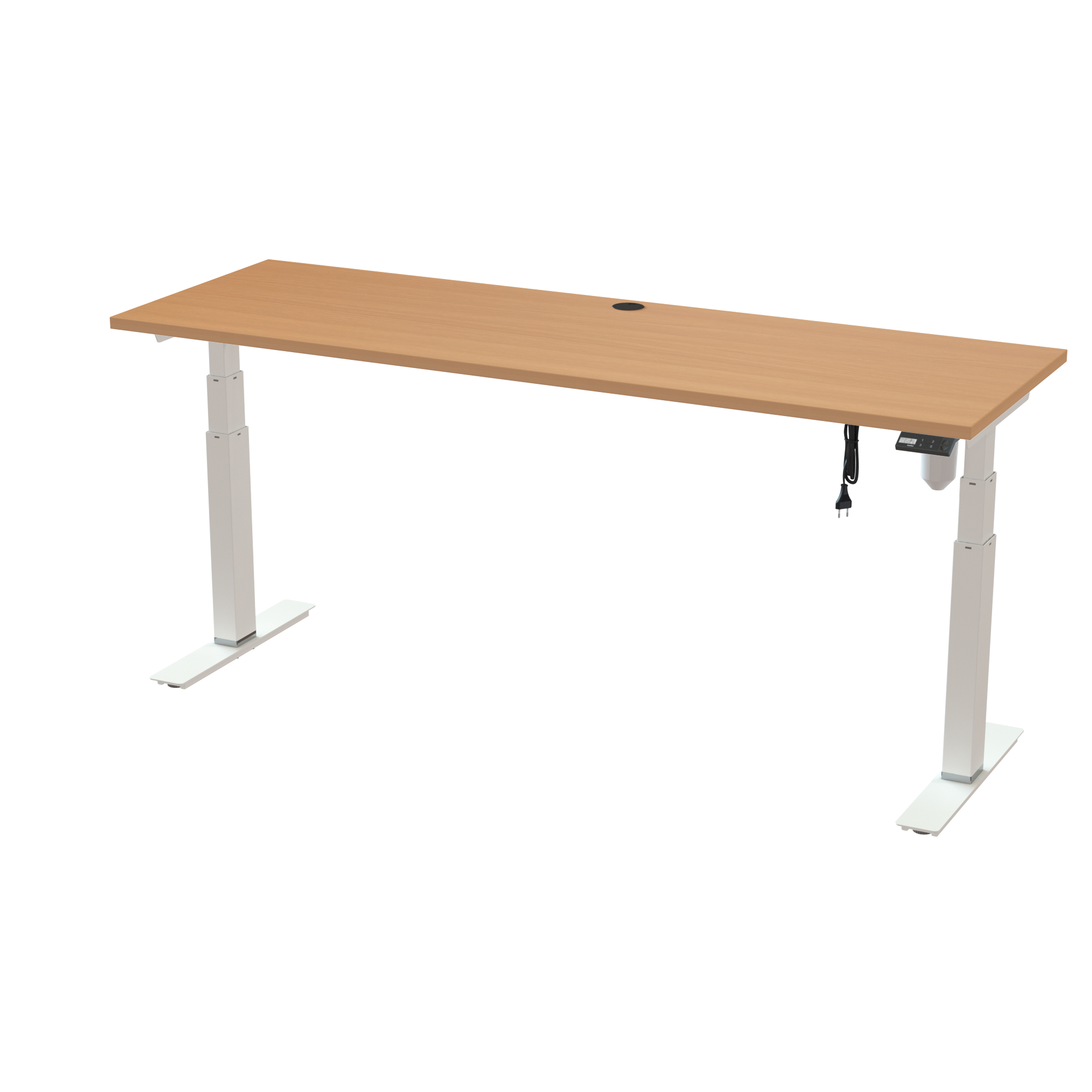

Sit Stand Desk | 180x60 cm | Beech with white frame

412-35 4W172 180-60S3 BM
412-35 4W172 180-60S3 BM
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
$ 1074 incl. GST
Item no.: 412-35 4W172 180-60S3 BM

The slim T-frame creates a balanced look with narrow 1800 x 600 mm tabletops while maintaining excellent stability. Combined with an RAL 9016 (white) frame and an beech melamine tabletop, the desk offers a standard height adjustment range of 620-1270 mm. Simply remove the 35 mm chrome rings to lower the desk by 35 mm for users as short as 150 cm. Supporting loads of up to 100 kg, the desk is quick to assemble in 34 min.

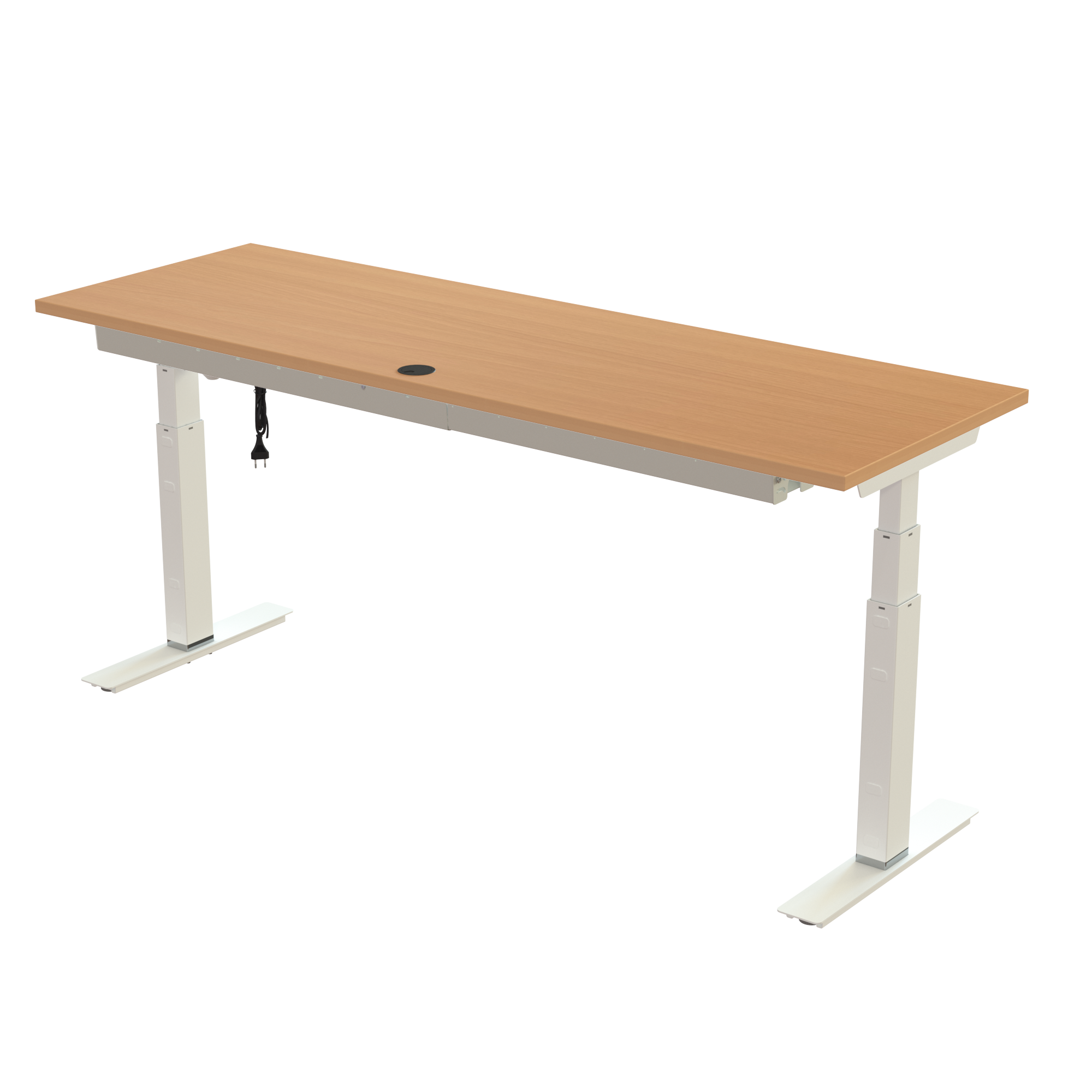

The digital controller provides three memory positions together with collision and anti-tilt protection. Thanks to the tactile arrow buttons, the desk can be adjusted by feel alone. The desk includes a standard cable tray integrated under the tabletop, utilizing a hinged design that simplifies access by opening smoothly. Situated directly below the cable grommet, it creates a perfect pathway where the grommet acts as the main exit point for all desktop electronics. The cable tray is RAL 9016 (white) frame coloured, matching the desk frame.


Table top specifications

  • Dimensions : 1800 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, cable access grommet is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: With three memory positions and integrated safety sensors, the digital controller makes desk adjustments seamless. The tactile arrow buttons are easy to identify by feel.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
412-35 4W172 180-60S3 BM
Description:
Sit Stand Desk | 180x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-60S3 BMSit-Stand Desk Top | 180x60 cm | Beech$ 172,-$ 172,-

Total
$ 1074,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX CW096-166888153,805704142144800
501-XX 4XPOWS25971,005704142161890
SQ138890171534,205704142138892
180-60S3 BM18767423,005704142151082
Contact me about this product
I am/We are
Country
Name/FirmName
Postal
Email
Phone
Comment
Control code
Adjust your product
×
Download

Item no.: 412-35 4W172 180-60S3 BM
