Sit Stand Desk | 180x60 cm | Beech with white frame

413-35 4W172 180-60S3 BM
413-35 4W172 180-60S3 BM

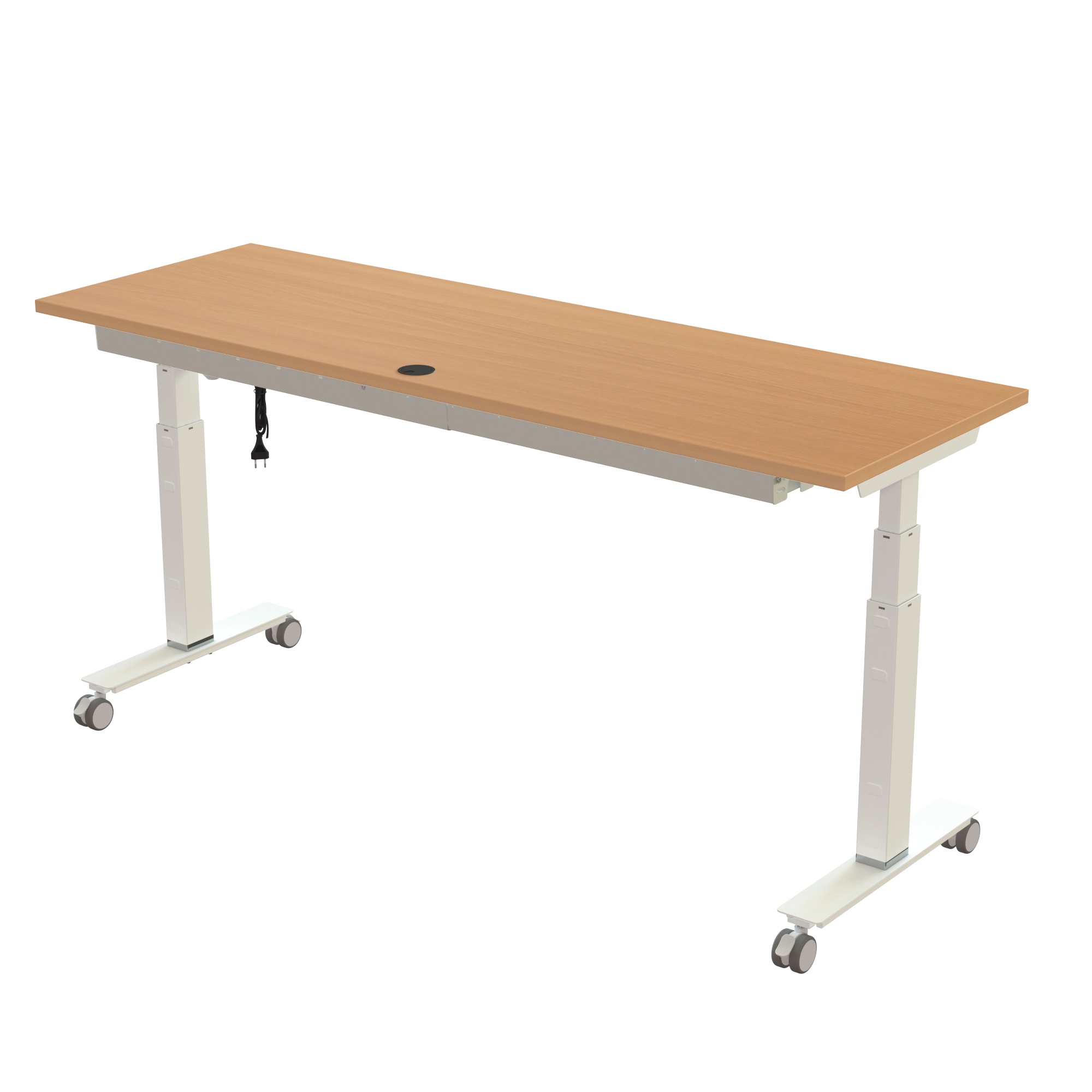

Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
Sit Stand Desk | 180x60 cm | Beech with white frame
$ 1158 incl. GST
Item no.: 413-35 4W172 180-60S3 BM

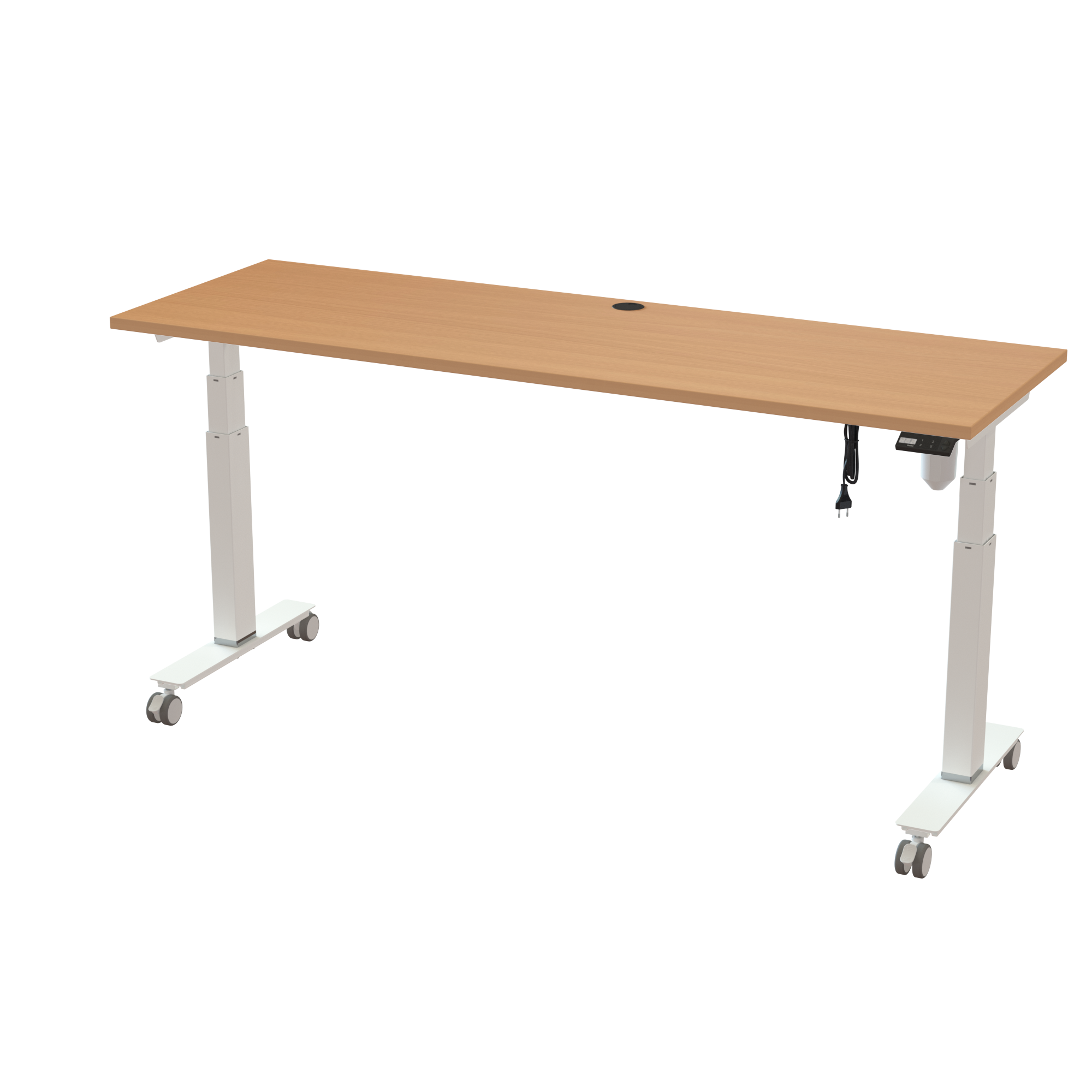

A RAL 9016 (white) frame, a beech melamine tabletop and a slim T-frame come together in this elegant height adjustable desk, designed specifically for narrow 1800 x 600 mm tabletops. Standard height adjustment is 620-1270 mm. Each column is finished with a removable 35 mm chrome ring that lowers the desk by 35 mm when removed. Designed to handle up to 100 kg, the desk requires only 38 min for assembly.

The digital controller includes three preset memory positions along with collision and anti-tilt protection. The arrow-shaped tactile buttons allow the desk to be operated without visual attention. The desk comes with a cable tray mounted under the tabletop to maintain a clean look, using a smart hinged design for quick opening right under the cable grommet exit point. Mobile castors are attached to the legs, making it easy to roll the desk whenever needed. The layout is RAL 9016 (white) frame coloured, same as the desk frame.


Table top specifications

  • Dimensions : 1800 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable port is supplied as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A digital controller with three preset memory positions is included as standard. The tactile arrow buttons allow intuitive operation without having to look at the control panel.
  • Motor : ConSet’s stable 1-motor mechanism with documented reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
413-35 4W172 180-60S3 BM
Description:
Sit Stand Desk | 180x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWSPower Box S$ 214,-$ 214,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-60S3 BMSit-Stand Desk Top | 180x60 cm | Beech$ 172,-$ 172,-

Total
$ 1158,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX CW096-166888153,805704142144800
501-XX HXX1121251,205704142152621
501-XX 4XPOWS25971,005704142161890
SQ138890171534,205704142138892
180-60S3 BM18767423,005704142151082
