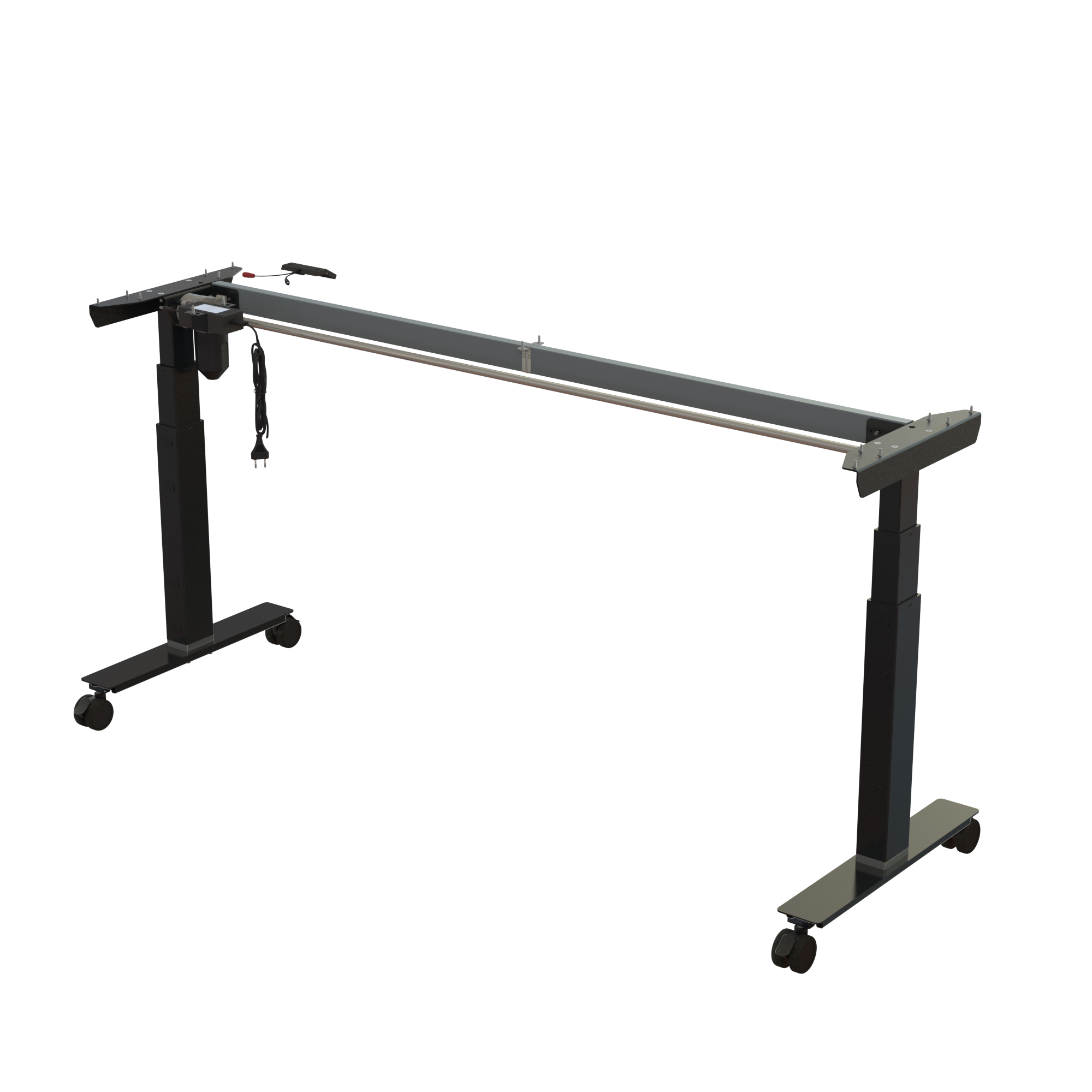

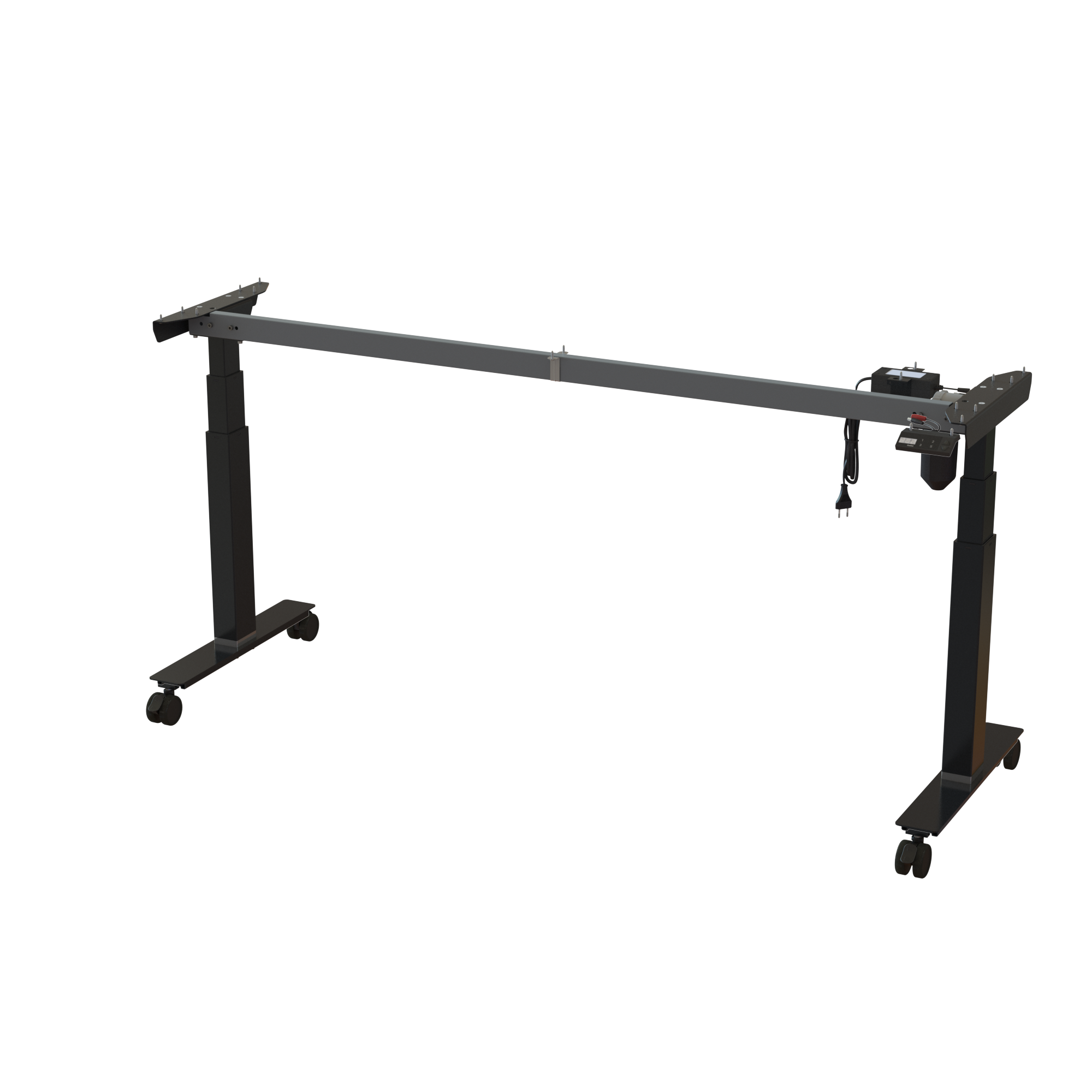

Perfectly suited for slimmer setups, this symmetrical T-frame height adjustable desk frame provides excellent stability despite its compact footprint. The central column ensures a balanced, clean aesthetic underneath. The foot length is matched to the 600 mm width. Built with an RAL 9004 (black) frame, it includes a detachable 35 mm chrome ring; with this ring attached, the stroke is 620-1270 mm. Remove it to extend the adjustment range for users down to 150 cm. It offers a load capacity of 100 kg and is ready for use in just 20 min.

The desk frame is supplied with a digital controller featuring three memory positions and integrated safety functions. The tactile buttons provide clear feedback and are easy to operate by touch.
This desk frame comes with standard castors for portability.

Frame specifications

• Frame width: 1720 mm
• Frame depth: 550 mm
• Material/finish: Powdercoated steel RAL 9004 (black)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The digital controller includes three memory positions along with collision and anti-tilt protection. The tactile buttons allow the desk frame to be operated without visual attention.
• Motor : ConSet’s tested and reliable 1-motor drive solution
