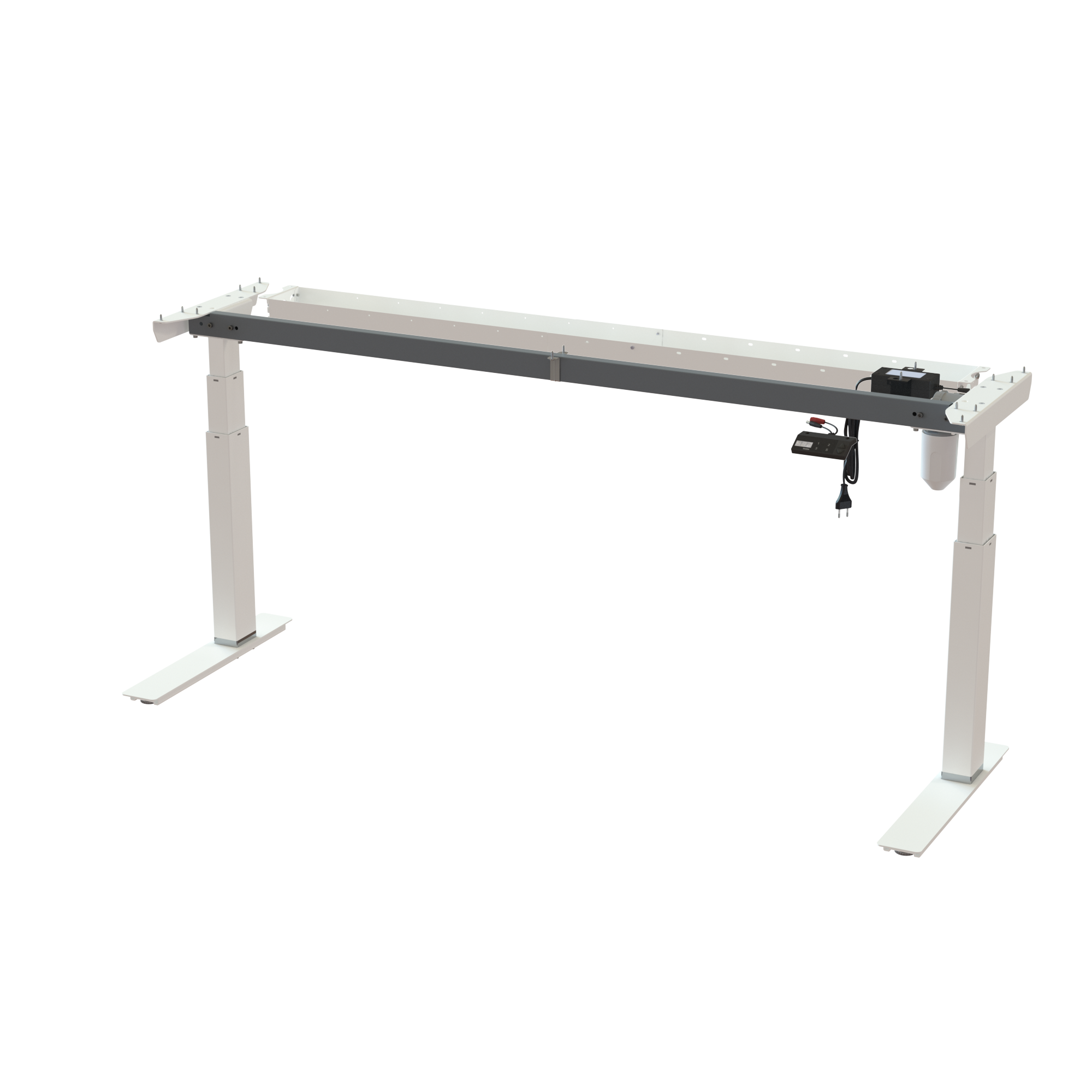

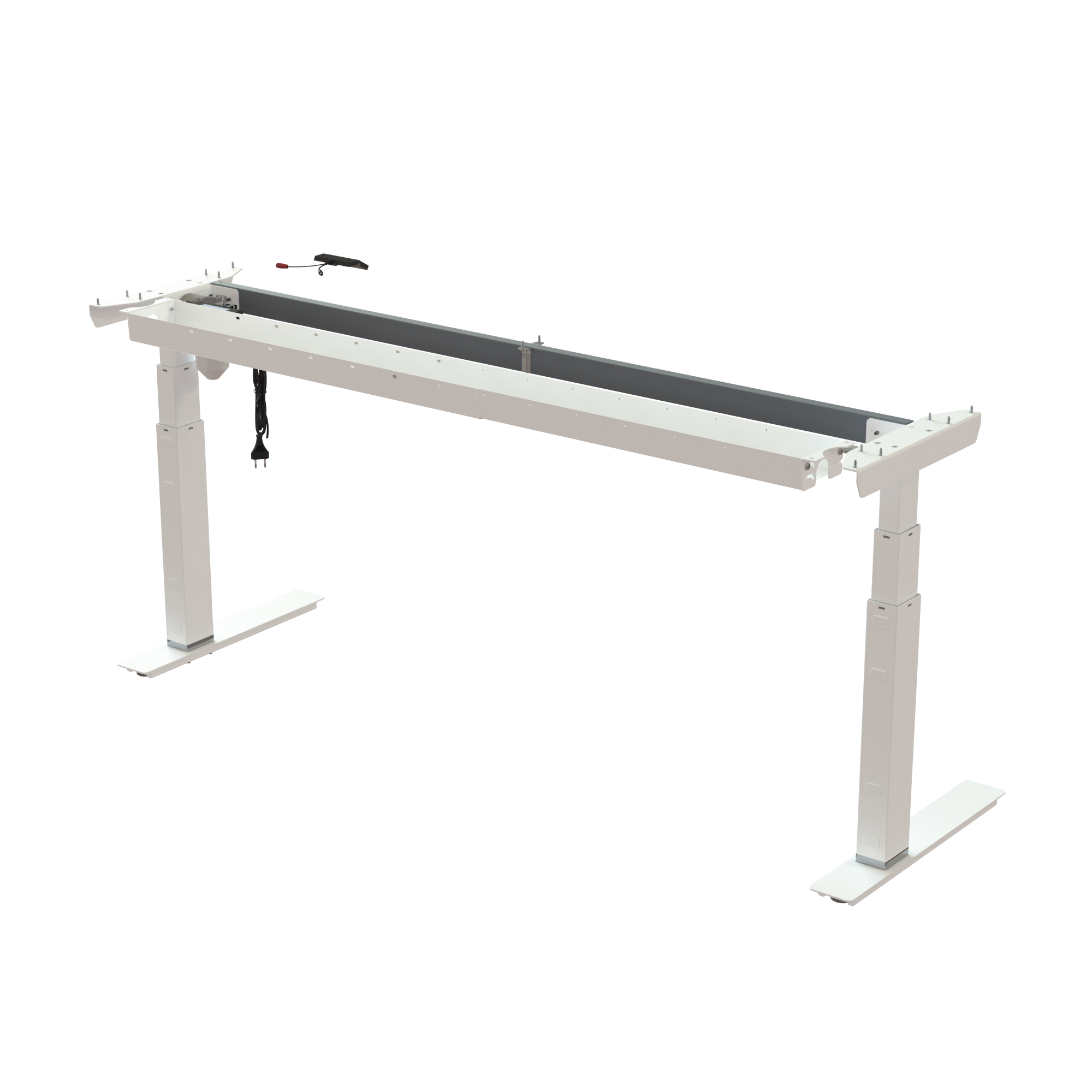

This C-frame sit-stand desk frame is built specifically to ensure plenty of room for your legs in limited-depth environments. The off-centre column configuration offers a more open workspace experience. It includes an RAL 9016 (white) frame and a foot length matched to the 600 mm width. With the 35 mm chrome ring attached at the base, the stroke is 620-1270 mm, but you can remove it to extend the range for users down to 150 cm. The desk frame is rated for a load capacity of 100 kg and is assembled in 26 min.

The desk frame features a digital control panel with three memory positions and built-in safety functions. The tactile buttons make the controls easy to identify without looking.
A dedicated cable tray is provided and mounts onto the tabletop (sold separately) to keep cords organized.

Frame specifications

• Frame width: 1720 mm
• Frame depth: 550 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame is equipped with a digital controller featuring three memory positions, as well as collision and anti-tilt protection. The tactile buttons can be identified by touch, allowing easy operation without looking at the control panel.
• Motor : ConSet’s tested and reliably operating 1-motor solution
