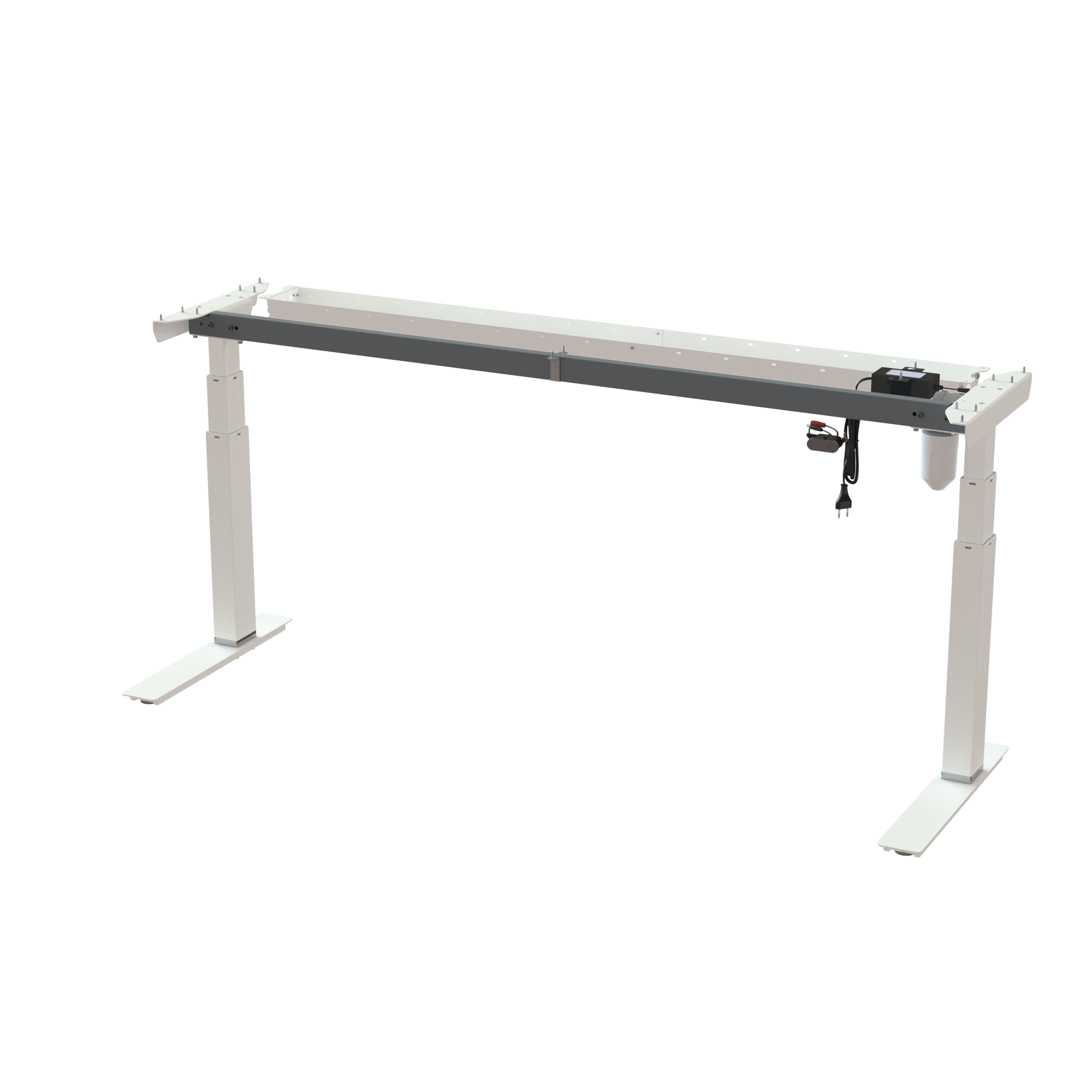

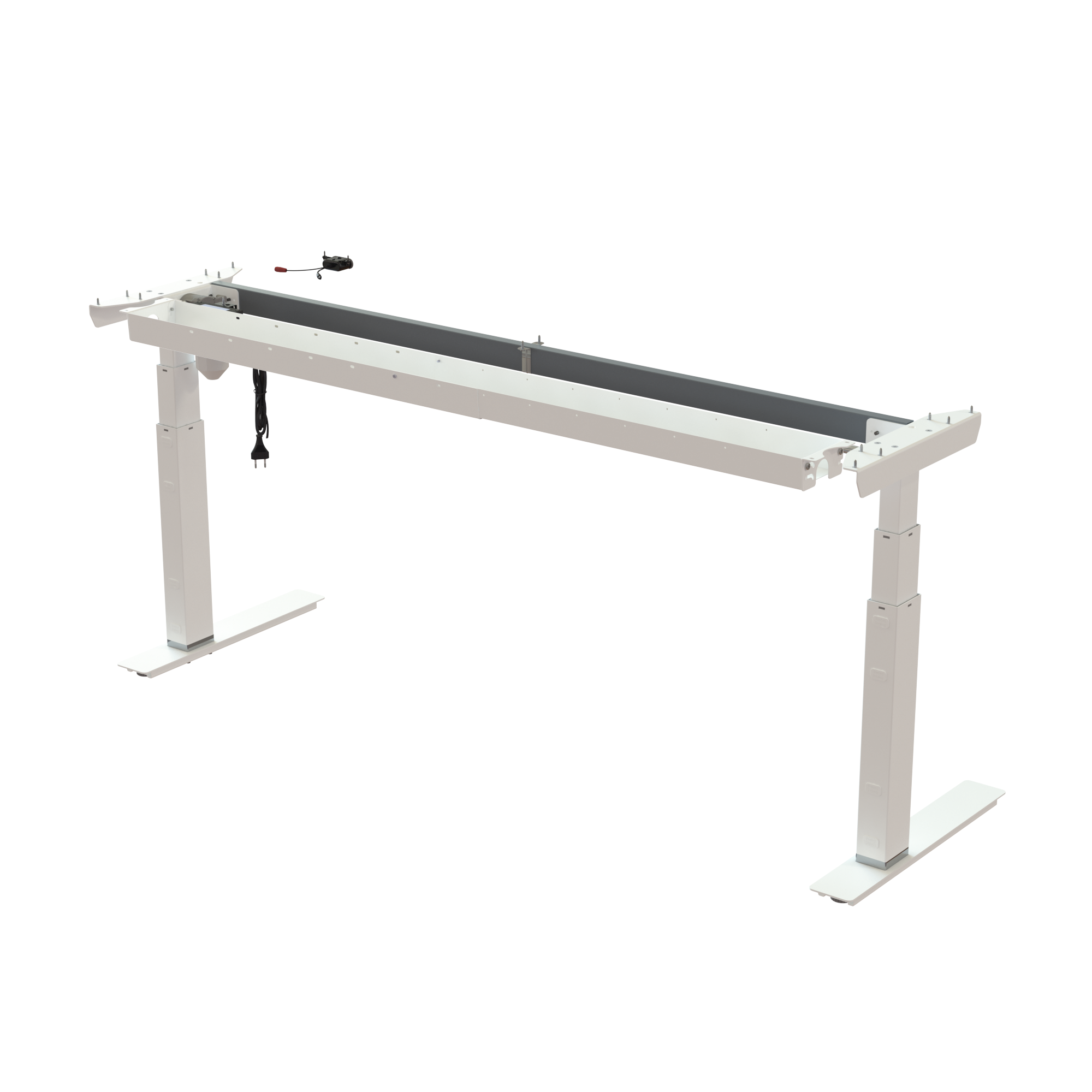

Create a more accessible workspace with this slim C-frame height adjustable desk frame. Its off-centre column gives you maximum legroom, even with a reduced frame depth. The design contains an RAL 9016 (white) frame and a foot matched to the 600 mm width. It includes a removable 35 mm chrome ring, providing a stroke of 620-1270 mm when attached, which can be taken off to adjust the height for users as short as 150 cm. It comes with a load capacity of 100 kg and the desk frame can be fully put together in just 25 min.

The desk frame includes a standard two-arrow control panel. Its proven design offers reliable performance and long service life. Raised arrow buttons provide clear tactile feedback for easy operation.
Each desk frame includes a personal cable tray that is ready to be mounted to the underside of your chosen tabletop.

Frame specifications

• Frame width: 1720 mm
• Frame depth: 550 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame is equipped with a standard two-arrow user panel for simple and intuitive height adjustment. The durable switch-based design ensures reliable everyday use. Tactile controls allow operation without visual attention.
• Motor : ConSet’s stable 1-motor mechanism with documented reliability
