Sit Stand Desk | 180x80 cm | White with white frame

502-35 4W172 180-80S3 WM
502-35 4W172 180-80S3 WM
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
$ 1035 incl. GST
Item no.: 502-35 4W172 180-80S3 WM

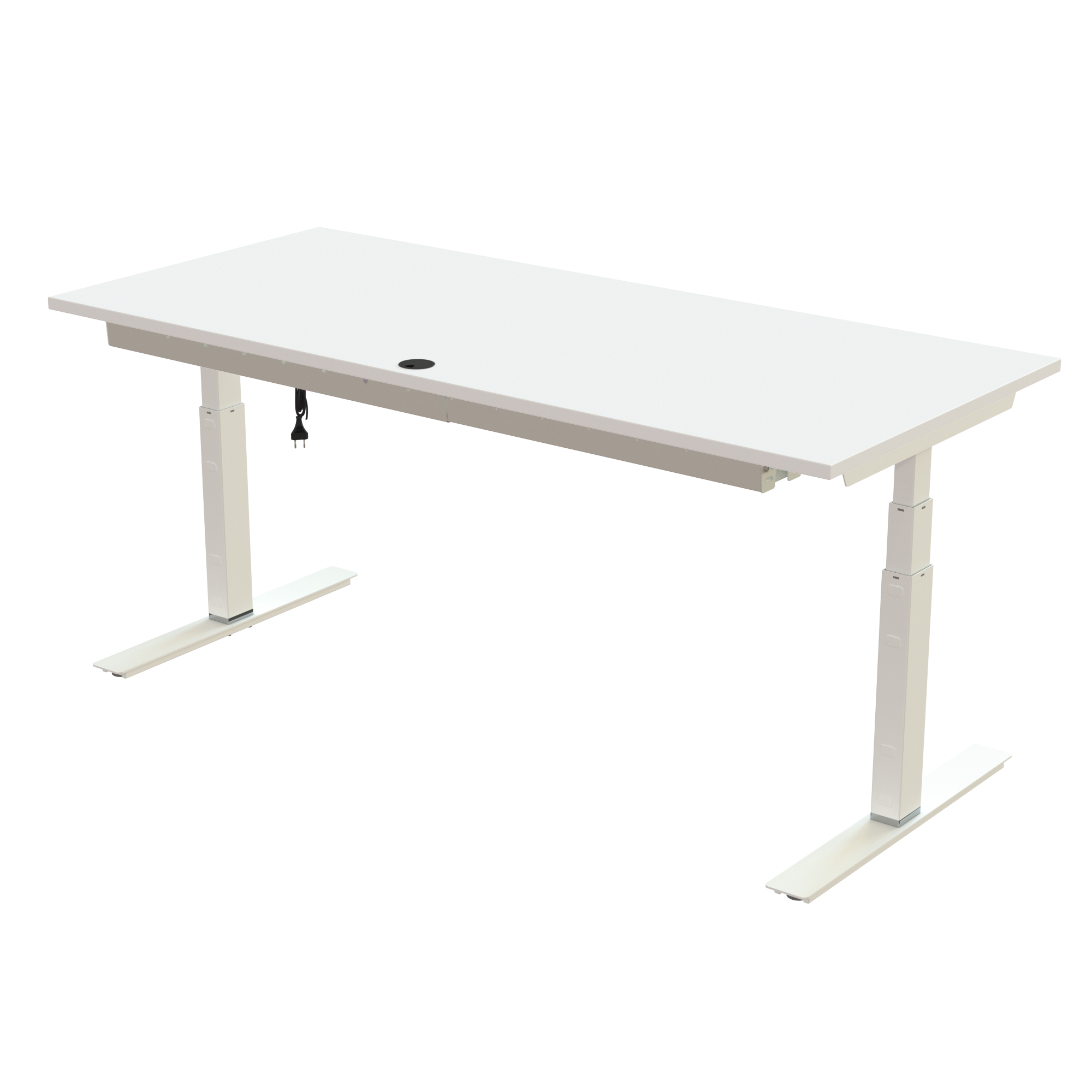

This sit-stand desk features a clean, symmetrical design with centered feet and top arms, sized to support a 1800 x 800 mm tabletop while maximising legroom. With the 35 mm chrome base ring installed, the frame delivers its full 620-1270 mm stroke. Remove the ring to lower the minimum height for users from 150 cm. It offers a 100 kg load capacity, an 33 min assembly time, and is available in white with an melamine surface.

The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down. The desk includes a cable tray tucked neatly under the tabletop, featuring a user-friendly hinged design that allows it to swing open easily for fast access to cords. The setup sits directly beneath the cable grommet exit point, ensuring an organized flow of wires. This cable tray is RAL 9016 (white) frame coloured, identical to the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, cable access grommet is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
502-35 4W172 180-80S3 WM
Description:
Sit Stand Desk | 180x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 WMSit-Stand Desk Top | 180x80 cm | White$ 230,-$ 230,-

Total
$ 1035,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX CW096-166888153,805704142144800
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
