Manufacturer of electric height adjustable desks ...
Product-groups    Products

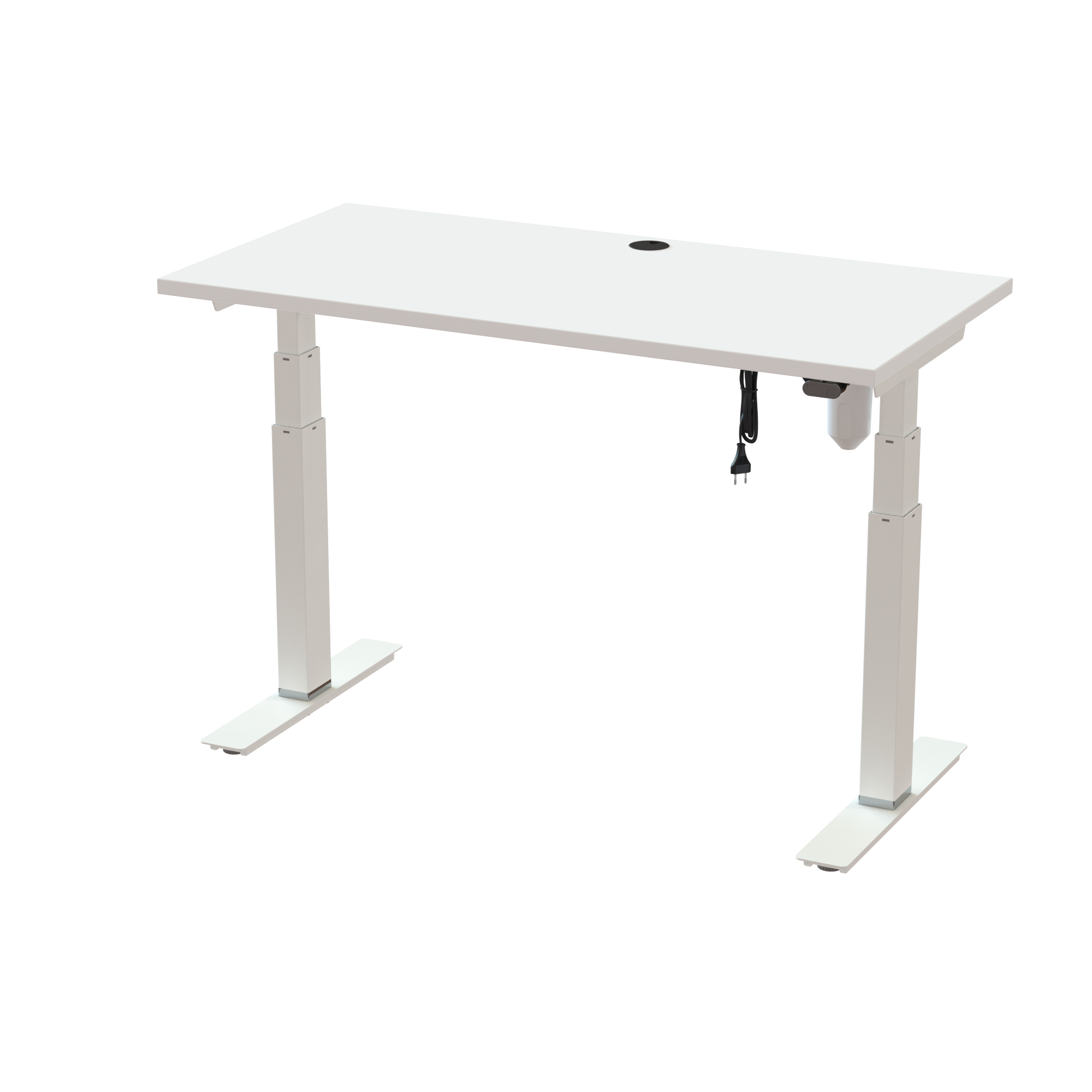

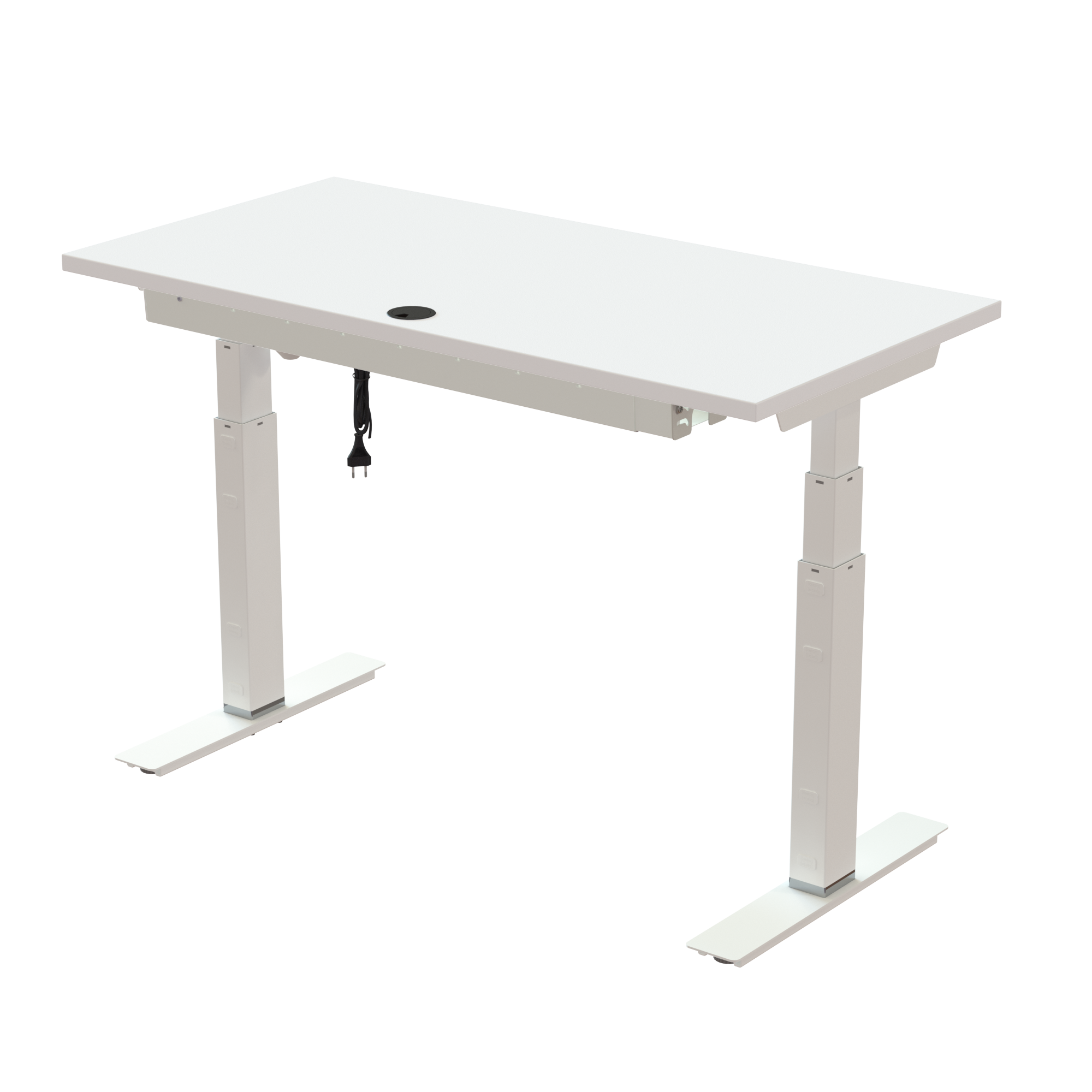

Sit Stand Desk | 120x60 cm | White with white frame

512-35 4W112 120-60S3 WM
512-35 4W112 120-60S3 WM
Sit Stand Desk | 120x60 cm | White with white frame
Sit Stand Desk | 120x60 cm | White with white frame
Sit Stand Desk | 120x60 cm | White with white frame
Sit Stand Desk | 120x60 cm | White with white frame
Sit Stand Desk | 120x60 cm | White with white frame
$ 931 incl. GST
Item no.: 512-35 4W112 120-60S3 WM

The slim T-frame creates a balanced look with narrow 1200 x 600 mm tabletops while maintaining excellent stability. Combined with an RAL 9016 (white) frame and an white melamine tabletop, the desk offers a standard height adjustment range of 620-1270 mm. Simply remove the 35 mm chrome rings to lower the desk by 35 mm for users as short as 150 cm. Supporting loads of up to 100 kg, the desk is quick to assemble in 30 min.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch. The desk comes with a cable tray that keeps everything in order, opening easily thanks to its hinged design. It is fixed securely under the tabletop, aligning perfectly with the cable grommet exit point to catch and hide all oncoming leads. It is RAL 9016 (white) frame coloured to match the desk frame.


Table top specifications

  • Dimensions : 1200 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, a cable management grommet is included as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
512-35 4W112 120-60S3 WM
Description:
Sit Stand Desk | 120x60 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ137690Railset, 1120 mm, neutral$ 86,-$ 86,-
1120-60S3 WMSit-Stand Desk Top | 120x60 cm | White$ 142,-$ 142,-

Total
$ 931,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX CW096-166888153,805704142144800
501-XX 4XPOWA221190,705704142133071
SQ137690111532,305704142137697
120-60S3 WM12767413,005704142132869
