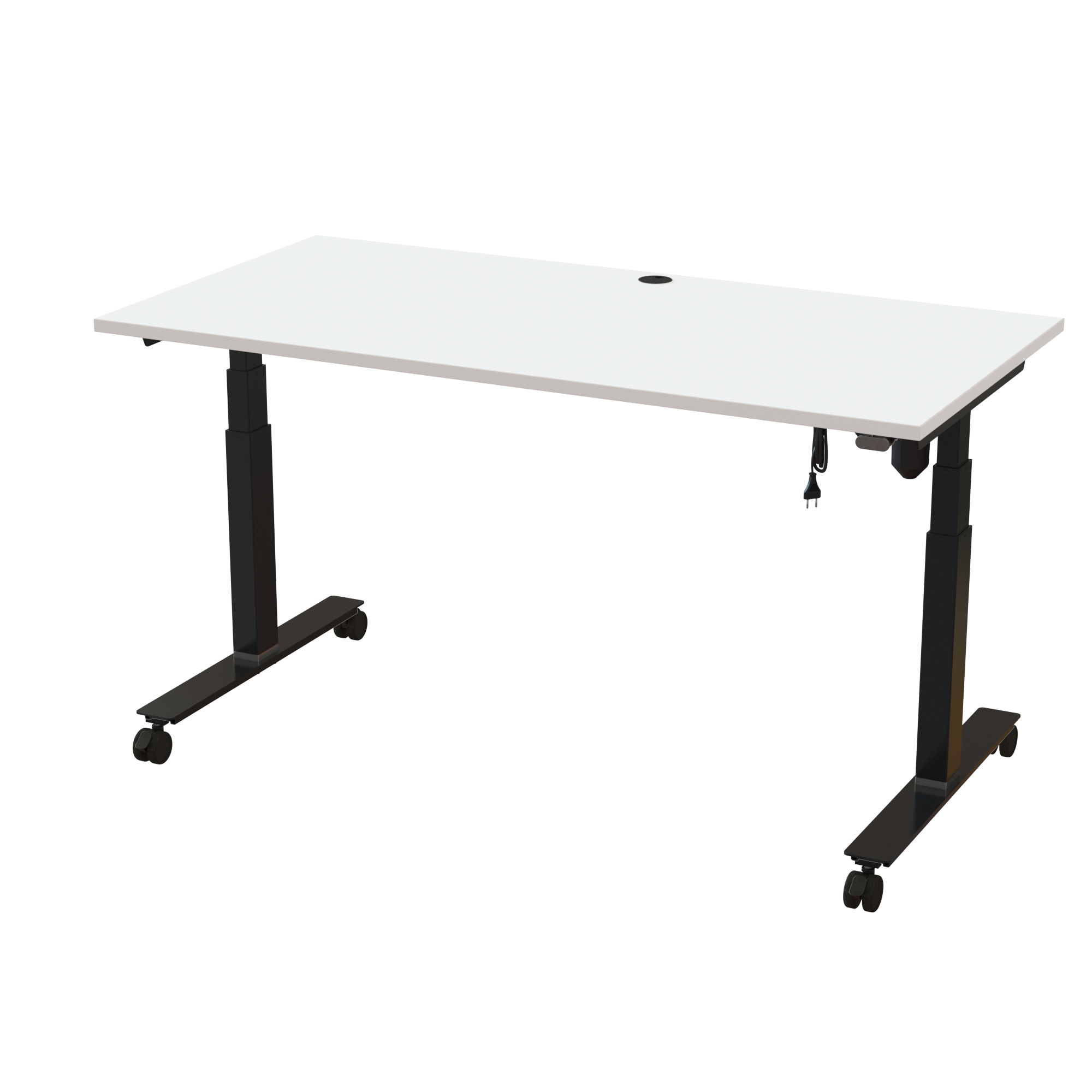

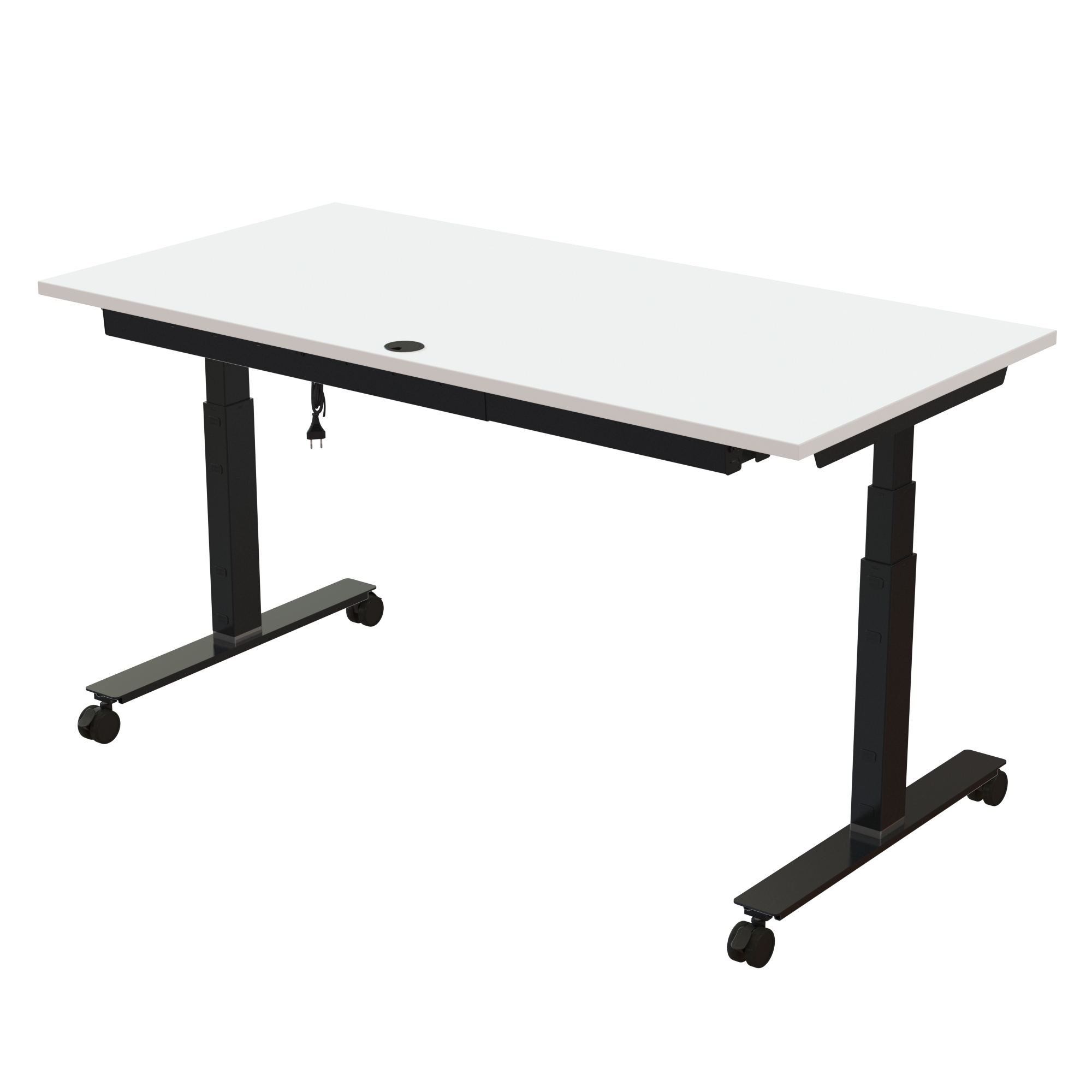

Sit Stand Desk | 160x80 cm | White with black frame

503-35 4B152 160-80S3 WM
503-35 4B152 160-80S3 WM
Sit Stand Desk | 160x80 cm | White with black frame
Sit Stand Desk | 160x80 cm | White with black frame
Sit Stand Desk | 160x80 cm | White with black frame
Sit Stand Desk | 160x80 cm | White with black frame
Sit Stand Desk | 160x80 cm | White with black frame
$ 1073 incl. GST
Item no.: 503-35 4B152 160-80S3 WM

Built for flexibility, this electric sit-stand desk features a centered design that provides both stability and generous legroom for a 1600 x 800 mm tabletop. The 35 mm chrome base ring gives access to the full 620-1270 mm stroke, while removing it lowers the desk for users from 150 cm. It has a 100 kg load capacity, an 37 min assembly time, and is available in white with an melamine surface.

The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone. The desk includes functional castors that allow for quick and easy relocation, as well as a standard cable tray integrated under the tabletop. Utilizing a hinged design that simplifies access, the tray sits directly below the cable grommet exit point to catch all wires. The cable tray is RAL 9004 (black) frame coloured, matching the desk frame.


Table top specifications

  • Dimensions : 1600 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, a cable port is supplied as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
503-35 4B152 160-80S3 WM
Description:
Sit Stand Desk | 160x80 cm | White with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB075TFeet and brackets T80, black$ 111,-$ 111,-
1501-XX CB096-166Universal cable-tray, Black$ 67,-$ 67,-
1501-XX HXX2Castorset (4 in black), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-80S3 WMSit-Stand Desk Top | 160x80 cm | White$ 184,-$ 184,-

Total
$ 1073,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB075T881169,205704142162262
501-XX CB096-166888153,805704142144817
501-XX HXX2121251,205704142159446
501-XX 4XPOWA221190,705704142133071
SQ134460151533,105704142134467
160-80S3 WM16787423,005704142132951
