Sit Stand Desk | 180x80 cm | Beech with white frame

503-35 4W172 180-80S3 BM
503-35 4W172 180-80S3 BM
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
$ 1119 incl. GST
Item no.: 503-35 4W172 180-80S3 BM

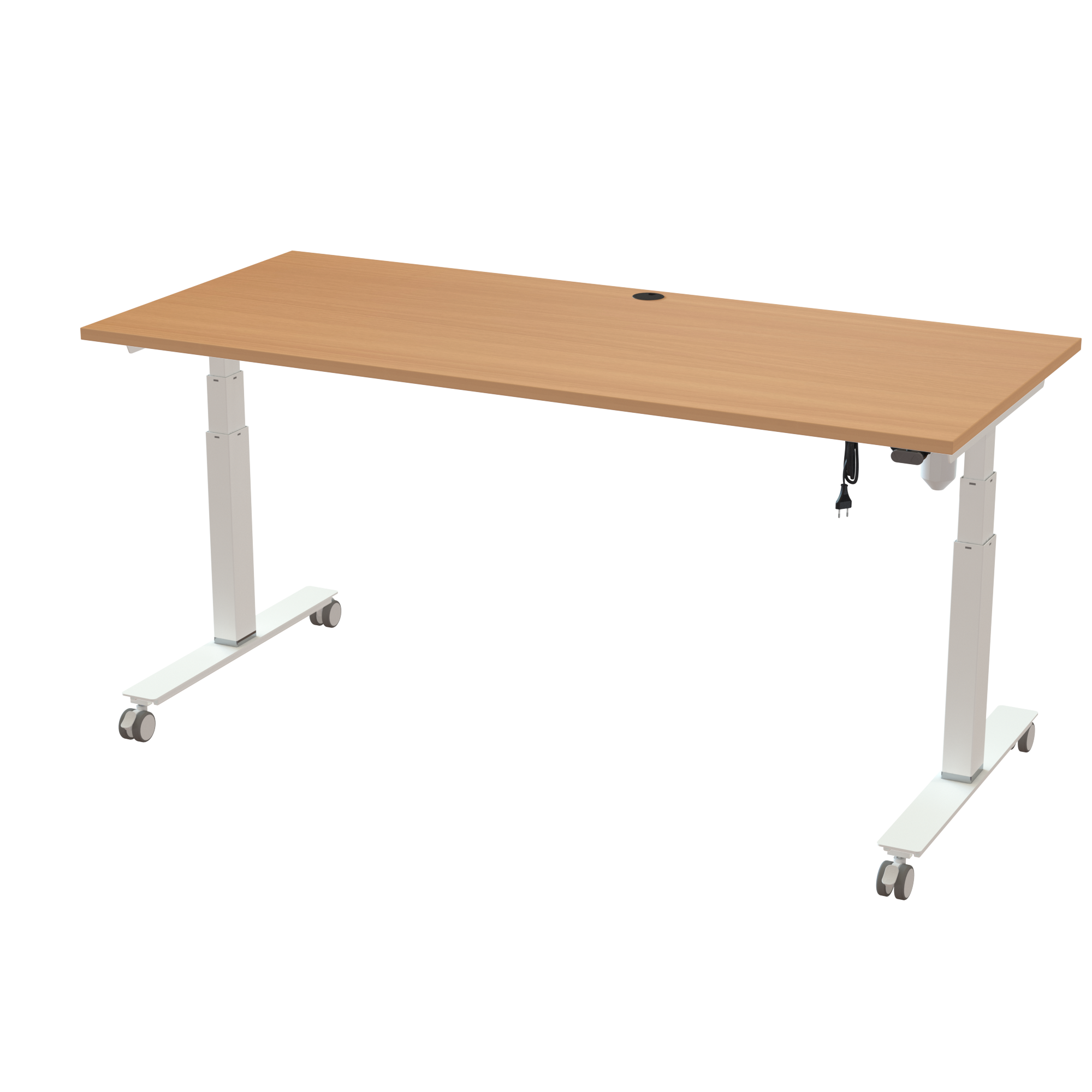

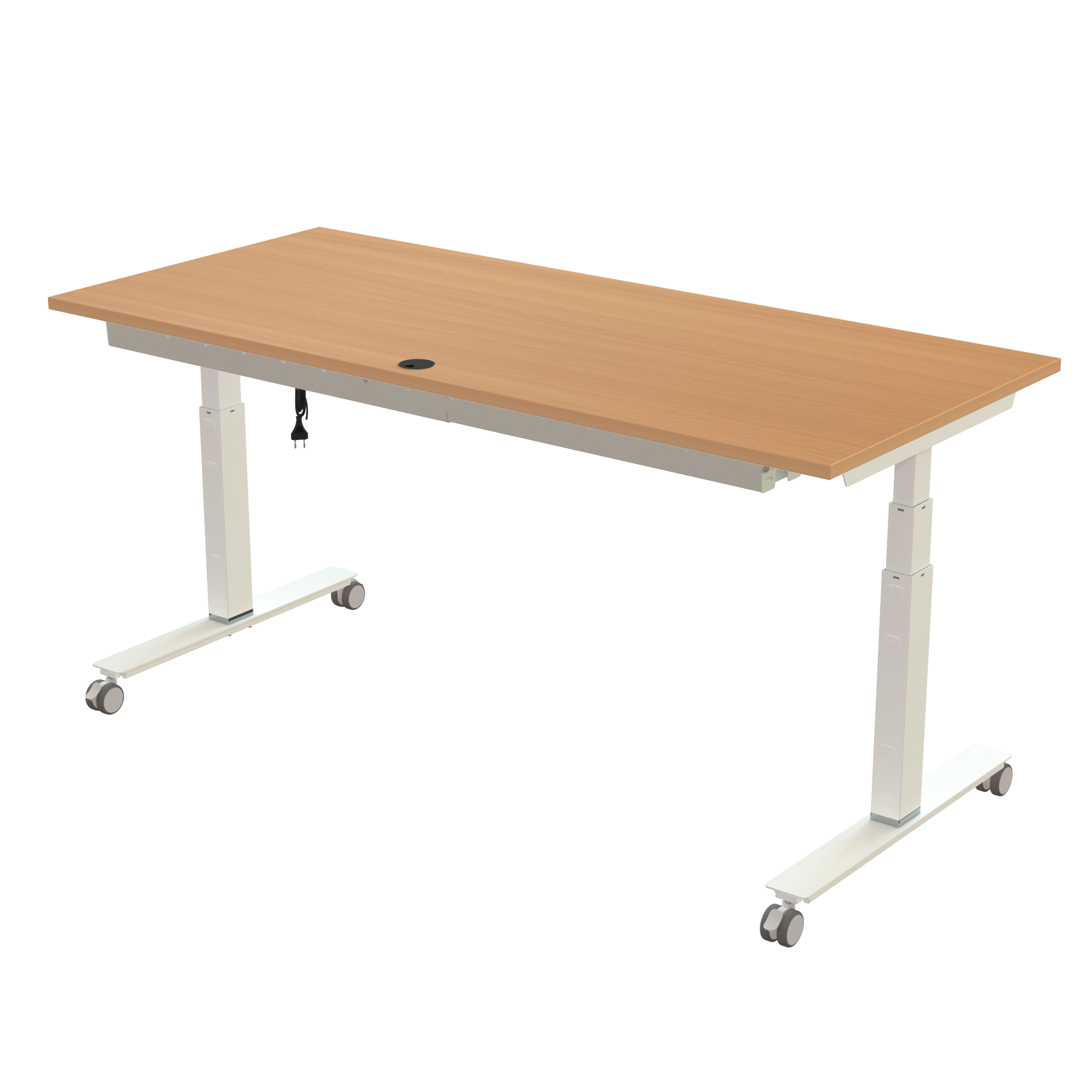

Built for flexibility, this electric sit-stand desk features a centered design that provides both stability and generous legroom for a 1800 x 800 mm tabletop. The 35 mm chrome base ring gives access to the full 620-1270 mm stroke, while removing it lowers the desk for users from 150 cm. It has a 100 kg load capacity, an 37 min assembly time, and is available in beech with an melamine surface.

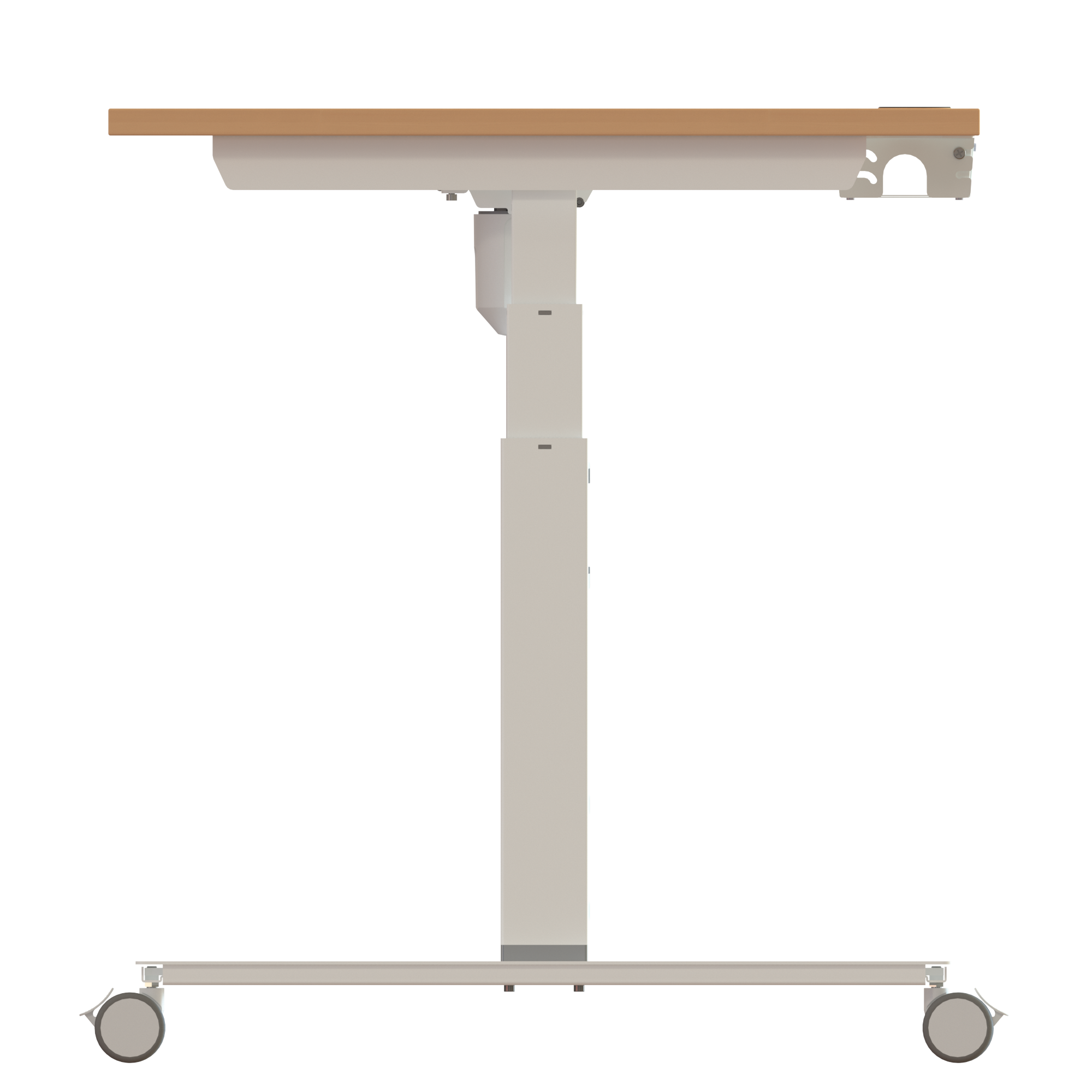

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The desk has a specialized cable tray mounted under the tabletop, achieving complete convenience with a hinged design that opens easily below the cable grommet exit point. Fitted with agile castors at the base, the entire desk can be moved around without hassle. It is RAL 9016 (white) frame coloured, same as the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable management grommet is included as standard.
  • Edges: 2 mm ABS, rounded off

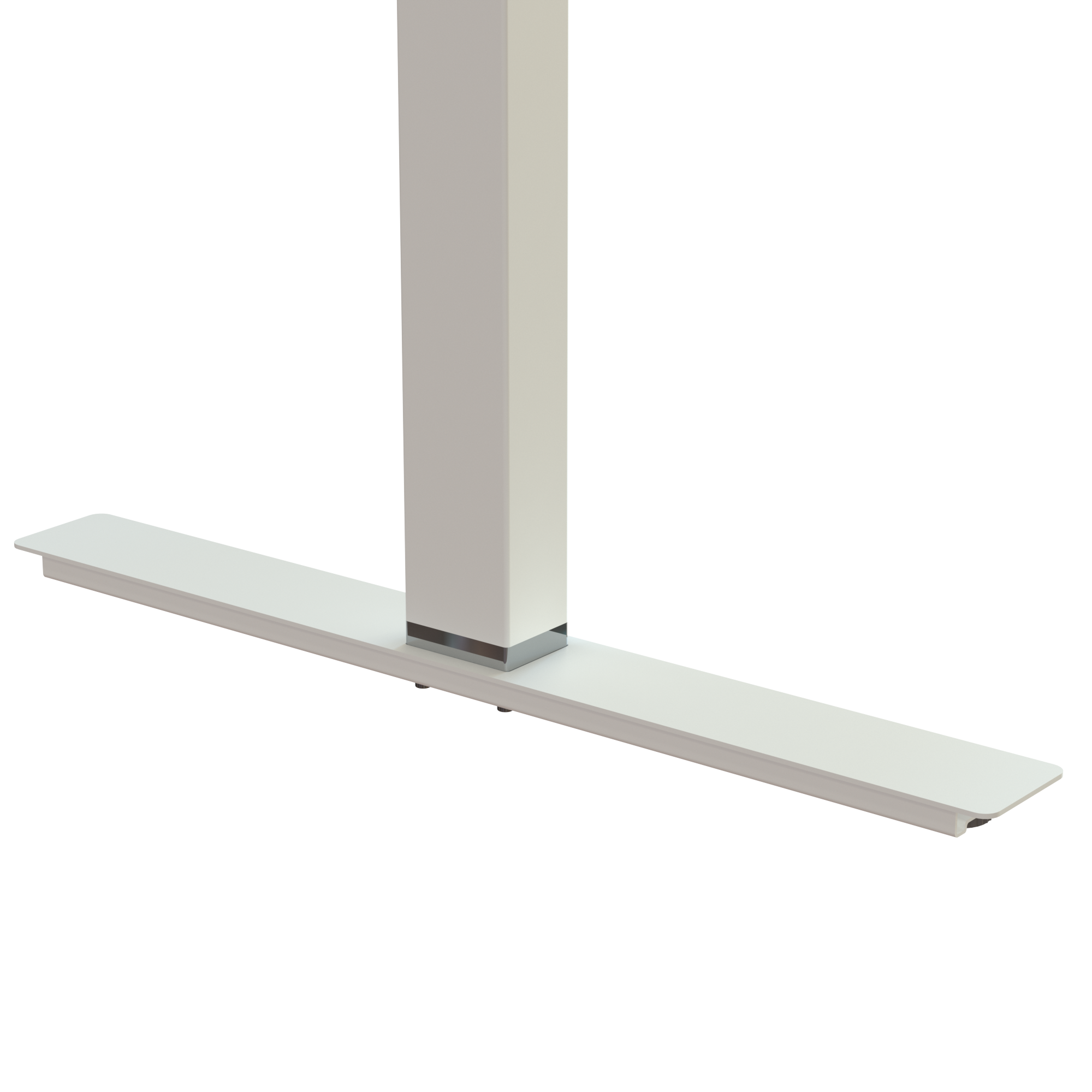

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
503-35 4W172 180-80S3 BM
Description:
Sit Stand Desk | 180x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 BMSit-Stand Desk Top | 180x80 cm | Beech$ 230,-$ 230,-

Total
$ 1119,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX CW096-166888153,805704142144800
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
