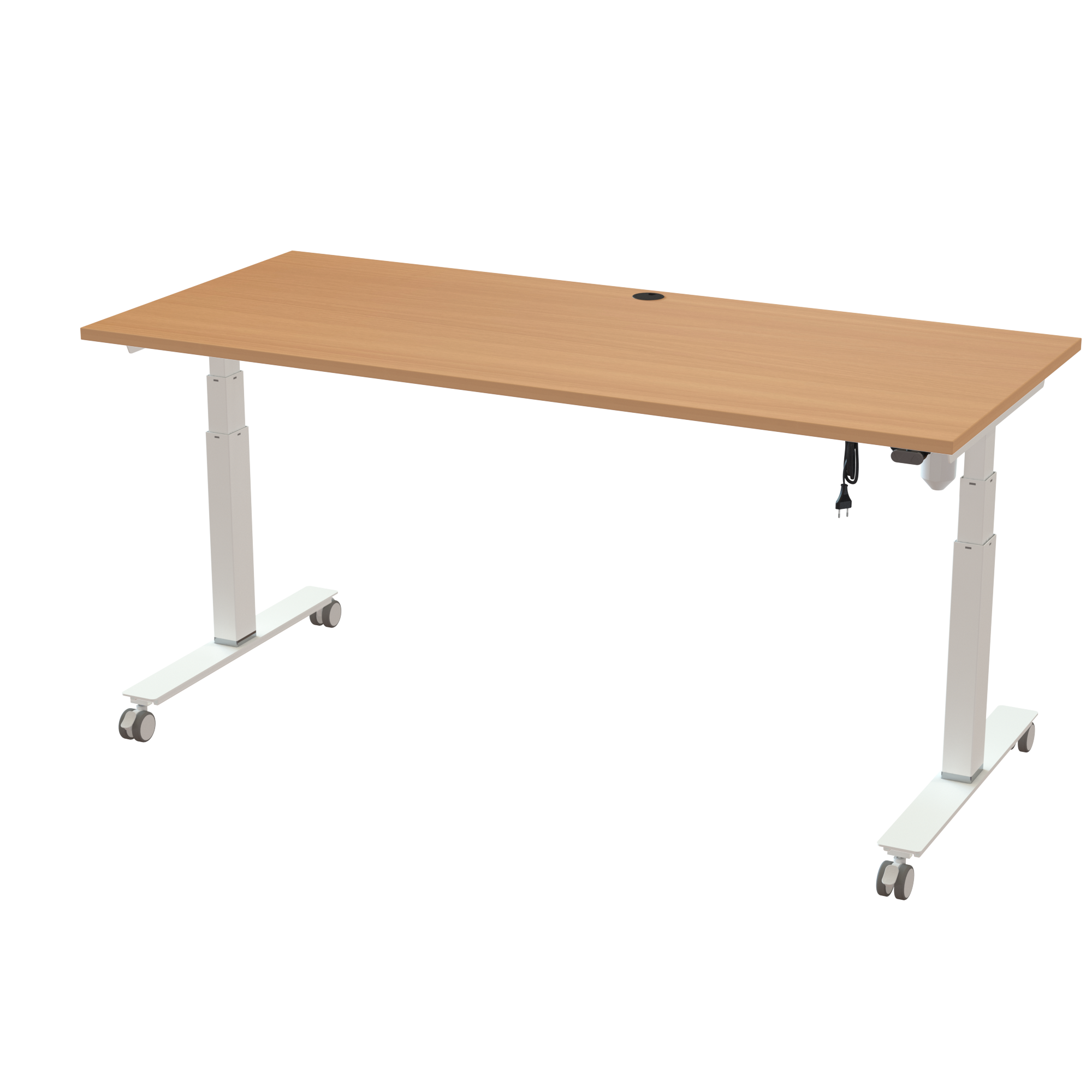

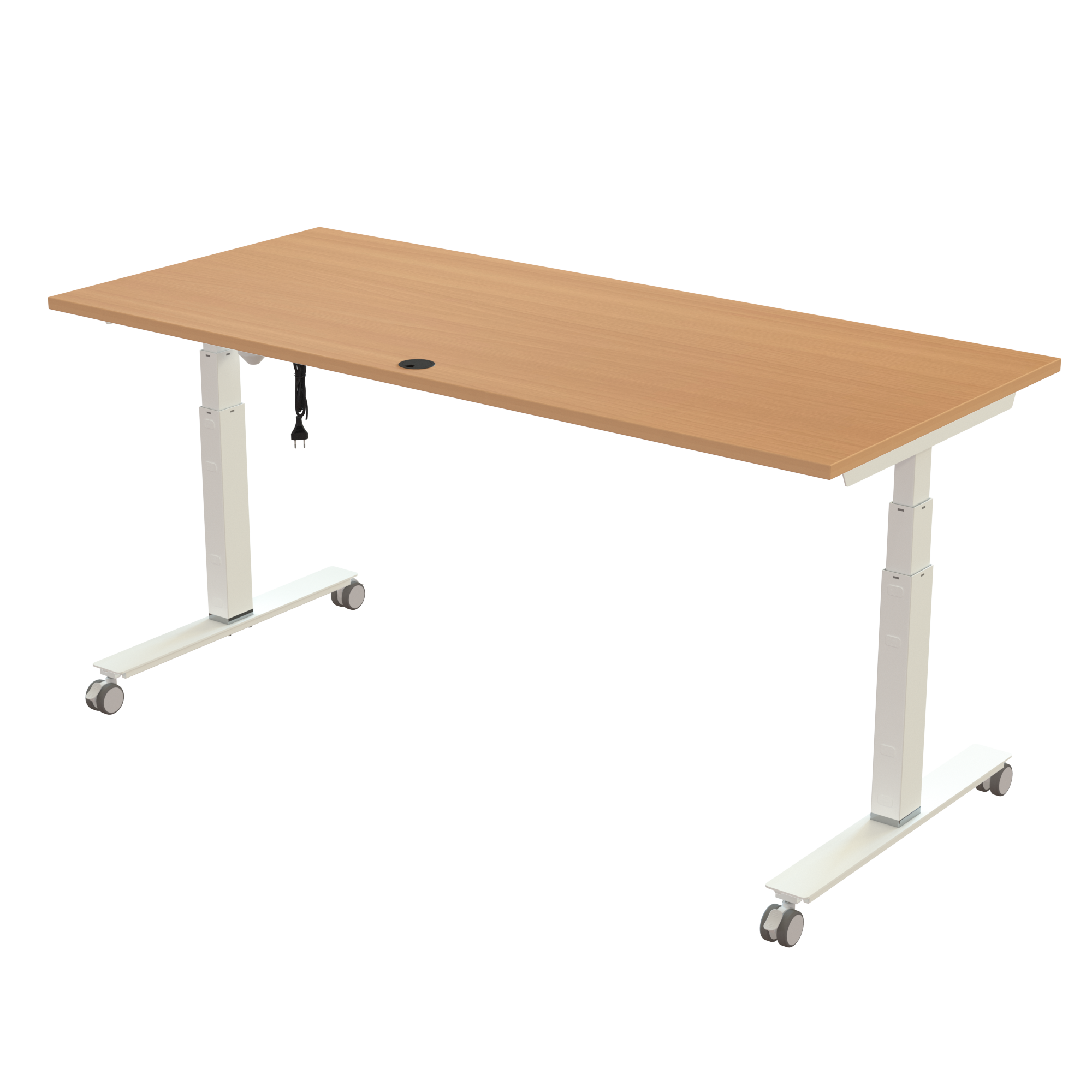

Sit Stand Desk | 180x80 cm | Beech with white frame

504-35 4W172 180-80S3 BM
504-35 4W172 180-80S3 BM
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
Sit Stand Desk | 180x80 cm | Beech with white frame
$ 1052 incl. GST
Item no.: 504-35 4W172 180-80S3 BM

A balanced foot and arm design gives this standing desk frame a modern appearance while providing excellent stability and legroom beneath a 1800 x 800 mm tabletop. The supplied 35 mm chrome base ring enables the full 620-1270 mm stroke, while removing it lowers the desk to suit users from 150 cm. The frame has a 100 kg load capacity, an 27 min assembly time, and comes in beech with an melamine surface.

The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel. The desk has functional castors mounted onto the desk frame designed for smooth movement, giving you the freedom to roll the workstation around whenever the space requires it.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, the tabletop comes with a cable grommet included.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention.
  • Motor : ConSet’s reliable and thoroughly tested 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
504-35 4W172 180-80S3 BM
Description:
Sit Stand Desk | 180x80 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075TFeet and brackets T80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 BMSit-Stand Desk Top | 180x80 cm | Beech$ 230,-$ 230,-

Total
$ 1052,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075T881169,205704142161814
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 BM18787426,005704142151105
