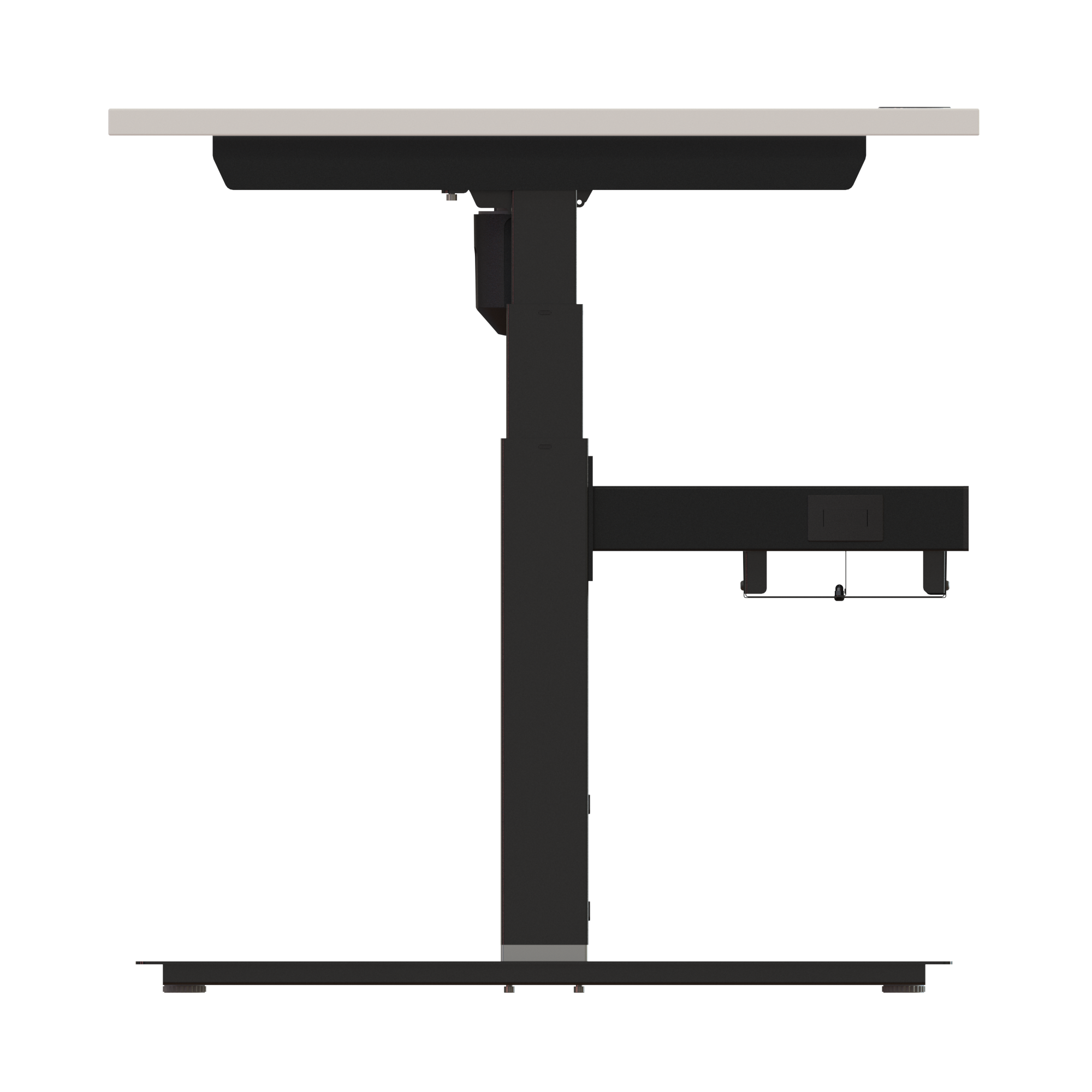

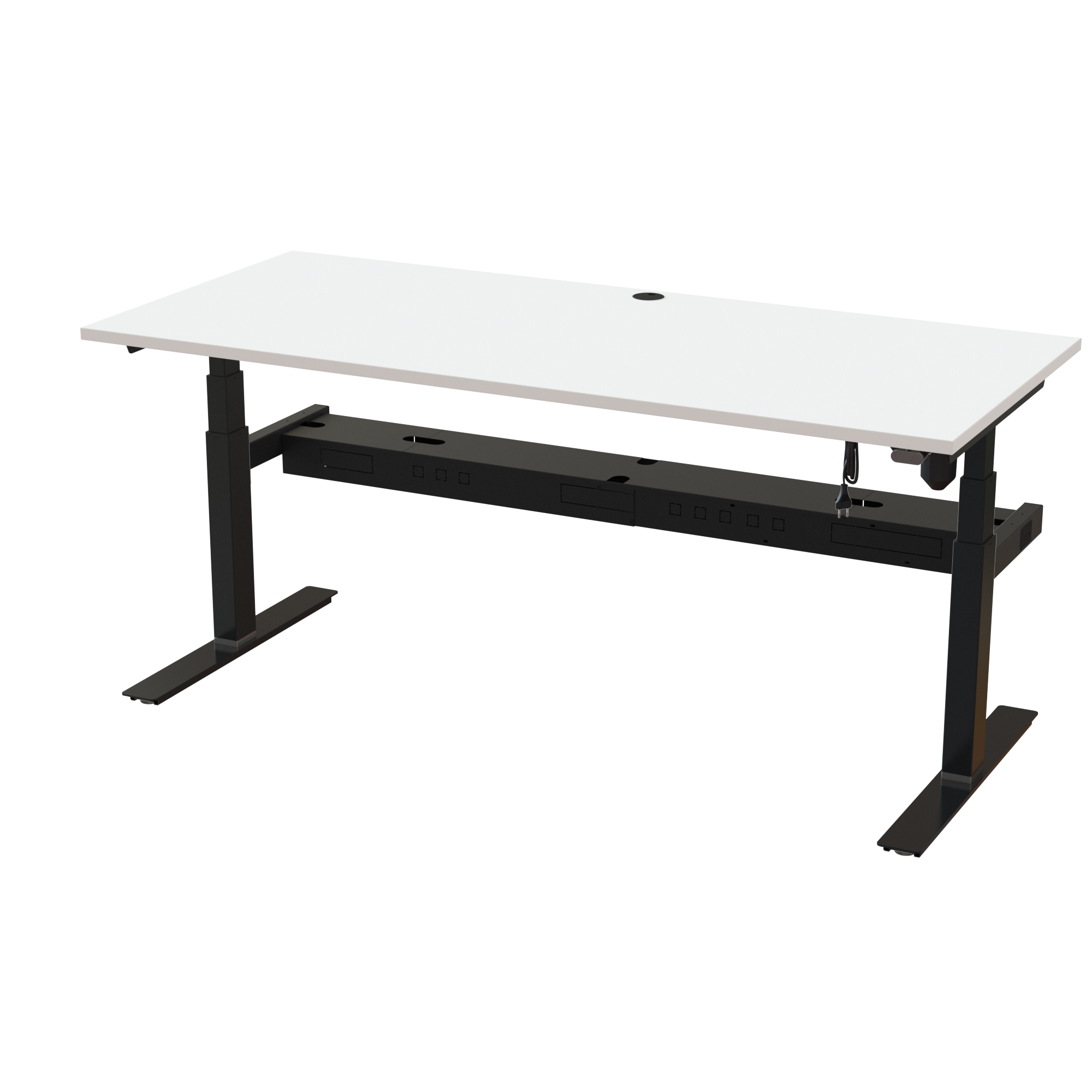

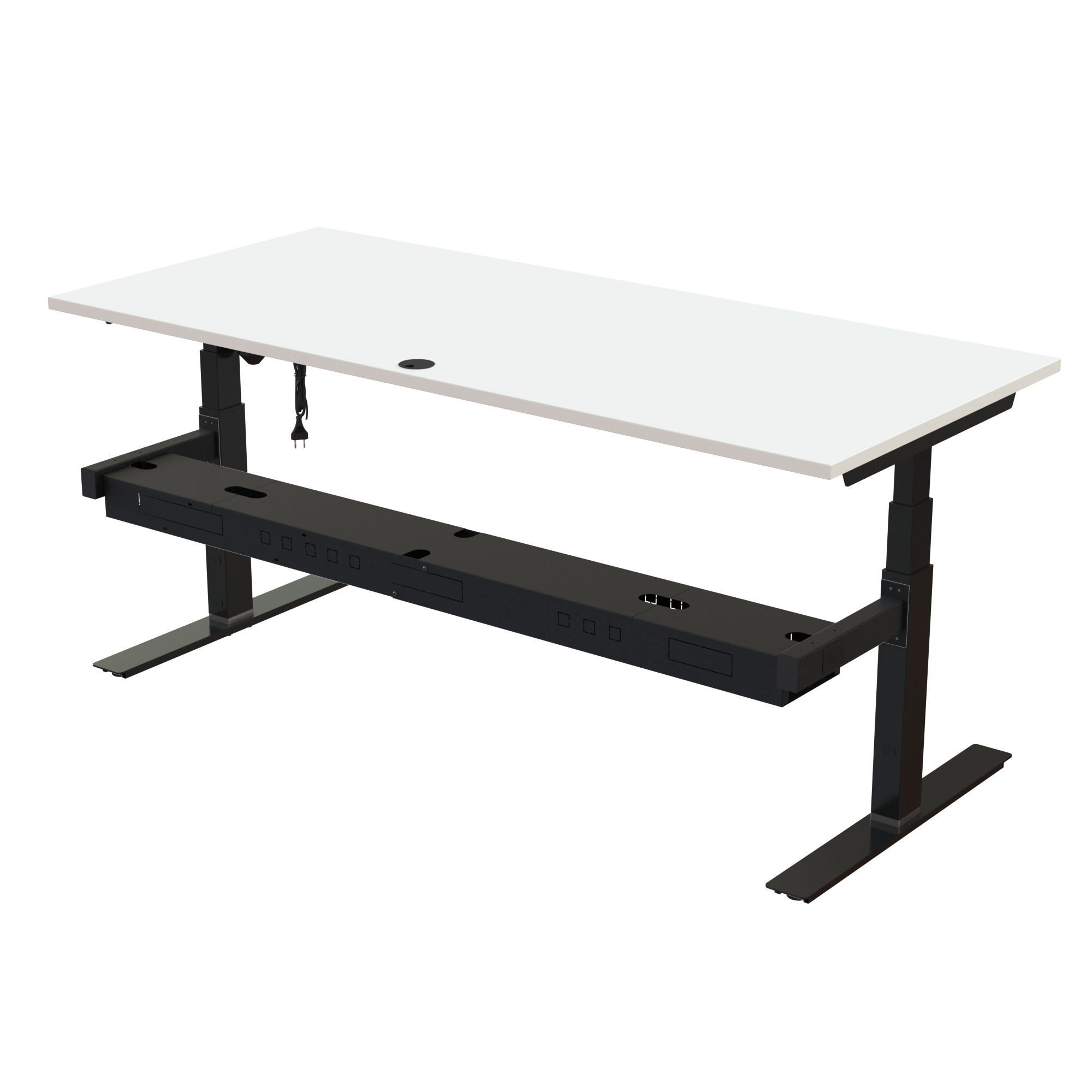

Sit Stand Desk | 180x80 cm | White with black frame

505-35 4B172 180-80S3 WM
505-35 4B172 180-80S3 WM
Sit Stand Desk | 180x80 cm | White with black frame
Sit Stand Desk | 180x80 cm | White with black frame
Sit Stand Desk | 180x80 cm | White with black frame
Sit Stand Desk | 180x80 cm | White with black frame
Sit Stand Desk | 180x80 cm | White with black frame
$ 1195 incl. GST
Item no.: 505-35 4B172 180-80S3 WM

Built for flexibility, this electric sit-stand desk features a centered design that provides both stability and generous legroom for a 1800 x 800 mm tabletop. The 35 mm chrome base ring gives access to the full 620-1270 mm stroke, while removing it lowers the desk for users from 150 cm. It has a 100 kg load capacity, an 28 min assembly time, and is available in white with an melamine surface.

The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down. Equipped with a cable tray system mounted directly along the frame, the desk offers side-positioned cutouts for easy power strip access without needing to open the tray. The cable tray system includes a connecting bracket to link desks in a row while keeping wires between units perfectly organized and hidden from view. It is RAL 9004 (black) frame coloured, same as the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s tested and reliably operating 1-motor solution
Frame Color
Tabletop Color
Foot Design
Control Unit
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
505-35 4B172 180-80S3 WM
Description:
Sit Stand Desk | 180x80 cm | White with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB075TFeet and brackets T80, black$ 111,-$ 111,-
1501-XX LB131-161Cabletray system, black$ 148,-$ 148,-
1XX5-35 TBXX5-35 tusks, T-model, black$ 79,-$ 79,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 WMSit-Stand Desk Top | 180x80 cm | White$ 230,-$ 230,-

Total
$ 1195,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB075T881169,205704142162262
501-XX LB131-16110120107,005704142150474
XX5-35 TB3612102,005704142162286
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
