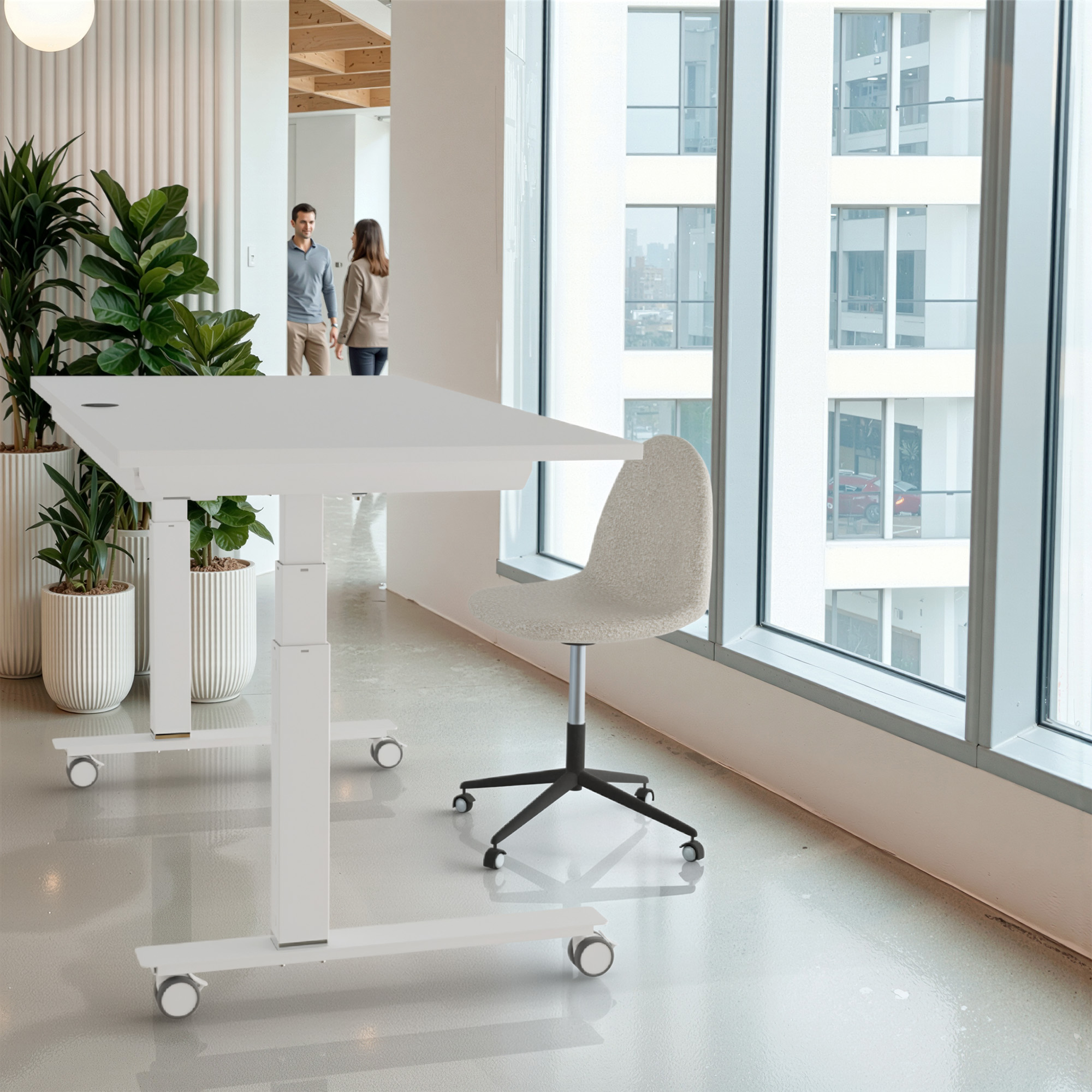

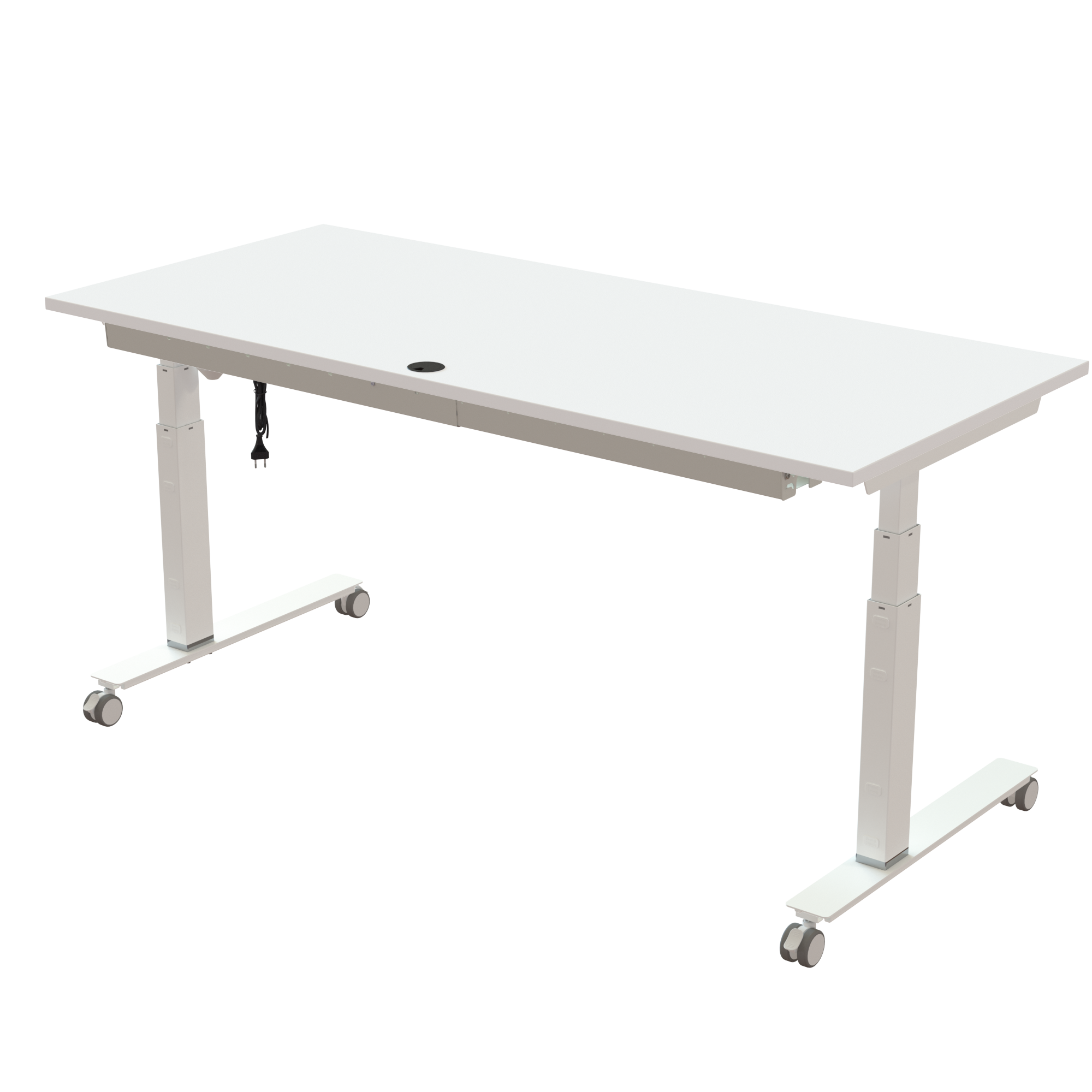

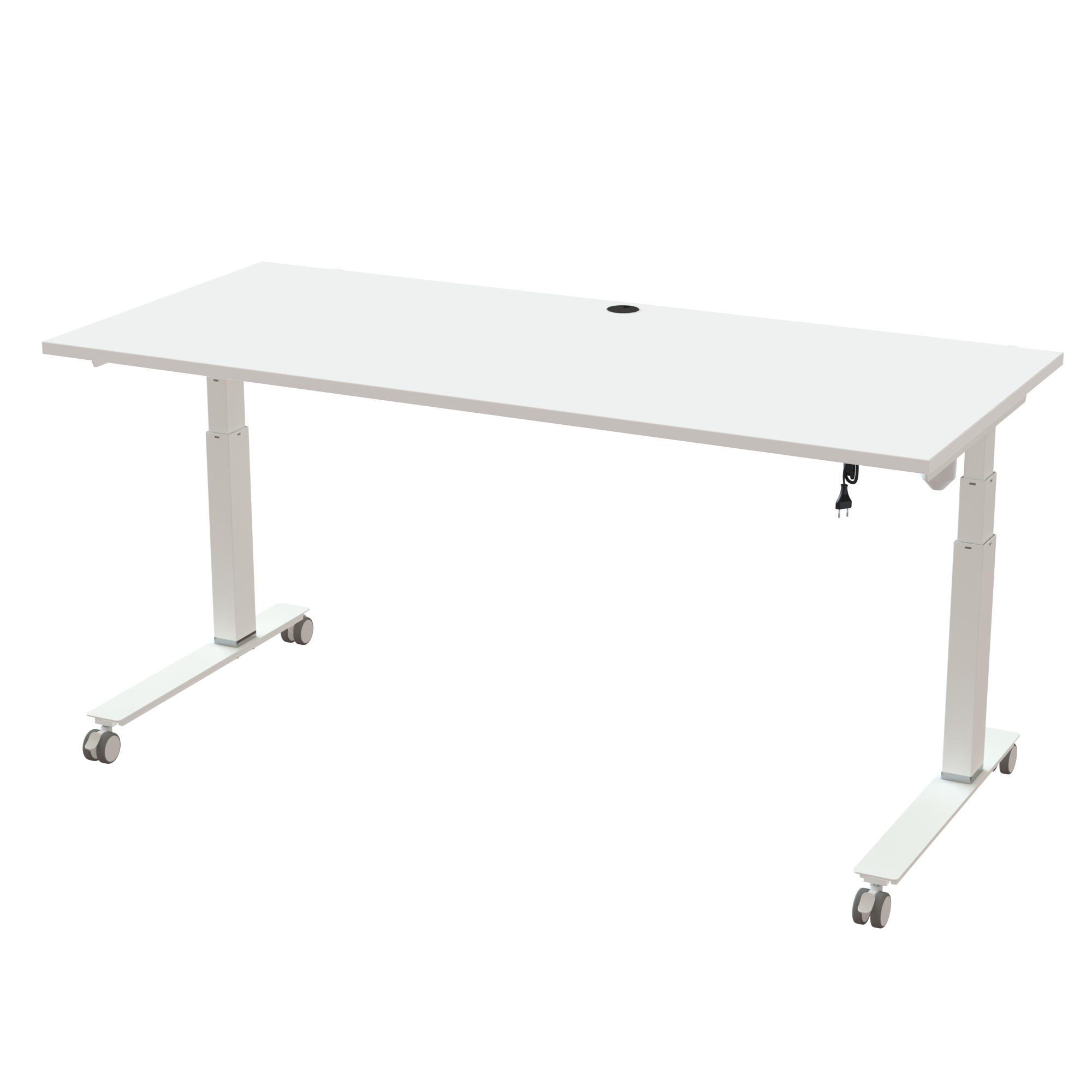

Sit Stand Desk | 180x80 cm | White with white frame

523-35 4W172 180-80S3 WM
523-35 4W172 180-80S3 WM
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
$ 1119 incl. GST
Item no.: 523-35 4W172 180-80S3 WM

This C-frame sit-stand desk pairs an off-centre column with a signature 35 mm chrome ring, turning a functional base into a deliberate design statement for the 1800 x 800 mm tabletop dimensions. The ring is easily removed to adapt the 620-1270 mm elevation stroke for users as short as 150 cm, ensuring maximum ergonomic freedom. Comes with an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface option, an 100 kg load capacity rating, and an easy 37 min assembly time.

The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance. The desk comes with a cable tray that keeps everything in order, opening easily thanks to its hinged design placed perfectly under the cable grommet exit point. Smooth-gliding castors are included to provide maximum mobility for dynamic workspaces. It is RAL 9016 (white) frame coloured to match the desk frame.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, cable access grommet is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
523-35 4W172 180-80S3 WM
Description:
Sit Stand Desk | 180x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 WMSit-Stand Desk Top | 180x80 cm | White$ 230,-$ 230,-

Total
$ 1119,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX CW096-166888153,805704142144800
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
