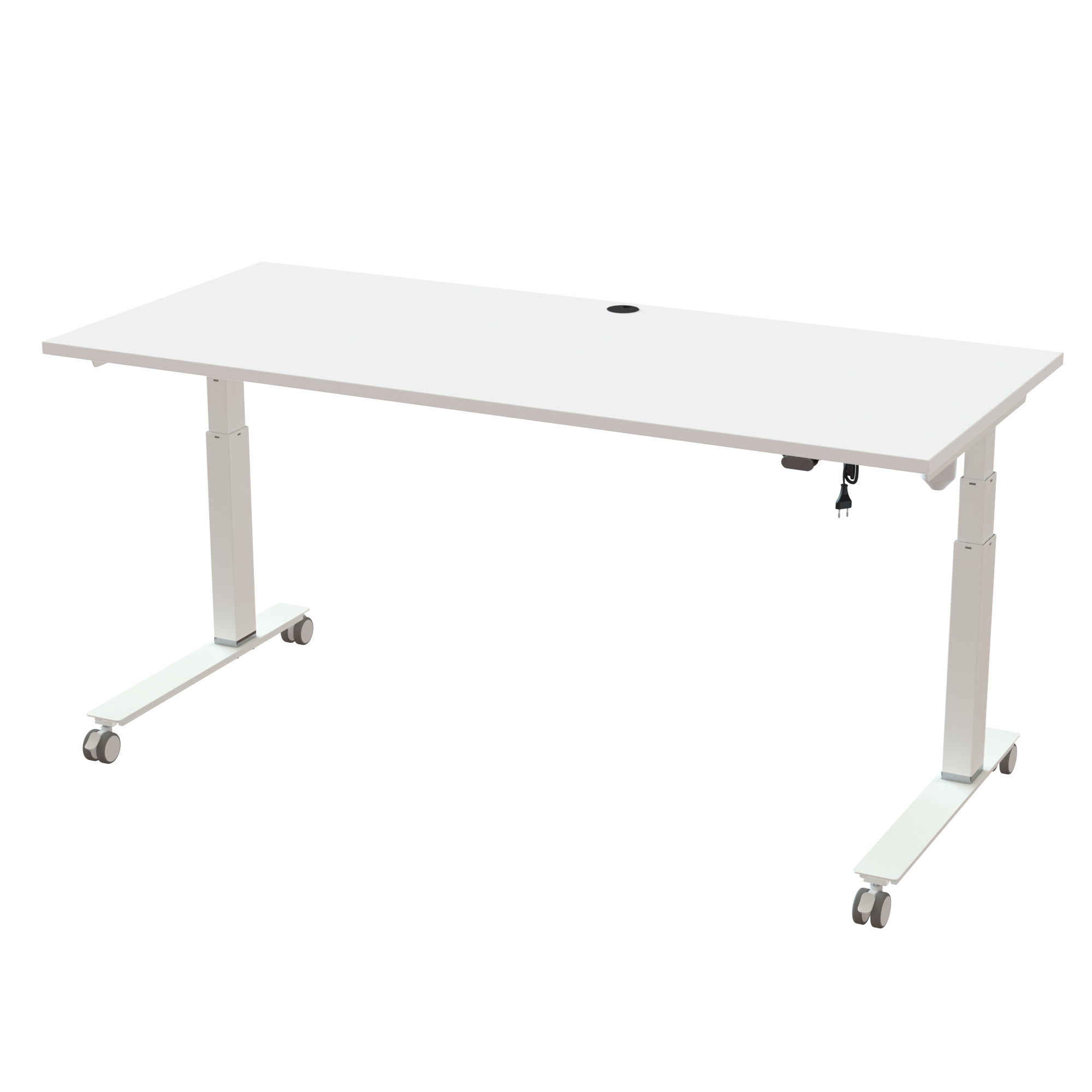

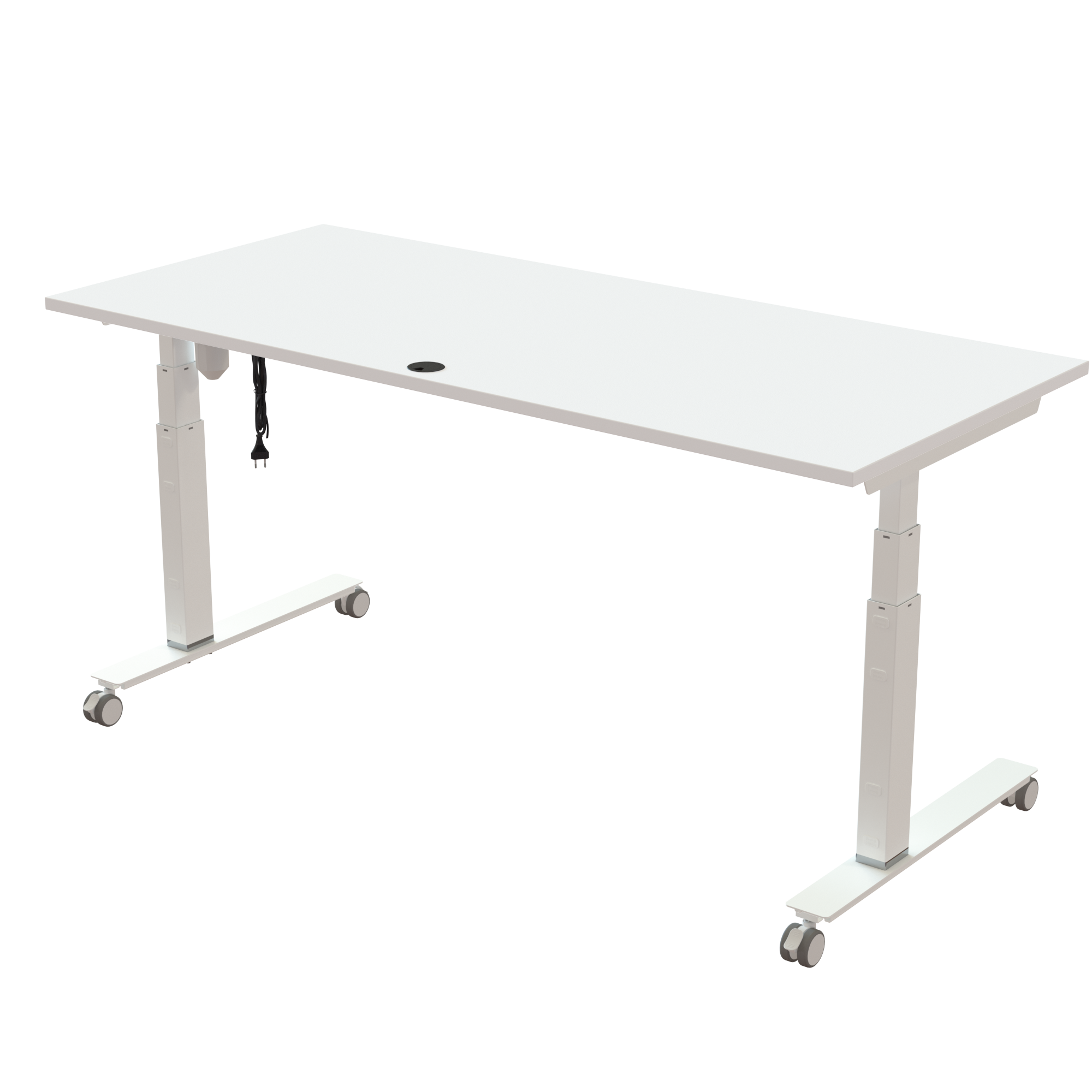

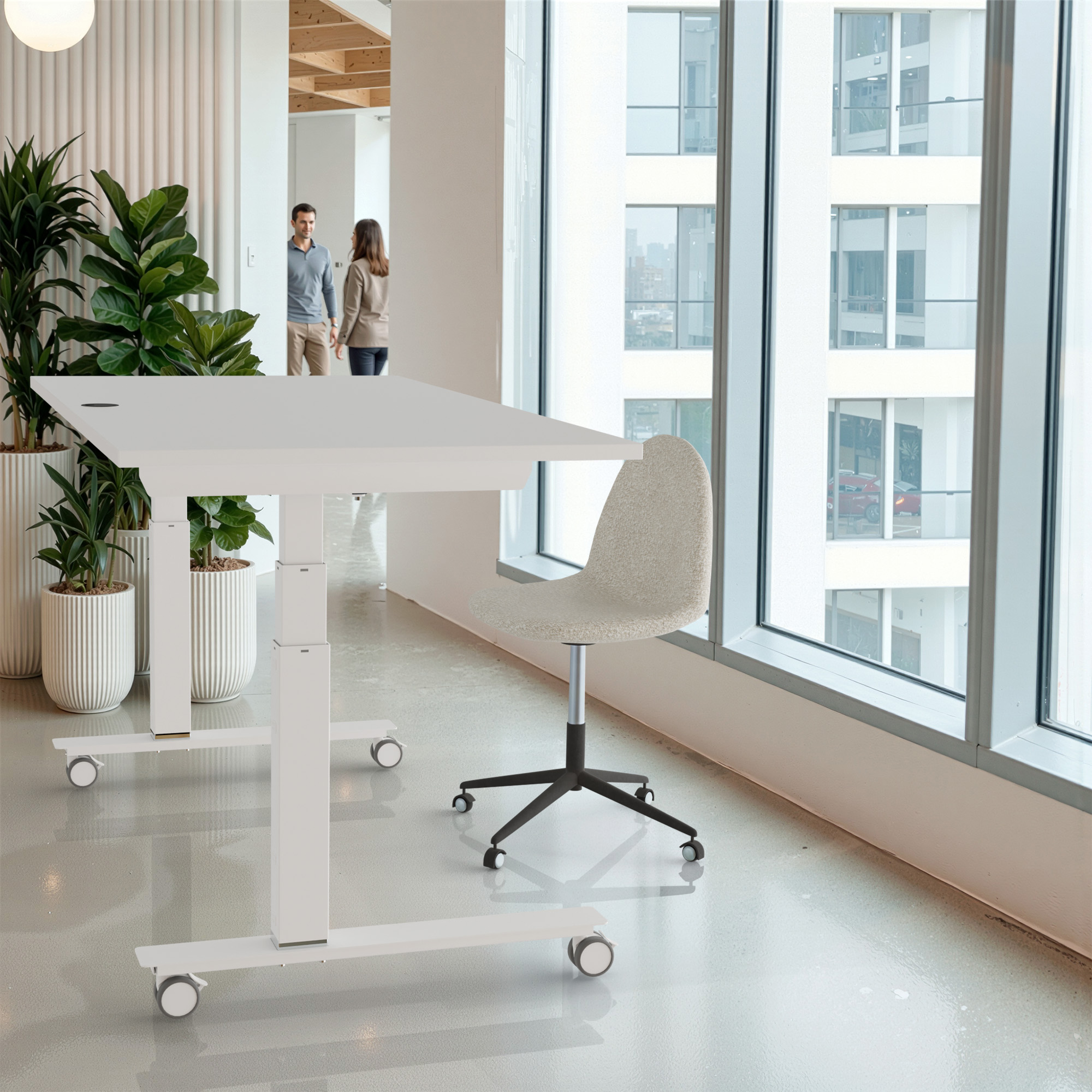

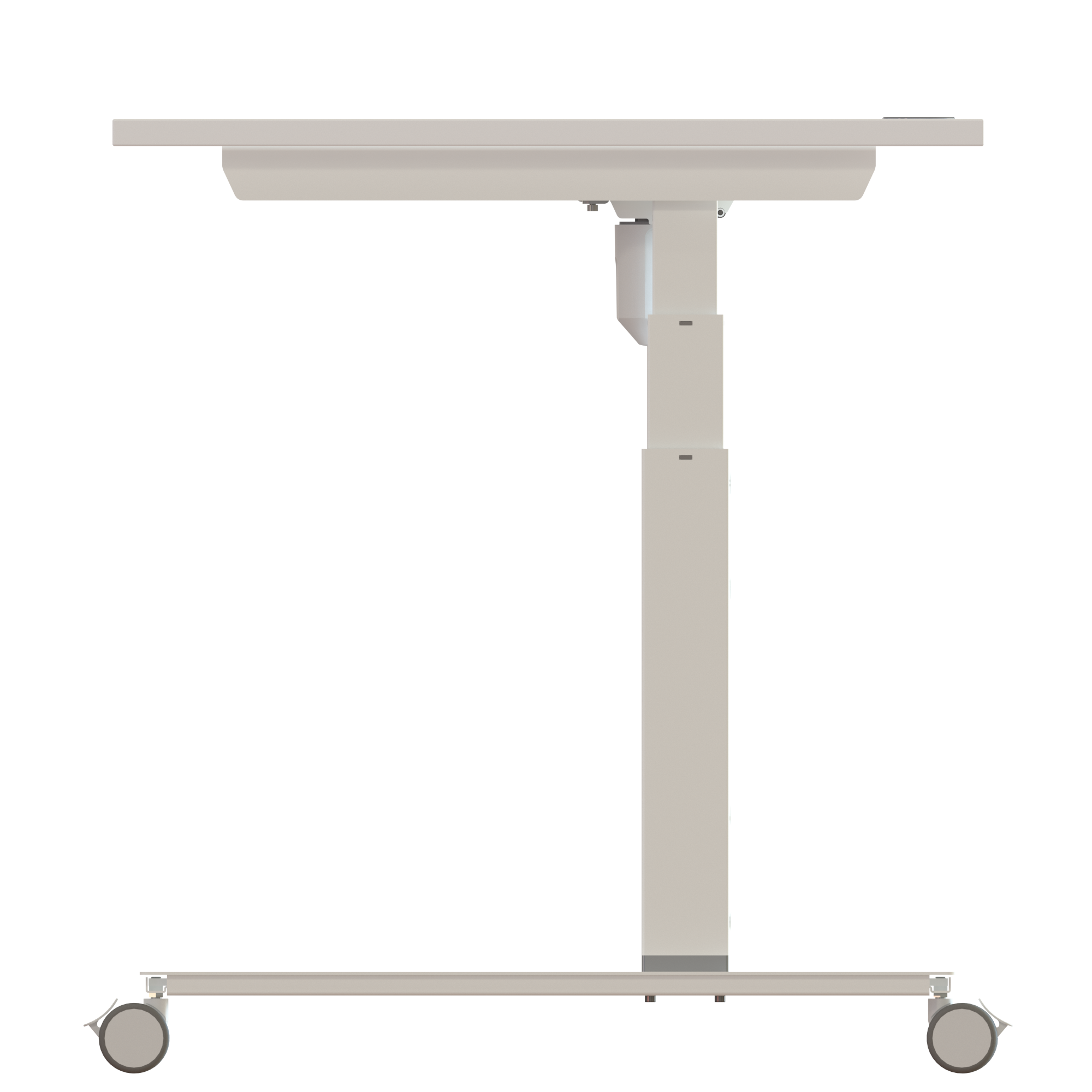

Sit Stand Desk | 180x80 cm | White with white frame

524-35 4W172 180-80S3 WM
524-35 4W172 180-80S3 WM
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
Sit Stand Desk | 180x80 cm | White with white frame
$ 1052 incl. GST
Item no.: 524-35 4W172 180-80S3 WM

Create a more accessible and active workstation with this C-frame standing desk, custom-matched to the 1800 x 800 mm tabletop profile. The 35 mm chrome ring is a polished design accent that adds a premium touch to the floor-level profile. It can also be removed to expand the 620-1270 mm stroke range for users from 150 cm. Offers an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface option, an 100 kg load capacity, and a time-saving 27 min assembly time.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch. The desk includes mobile castors mounted onto the desk frame, offering a highly flexible solution for dynamic work environments where rearranging is common.


Table top specifications

  • Dimensions : 1800 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the tabletop It is fitted with a plastic grommet for cable entry.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.
  • Motor : ConSet’s stable 1-motor mechanism with documented reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
524-35 4W172 180-80S3 WM
Description:
Sit Stand Desk | 180x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ138890Railset, 1720 mm, neutral$ 86,-$ 86,-
1180-80S3 WMSit-Stand Desk Top | 180x80 cm | White$ 230,-$ 230,-

Total
$ 1052,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ138890171534,205704142138892
180-80S3 WM18787426,005704142151112
