Manufacturer of electric height adjustable desks ...
Product-groups    Products

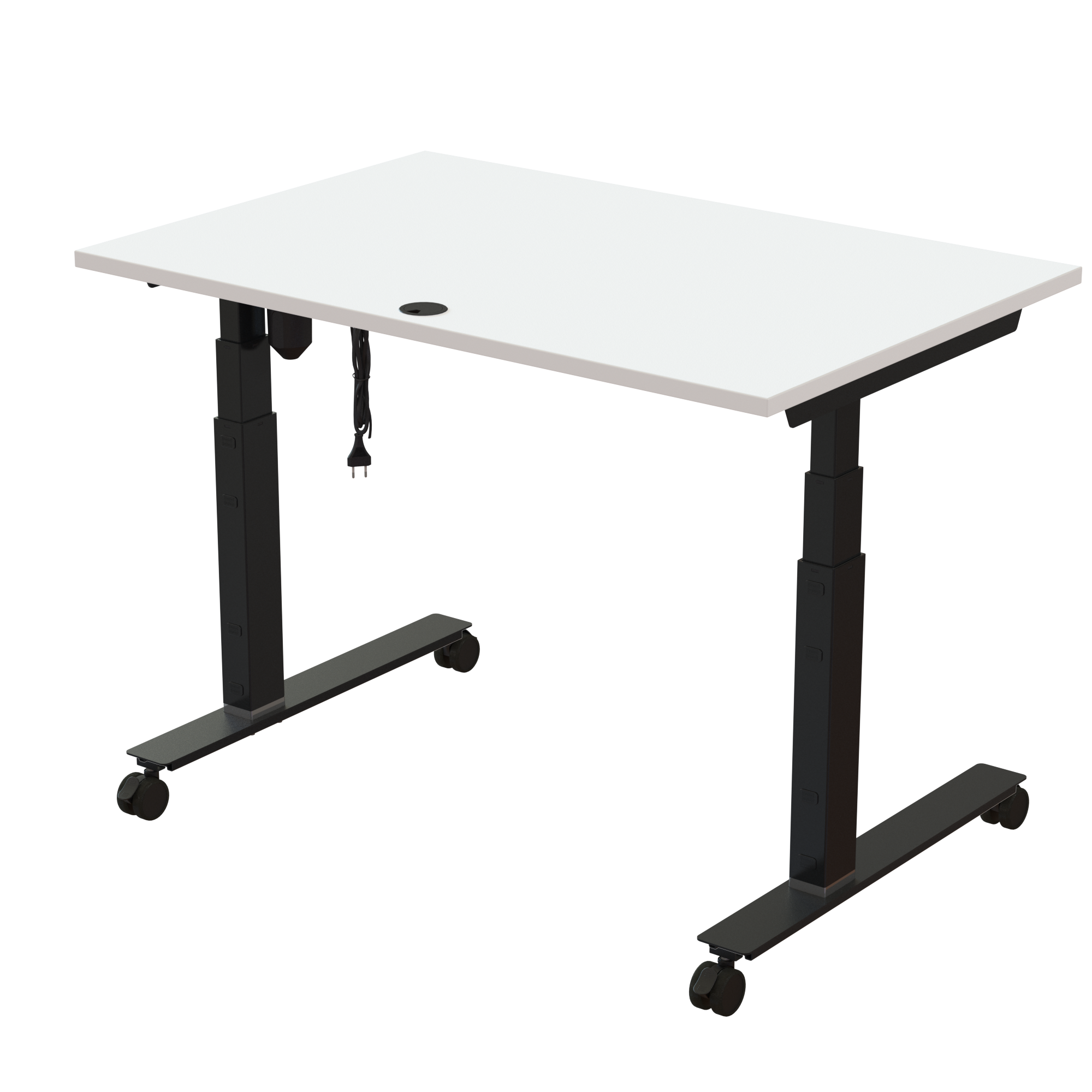

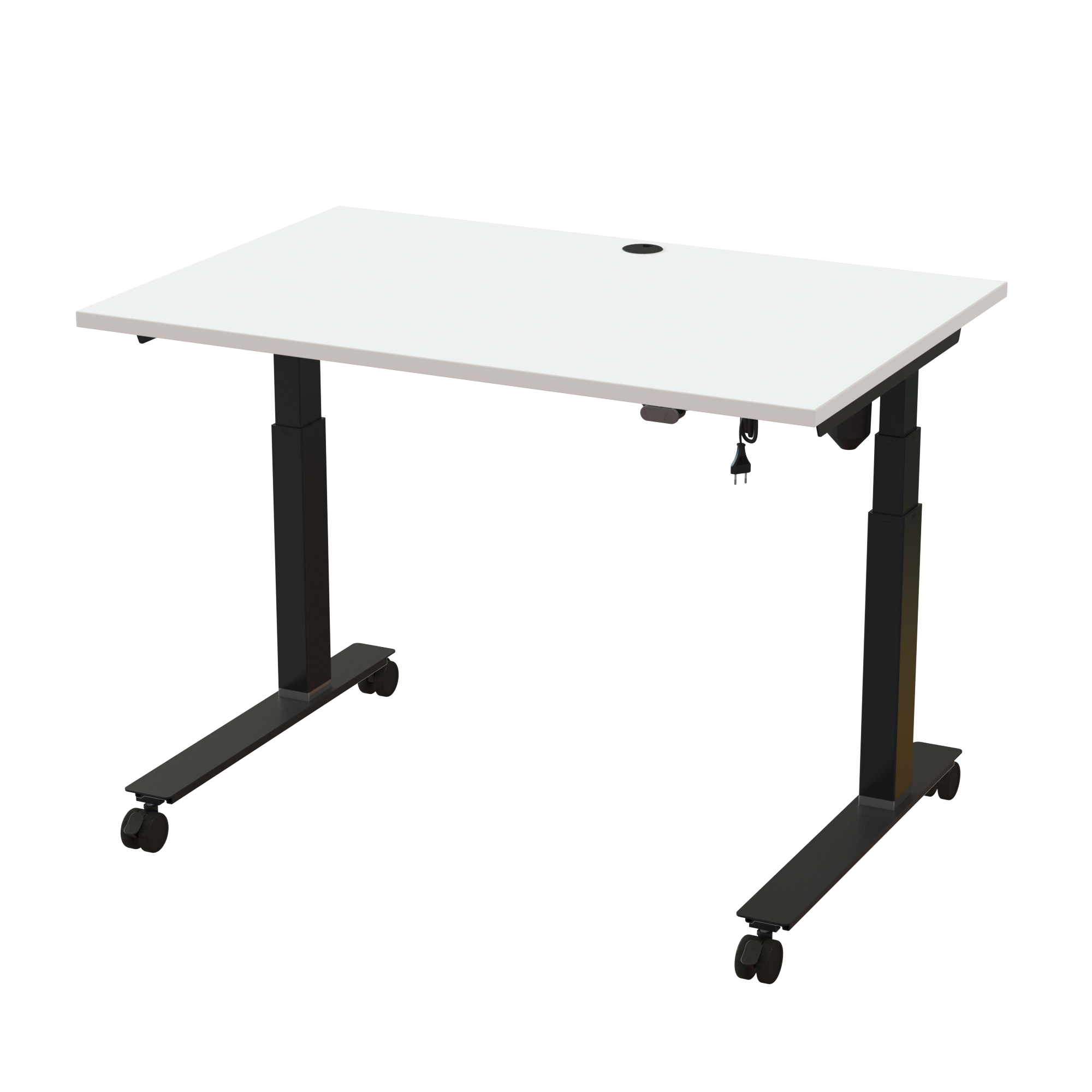

Sit Stand Desk | 120x80 cm | White with black frame

524-35 4B112 120-80S3 WM
524-35 4B112 120-80S3 WM
Sit Stand Desk | 120x80 cm | White with black frame
Sit Stand Desk | 120x80 cm | White with black frame
Sit Stand Desk | 120x80 cm | White with black frame
Sit Stand Desk | 120x80 cm | White with black frame
Sit Stand Desk | 120x80 cm | White with black frame
$ 1013 incl. GST
Item no.: 524-35 4B112 120-80S3 WM

With its off-centre column, this dual-purpose sit-stand desk delivers an airy, modern vibe for any 1200 x 800 mm tabletop format. The 35 mm chrome base ring is a key visual feature, serving as a signature design detail. It is also functionally adjustable; remove the ring to refine the 620-1270 mm height stroke for users starting at 150 cm. Built with an RAL 9004 (black) frame colour, an white tabletop colour with an melamine surface material, a reliable 100 kg load capacity, and a fast 25 min assembly time.

The desk features a standard two-arrow control panel designed for simple and reliable operation. Its durable switch-based construction minimizes complexity while ensuring long service life. The tactile buttons allow intuitive use without needing to view the panel. The desk has functional castors mounted onto the desk frame designed for smooth movement, giving you the freedom to roll the workstation around whenever the space requires it.


Table top specifications

  • Dimensions : 1200 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9004 (black)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.
  • Motor : ConSet’s dependable 1-motor system, tested for professional use
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
524-35 4B112 120-80S3 WM
Description:
Sit Stand Desk | 120x80 cm | White with black frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XBXXXLifting column set, Black$ 440,-$ 440,-
1501-XX XB075CFeet and brackets C80, black$ 111,-$ 111,-
1501-XX HXX2Castorset (4 in black), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ137690Railset, 1120 mm, neutral$ 86,-$ 86,-
1120-80S3 WMSit-Stand Desk Top | 120x80 cm | White$ 191,-$ 191,-

Total
$ 1013,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XBXXX77191715,005704142162217
501-XX XB075C881169,205704142162231
501-XX HXX2121251,205704142159446
501-XX 4XPOWA221190,705704142133071
SQ137690111532,305704142137697
120-80S3 WM12787417,005704142132920
