Sit Stand Desk | 120x80 cm | White with white frame

524-35 4W112 120-80S3 WM
524-35 4W112 120-80S3 WM
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
Sit Stand Desk | 120x80 cm | White with white frame
$ 1013 incl. GST
Item no.: 524-35 4W112 120-80S3 WM

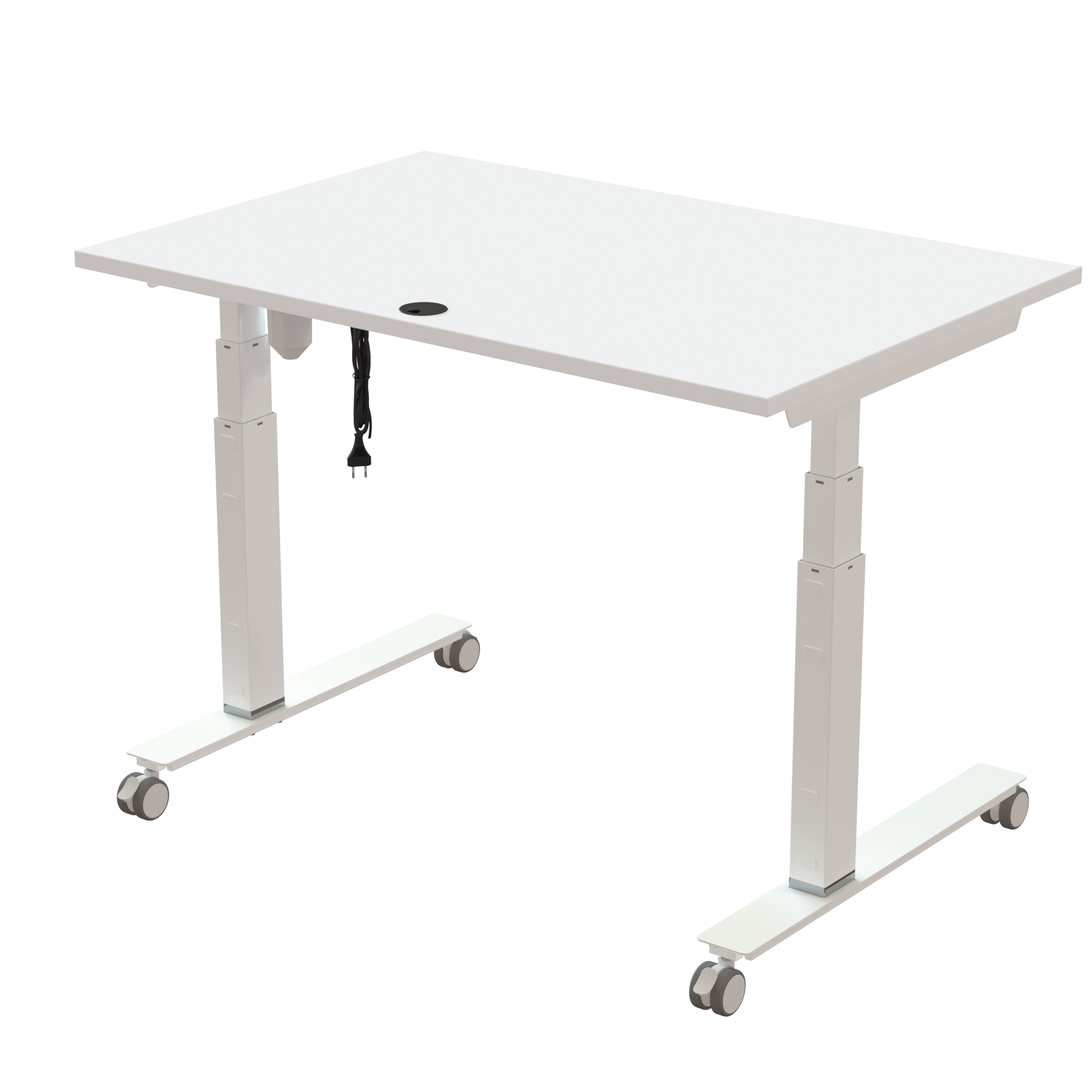

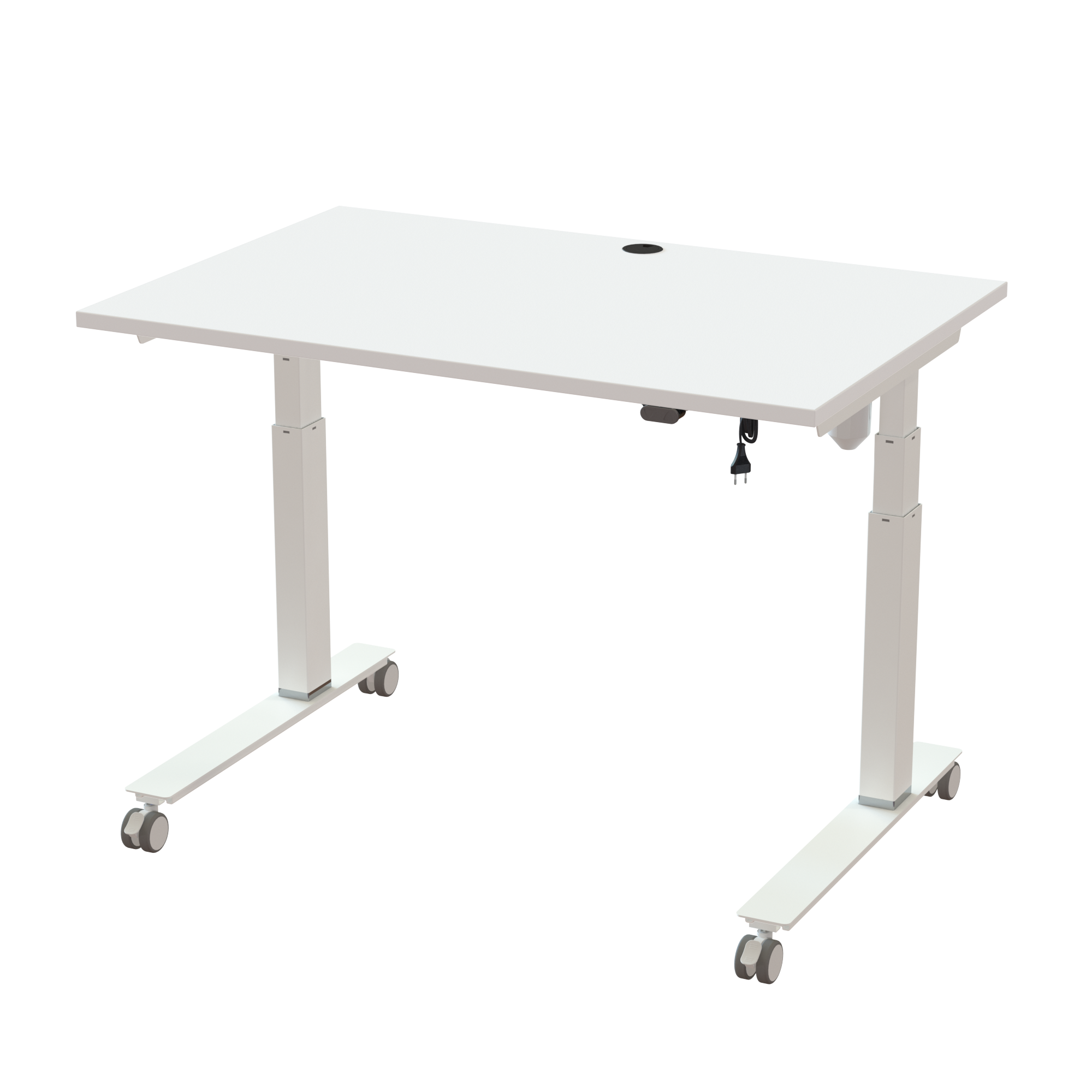

Create a more accessible and active workstation with this C-frame standing desk, custom-matched to the 1200 x 800 mm tabletop profile. The 35 mm chrome ring is a polished design accent that adds a premium touch to the floor-level profile. It can also be removed to expand the 620-1270 mm stroke range for users from 150 cm. Offers an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface option, an 100 kg load capacity, and a time-saving 25 min assembly time.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The desk includes mobile castors mounted onto the desk frame, offering a highly flexible solution for dynamic work environments where rearranging is common.


Table top specifications

  • Dimensions : 1200 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, it features a standard plastic grommet.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone.
  • Motor : ConSet’s efficient and reliable 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
524-35 4W112 120-80S3 WM
Description:
Sit Stand Desk | 120x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ137690Railset, 1120 mm, neutral$ 86,-$ 86,-
1120-80S3 WMSit-Stand Desk Top | 120x80 cm | White$ 191,-$ 191,-

Total
$ 1013,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ137690111532,305704142137697
120-80S3 WM12787417,005704142132920
