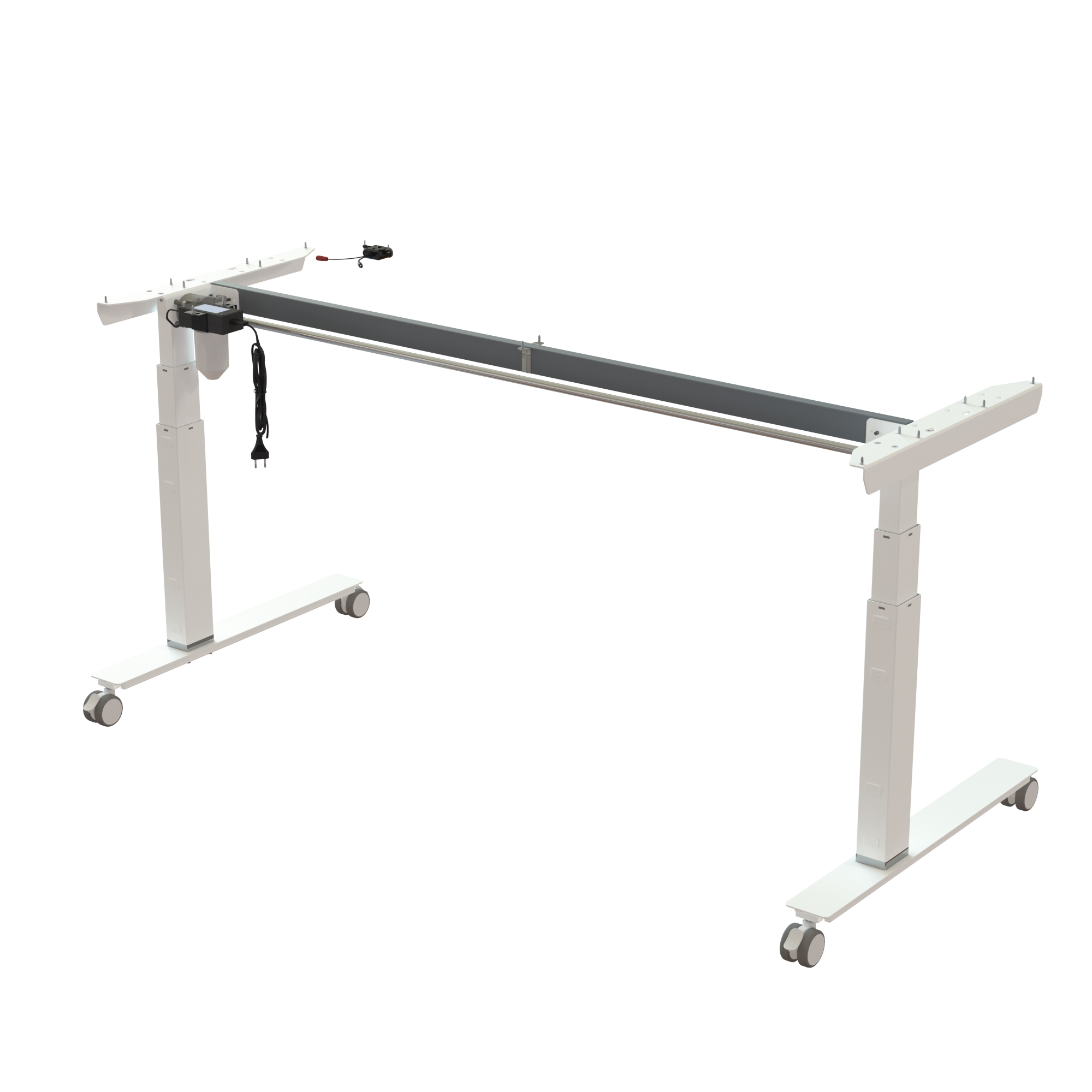

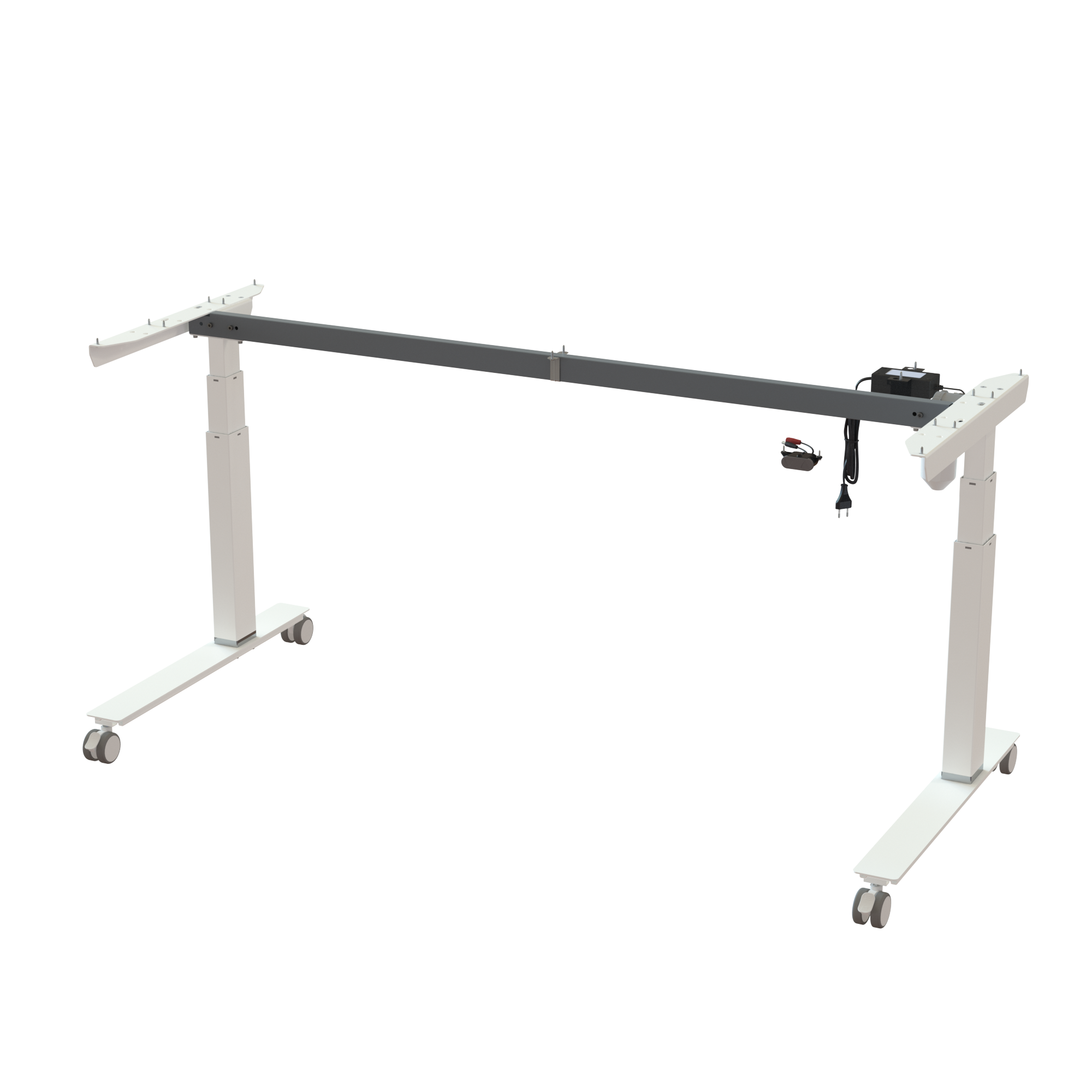

Maximise your legroom with this C-frame height adjustable desk frame. Its off-centre column creates a spacious feel and provides an open area beneath the structure. The foot length is perfectly matched to the 800 mm width. Built with an RAL 9016 (white) frame, it highlights a prominent, detachable 35 mm chrome ring at the base; with this ring attached, the stroke is 620-1270 mm. Remove it to extend the adjustment range for users down to 150 cm. The desk frame has a load capacity of 100 kg and is ready for use in just 19 min.

The standard user panel features two tactile arrow buttons for smooth height adjustment. Designed for durability and reliability, the panel can be operated comfortably by touch alone.
This desk frame comes with standard castors for portability.

Frame specifications

• Frame width: 1720 mm
• Frame depth: 750 mm
• Material/finish: Powdercoated steel RAL 9016 (white)
• Height adjustment: 620-1270 mm
• Lifting capacity: 100 kg
• Operation: The desk frame comes with a standard two-arrow user panel. The robust control system is designed for reliable performance and everyday ease of use. Tactile buttons provide clear feedback and make height adjustment simple.
• Motor : ConSet’s tested and reliable 1-motor drive solution
