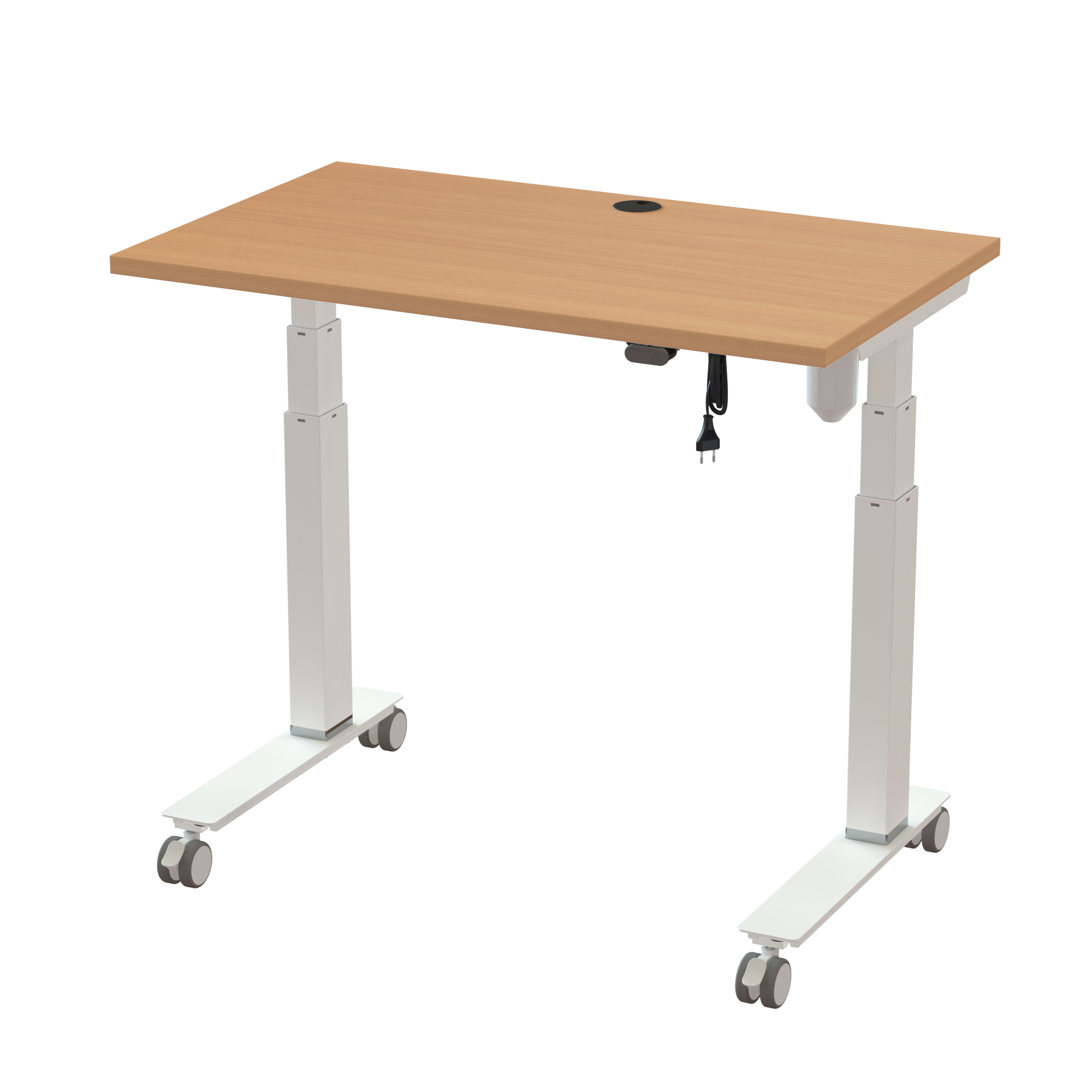

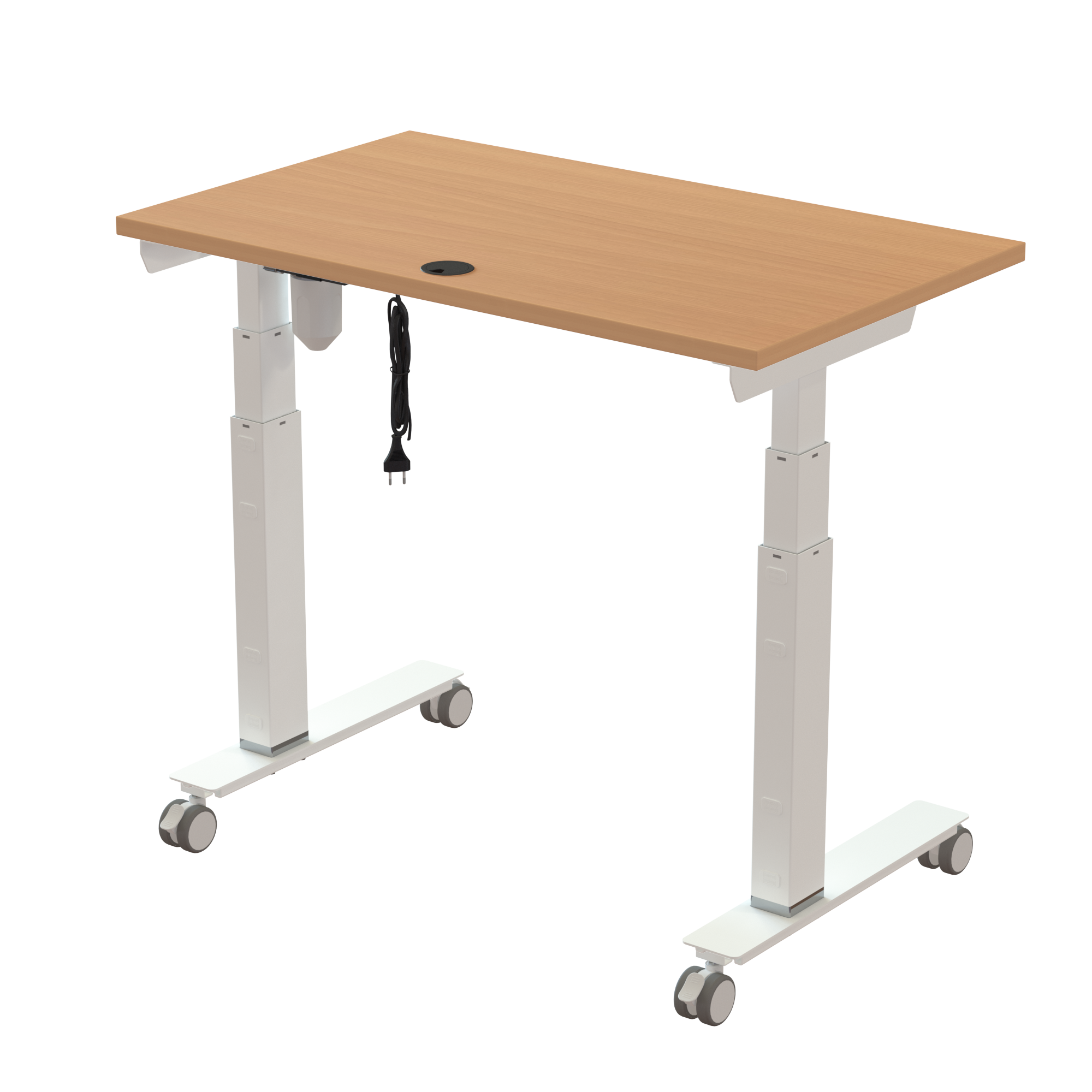

Sit Stand Desk | 100x60 cm | Beech with white frame

534-35 4W092 100-60S3 BM
534-35 4W092 100-60S3 BM
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
$ 986 incl. GST
Item no.: 534-35 4W092 100-60S3 BM

Experience ergonomic flexibility with a shallow frame footprint in this sit-to-stand C-frame configuration, tailored for the 1000 x 600 mm tabletop measurement. The column base is fitted with a 35 mm chrome ring that acts as an elegant design feature. When a lower starting position is needed, detaching the ring extends the 620-1270 mm height stroke for users down to 150 cm. Built with an RAL 9016 (white) frame colour, an beech tabletop colour with an melamine surface type, a strong 100 kg weight limit, and a straightforward 22 min assembly time.

The desk comes standard with a two-arrow user panel. Its straightforward switch-based design delivers dependable operation and excellent durability. The tactile arrow buttons can be distinguished by touch, allowing the desk to be adjusted without looking at the control panel. The desk includes mobile castors mounted onto the desk frame, offering a highly flexible solution for dynamic work environments where rearranging is common.


Table top specifications

  • Dimensions : 1000 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable port is supplied as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
534-35 4W092 100-60S3 BM
Description:
Sit Stand Desk | 100x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055CFeet and brackets C60, white$ 95,-$ 95,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141480Railset, 920 mm, neutral$ 86,-$ 86,-
1100-60S4 BMTabletop S4| 100x60 cm | Beech$ 180,-$ 180,-

Total
$ 986,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055C681066,705704142162194
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ14148091531,895704142141489
100-60S4 BM10767411,005704142160756
