Sit Stand Desk | 100x60 cm | Beech with white frame

514-35 4W092 100-60S3 BM
514-35 4W092 100-60S3 BM
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
$ 986 incl. GST
Item no.: 514-35 4W092 100-60S3 BM

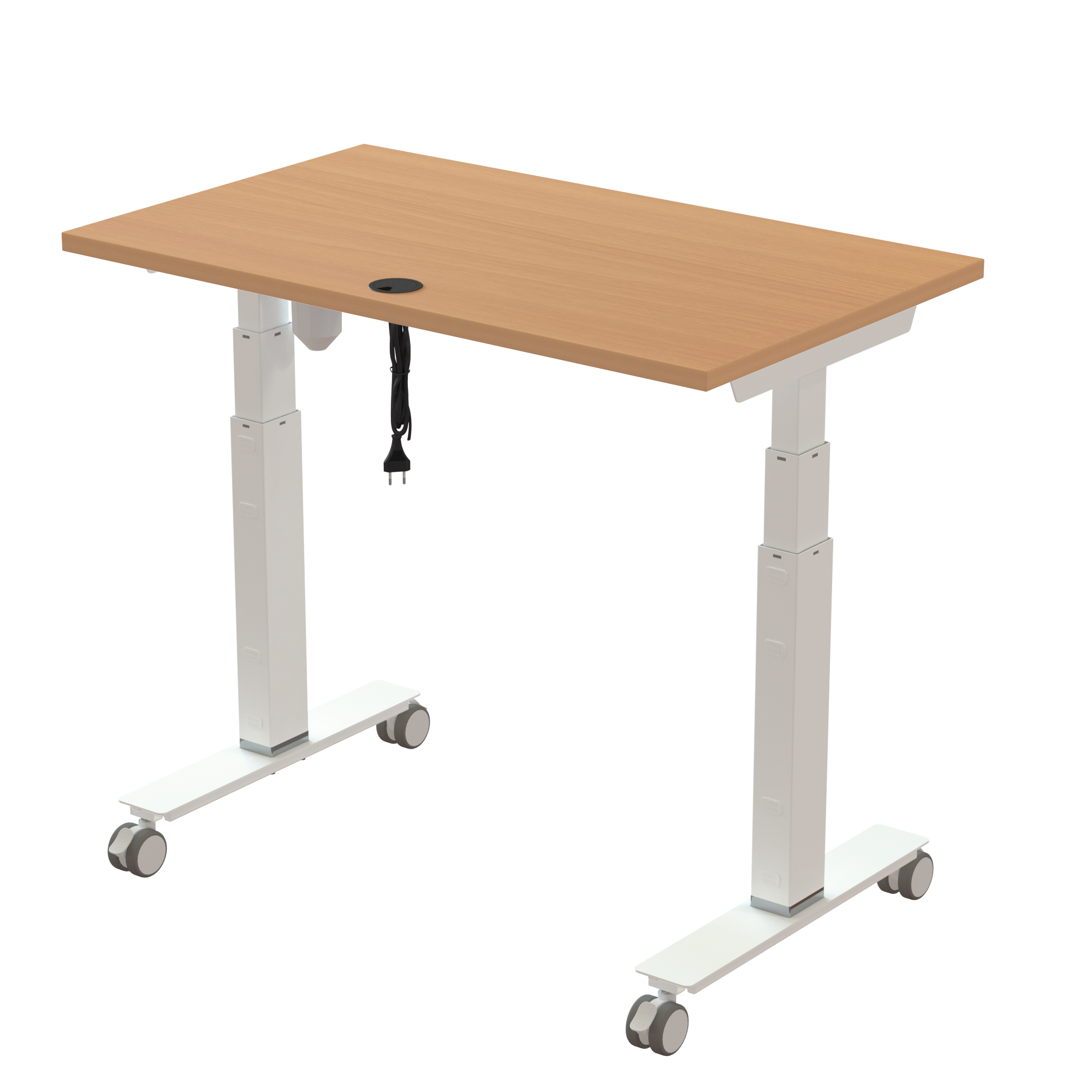

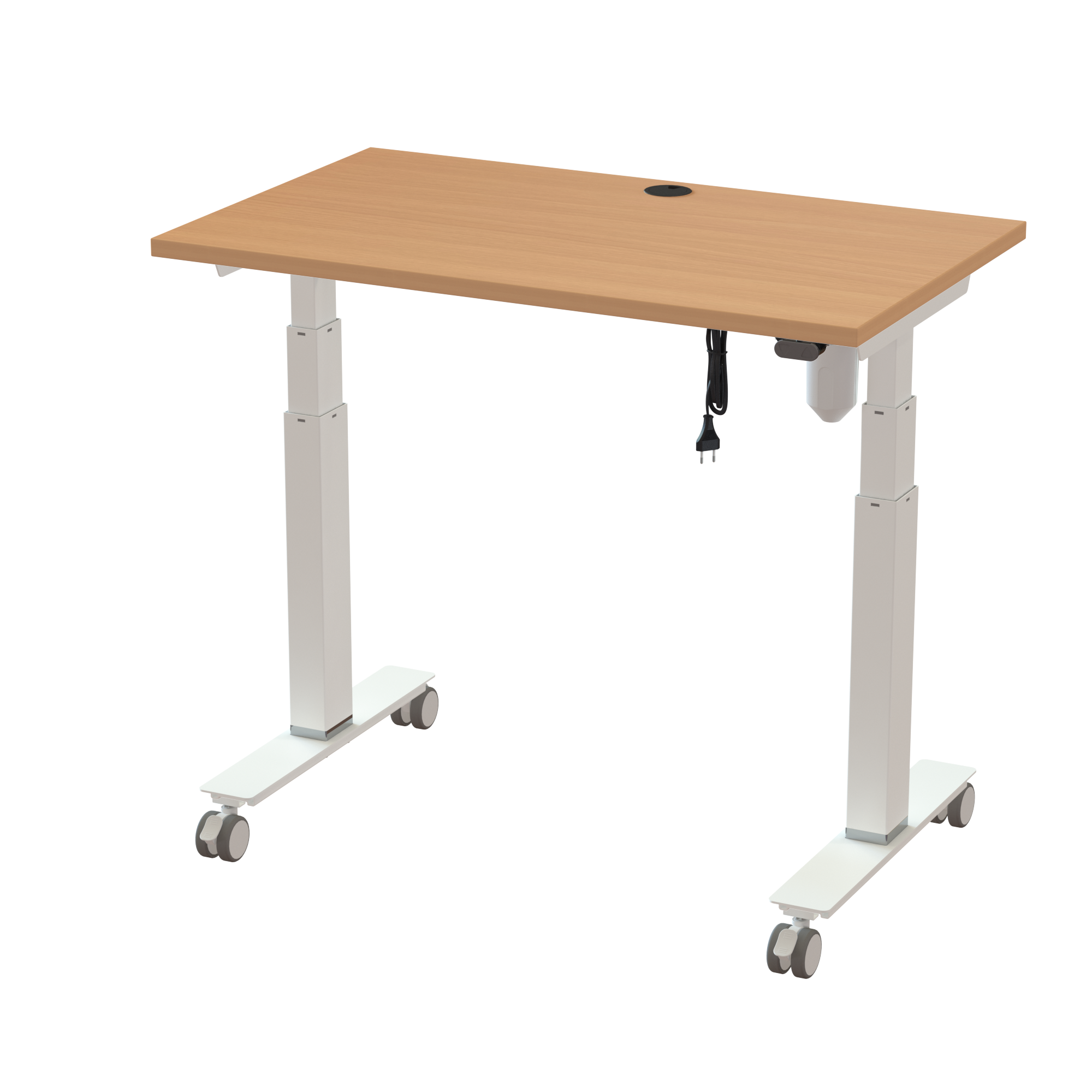

Designed to complement narrow 1000 x 600 mm tabletops, the slim T-frame gives this height adjustable desk a refined and space-efficient appearance. It features an RAL 9016 (white) frame, an beech melamine tabletop and a standard height adjustment range of 620-1270 mm. The removable 35 mm chrome rings provide an easy way to lower the desk by 35 mm when required. Built for everyday performance, the desk supports 100 kg and can be assembled in just 22 min.

A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone. The desk includes mobile castors mounted onto the desk frame, offering a highly flexible solution for dynamic work environments where rearranging is common.


Table top specifications

  • Dimensions : 1000 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, we include a standard desk grommet for cable tidiness.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: A standard two-arrow control panel is included with the desk. The simple switching mechanism is designed for reliability and long service life. Tactile arrow buttons make it easy to identify the correct direction by feel alone.
  • Motor : ConSet’s tested and reliable 1-motor drive solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
514-35 4W092 100-60S3 BM
Description:
Sit Stand Desk | 100x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141480Railset, 920 mm, neutral$ 86,-$ 86,-
1100-60S4 BMTabletop S4| 100x60 cm | Beech$ 180,-$ 180,-

Total
$ 986,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ14148091531,895704142141489
100-60S4 BM10767411,005704142160756
