Sit Stand Desk | 80x60 cm | Beech with white frame

511-35 4W072 080-60S3 BM
511-35 4W072 080-60S3 BM
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
$ 860 incl. GST
Item no.: 511-35 4W072 080-60S3 BM

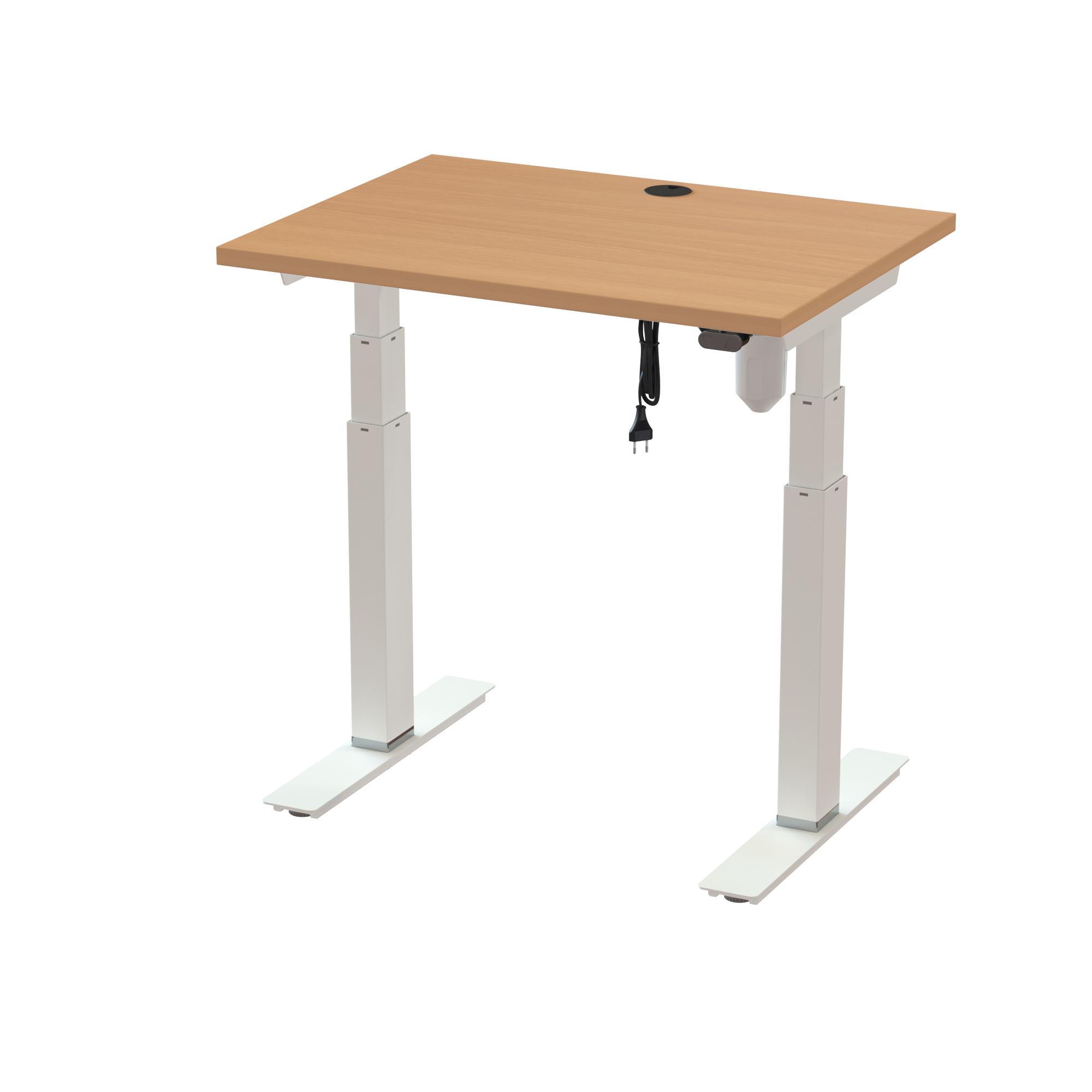

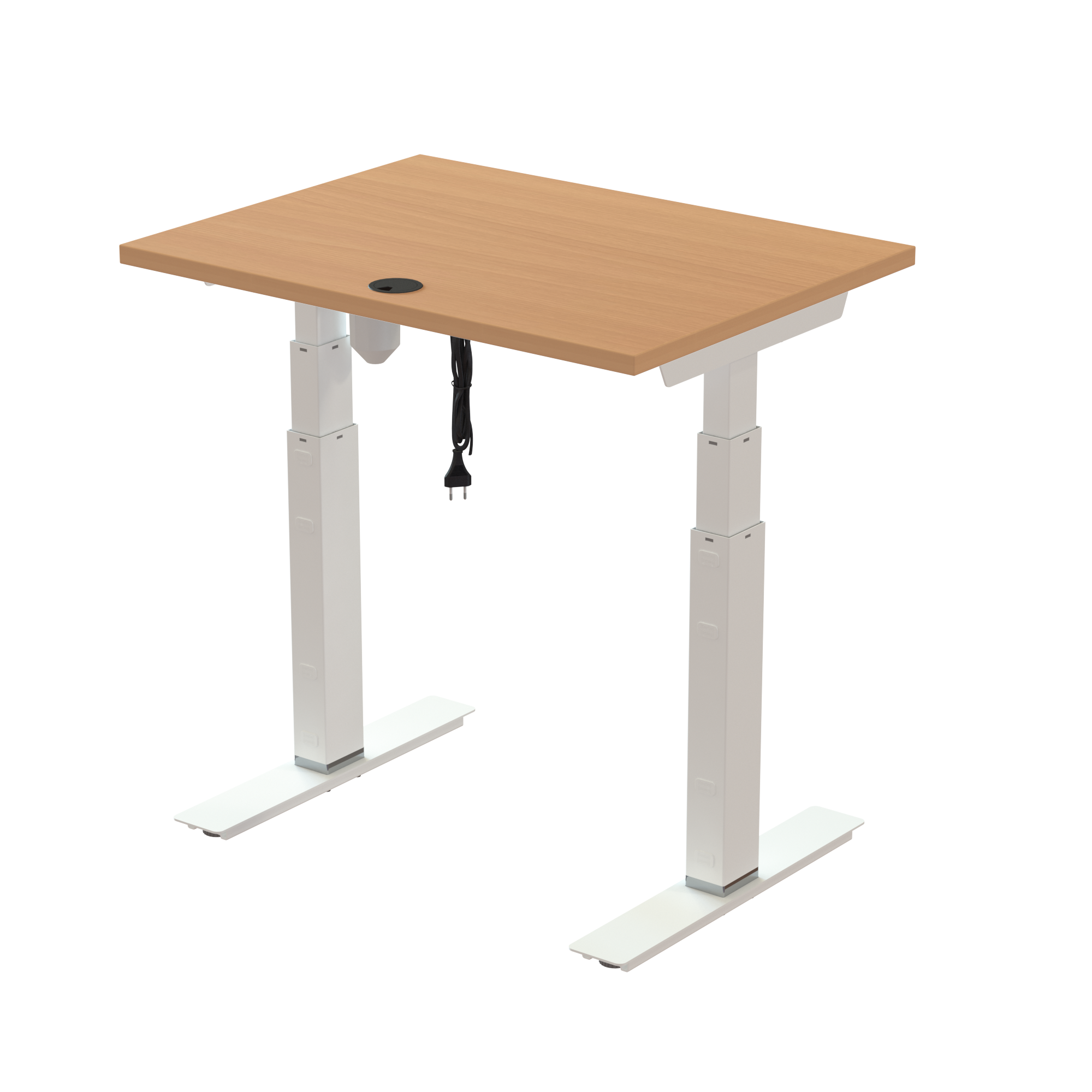

An RAL 9016 (white) frame, an beech melamine tabletop and a slim T-frame come together in this elegant height adjustable desk, designed specifically for narrow 800 x 600 mm tabletops. Standard height adjustment is 620-1270 mm. Each column is finished with a removable 35 mm chrome ring that lowers the desk by 35 mm when removed. Designed to handle up to 100 kg, the desk requires only 18 min for assembly.

The standard user panel features two tactile arrow buttons for height adjustment. The switch-based design prioritizes durability and dependable performance. Thanks to the tactile controls, the panel can be operated by touch alone.


Table top specifications

  • Dimensions : 800 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, the cable pass-through feature is a standard inclusion.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance.
  • Motor : ConSet’s powerful and dependable 1-motor system
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
511-35 4W072 080-60S3 BM
Description:
Sit Stand Desk | 80x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ143950Railset, 720 mm, neutral$ 86,-$ 86,-
1080-60S3 BMSit-Stand Desk Top | 080x60 cm | Beech$ 138,-$ 138,-

Total
$ 860,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX 4XPOWA221190,705704142133071
SQ14395071531,475704142143957
080-60S3 BM876749,005704142150900
