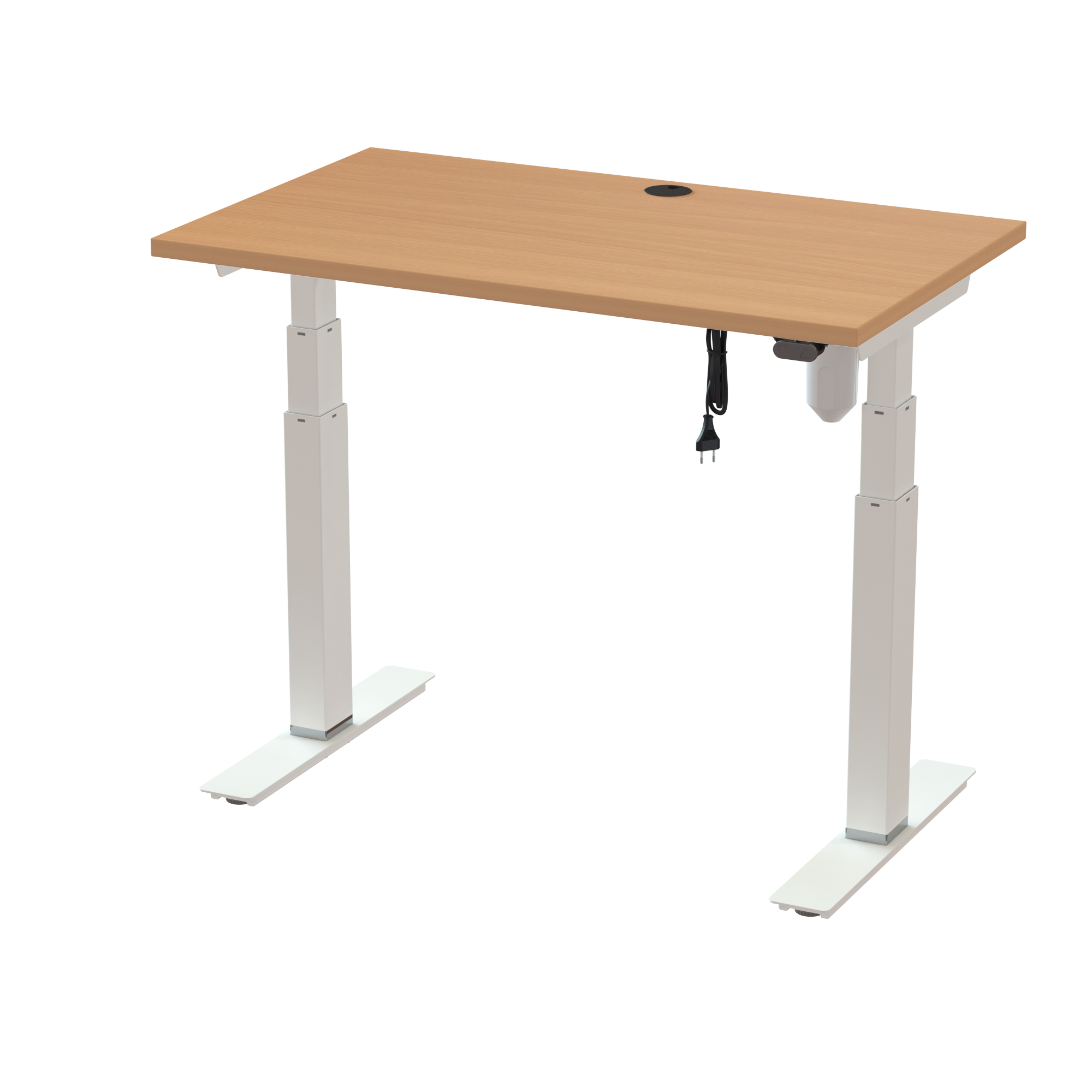

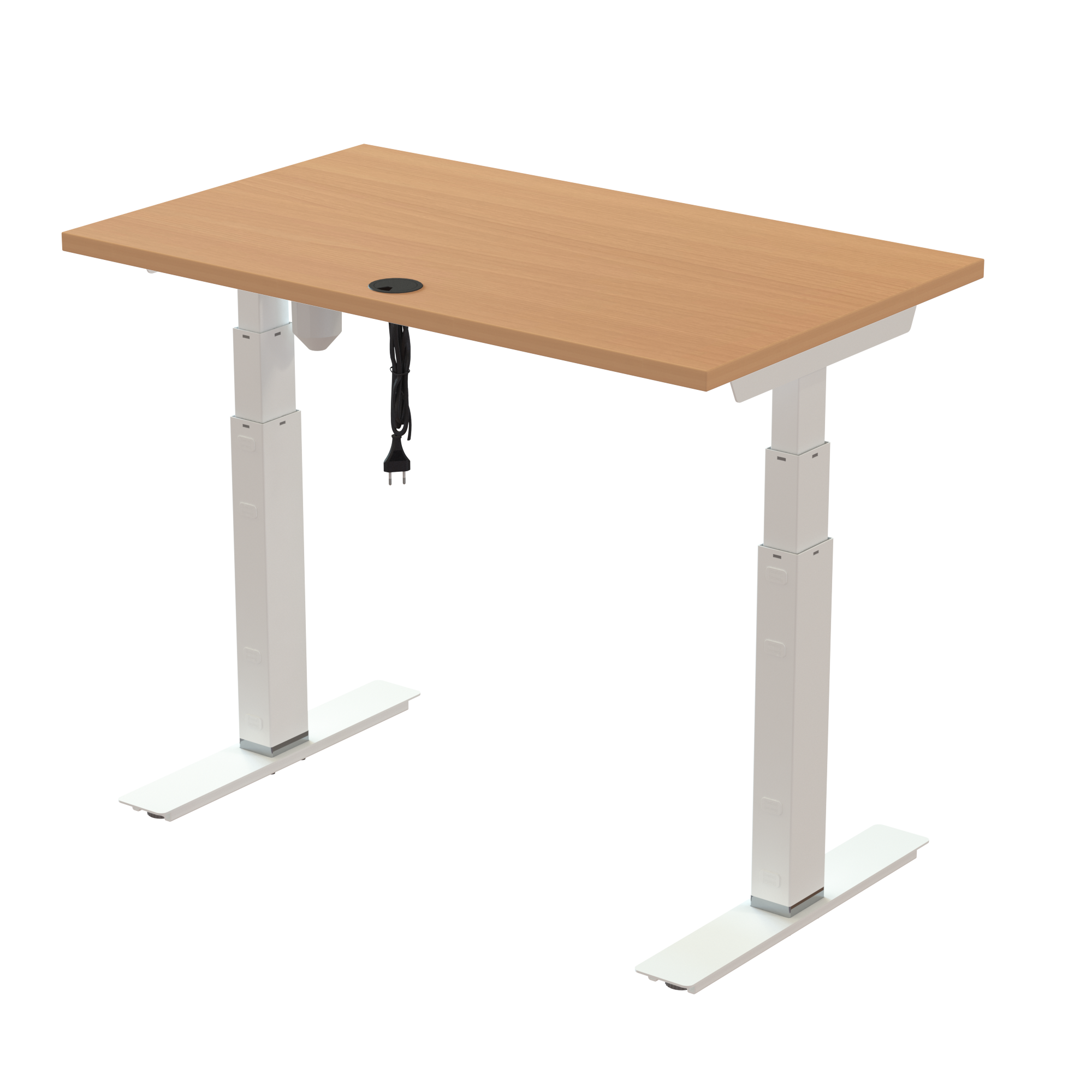

Sit Stand Desk | 100x60 cm | Beech with white frame

511-35 4W092 100-60S3 BM
511-35 4W092 100-60S3 BM
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
Sit Stand Desk | 100x60 cm | Beech with white frame
$ 902 incl. GST
Item no.: 511-35 4W092 100-60S3 BM

Create a streamlined workspace with this slim-profile sit-stand desk. The narrow T-frame is designed to complement 1000 x 600 mm tabletops while providing a clean, modern appearance. Featuring an RAL 9016 (white) frame and an beech melamine tabletop, the desk offers a standard adjustment range of 620-1270 mm. Removing the 35 mm chrome rings lowers the desk by 35 mm, making it suitable for users as short as 150 cm. The sturdy construction supports up to 100 kg, while assembly takes just 18 min.

The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance.


Table top specifications

  • Dimensions : 1000 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, the tabletop comes with a cable grommet included.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s stable 1-motor mechanism with documented reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
511-35 4W092 100-60S3 BM
Description:
Sit Stand Desk | 100x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ141480Railset, 920 mm, neutral$ 86,-$ 86,-
1100-60S4 BMTabletop S4| 100x60 cm | Beech$ 180,-$ 180,-

Total
$ 902,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX 4XPOWA221190,705704142133071
SQ14148091531,895704142141489
100-60S4 BM10767411,005704142160756
