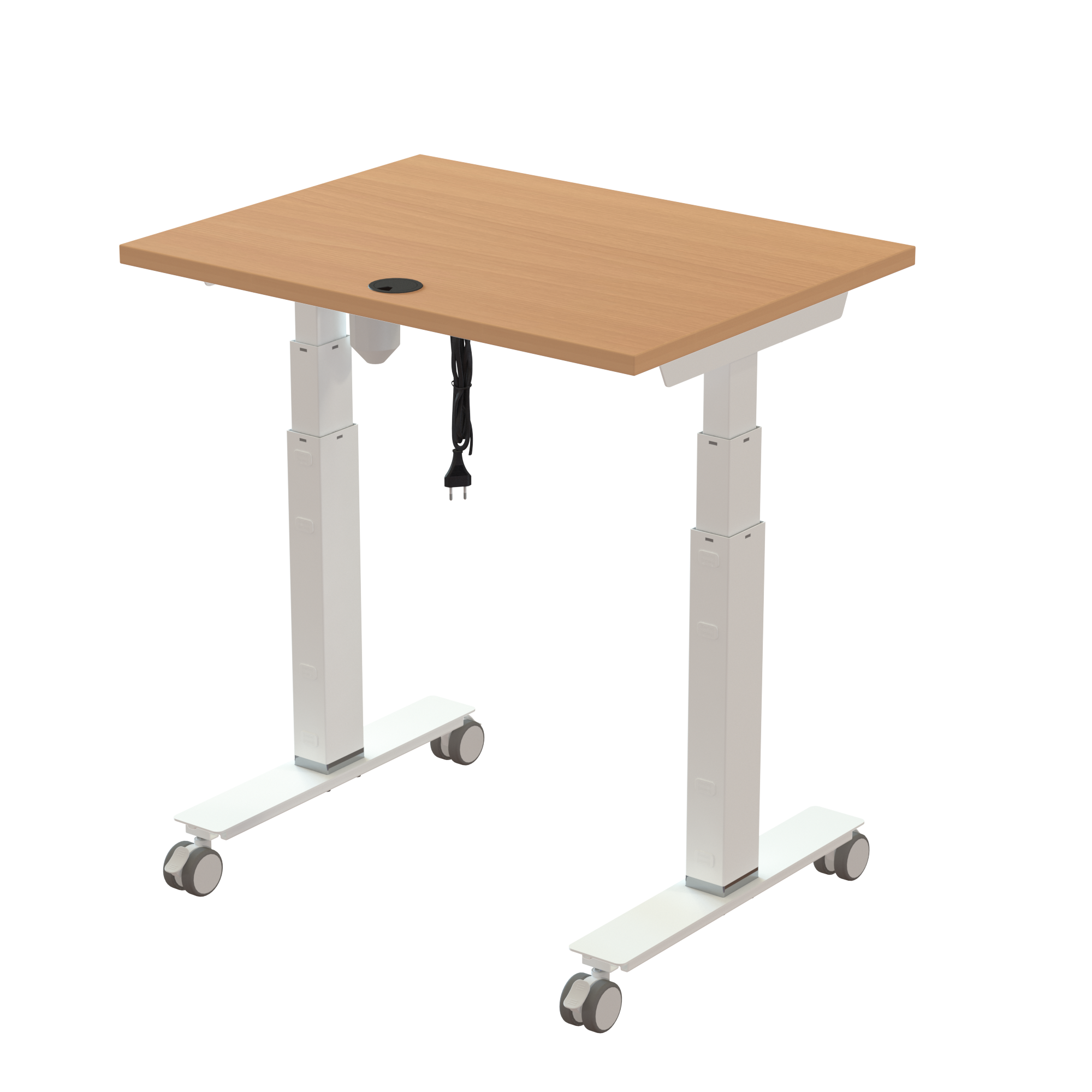

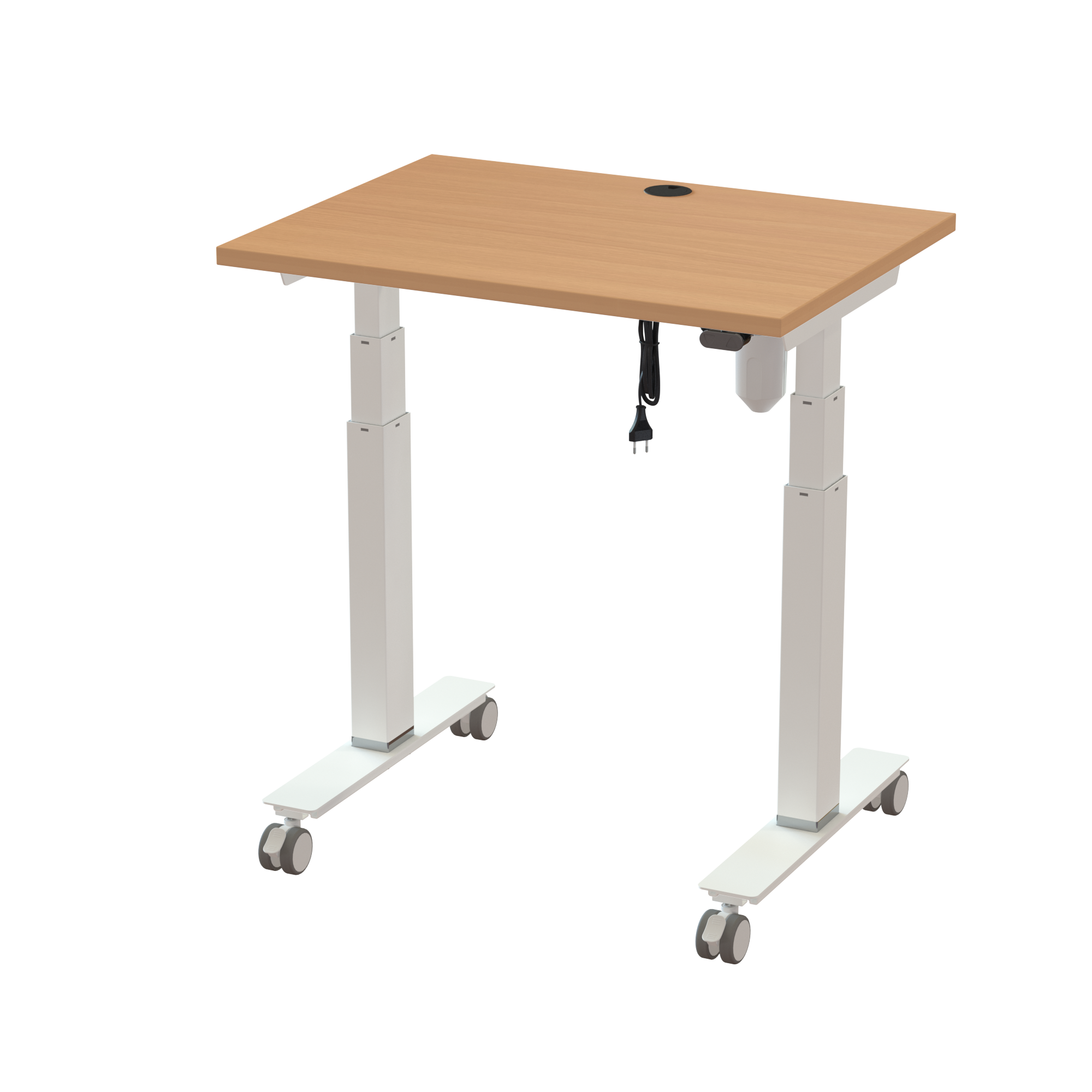

Sit Stand Desk | 80x60 cm | Beech with white frame

514-35 4W072 080-60S3 BM
514-35 4W072 080-60S3 BM
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
Sit Stand Desk | 80x60 cm | Beech with white frame
$ 944 incl. GST
Item no.: 514-35 4W072 080-60S3 BM

The slim T-frame creates a balanced look with narrow 800 x 600 mm tabletops while maintaining excellent stability. Combined with an RAL 9016 (white) frame and an beech melamine tabletop, the desk offers a standard height adjustment range of 620-1270 mm. Simply remove the 35 mm chrome rings to lower the desk by 35 mm for users as short as 150 cm. Supporting loads of up to 100 kg, the desk is quick to assemble in 22 min.

The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation. The desk has castors mounted onto the desk frame, making it incredibly easy to roll the entire workstation around and change your office layout in seconds.


Table top specifications

  • Dimensions : 800 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, it features a standard plastic grommet.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.
  • Motor : ConSet’s stable 1-motor mechanism with documented reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
514-35 4W072 080-60S3 BM
Description:
Sit Stand Desk | 80x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ143950Railset, 720 mm, neutral$ 86,-$ 86,-
1080-60S3 BMSit-Stand Desk Top | 080x60 cm | Beech$ 138,-$ 138,-

Total
$ 944,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ14395071531,475704142143957
080-60S3 BM876749,005704142150900
