Sit Stand Desk | 160x60 cm | Beech with white frame

513-35 4W152 160-60S3 BM
513-35 4W152 160-60S3 BM
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
$ 1011 incl. GST
Item no.: 513-35 4W152 160-60S3 BM

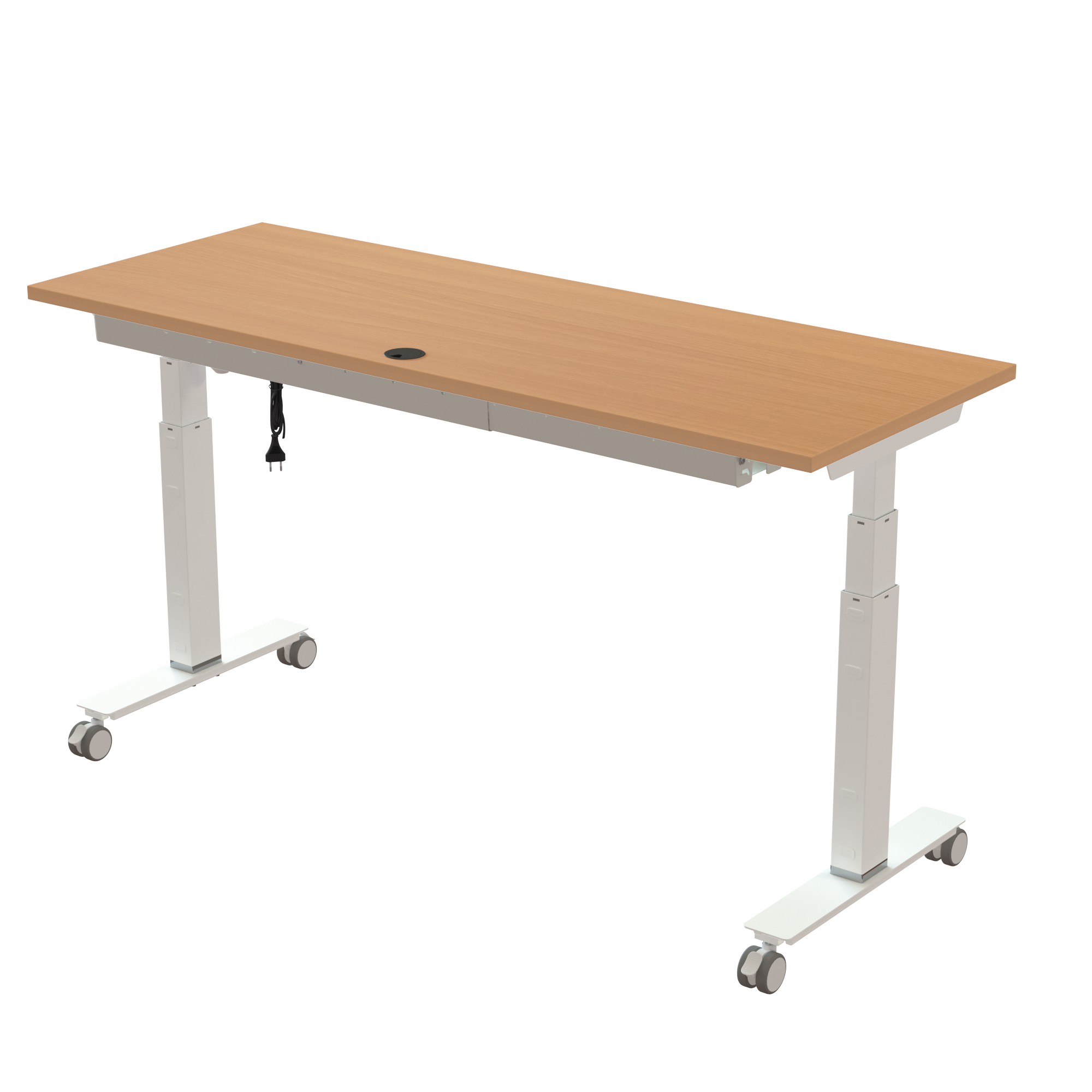

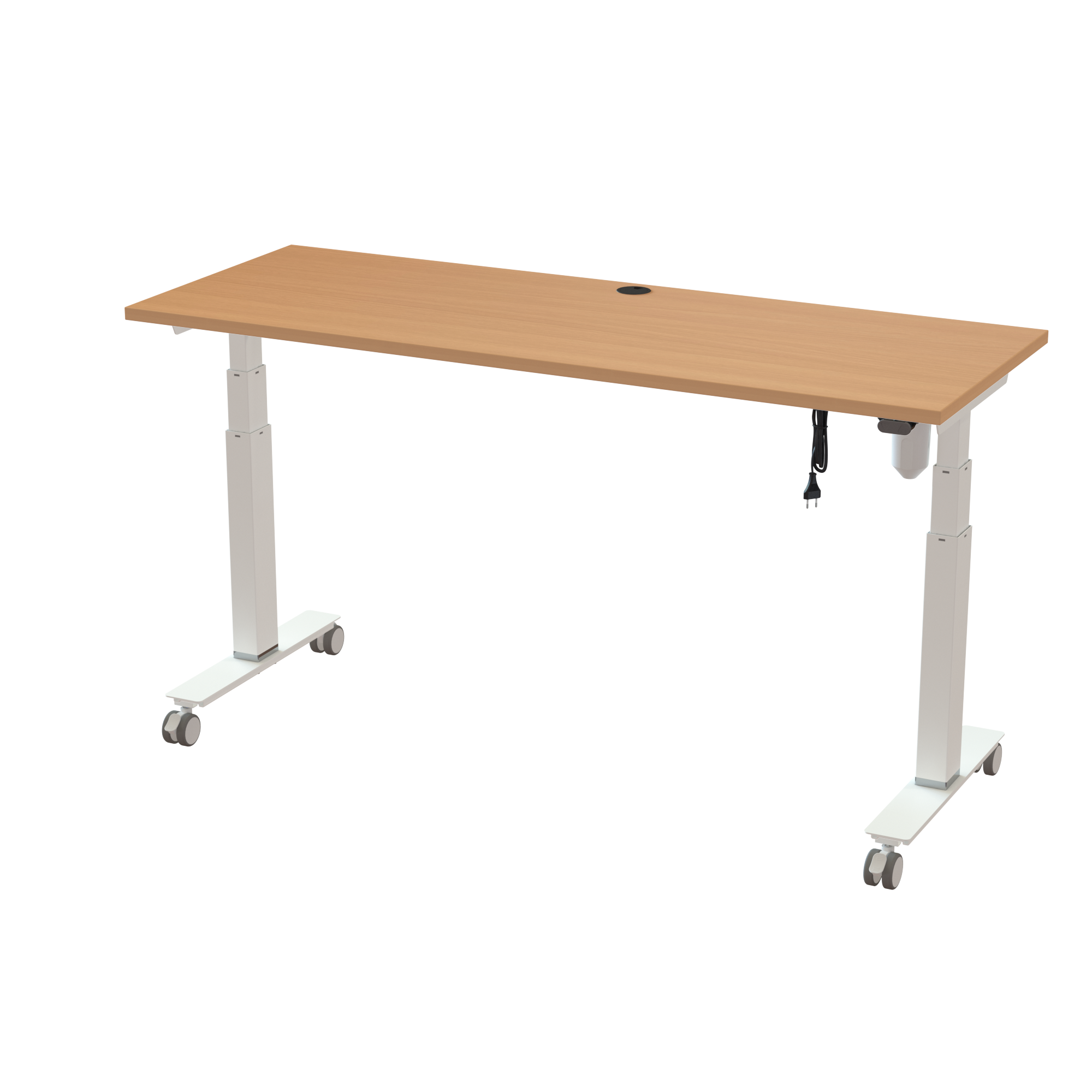

The slim T-frame creates a balanced look with narrow 1600 x 600 mm tabletops while maintaining excellent stability. Combined with an RAL 9016 (white) frame and an beech melamine tabletop, the desk offers a standard height adjustment range of 620-1270 mm. Simply remove the 35 mm chrome rings to lower the desk by 35 mm for users as short as 150 cm. Supporting loads of up to 100 kg, the desk is quick to assemble in 36 min.

The desk is equipped with a standard two-arrow user panel. Built around a simple switch-based concept, it offers reliable everyday operation and outstanding durability. The tactile controls allow users to locate the up and down functions without visual guidance. The desk has a specialized cable tray mounted under the tabletop, achieving complete convenience with a hinged design that opens easily below the cable grommet exit point. Fitted with agile castors at the base, the entire desk can be moved around without hassle. It is RAL 9016 (white) frame coloured, same as the desk frame.


Table top specifications

  • Dimensions : 1600 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable management grommet is included as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk includes a standard two-button arrow controller. The uncomplicated switch-based design is engineered for durability and consistent operation. Tactile markings on the buttons make it possible to adjust the desk without looking down.
  • Motor : ConSet’s robust and proven 1-motor solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
513-35 4W152 160-60S3 BM
Description:
Sit Stand Desk | 160x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX CW096-166Universal cable-tray, White$ 67,-$ 67,-
1501-XX HXX1Castorset (4 in white), 501-9, 501-37, XXX-35$ 84,-$ 84,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-60S3 BMSit-Stand Desk Top | 160x60 cm | Beech$ 138,-$ 138,-

Total
$ 1011,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX CW096-166888153,805704142144800
501-XX HXX1121251,205704142152621
501-XX 4XPOWA221190,705704142133071
SQ134460151533,105704142134467
160-60S3 BM16767422,005704142151020
