Sit Stand Desk | 160x60 cm | Beech with white frame

511-35 4W152 160-60S3 BM
511-35 4W152 160-60S3 BM
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
Sit Stand Desk | 160x60 cm | Beech with white frame
$ 860 incl. GST
Item no.: 511-35 4W152 160-60S3 BM

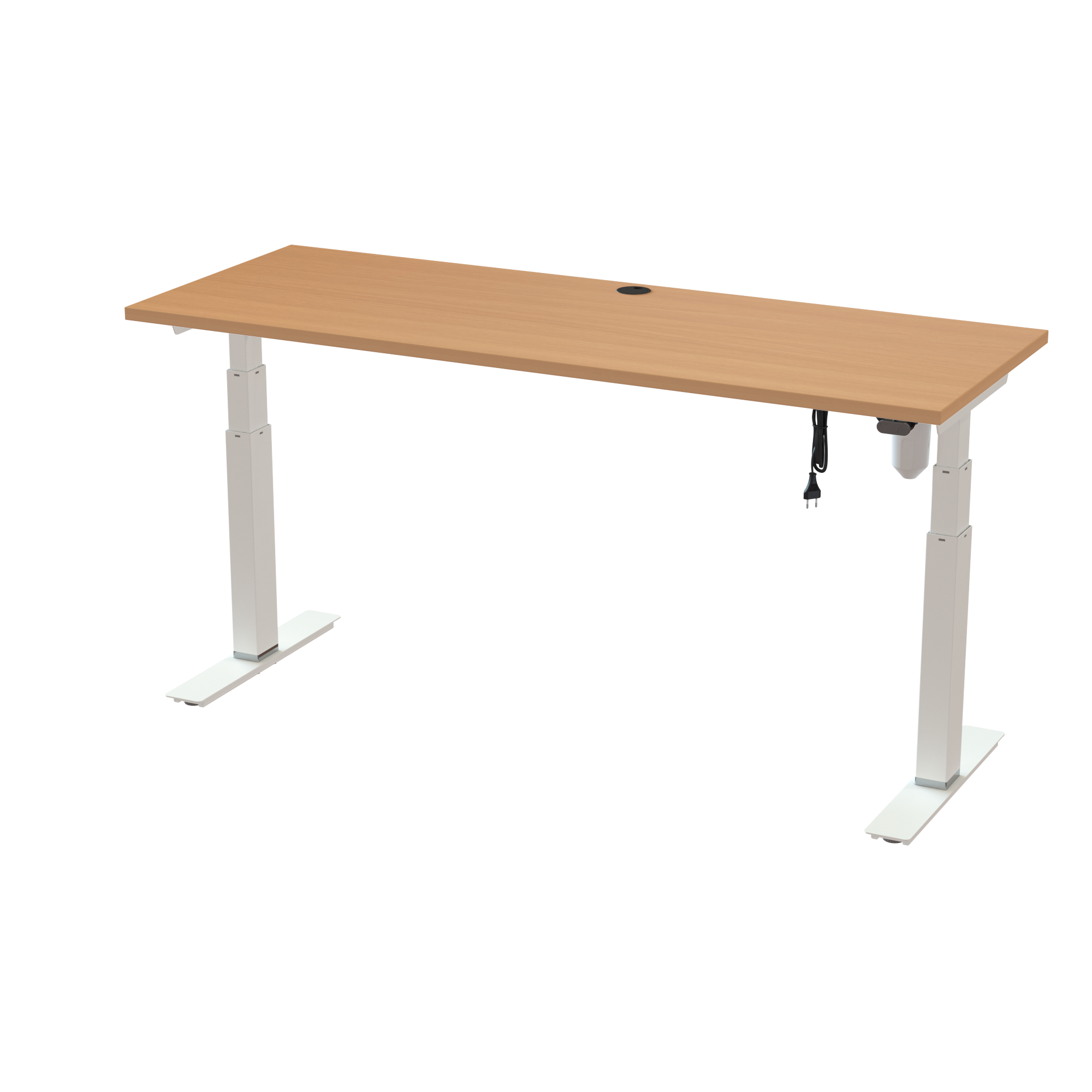

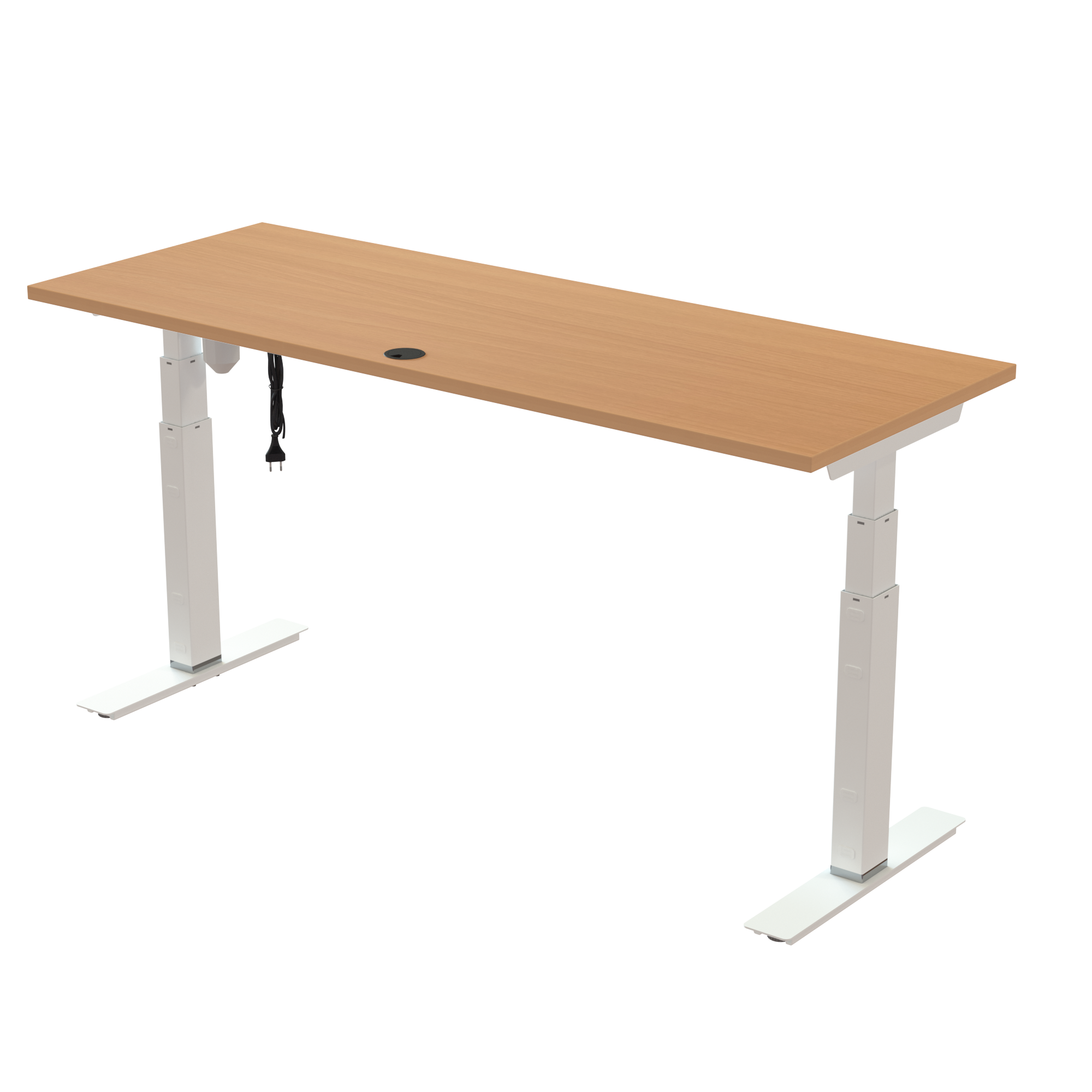

Combining ergonomic performance with a compact footprint, this height adjustable desk features a slim T-frame developed for narrow 1600 x 600 mm tabletops. The RAL 9016 (white) frame and beech melamine tabletop are complemented by removable 35 mm chrome rings that lower the desk by 35 mm when detached. Standard height adjustment: 620-1270 mm. Engineered to support 100 kg, this desk combines dependable performance with a straightforward assembly time of 22 min.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.


Table top specifications

  • Dimensions : 1600 x 600 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: beech melamine, a cable management grommet is included as standard.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The standard control panel is equipped with two tactile arrow buttons. Its simple internal design ensures reliable performance over many years of use. Users can identify the up and down controls by touch, enabling intuitive operation.
  • Motor : ConSet’s tested and reliable 1-motor drive solution
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
511-35 4W152 160-60S3 BM
Description:
Sit Stand Desk | 160x60 cm | Beech with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW055TFeet and brackets T60, white$ 95,-$ 95,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-60S3 BMSit-Stand Desk Top | 160x60 cm | Beech$ 138,-$ 138,-

Total
$ 860,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW055T681066,705704142161975
501-XX 4XPOWA221190,705704142133071
SQ134460151533,105704142134467
160-60S3 BM16767422,005704142151020
