Manufacturer of electric height adjustable desks ...

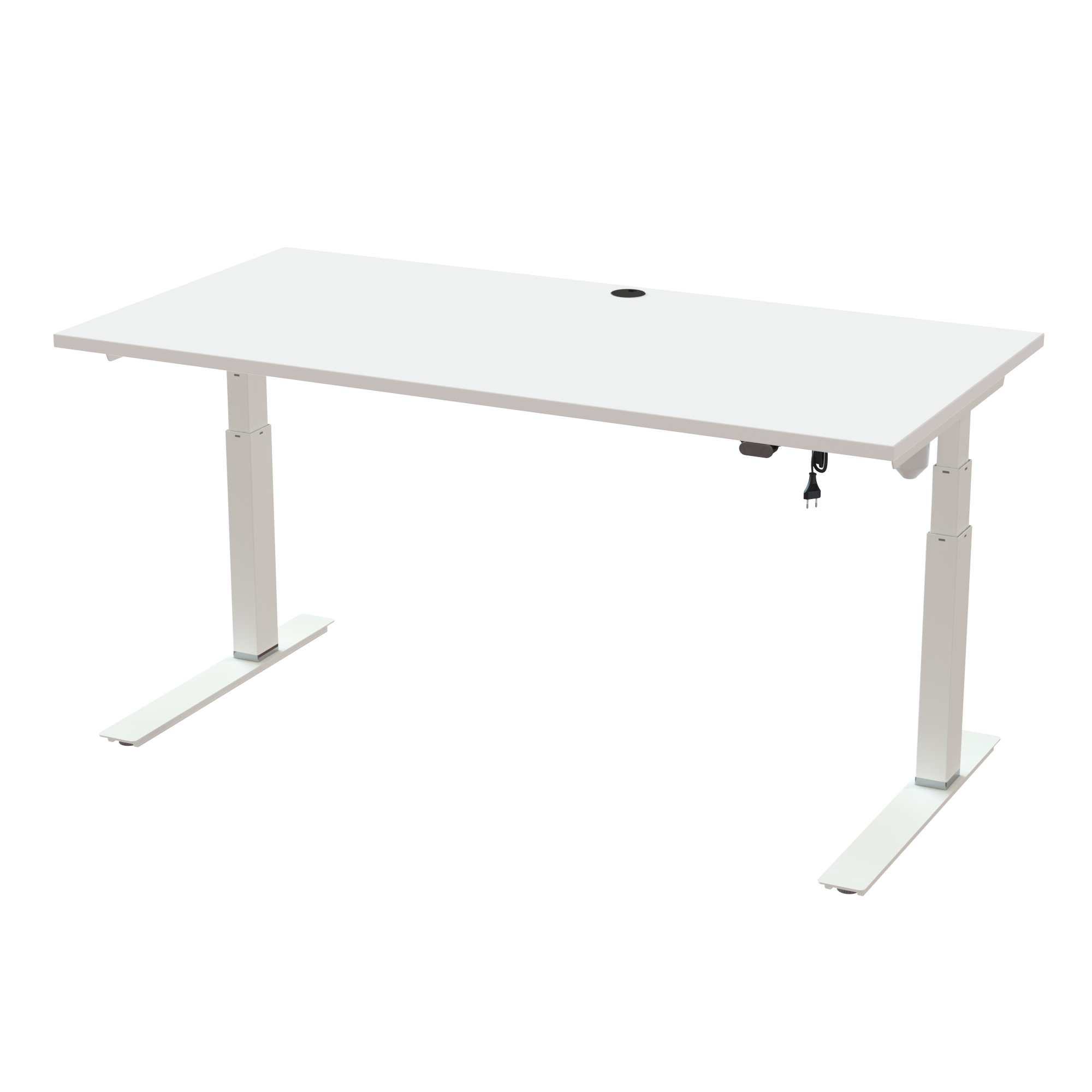

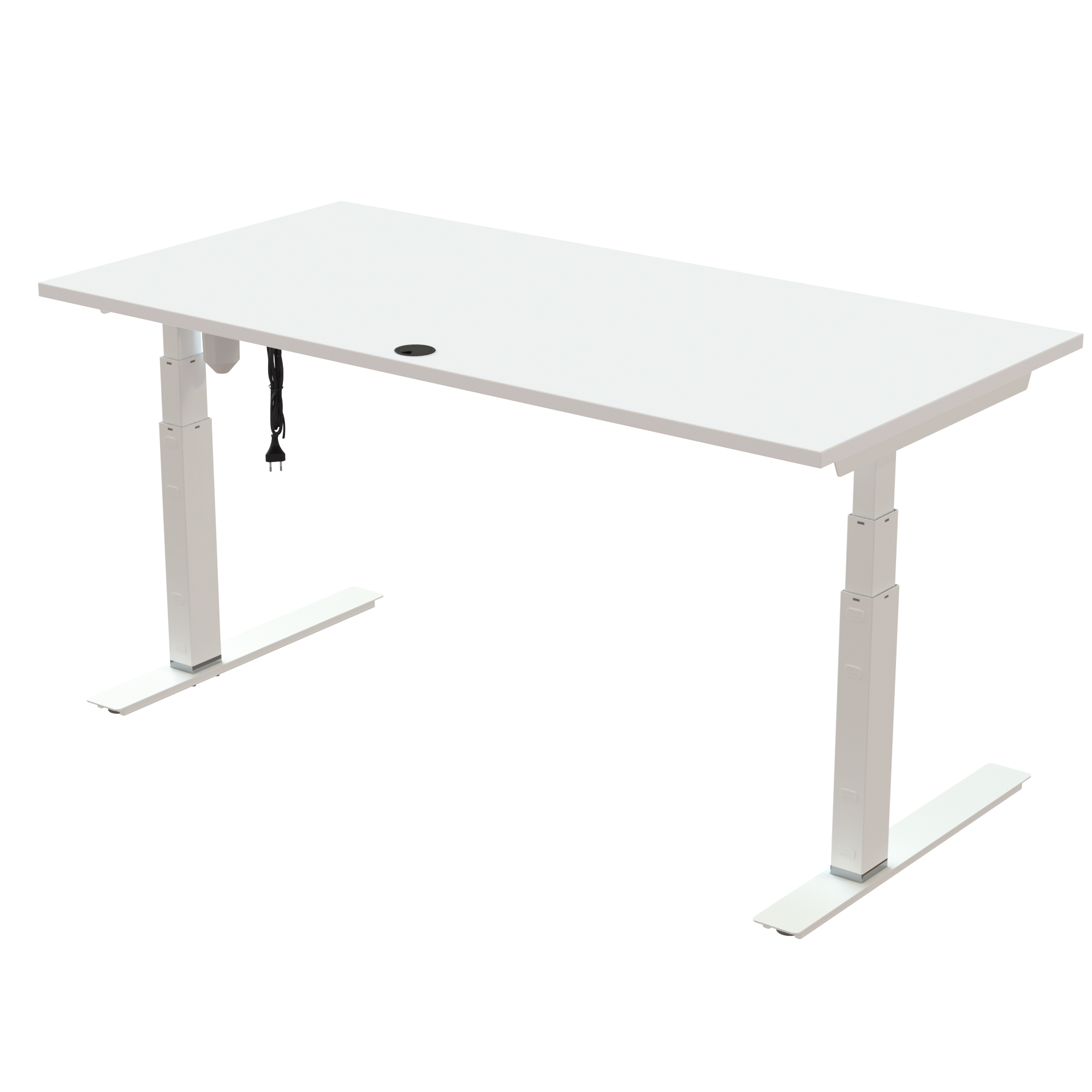

Sit Stand Desk | 160x80 cm | White with white frame

521-35 4W152 160-80S3 WM
521-35 4W152 160-80S3 WM
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
Sit Stand Desk | 160x80 cm | White with white frame
$ 922 incl. GST
Item no.: 521-35 4W152 160-80S3 WM

Elegance meets ergonomics in this C-frame sit-stand desk, perfectly proportioned for the 1600 x 800 mm tabletop dimension. The 35 mm chrome base ring is a brilliant design touch that highlights the column, while also providing the flexibility to extend the 620-1270 mm lifting stroke for users down to 150 cm when removed. Finished with an RAL 9016 (white) frame colour, an white tabletop colour with an melamine surface material, an 100 kg load capacity, and a rapid 23 min assembly time.

A two-arrow user panel comes fitted as standard. The control system uses a simple switching principle that is both robust and reliable. Raised tactile arrows help users identify the controls by touch.


Table top specifications

  • Dimensions : 1600 x 800 mm
  • Core material: 25 mm chipboard, classified E0
  • Surface finish: white melamine, the tabletop comes with a cable grommet included.
  • Edges: 2 mm ABS, rounded off

Frame specifications

  • Material/finish: Powdercoated steel RAL 9016 (white)
  • Height adjustment: 620-1270 mm
  • Lifting capacity: 100 kg
  • Operation: The desk comes with a standard tactile two-arrow user panel. The switch-based control system is designed for reliability, ease of use and long-term durability. The raised arrow buttons can be recognized by feel, allowing effortless adjustment without visual attention.
  • Motor : ConSet’s stable 1-motor mechanism with demonstrated reliability
Table top color:
Frame color:
Table top size:
Table top thickness:
Detailed product information
Download 3D SAT and STEP files (ONLY AVAILABLE AT LOG-IN)
Download high resolution images (ONLY AVAILABLE AT LOG-IN)
Stock and components

A Product can consist of several components. Example, 3 boxes: Top, Legs and cross beam support. Number, decription, Item number, weight, volume and price on the seperate components is listet below.

Item no.:
521-35 4W152 160-80S3 WM
Description:
Sit Stand Desk | 160x80 cm | White with white frame
Stock status
AmountItem no.DescriptionUnit pricePrice
1501-X2 XWXXXLifting column set, White$ 440,-$ 440,-
1501-XX XW075CFeet and brackets C80, white$ 111,-$ 111,-
1501-XX 4XPOWAPower Box A$ 101,-$ 101,-
1SQ134460Railset, 1520mm, neutral$ 86,-$ 86,-
1160-80S3 WMSit-Stand Desk Top | 160x80 cm | White$ 184,-$ 184,-

Total
$ 922,-
Component information
Item no.Length (cm)Width (cm)Height (cm)Weight (kg)EAN
501-X2 XWXXX77191715,005704142161616
501-XX XW075C881169,205704142162156
501-XX 4XPOWA221190,705704142133071
SQ134460151533,105704142134467
160-80S3 WM16787423,005704142132951
